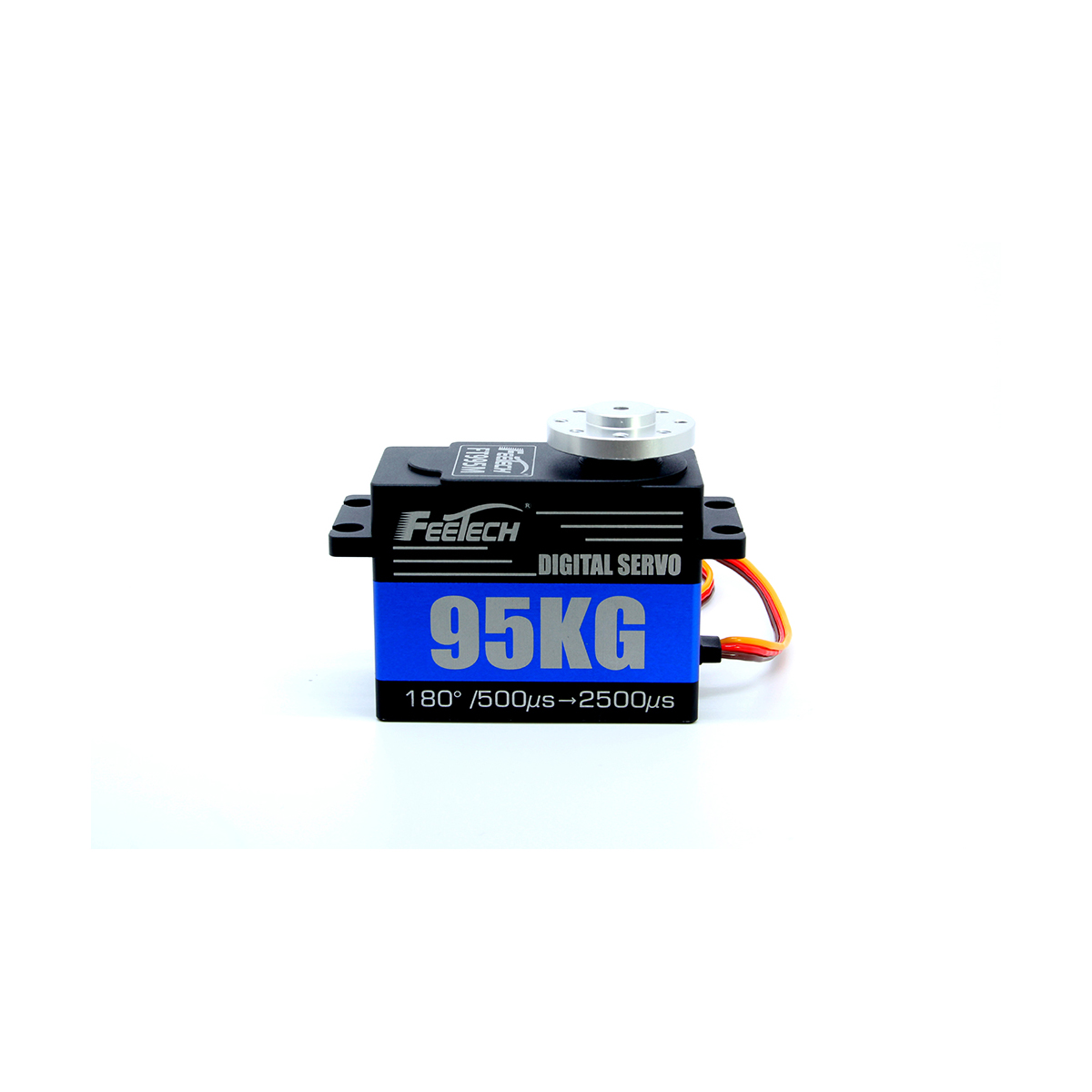

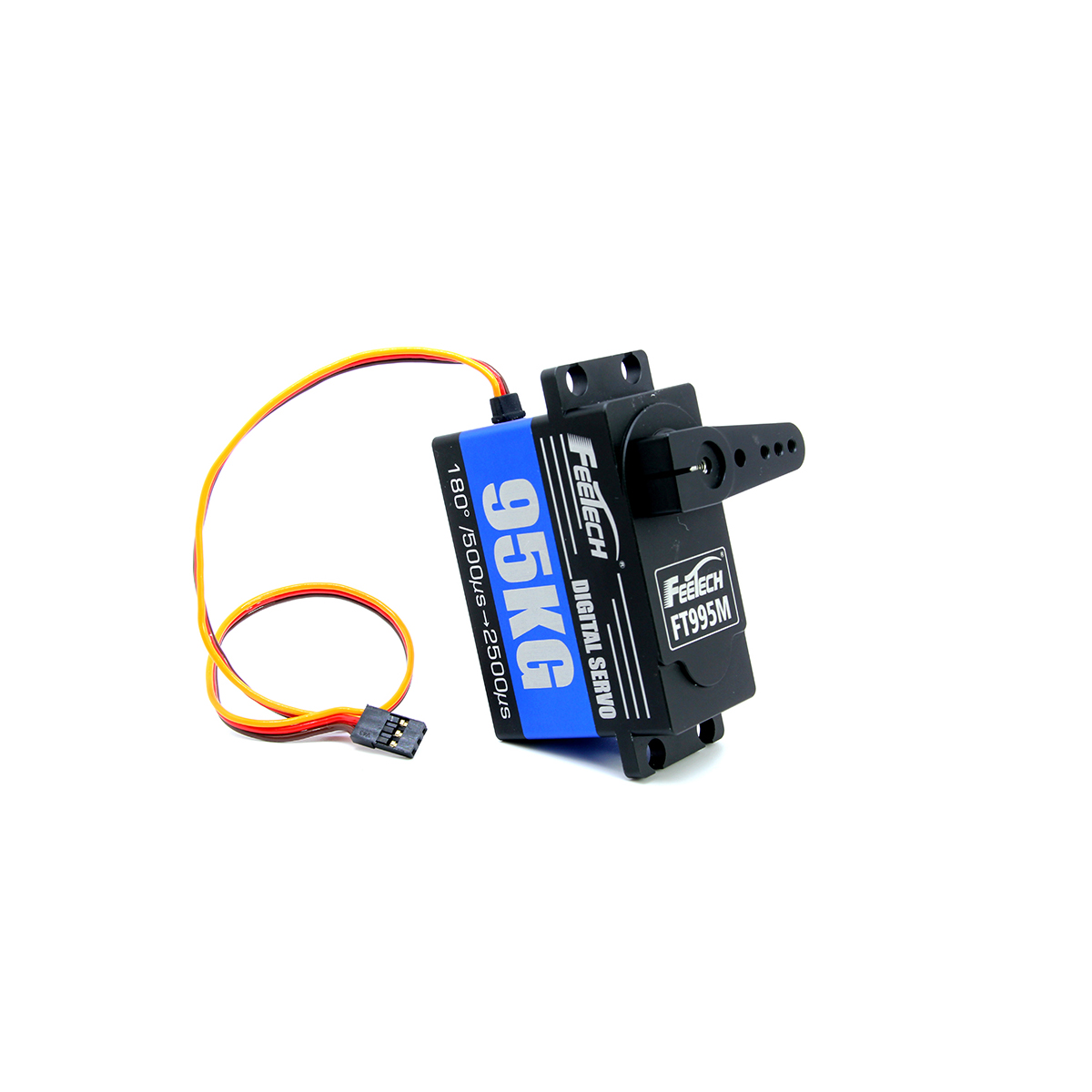

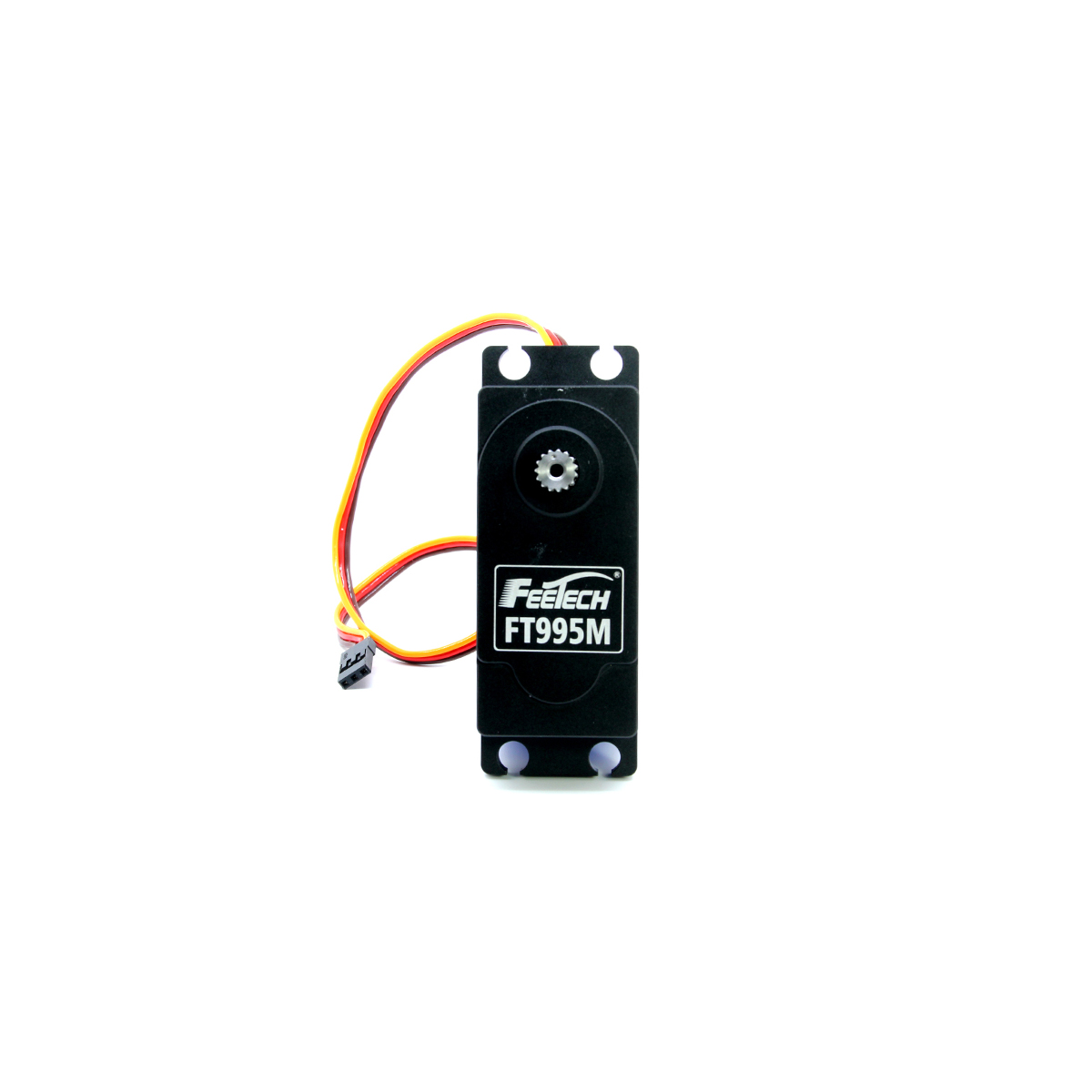

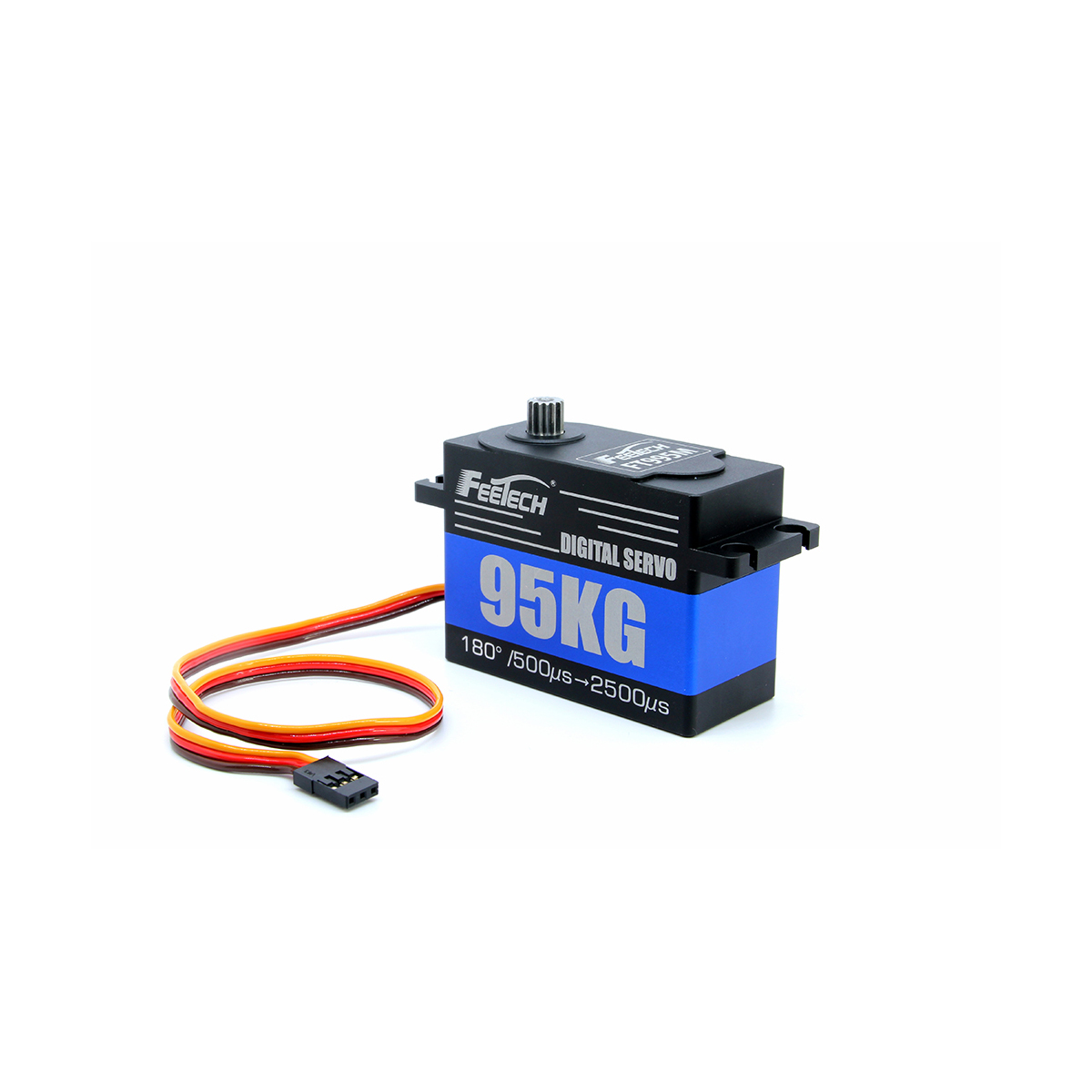

Feetech FT995M 7.4V 95kg 180 Degree Servo Steel Gear Core Motor for RC Car RC Model DIY Robot
Feetech FT995M 7.4V 95kg 180 Degree Servo Steel Gear Core Motor for RC Car RC Model DIY Robot
Standard type servo by Feetech. It is powered with voltagefrom 7.4 V to 8.4 V.
Current consumption without load is 600mA. Range of servo movement is from 0° to 180°.

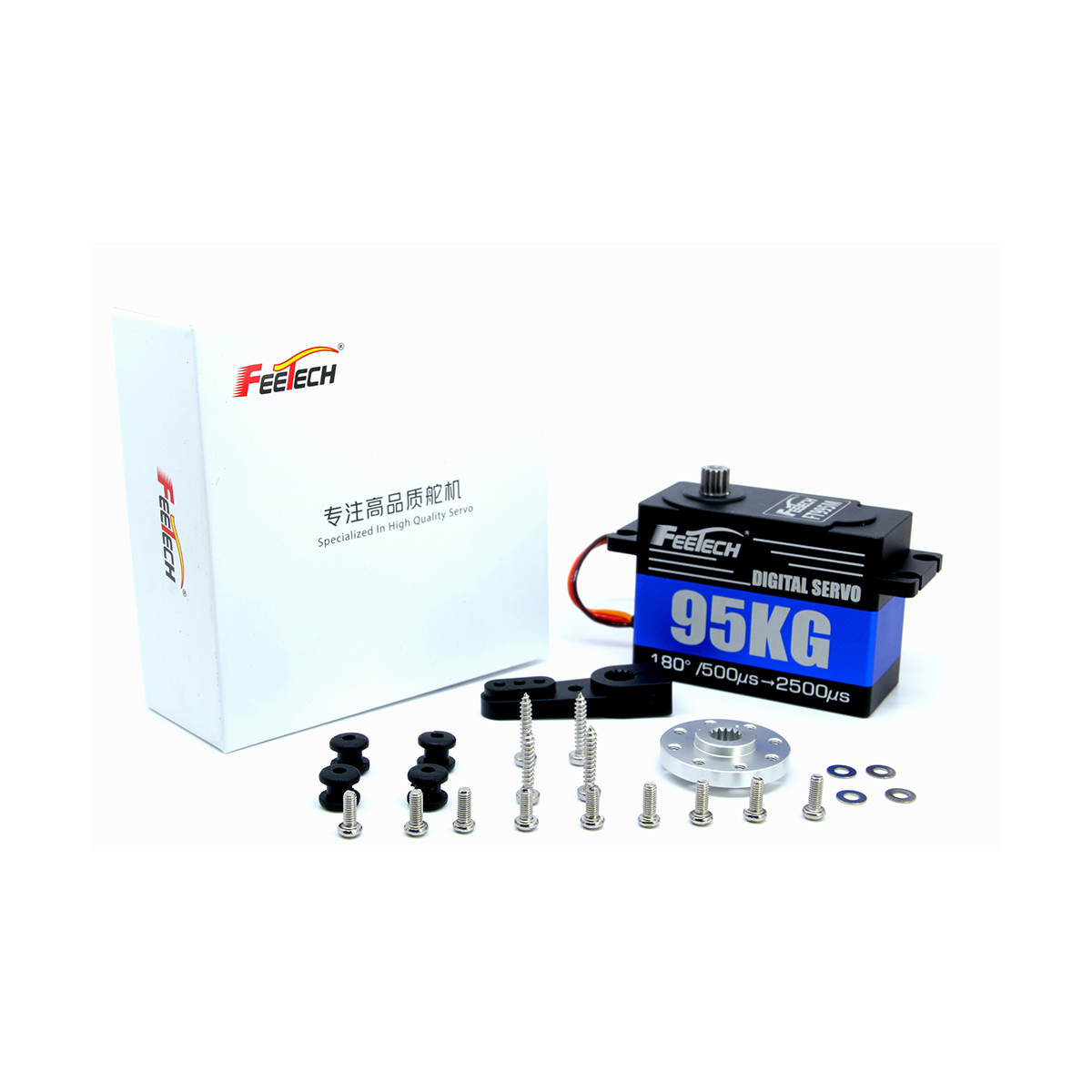

It has a 300mm long cable that is terminated with a JR connector. The kit includes several
additional servo orbs and the parts needed to mount them.
Model: FT-995M-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃

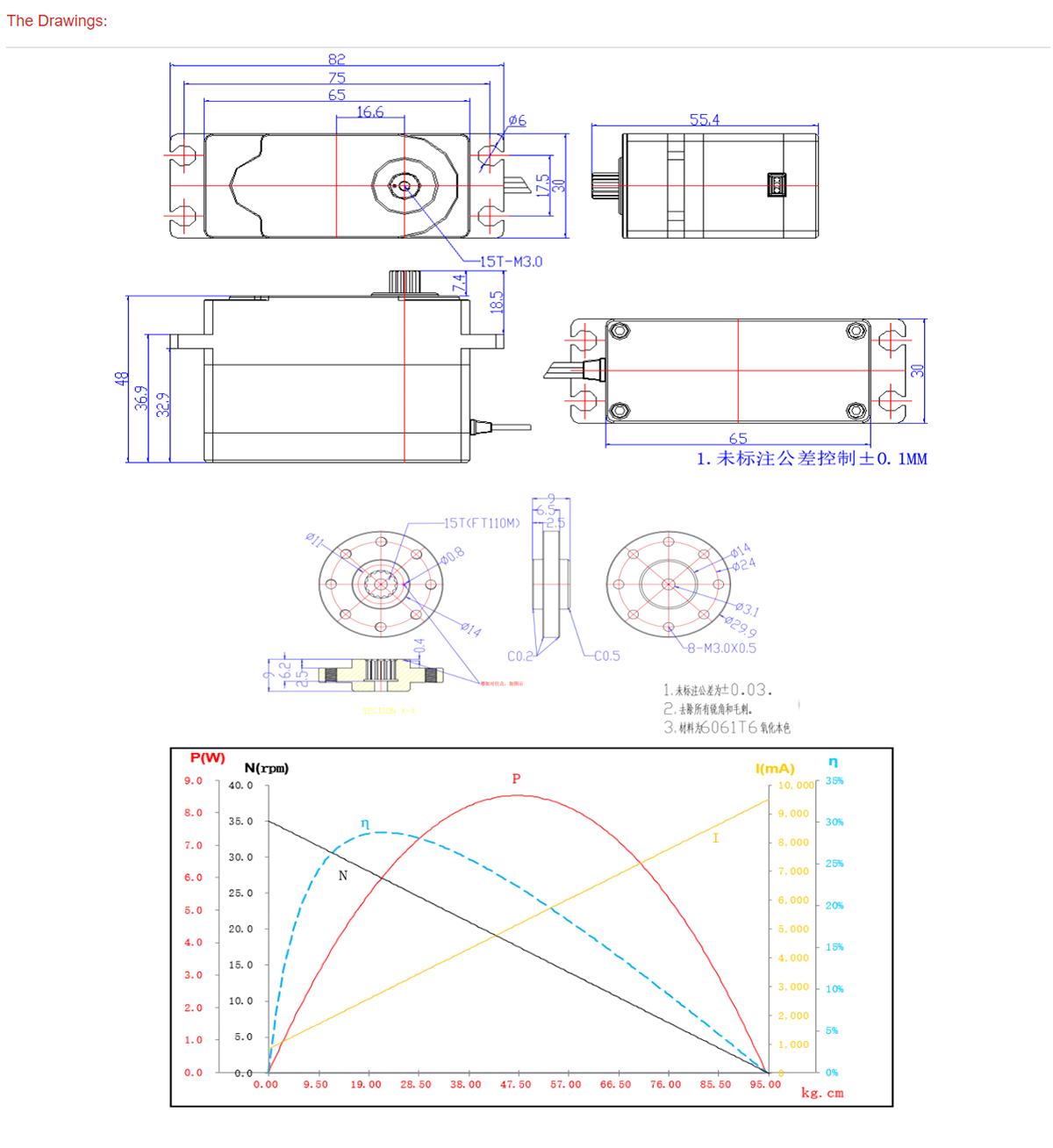

Size: 65*30*48mm
Weight: 187.5g±1g
Gear type: Steel
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 15T/7.6mm
Gear Ratio: 1/399
Case: Aluminium
Connector wire: 30±0.5CM
Motor: Core Motor
Operating Voltage Range: 6-9V
Idle current (at stopped): 30mA@8.4V
No load speed: 0.268sec/60°(40RPM)@7.4V
Running current (at no load): 600mA@7.4V
Peak stall torque: 95kg.cm@7.4V, 105kg.cm@8.4V
Rated torque: 22.5kg.cm@7.4V
Stall current: 9.5A@7.4V
Command signal: Pulse width modulation
Control System Type: Digital comparator
Pulse width range: 500~2500 μsec
Stop position (Neutral position): 1500 μsec
Running degree (Operating angle): 180±5°(at 500→2500μsec)
Dead band width: ≤4 μsec
Rotating direction: Counterclockwise (at 1500→2500 μsec)
Electronic Protection: Stall 8sec
FT995M Servo x1
