FEETECH Micro 360 Degree Continuous Rotation Servo

SKU FS90R Category Tag Brand:

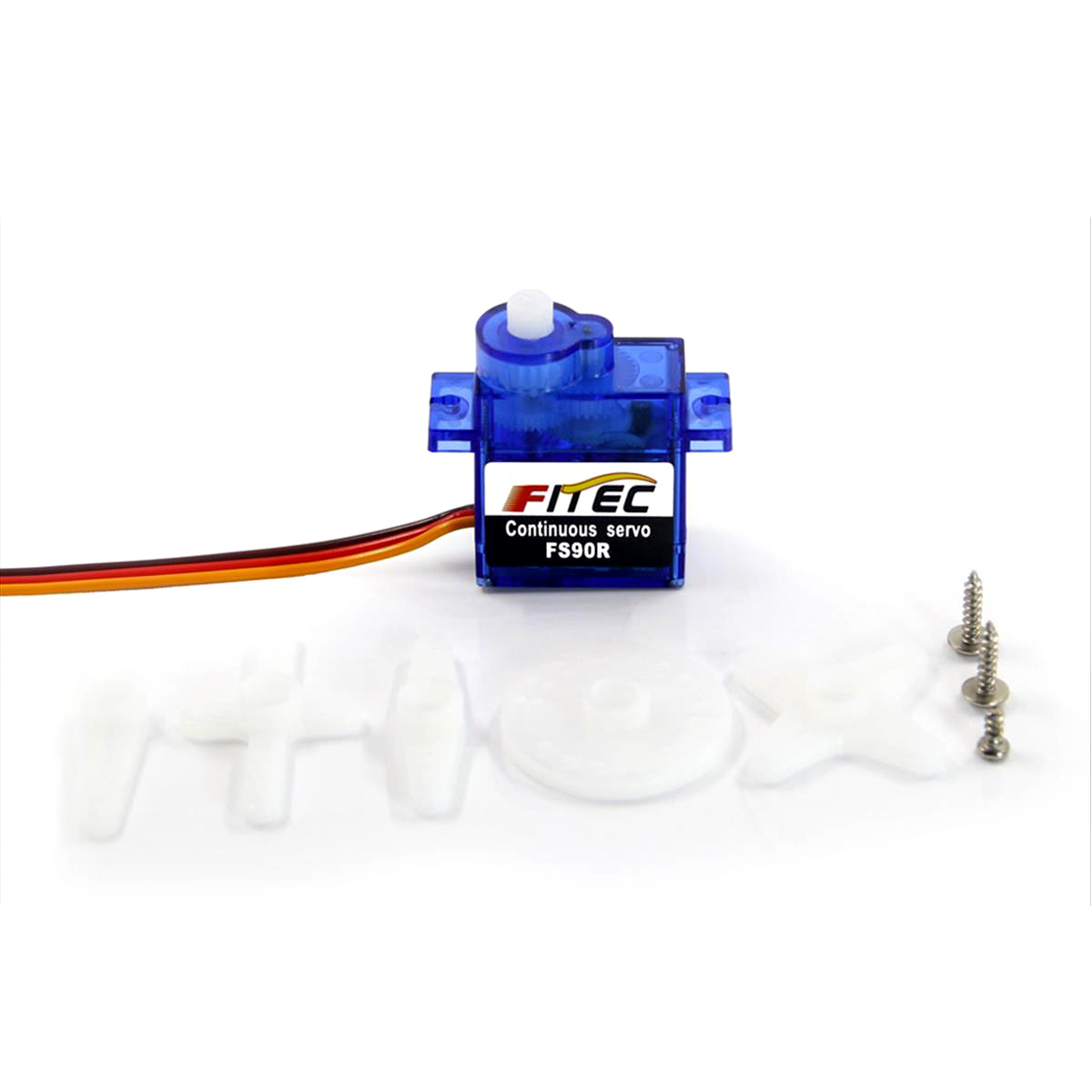

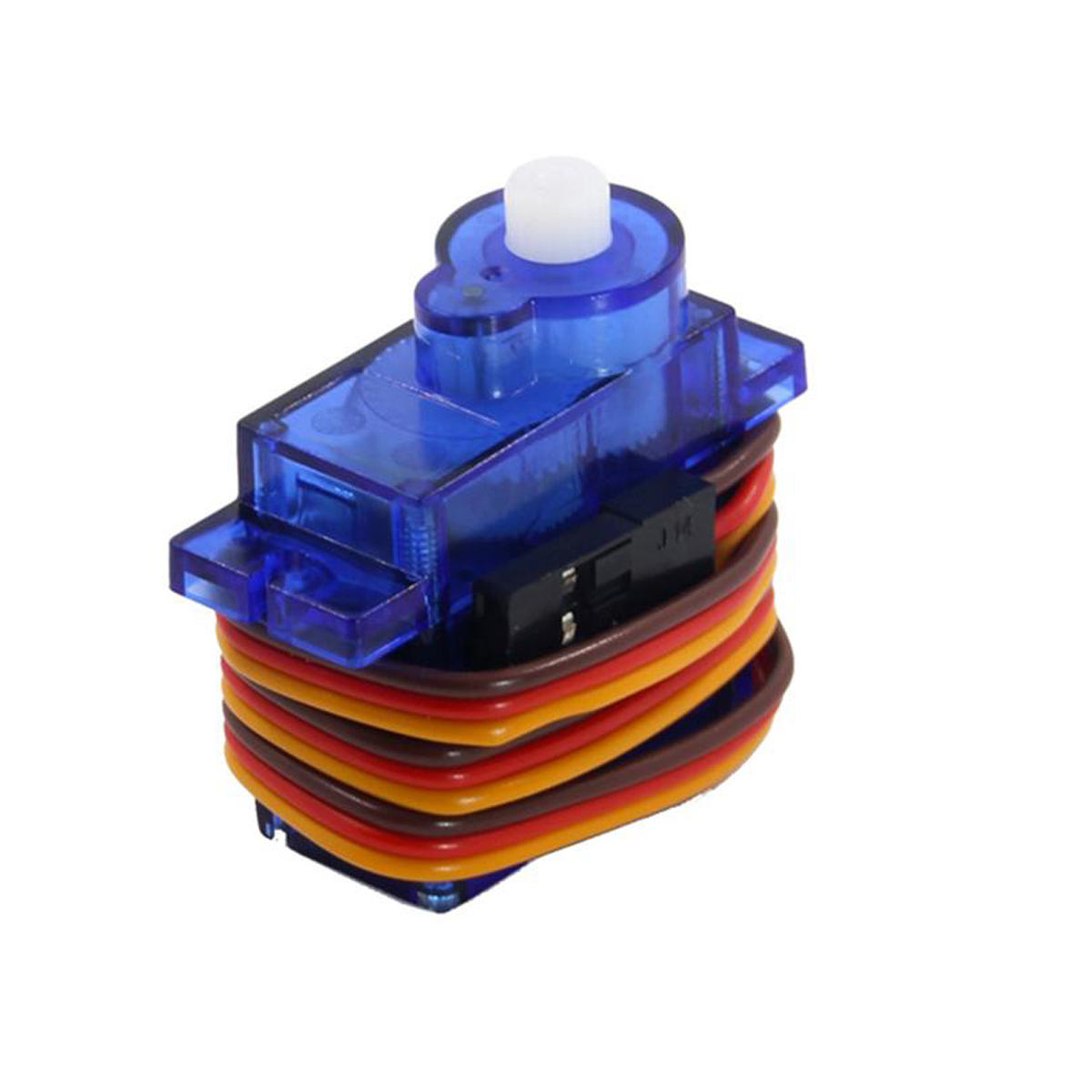

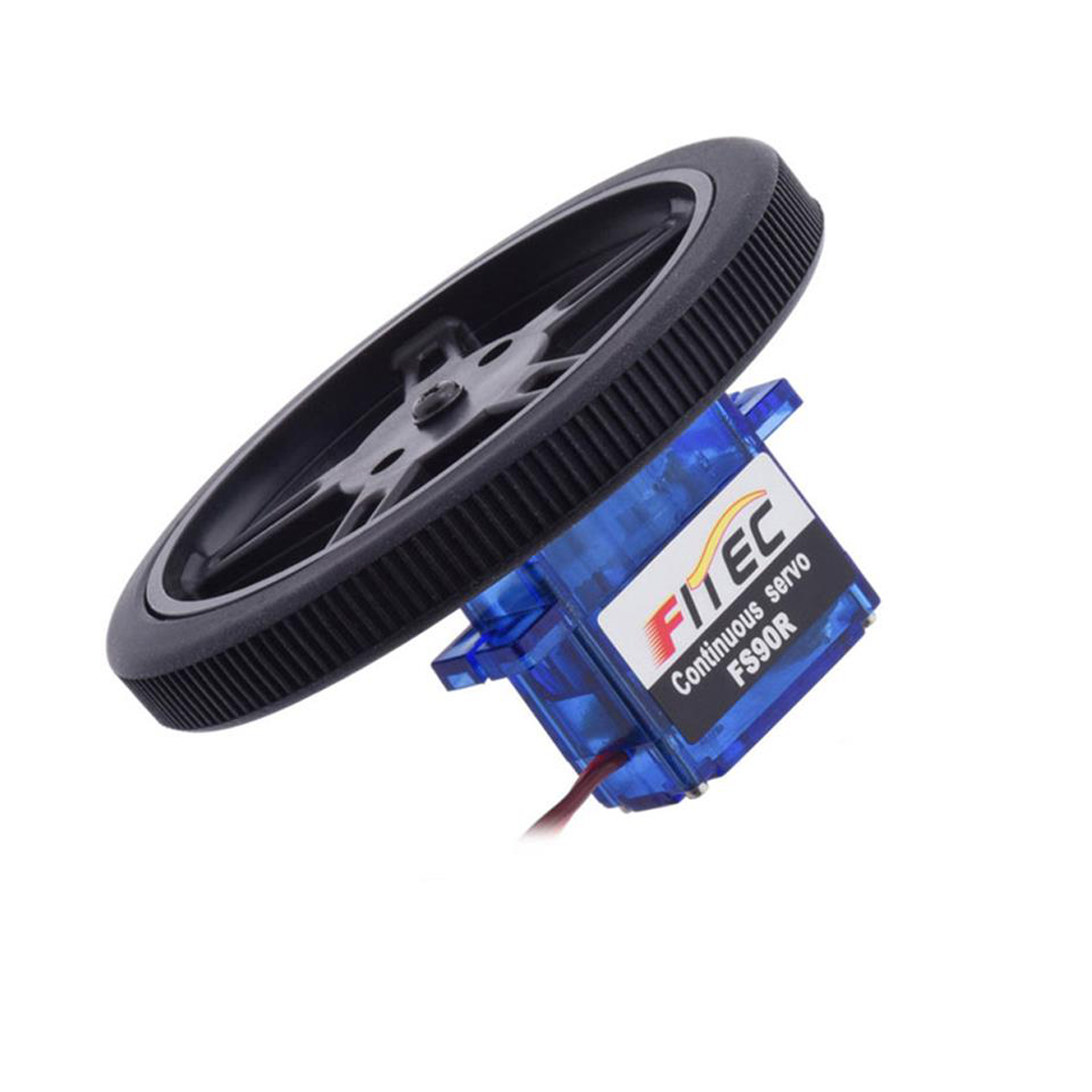

FEETECH Micro 360 Degree Continuous Rotation Servo

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

Micro 360 Degree Continuous Rotation Servo FS90R Version 2:
a. Dead band expand from 10us to 90 us
(To solve the problem what  impossible to get a steady stop position set and drifts all over the place. )

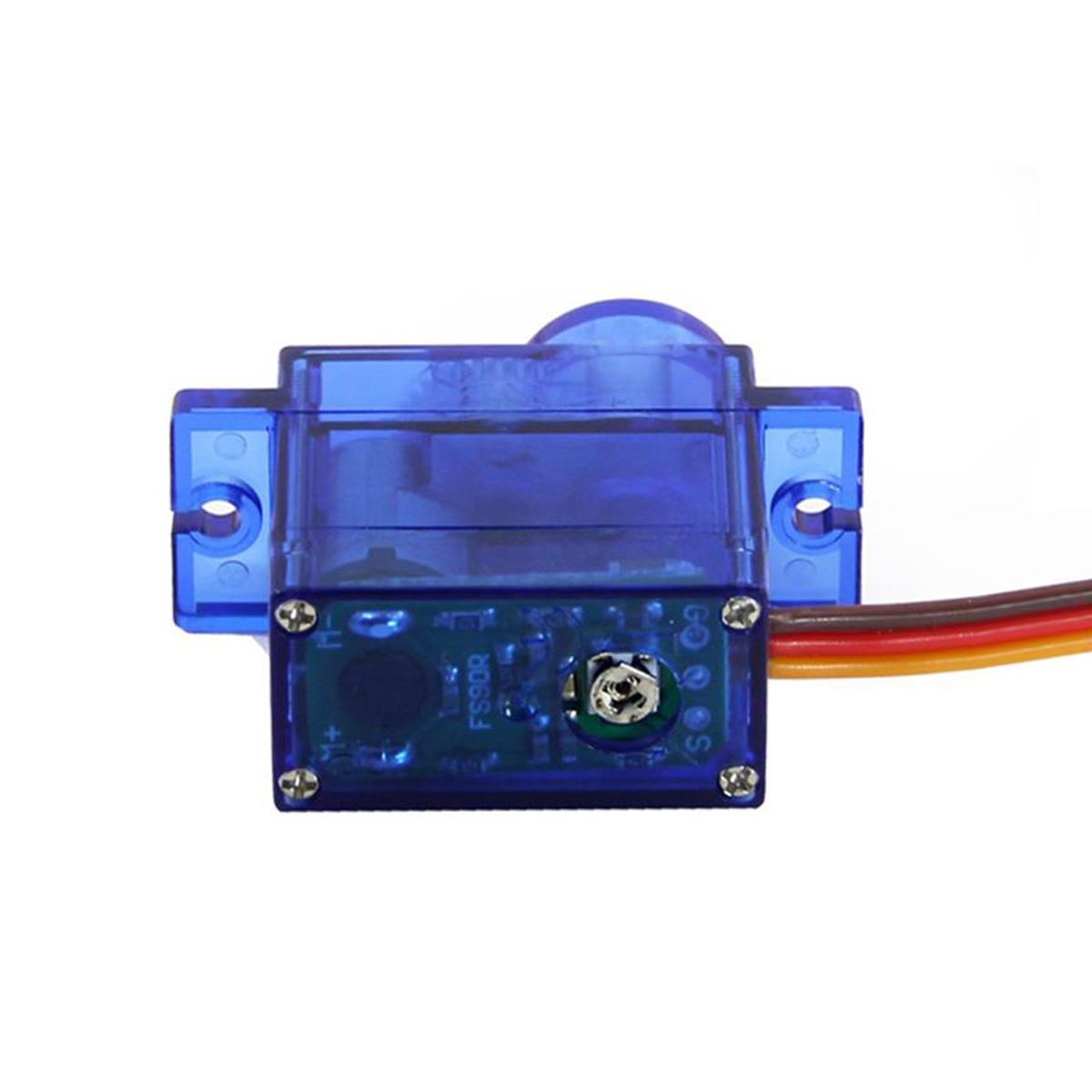

b. Use SMD potentiometer (Reduce weight)

SKU:FS90R
Dimensions:23.2 × 12.5 × 22 mm
Weight:9 g
Operating Speed :
110RPM (4.8V)
130RPM (6V)
Stall Torque :
1.3kg.cm/18.09oz.in(4.8V)
1.5kg.cm/20.86oz.in(6V)
Operating Voltage :4.8V~6V
Control System :Analog
Direction :CCW
Operating Angle :360degree
Required Pulse :900us-2100us
Bearing Type :None
Gear Type :Plastic
Motor Type :Metal
Connector Wire Length :20 cm
