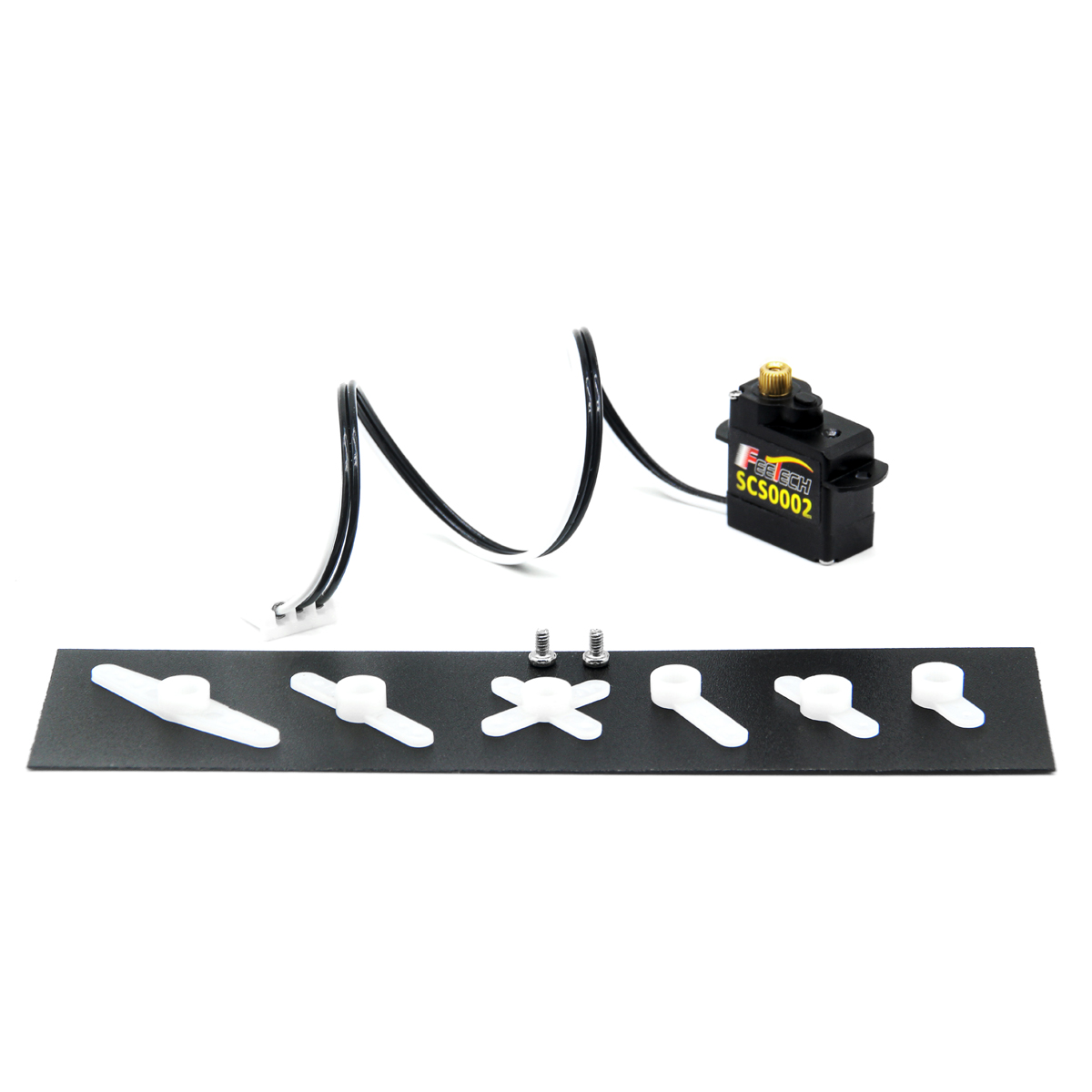

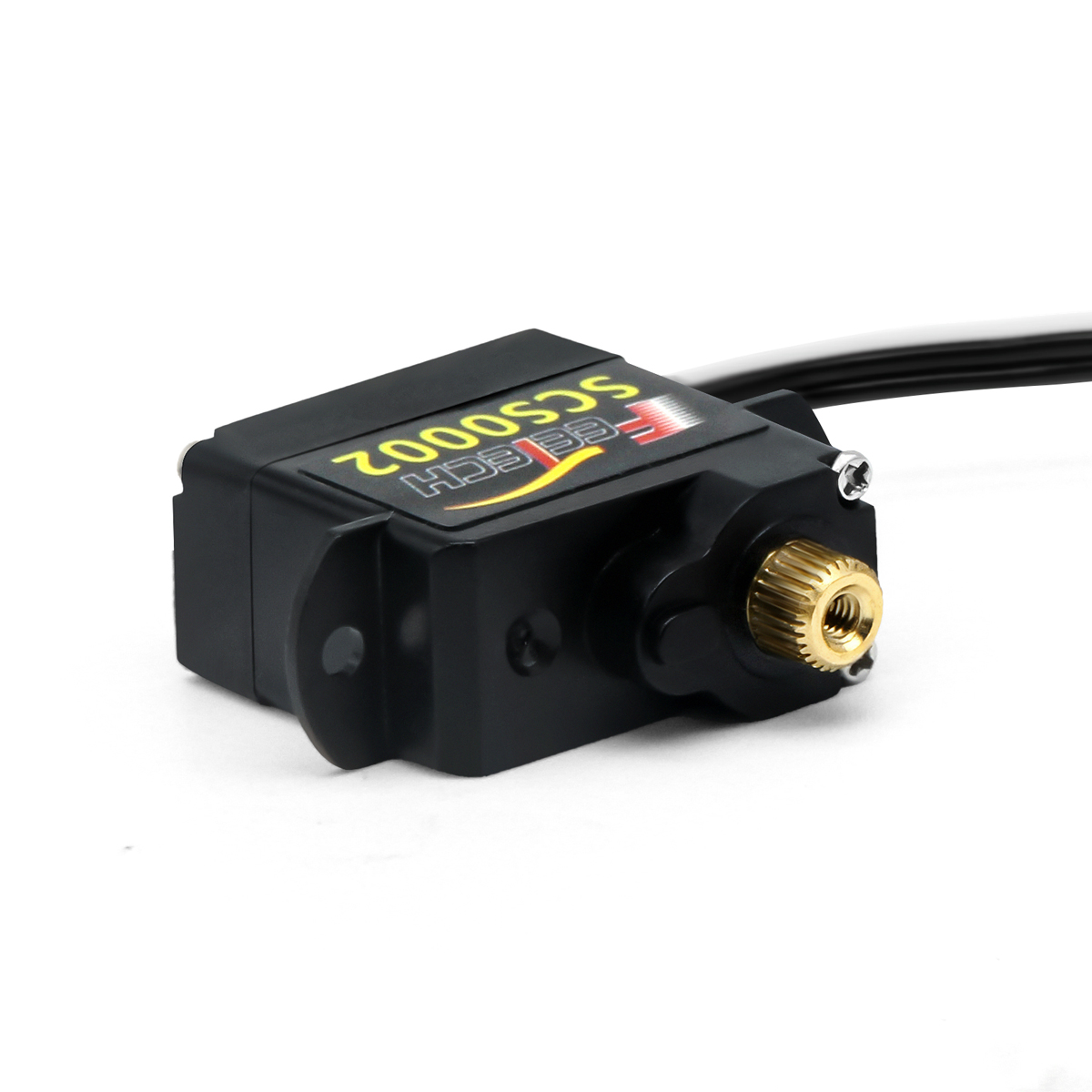

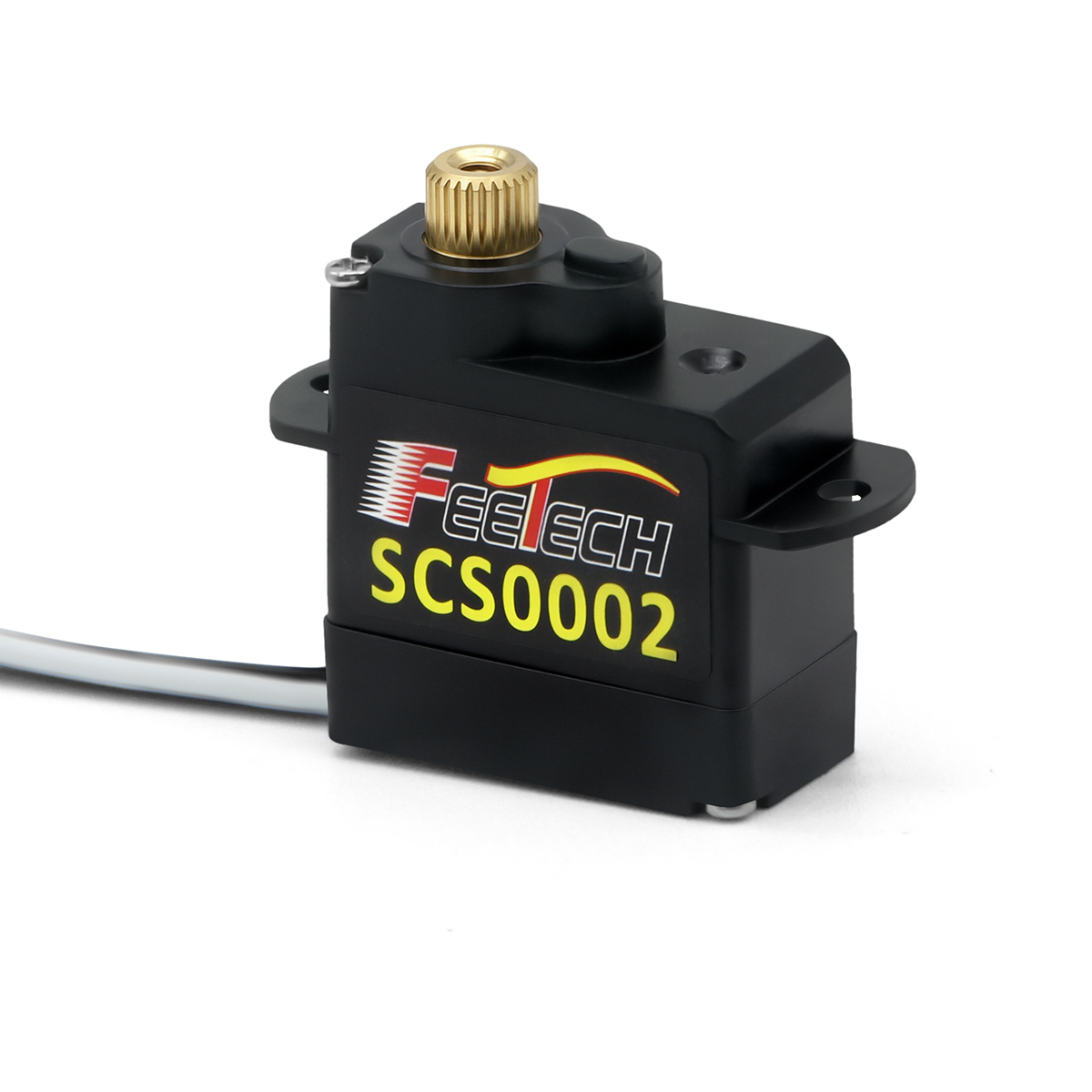

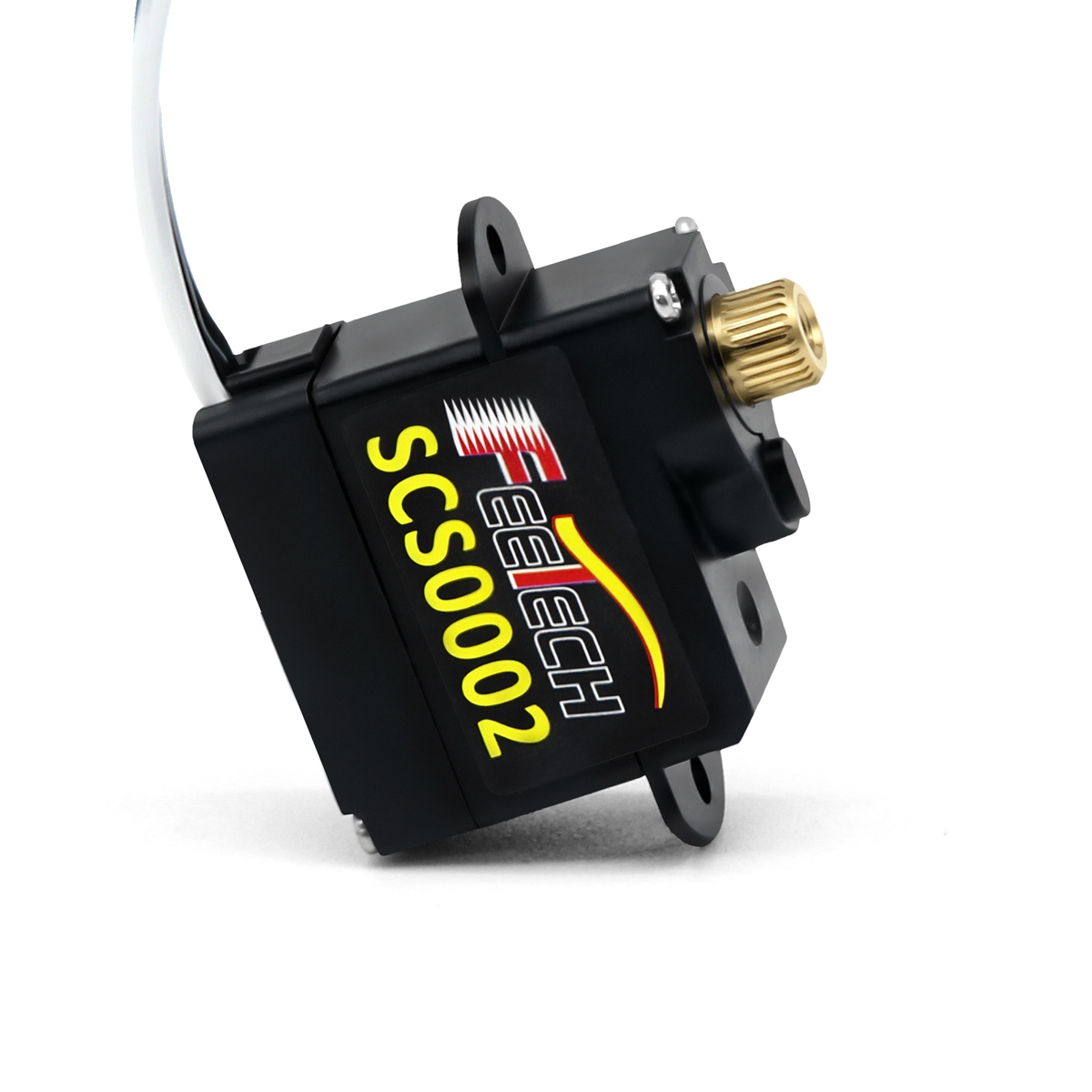

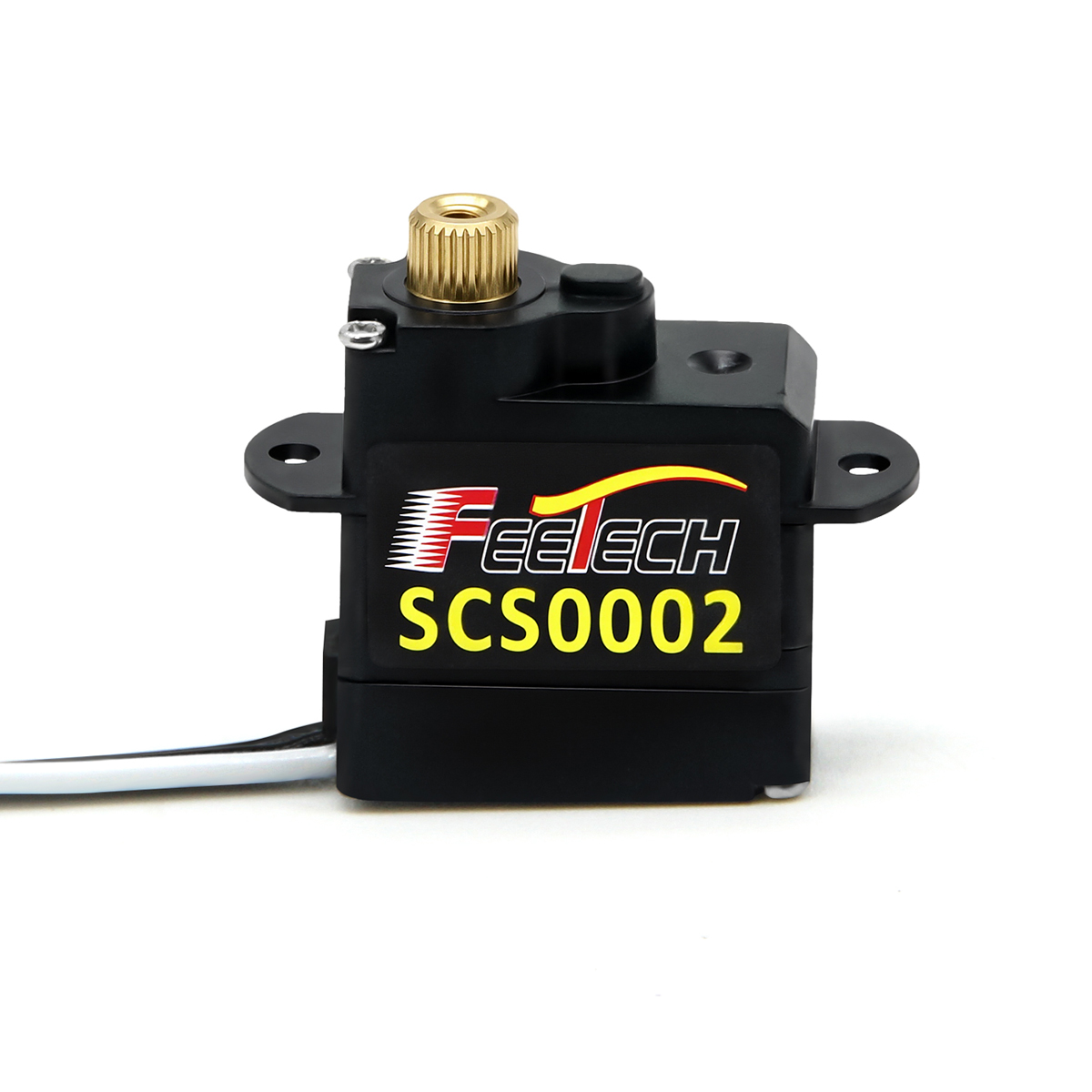

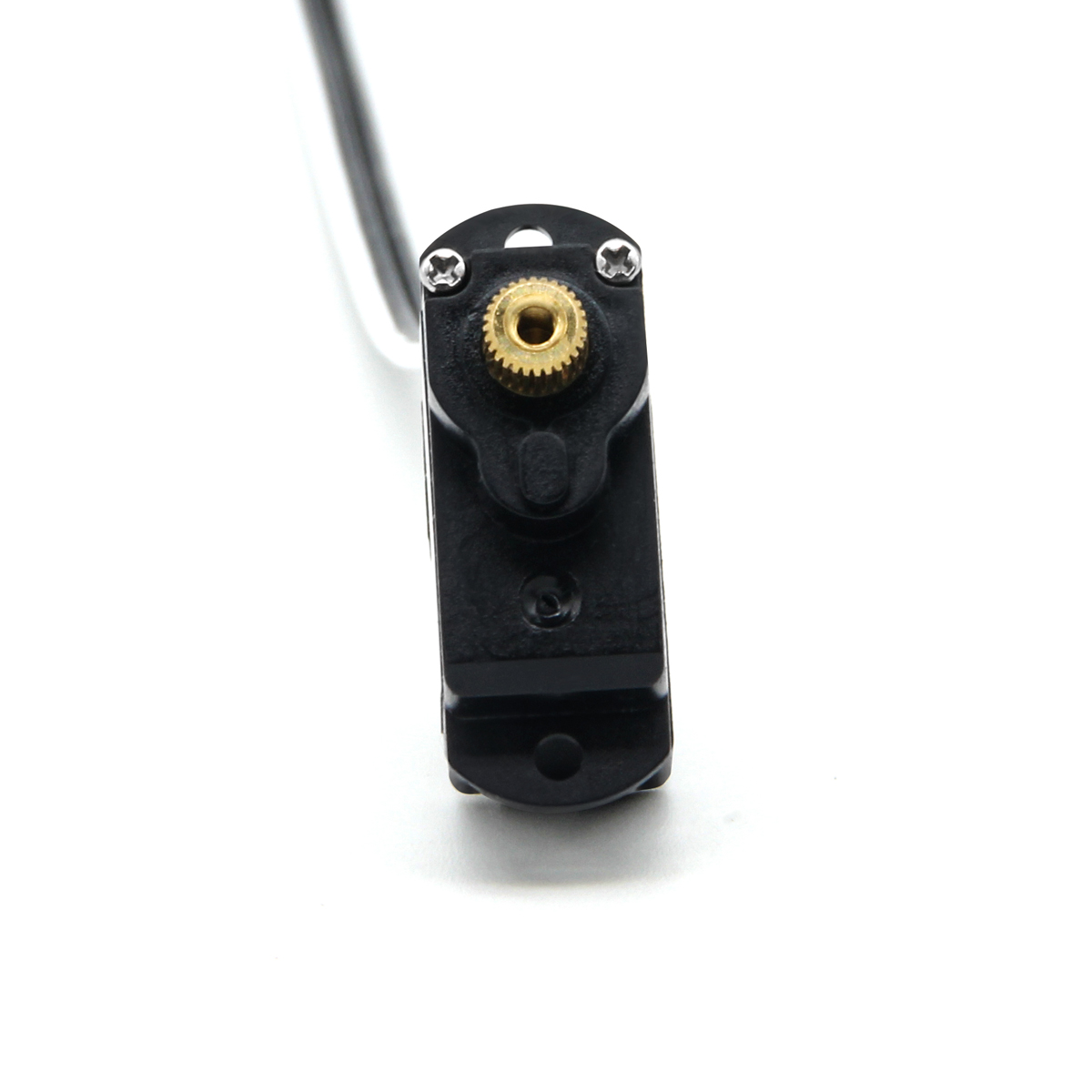

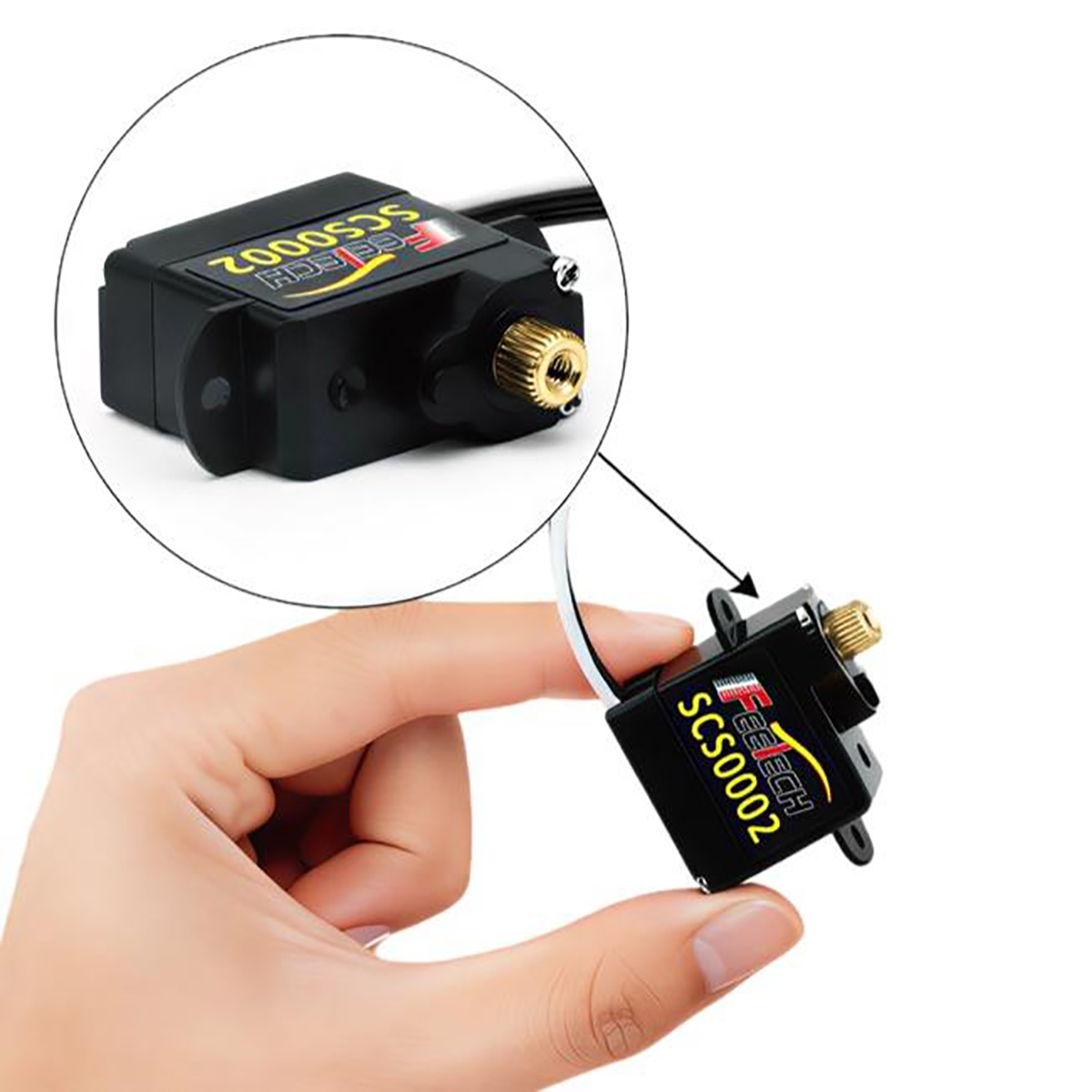

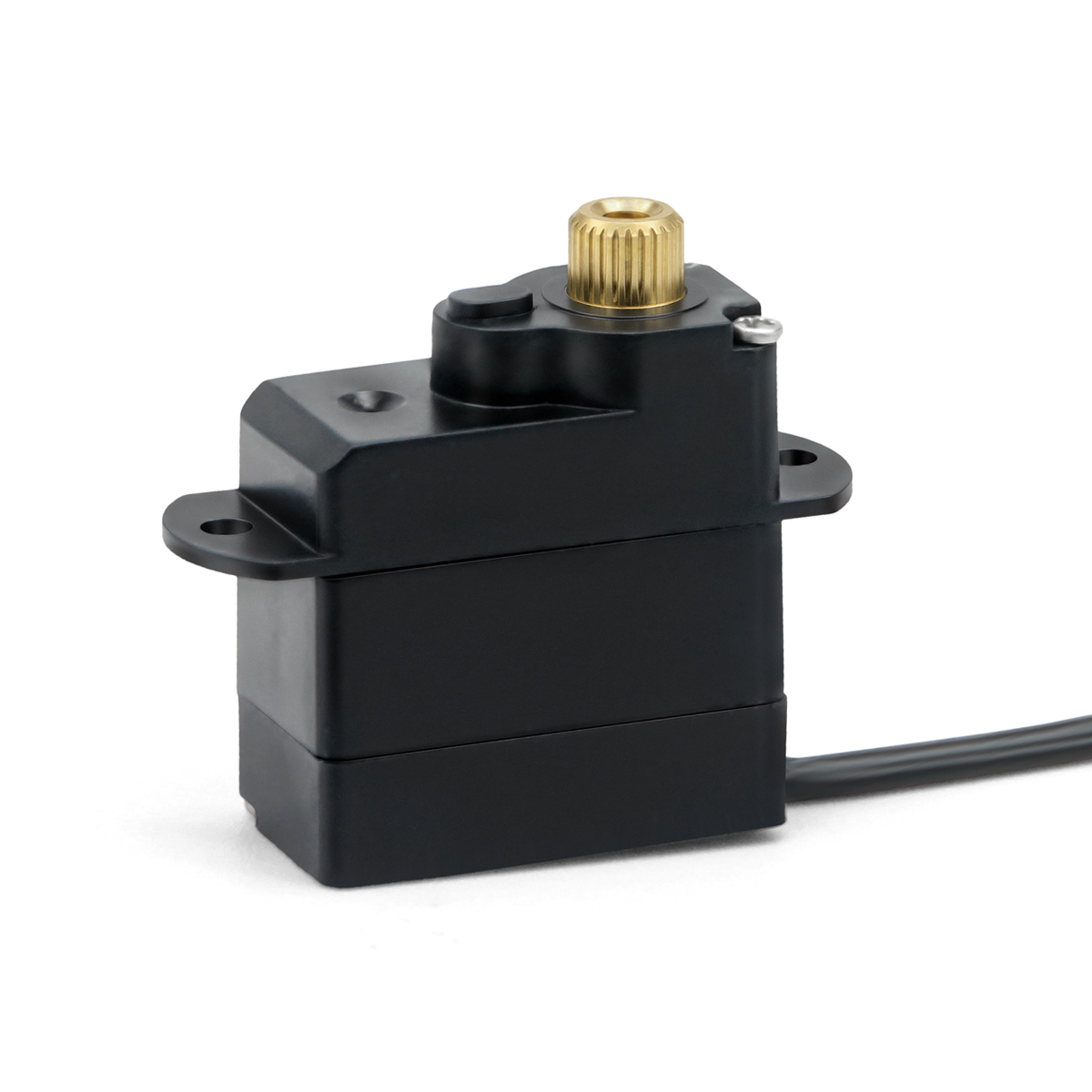

Feetech SCS0002 6V 0.7kg Metal Gear Coreless Motor Lightweight Micro TTL Serial Bus Servo

SKU SC-0002-C001 Category Feetech Servo Tag Serial Bus Servo Brand: Feetech

Feetech SCS0002 6V 0.7kg Metal Gear Coreless Motor Lightweight Micro TTL Serial Bus Servo

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

SC-0002-C001 is 6V 2g serial bus servo，adopt plastic case，metal gearbox、Coreless motor, Feetech self researched and developed TTL control board , high quality potentiometer, 28T output shaft. The stall torque is 0.7kg.cm, effective control angle is 270 °, with servo mode and continuous motor working mode, feedback position, speed, voltage, temperature, load parameters, so as to achieve overload protection. It is suitable for teaching, maker, robot joints and other small torque transmission applications.

Model: SC-0002-C001
Storage Temperature Range: -20℃～60℃
Operating Temperature Range: -10℃～50℃
Size: 16.05*8.2*17mm
Weight: 4.8±0.5g
Gear Type: POM+Metal Gear
Limit Angle: No Limit
Bearing: No
Horn Gear Spline: 28T/Φ3.9mm
Gear Ratio: 1/448
Case: ABS
Connector Wire: 150mm
Motor: Coreless Motor
Operating Voltage Range: 4.8V-6V
No Load Speed: 0.05sec/60°(200RPM)@6V
Running Current (At No Load): 90mA@6V
Peak Stall Torque: 0.7kg.cm@6V
Rated Torque: 0.23kg.cm@6V
Stall Current: 110mA@6V
Idle Current (At Stopped): 20mA@6V
Command Signal: Digital Packet
Protocol Type: Half Duplex Asynchronous Serial Communication
ID Range: 0-253
Communication Speed: 38400bps~500kbps
Running Degree: 270°(when 0～1023)
Feedback: Load, Position, Speed
Position Sensor Resolution: 0.293°(280°/1024)
