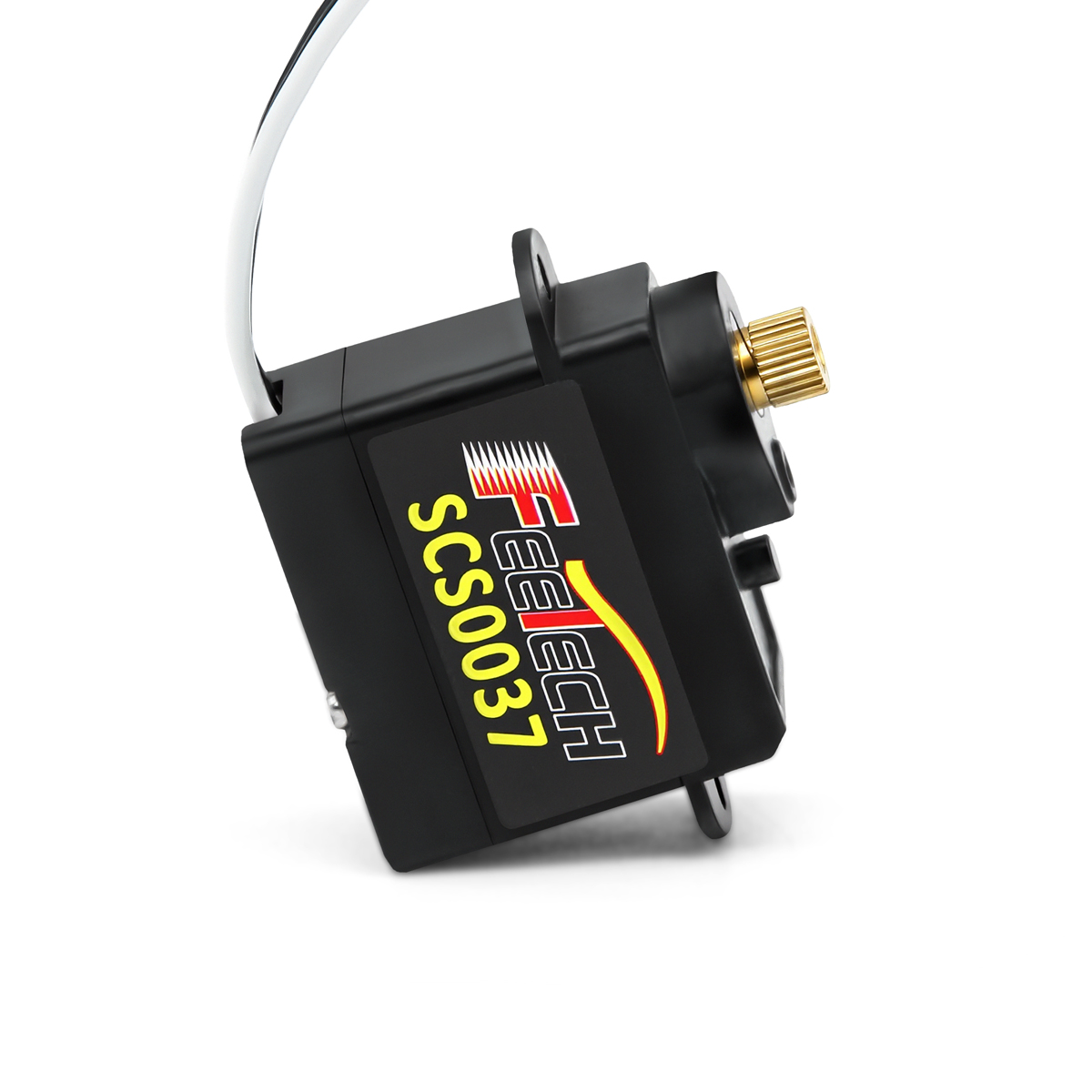

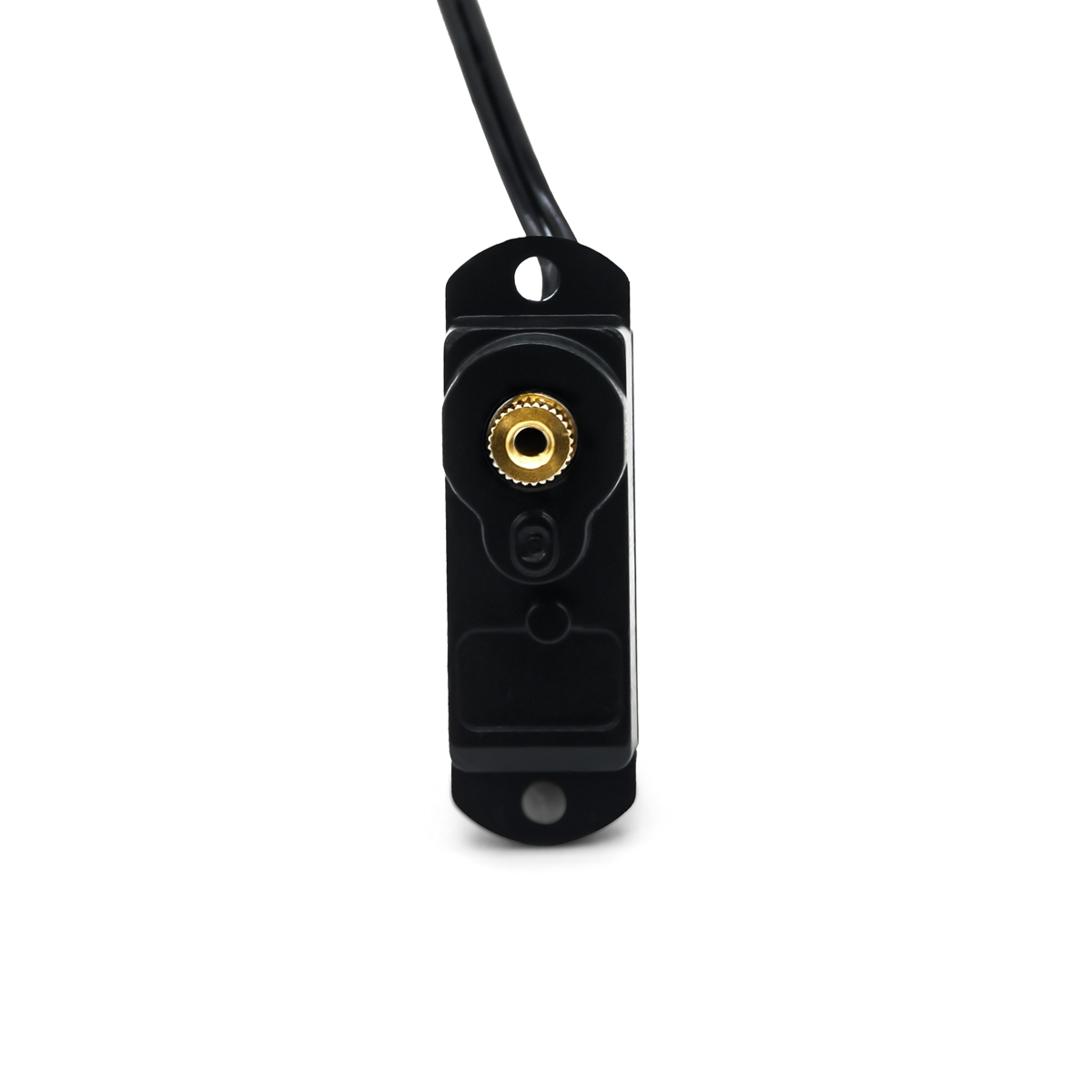

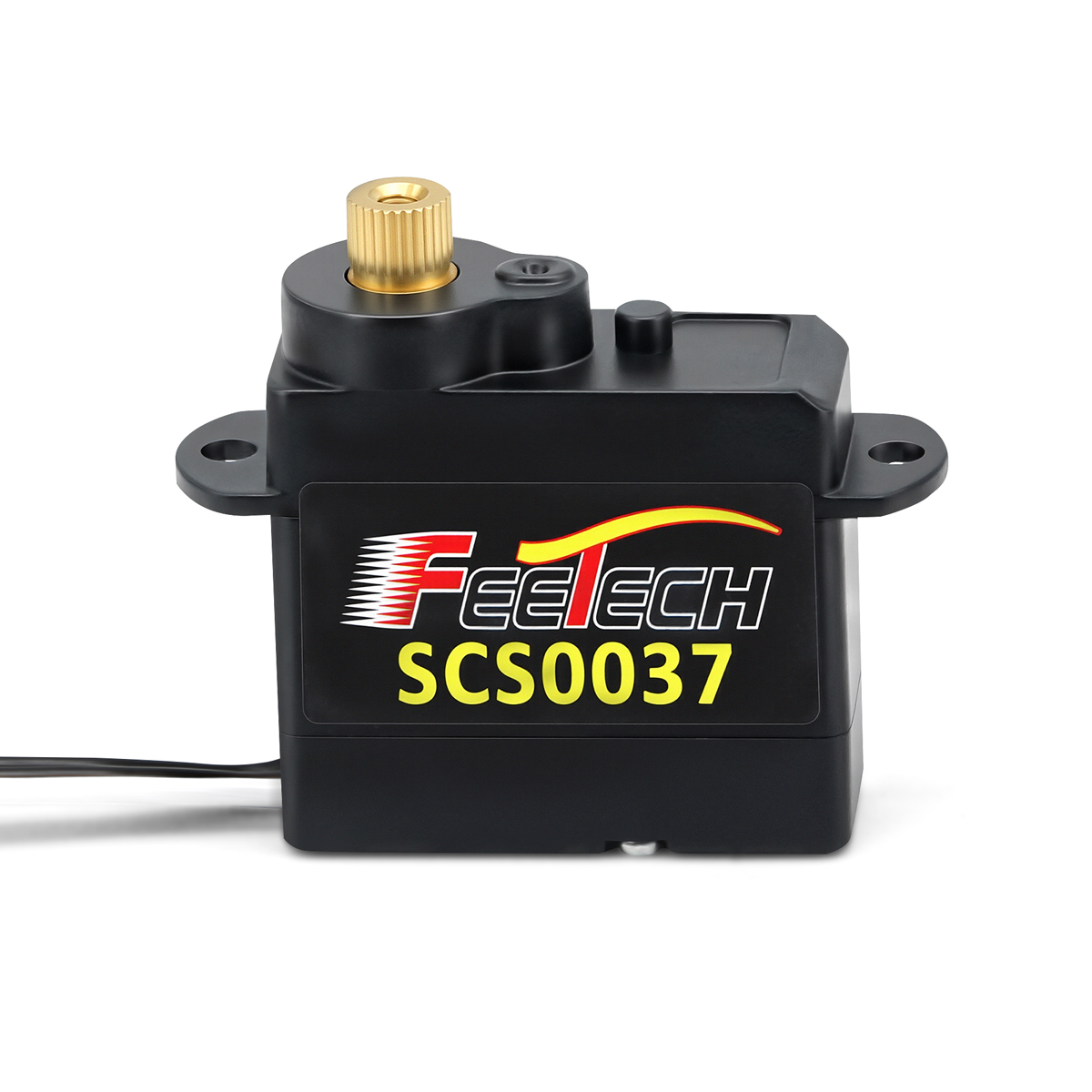

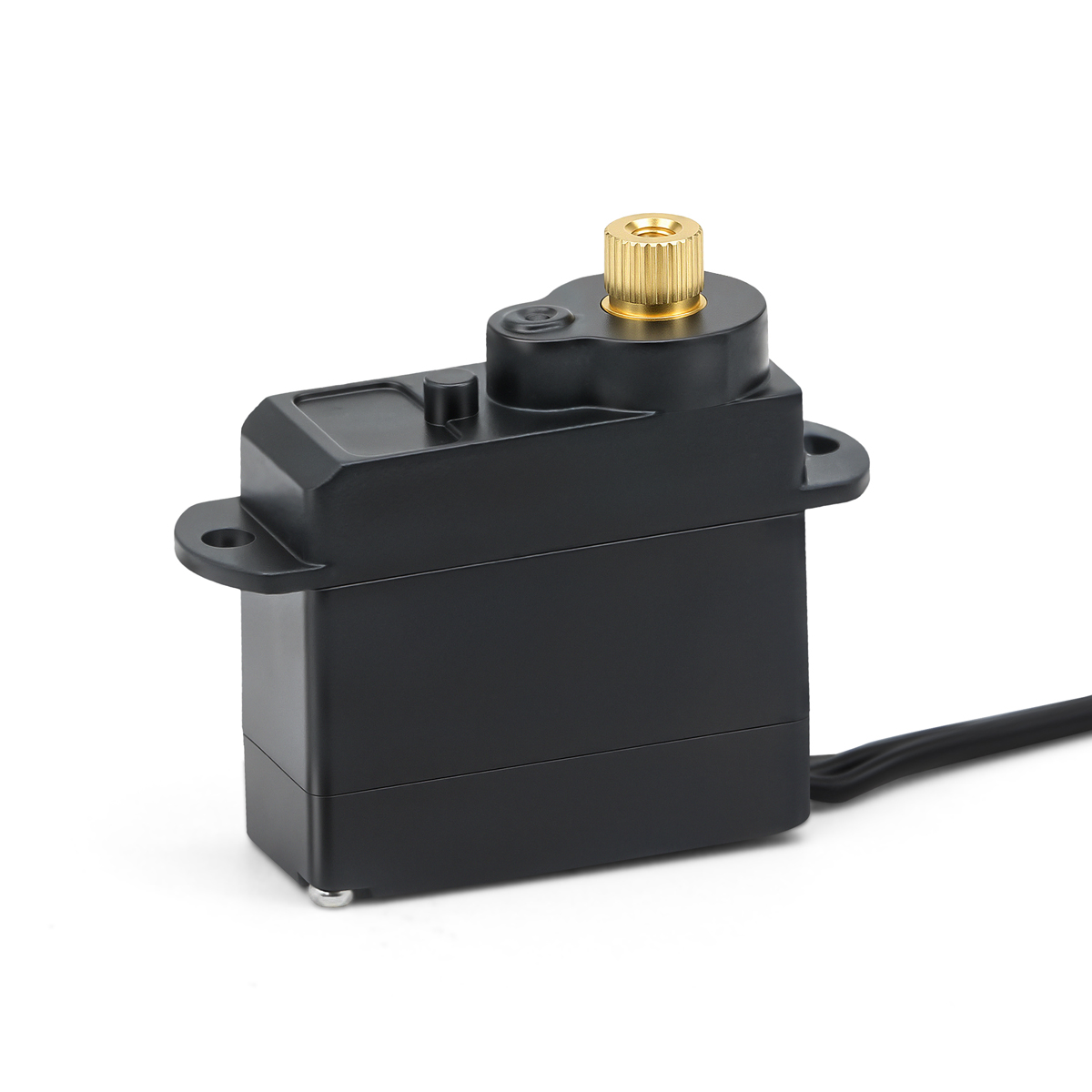

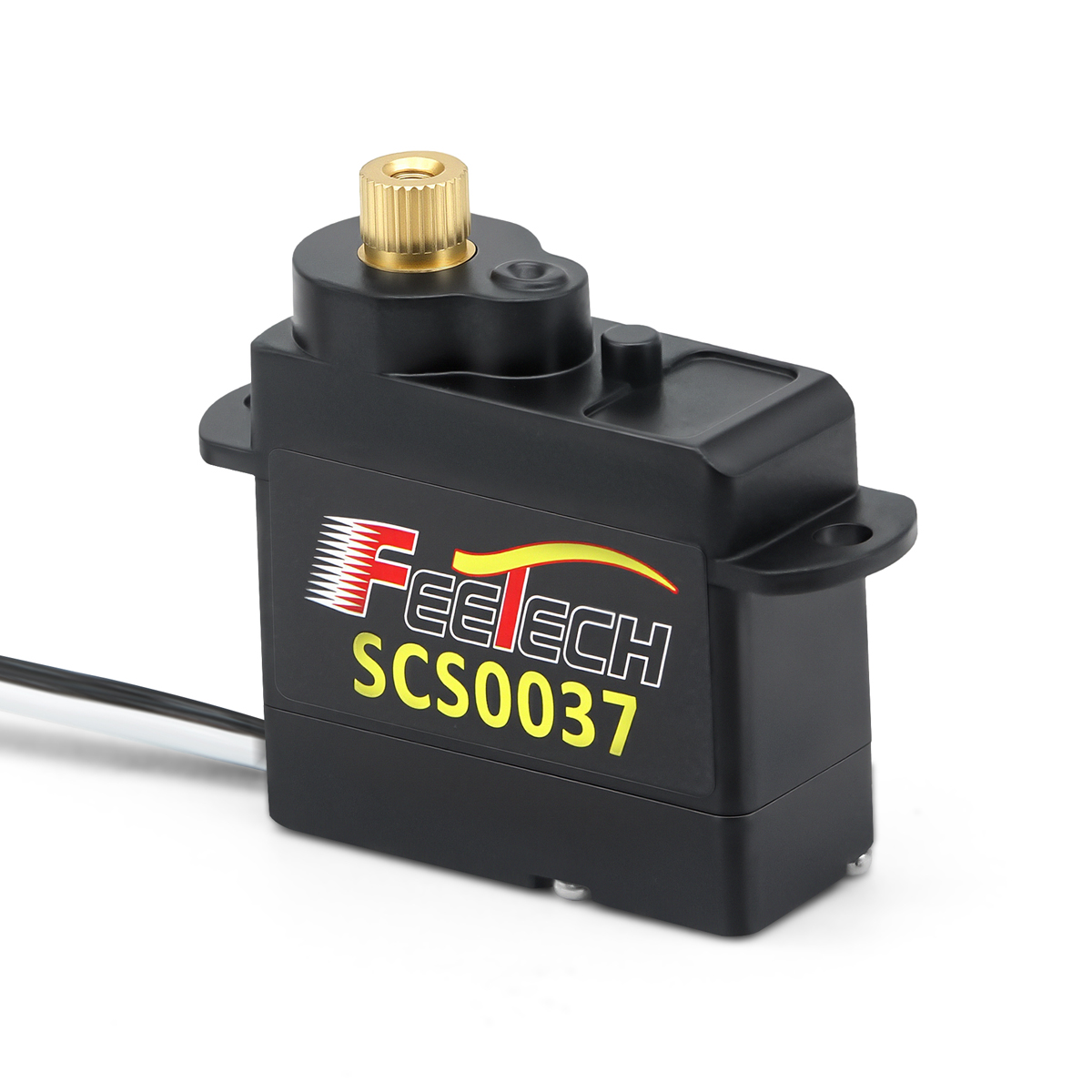

Feetech SCS0037 6V 1.8kg Plastic Case Coreless Motor 270 Degree Lightweight TTL Serial Bus Servo
Feetech SCS0037 6V 1.8kg Plastic Case Coreless Motor 270 Degree Lightweight TTL Serial Bus Servo
SC-0037-C001 is 6V 3.7g serial bus servo，adopt plastic case，metal gearbox、Coreless motor, Feetech self researched and developed TTL control board , high quality potentiometer, 28T output shaft. The stall torque is 1.8kg.cm, effective control angle is 270 °, with servo mode and continuous motor working mode, feedback position, speed, voltage, temperature, load parameters, so as to achieve overload protection. It is suitable for teaching, maker, robot joints and other small torque transmission applications.
Model: SC-0037-C001
Storage Temperature Range: -20℃～60℃
Operating Temperature Range: -10℃～50℃

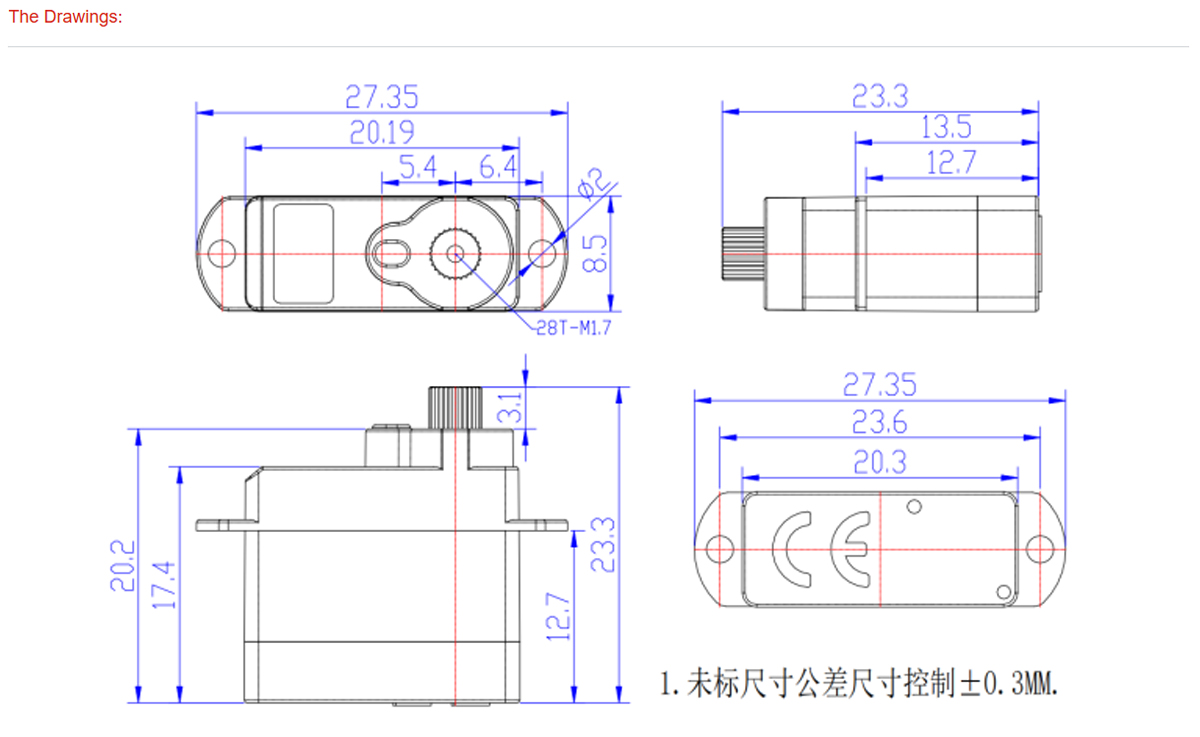

Size: 20.19*8.5*17.4mm
Weight: 6.1±0.5g
Gear Type: POM+Metal Gear
Limit Angle: No Limit
Bearing: No
Horn Gear Spline: 28T/Φ3.9mm
Gear Ratio: 1/378
Case: ABS
Connector Wire: 150mm
Motor: Coreless Motor
Operating Voltage Range: 4.8V-6V
No Load Speed: 0.054sec/60°(185RPM)@6V
Running Current (At No Load): 90mA@6V
Peak Stall Torque: 1.8kg.cm@6V
Rated Torque: 0.6kg.cm@6V
Stall Current: 250mA@6V
Idle Current (At Stopped): 6mA@6V
Command Signal: Digital Packet
Protocol Type: Half Duplex Asynchronous Serial Communication
ID Range: 0-253
Communication Speed: 38400bps~500kbps
Running Degree: 270°(when 0～1023)
Feedback: Load, Position, Speed
Position Sensor Resolution: 0.293°(280°/1024)

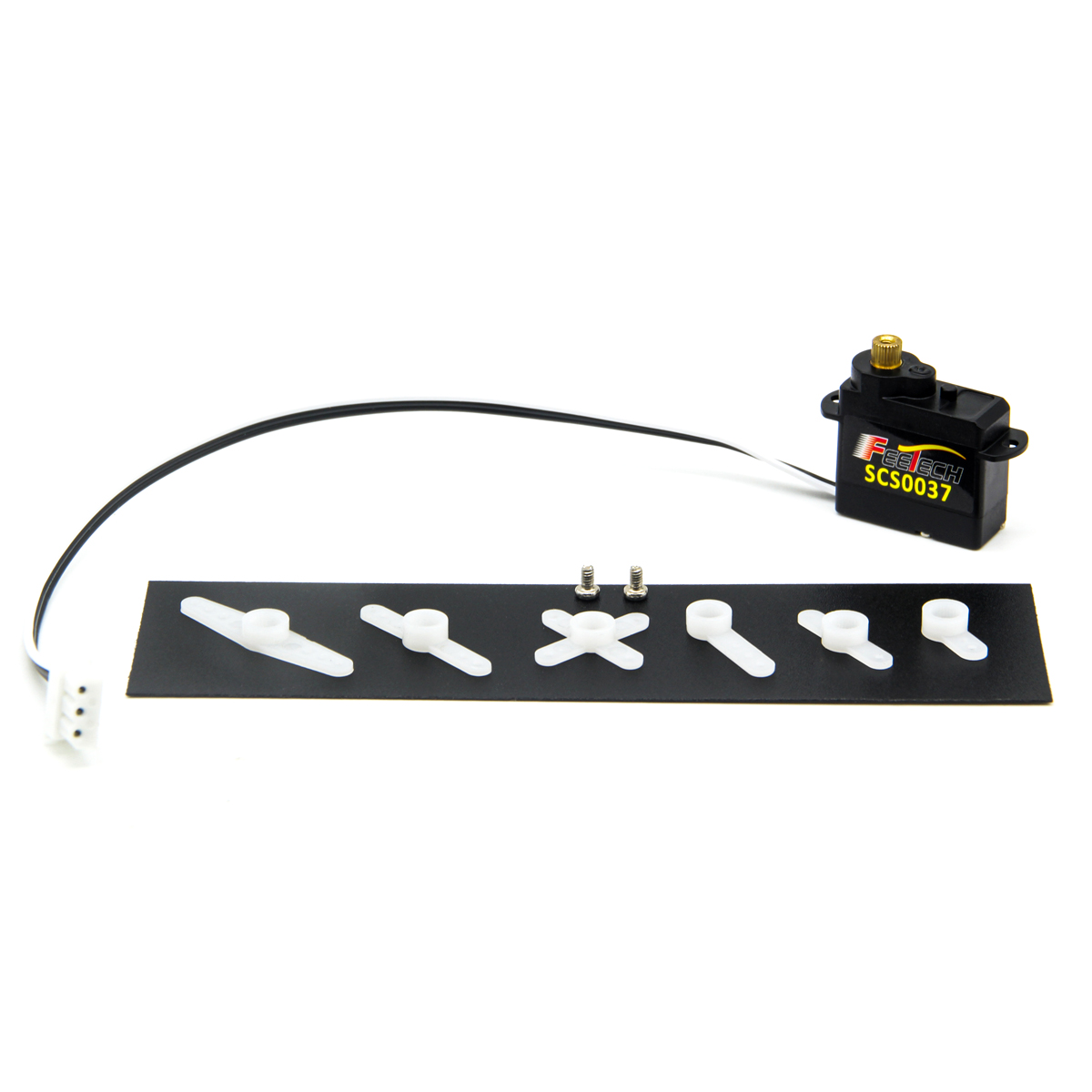

SCS0037 Servo x1
