Feetech SCS009-C013 6V 2.3kg Metal Gear Micro Double Shaft Serial Bus Servo for Intelligent Switch Furniture
Feetech SCS009-C013 6V 2.3kg Metal Gear Micro Double Shaft Serial Bus Servo for Intelligent Switch Furniture
SCS009 is 6V 2.3kg Dual axis serial bus servo，adopt plastic case，metal gearbox、core motor, Feetech self researched and developed TTL control board , high quality potentiometer, 25T output shaft. The stall torque is 2.3kg.cm, effective control angle is 300 °, with servo mode and continuous motor working mode, feedback position, speed, voltage, temperature, load parameters, so as to achieve overload protection. It is suitable for teaching, maker, robot joints and other small torque transmission applications.
Model: SC-0090-C013
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -15℃～70℃

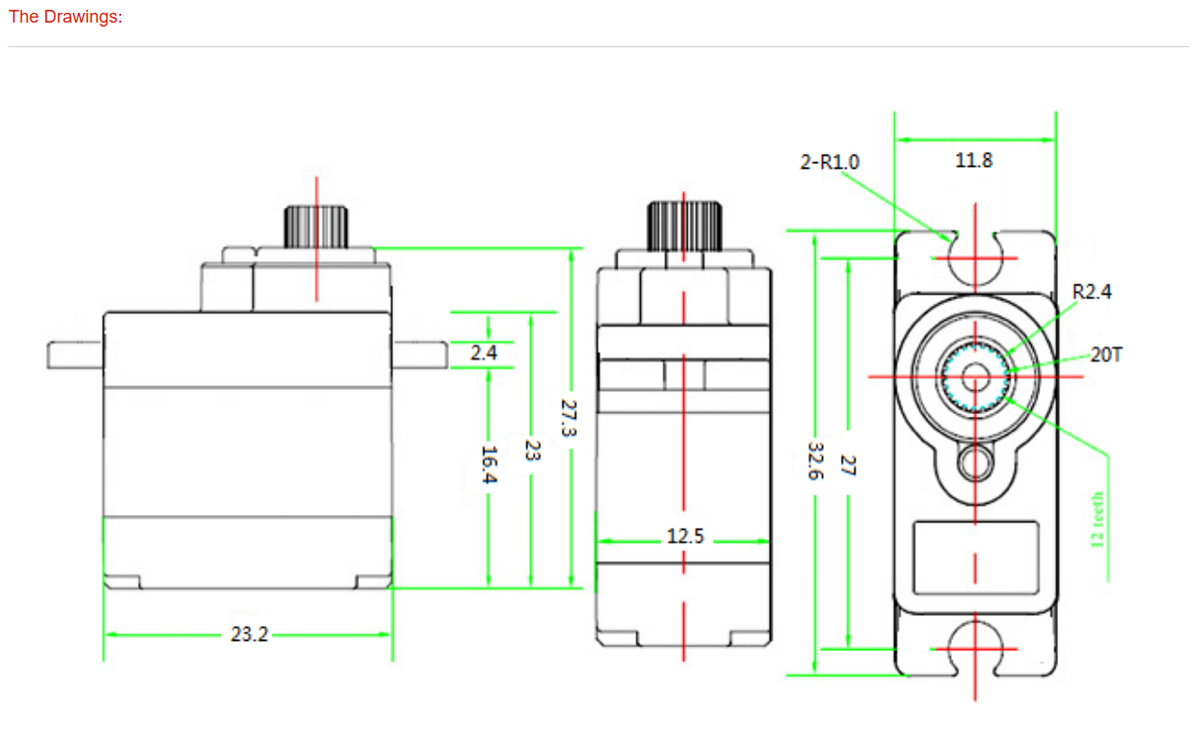

Size: 23.2*12.*25.5mm
Weight: 13.2±1g
Gear Type: Copper+Steel
Limit Angle: No Limit
Bearing: No
Horn Gear Spline: 20T/OD3.95mm
Horn Type: Plastic, POM
Case: PC
Connector Wire: 150mm
Motor: Core Motor
Operating Voltage Range: 4.8V-7.4V
No Load Speed: 0.1sec/60°(100RPM)@6V
Running Current (At No Load): 150mA@6V
Peak Stall Torque: 2.3kg.cm@6V
Rated Torque: 0.7kg.cm@6V
Stall Current: 1.0A@6V
Command Signal: Digital Packet
Protocol Type: Half Duplex Asynchronous Serial Communication
ID Range: 0-253
Neutral Position: 90°(511)
Communication Speed: 38400bps~1Mbps
Running Degree: 300°(when 0～1024)
Feedback: Load, Position, Speed, Input Voltage, Temperature
Position Sensor Resolution: 0.293°(300°/1024)

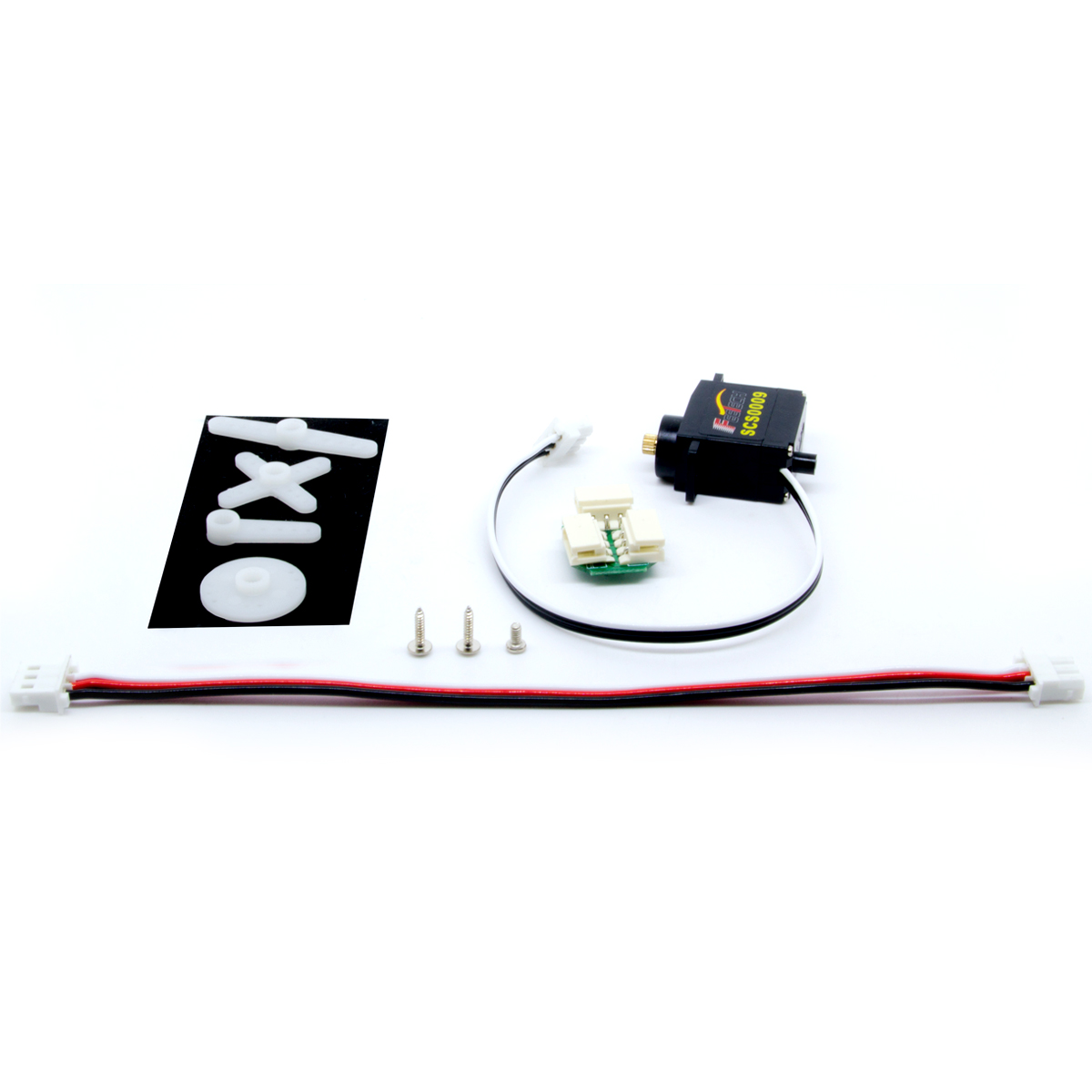

SCS009-C013 Servo x1
