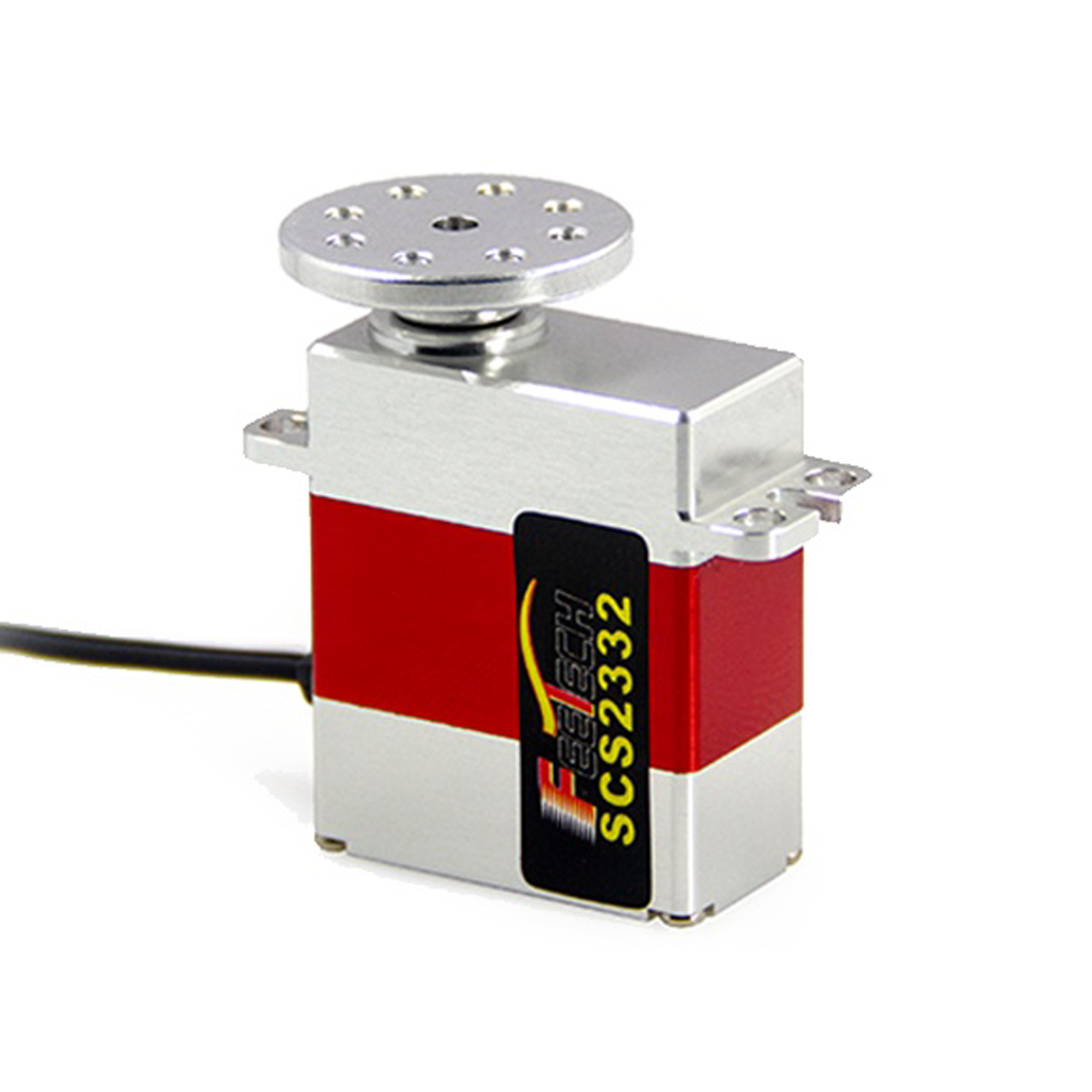

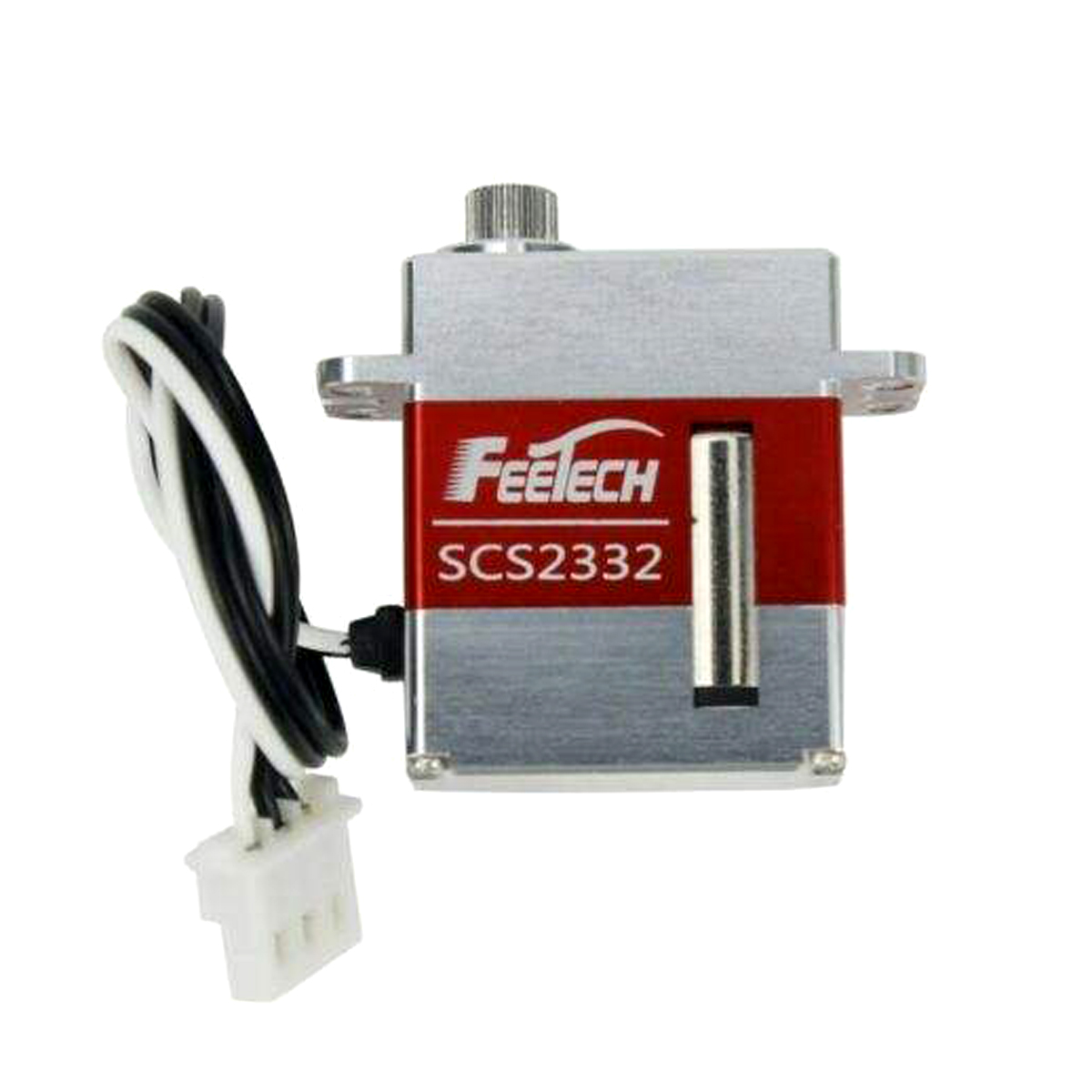

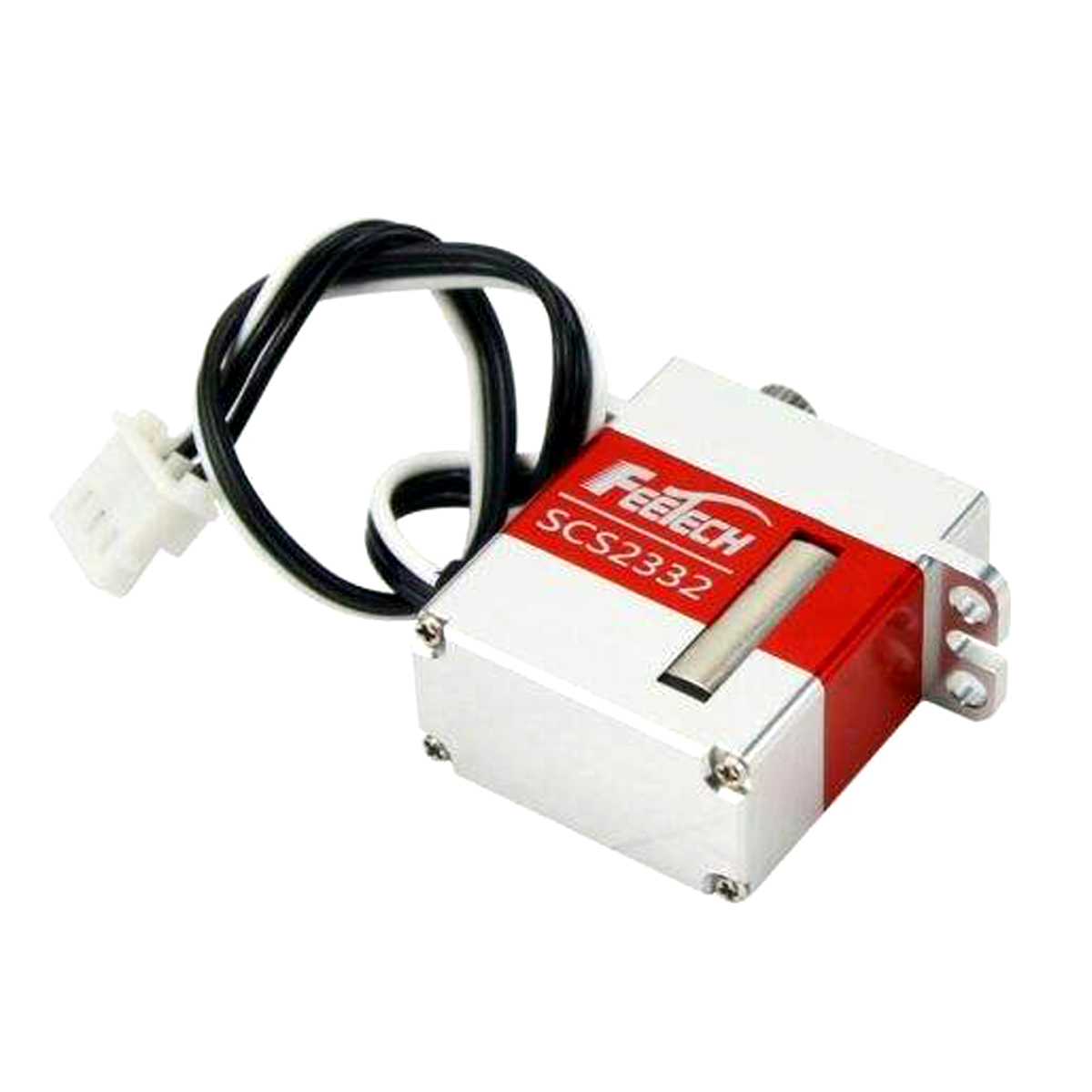

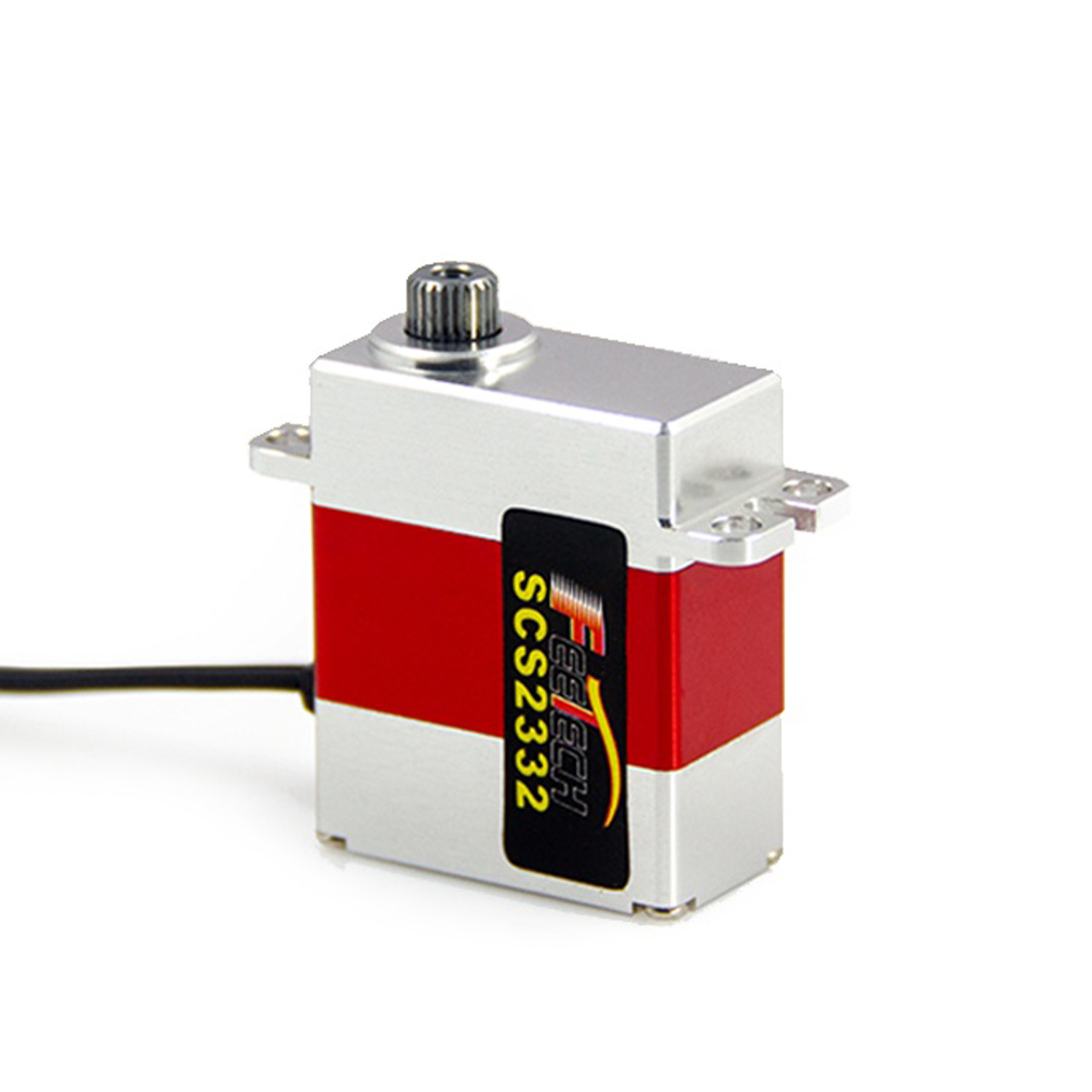

Feetech SCS2332 6V 4.5kg Metal Gear Coreless Motor Serial Control Bus Servo for Smart Home RC Parts
Feetech SCS2332 6V 4.5kg Metal Gear Coreless Motor Serial Control Bus Servo for Smart Home RC Parts

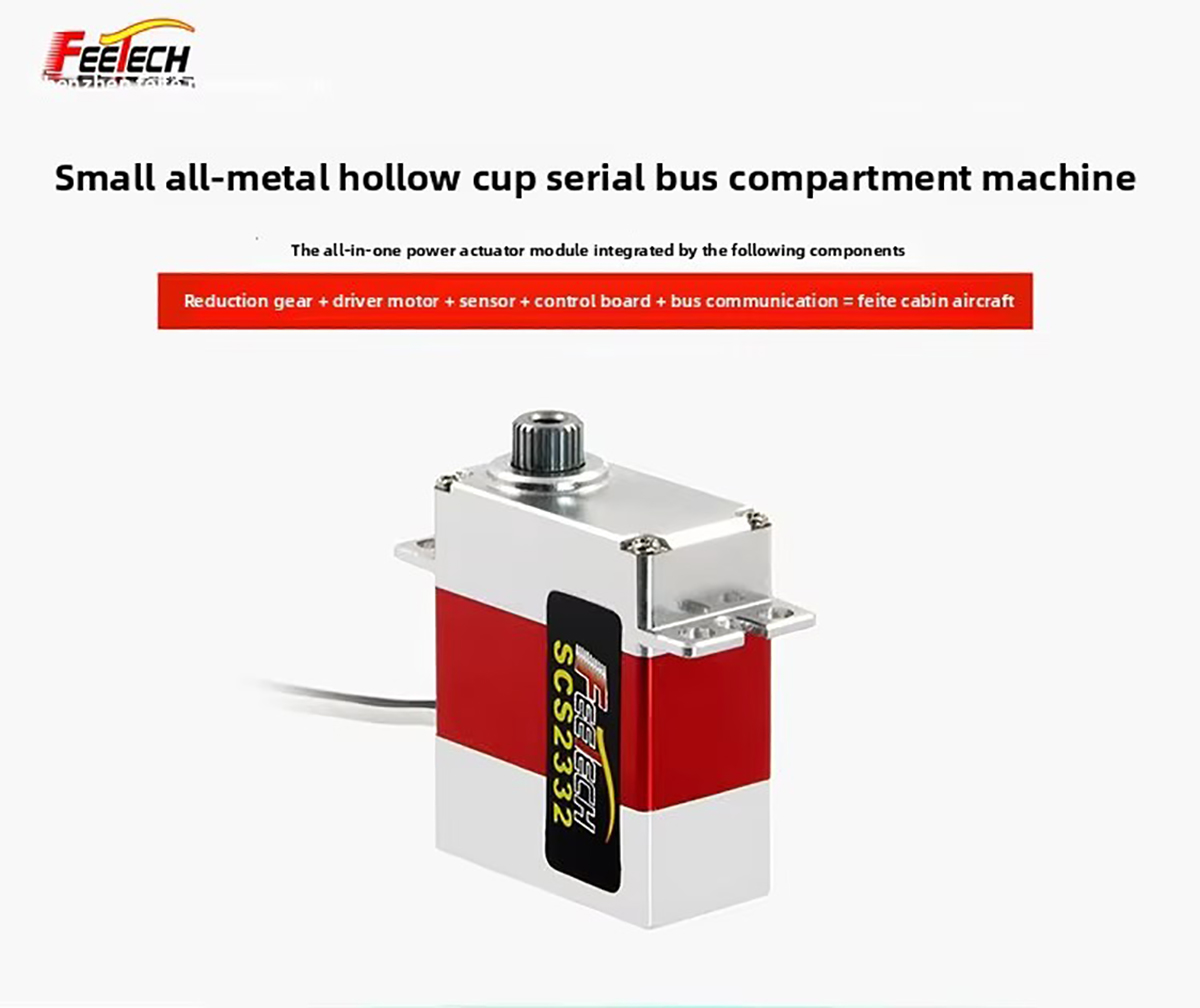

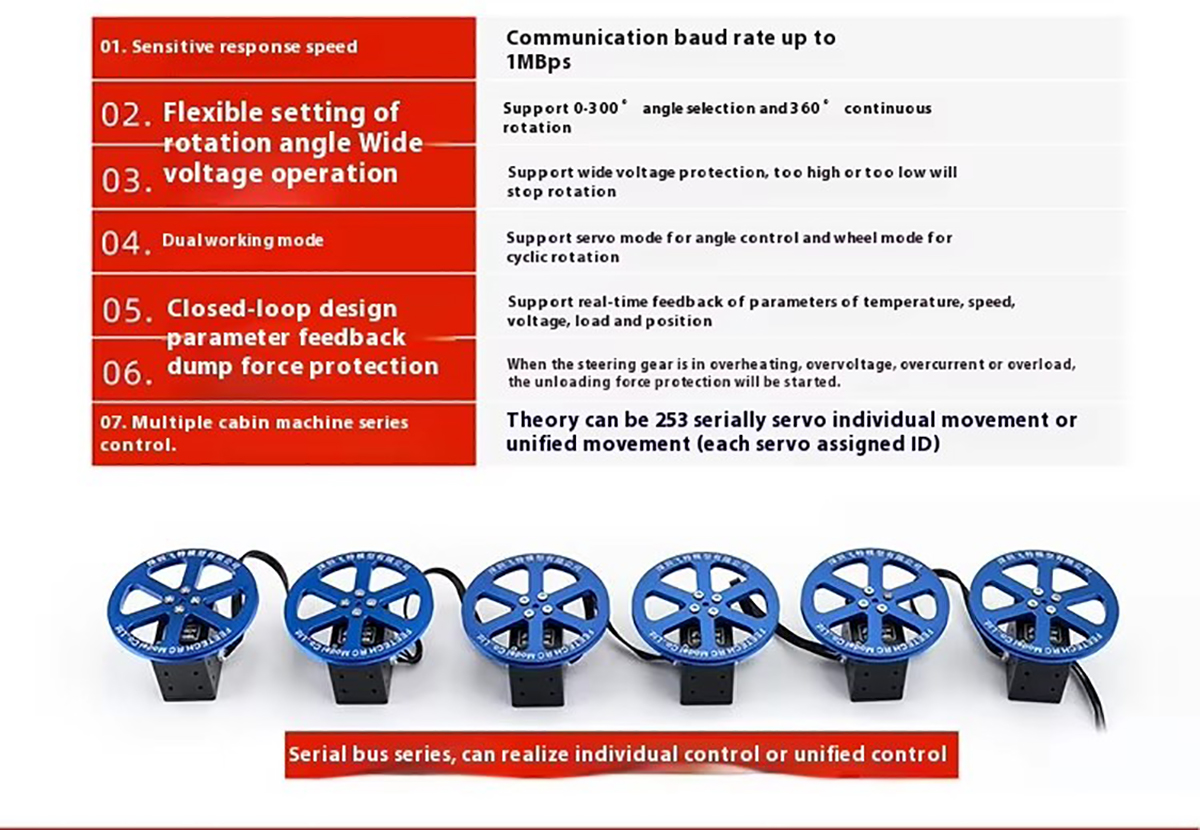

SCS2332 is 6V 4.5kg serial bus servo，adopt full aluminum alloy case，metal gearbox、coreless motor, Feetech self researched and developed TTL control board, high quality potentiometer, 25T output shaft. The stall torque is 4.5kg.cm, effective control angle is 300 °, with servo mode and continuous motor working mode, feedback position, speed, voltage, temperature, load parameters, so as to achieve overload protection. It is suitable for teaching, maker, robot joints and other small torque transmission applications.
Model: SC-2332-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -15℃～70℃

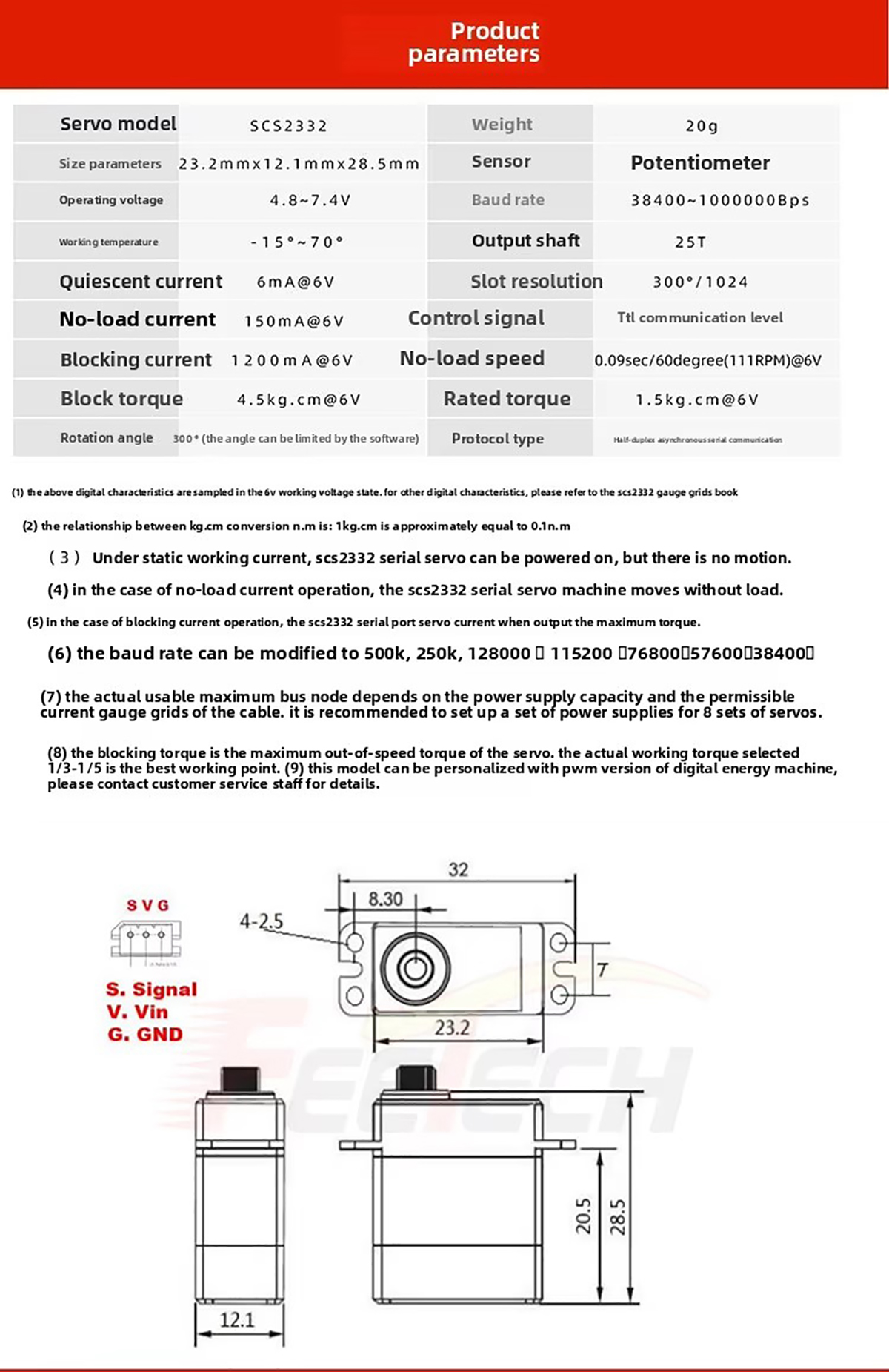

Size: 23.2*12.1*28.5mm
Weight: 20g
Gear Type: Metal Gear
Limit Angle: No Limit
Bearing: 2 Ball Bearings
Horn Gear Spline: 25T(4.95mm)
Horn Type: Plastic, POM

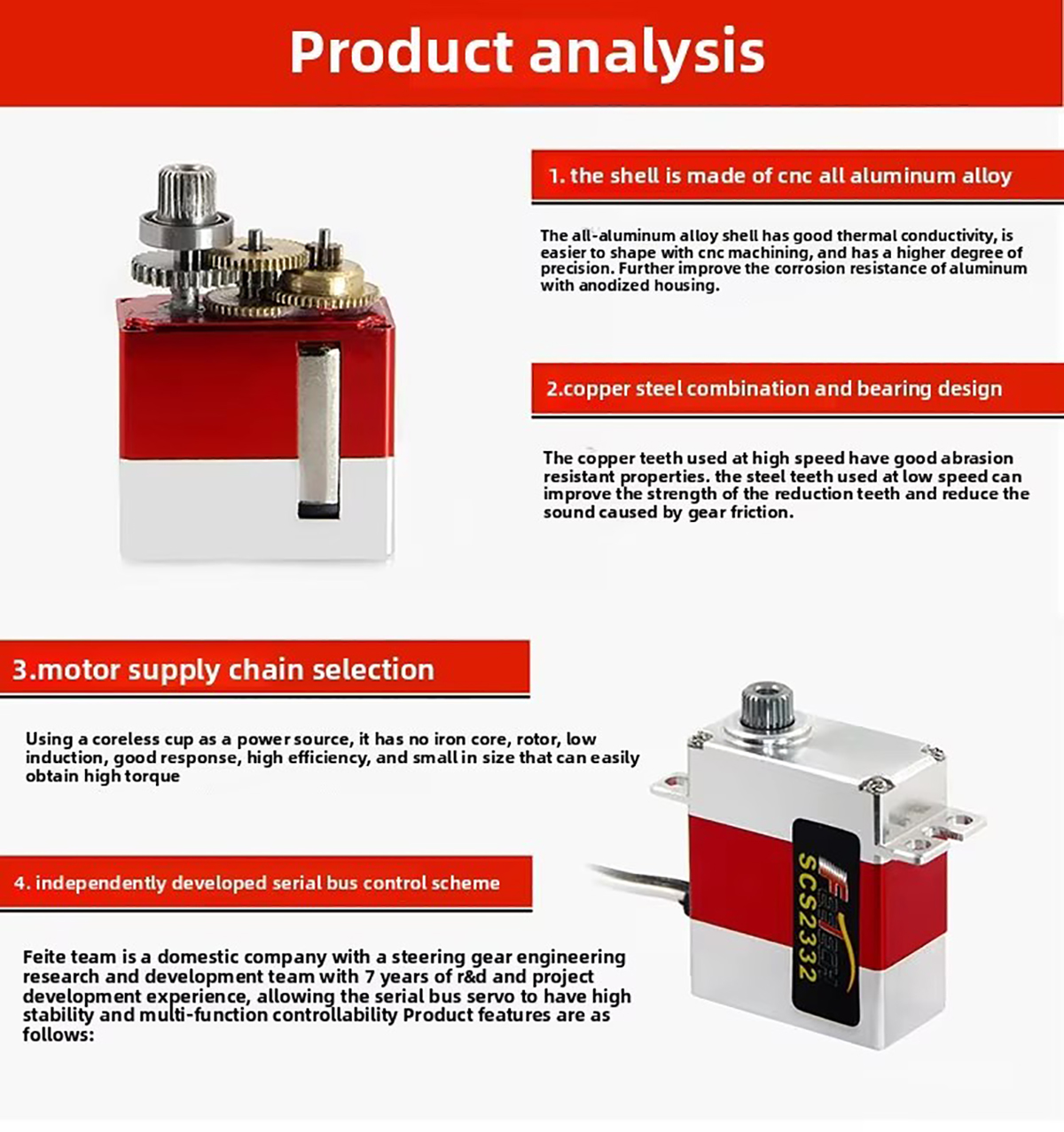

Case: Aluminum Alloy
Connector Wire: 150mm±5mm
Motor: Coreless Motor
Operating Voltage Range: 4.8V-6V
No Load Speed: 0.09sec/60°@6V
Running Current (At No Load): 150mA@6V
Peak Stall Torque: 4.5kg.cm@6V
Rated Torque: 1.5kg.cm@6V
Stall Current: 1200mA@6V

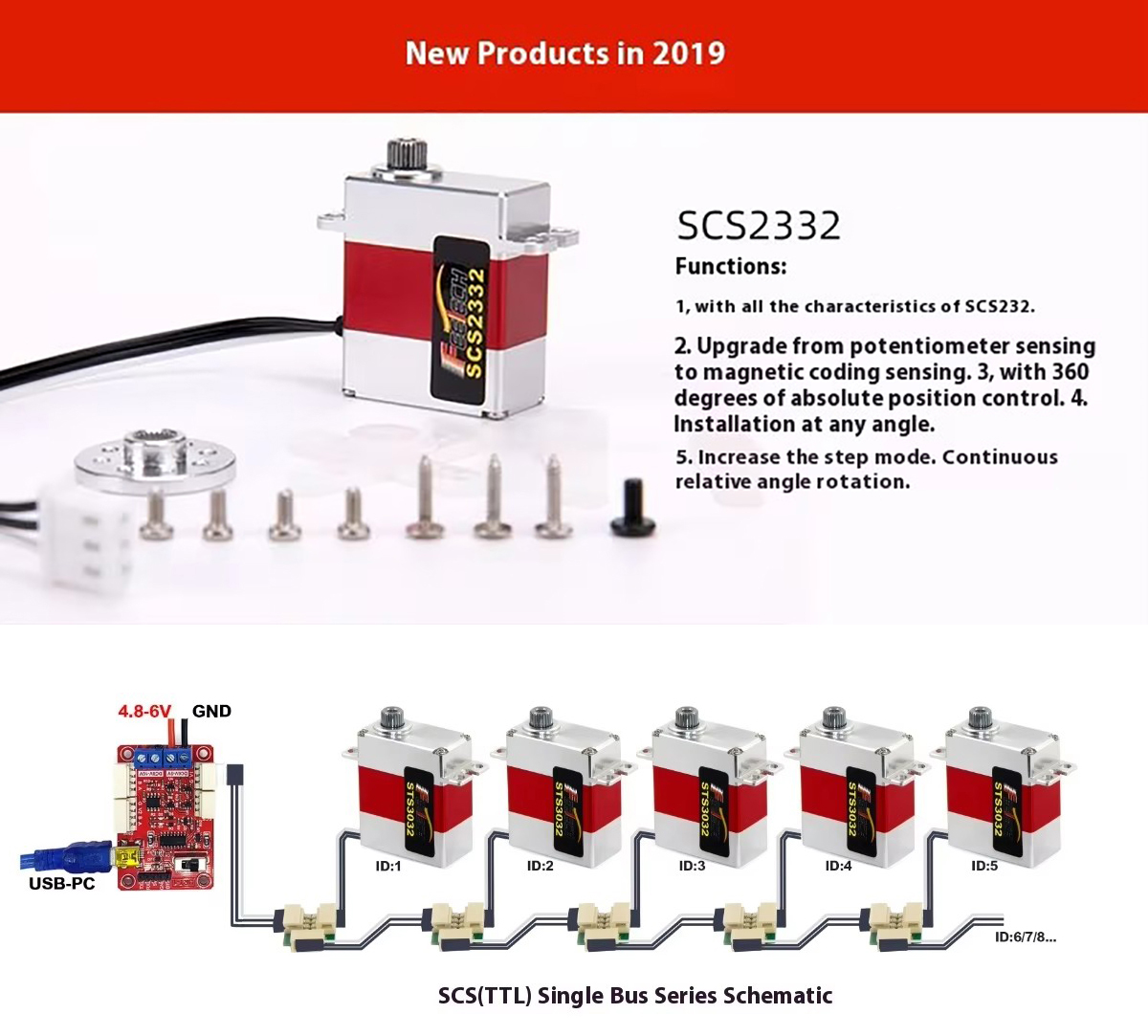

Command Signal: Bus Packet Communication TTL Level
Protocol Type: Half Duplex Asynchronous Serial Communication
ID Range: 0-253
Communication Speed: 38400bps~1Mbps
Running Degree: 300°(when 0～1023)
Feedback: Load, Speed, Position
Position Sensor Resolution: Potentiometer(300°/1024)
Operating Mode: Servo Mode / Motor Mode
SCS2332 Servo x1
