Feetech SCS40 8.4V 40kg Metal Gear Coreless Motor Serial Control Bus Servo for Rc Car Robot Toys

SKU SC-4000-C001 Category Tag Brand:



Feetech SCS40 8.4V 40kg Metal Gear Coreless Motor Serial Control Bus Servo for Rc Car Robot Toys

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

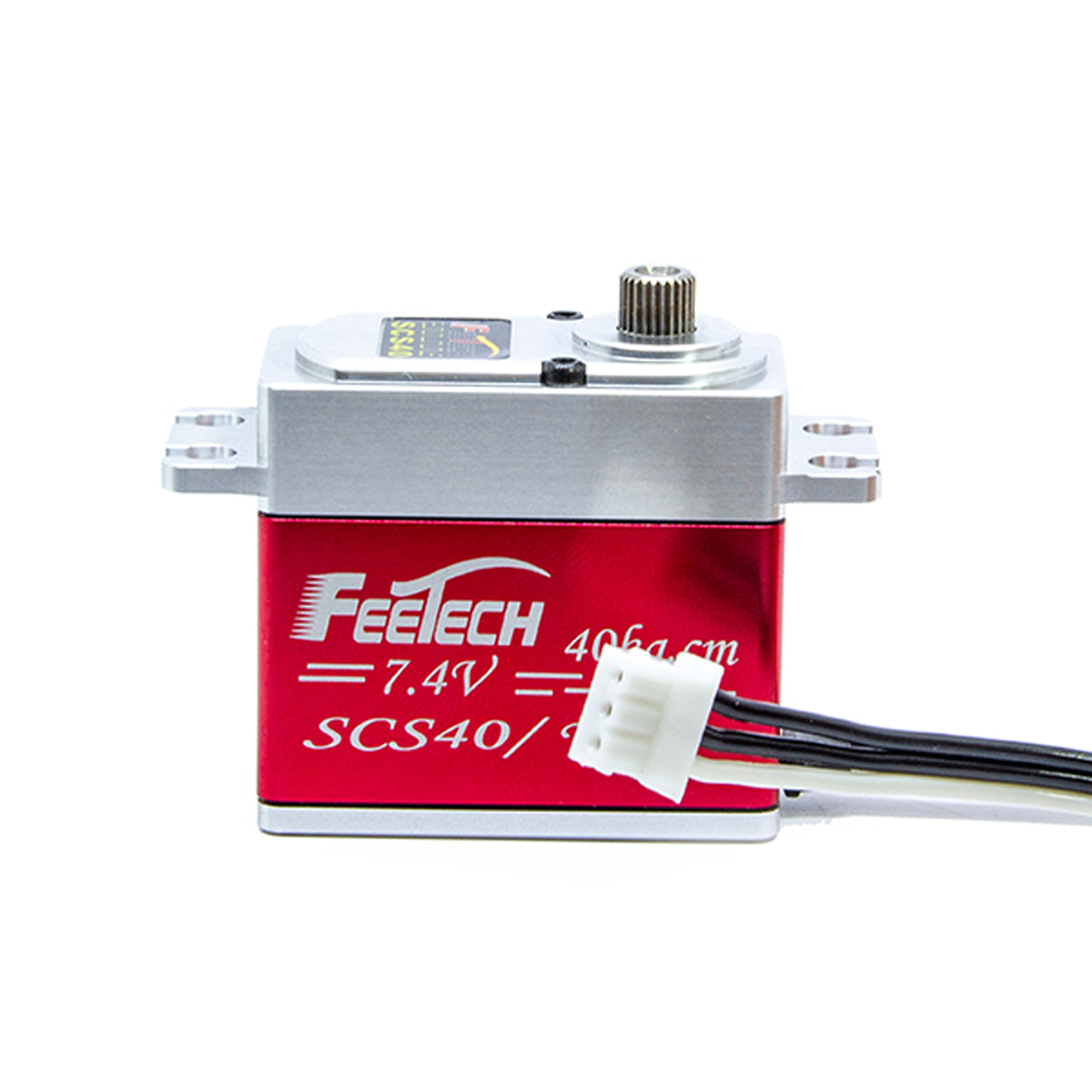

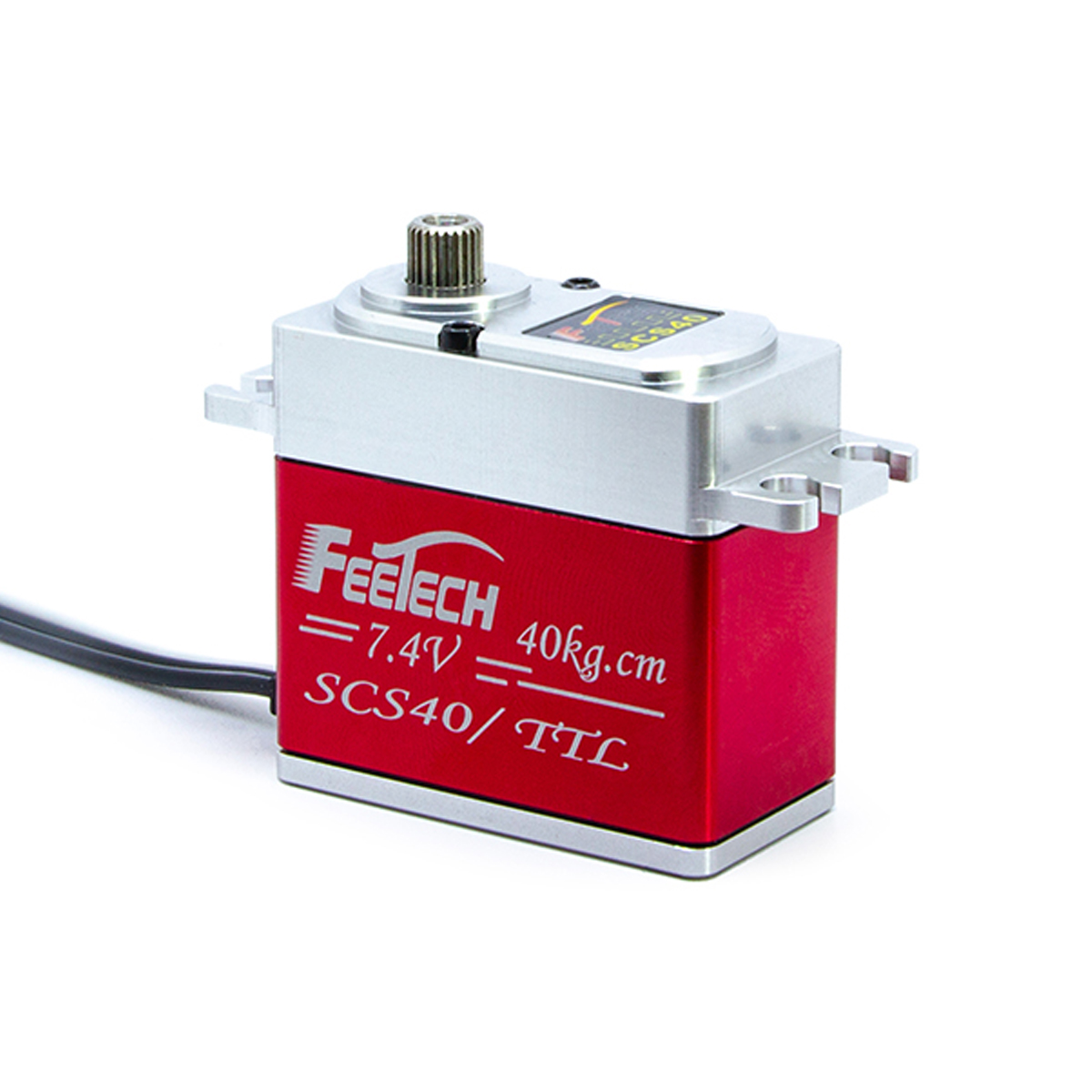

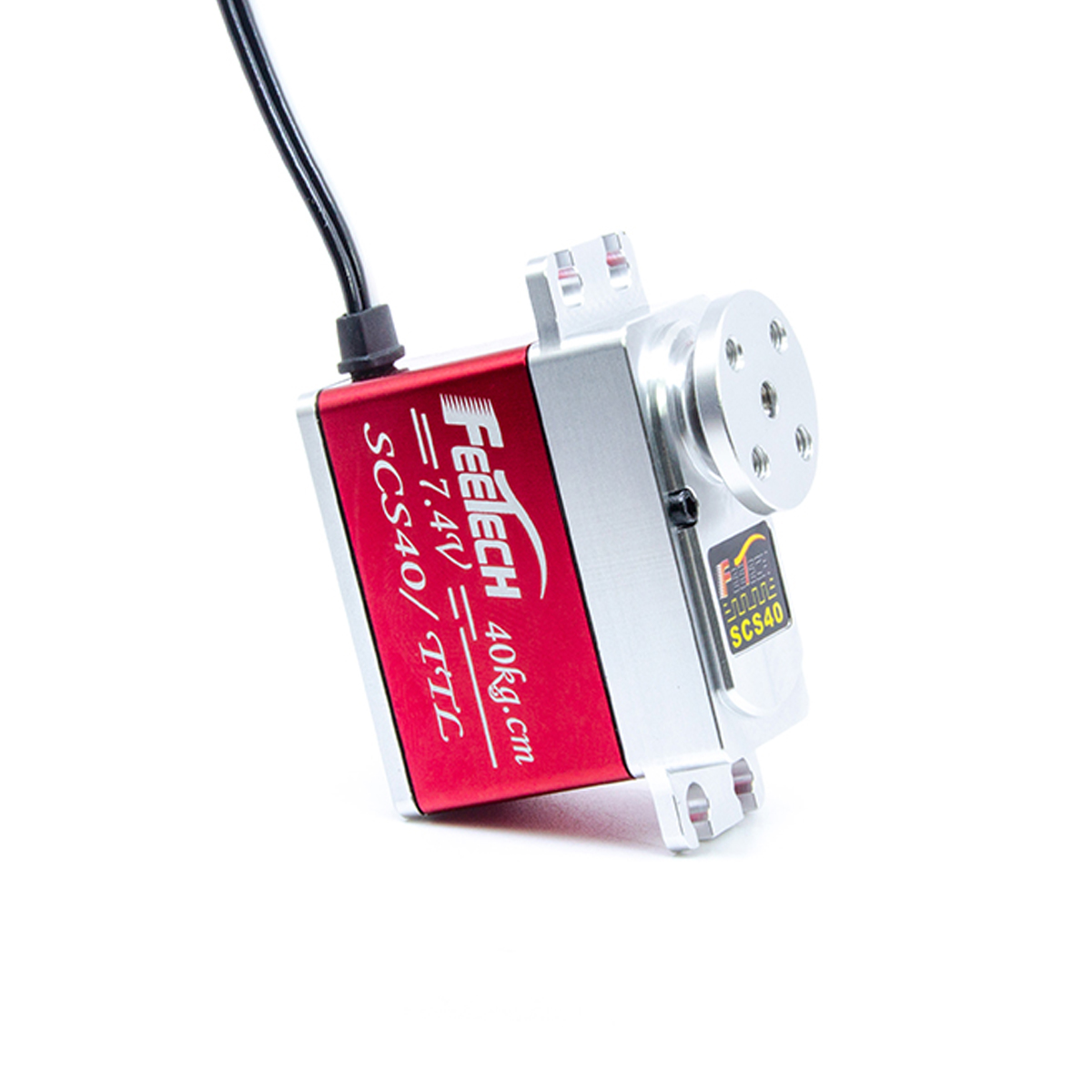

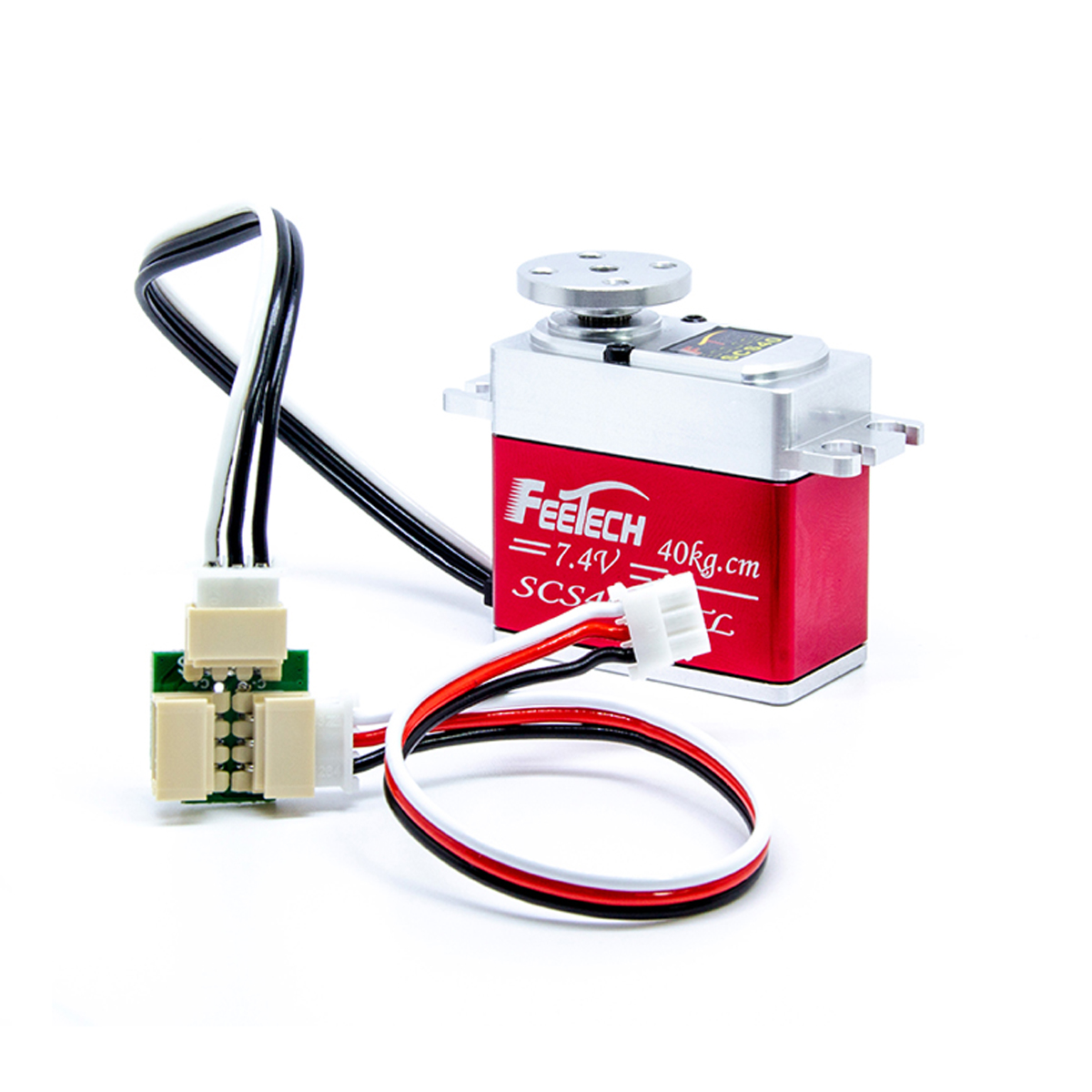

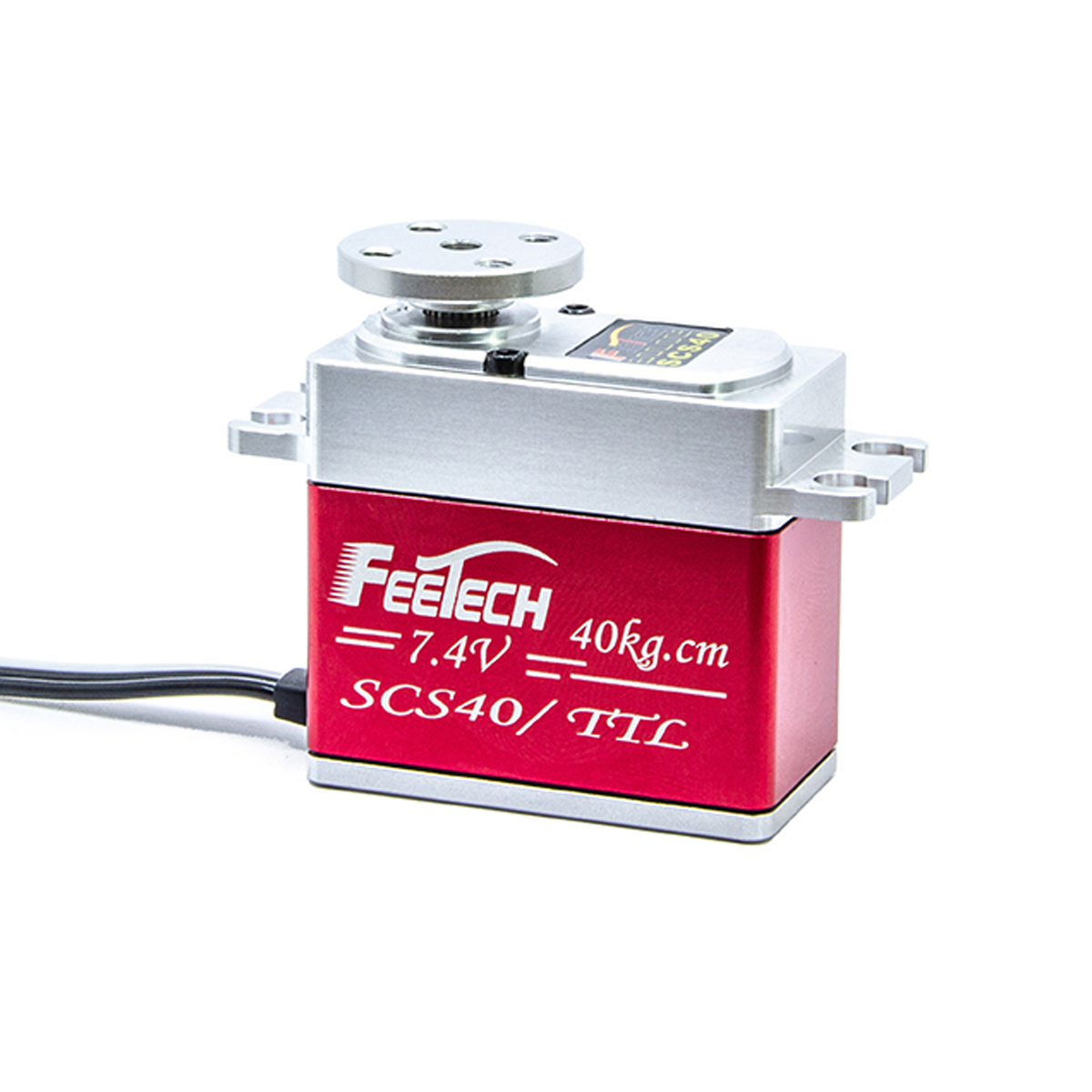

SC-4000-C001 is 8.4V 40kg serial bus smart servo,aluminum alloy case is used to facilitate heat dissipation,metal gearbox、coreless motor, Feetech self researched and developed TTL control board,high quality potentiometer,25T output shaft. The stall torque is 40kg.cm,the effective control angle is 300°,has servo mode and continuous rotation motor working mode,can feedback position、speed、voltage、current、temperature、load parameters,thus, overload and over-current protection can be realized. It is suitable for the application scenarios of teaching, maker, robot joint.

Model: SC-4000-C001
Storage Temperature Range: -30℃~80℃
Operating Temperature Range: -15℃~70℃

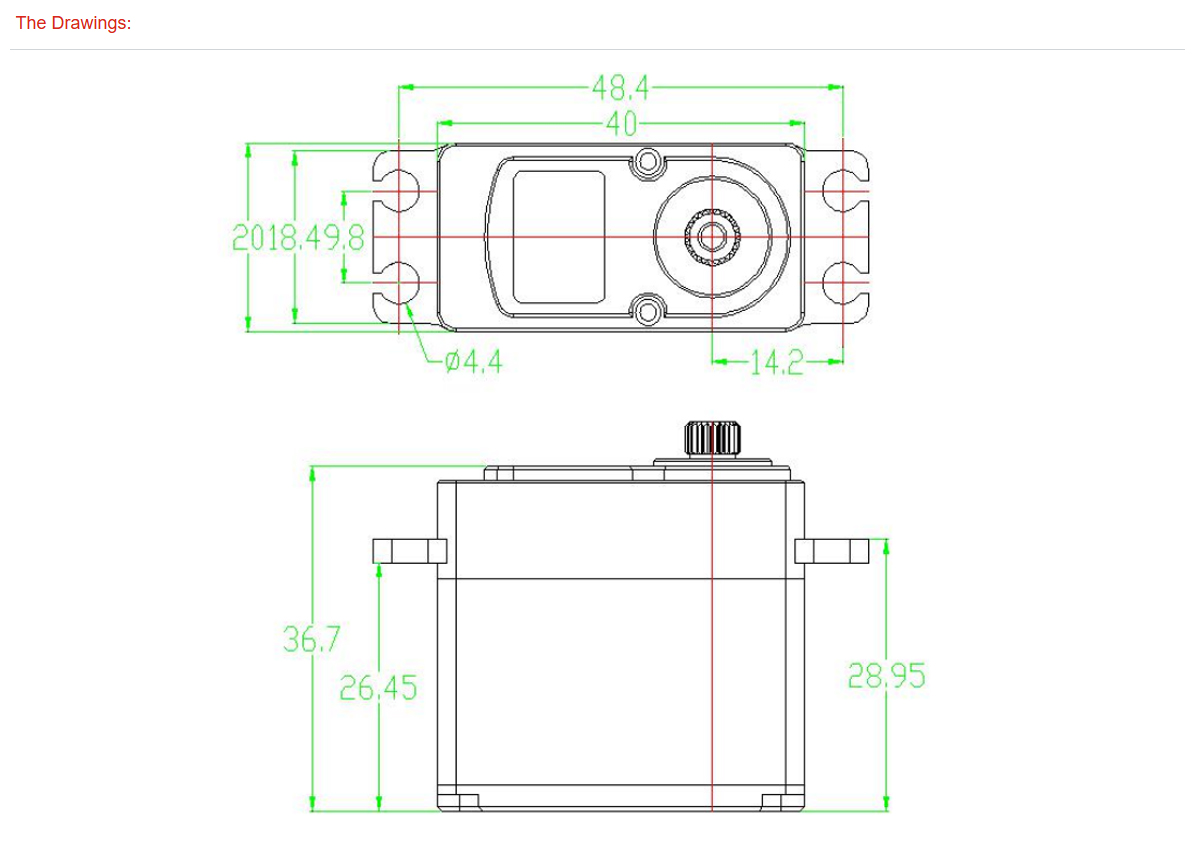

Size: 40.5*20.5*36mm
Weight: 70±0.2g
Gear Type: Metal Gear
Limit Angle: No Limiter
Bearing: 2 Ball Bearings
Horn Gear Spline: 25T(4.95mm)
Horn Type: Plastic, POM
Case: ABS
Connector Wire: 200mm±5mm
Motor: Coreless Motor
Operating Voltage Range: 6V-8.4V
No Load Speed: 0.12sec/60°@8.4V 83RPM
Running Current (At No Load): 120mA@8.4V
Peak Stall Torque: 42.5kg.cm@8.4V
Rated Torque: 12.8kg.cm@8.4V
Stall Current: 1800mA@8.4V
Command Signal: Bus Packet Communication TTL Level
Protocol Type: Half Duplex Asynchronous Serial Communication
ID Range: 0-253
Communication Speed: 38400bps~1Mbps
Running Degree: 300±5°(when 0~1023)
Feedback: Load, Speed, Input Voltage
Position Sensor Resolution: Potentiometer(300±5°/1024)
Operating Mode: Servo Mode / Motor Mode

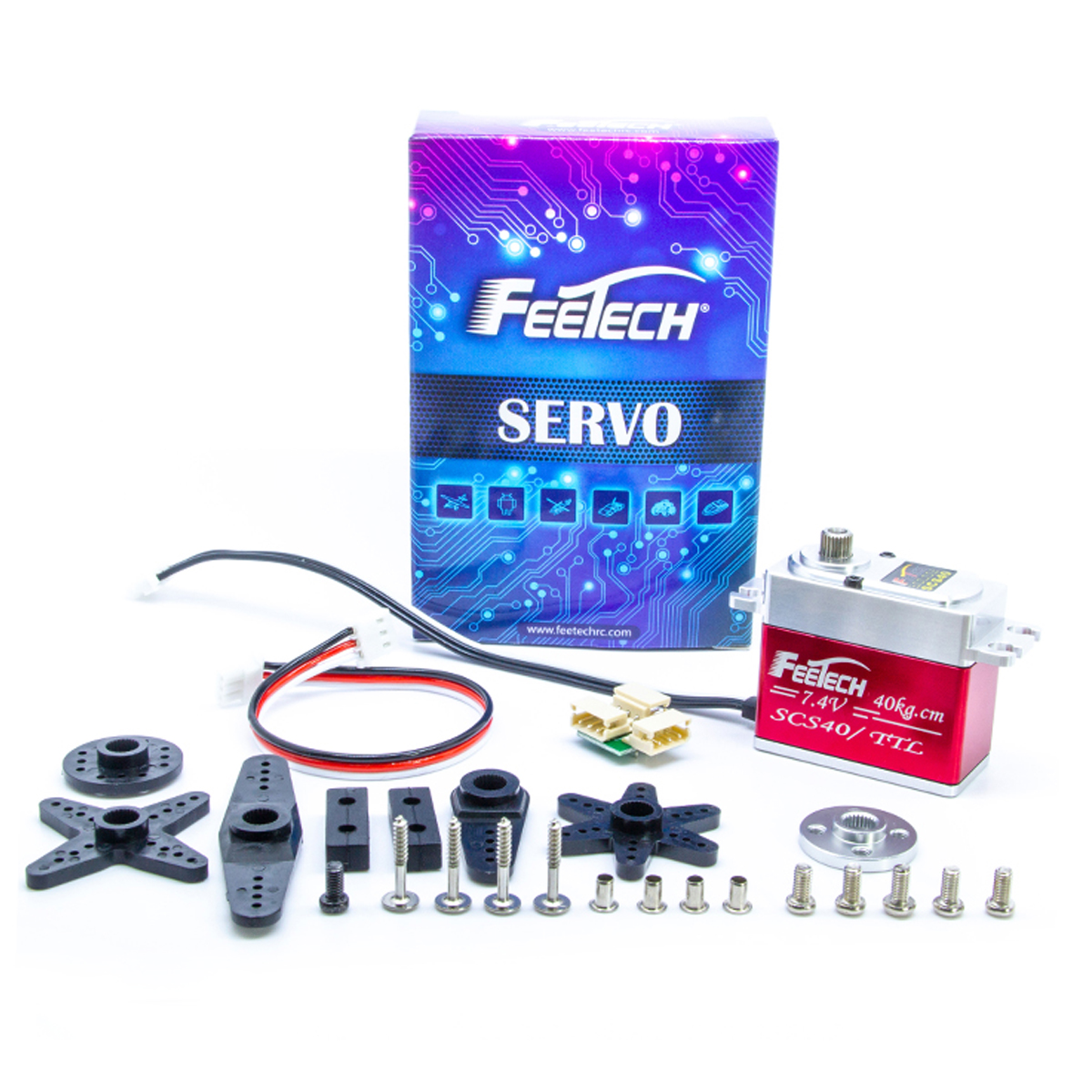

SCS40 Servo x1
