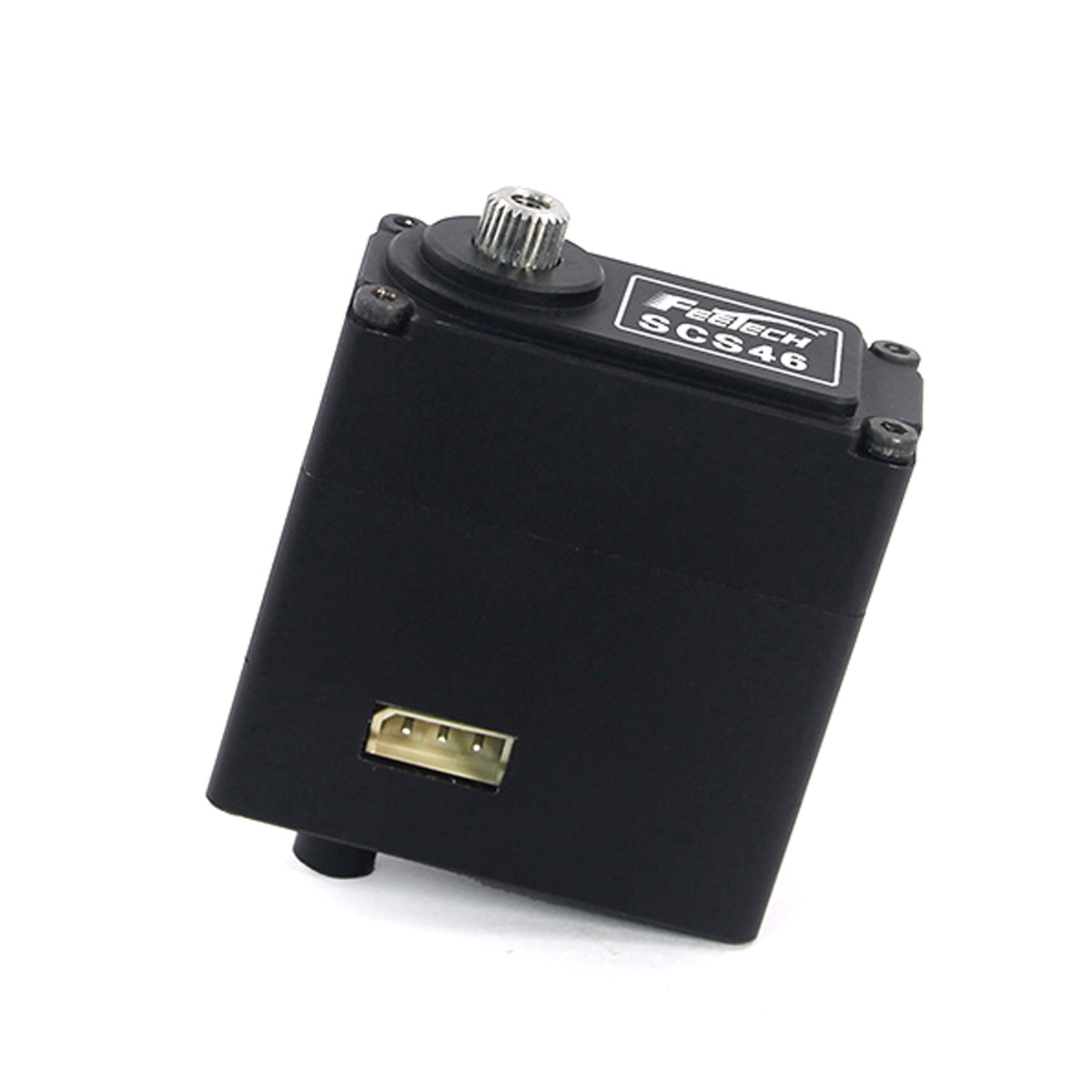

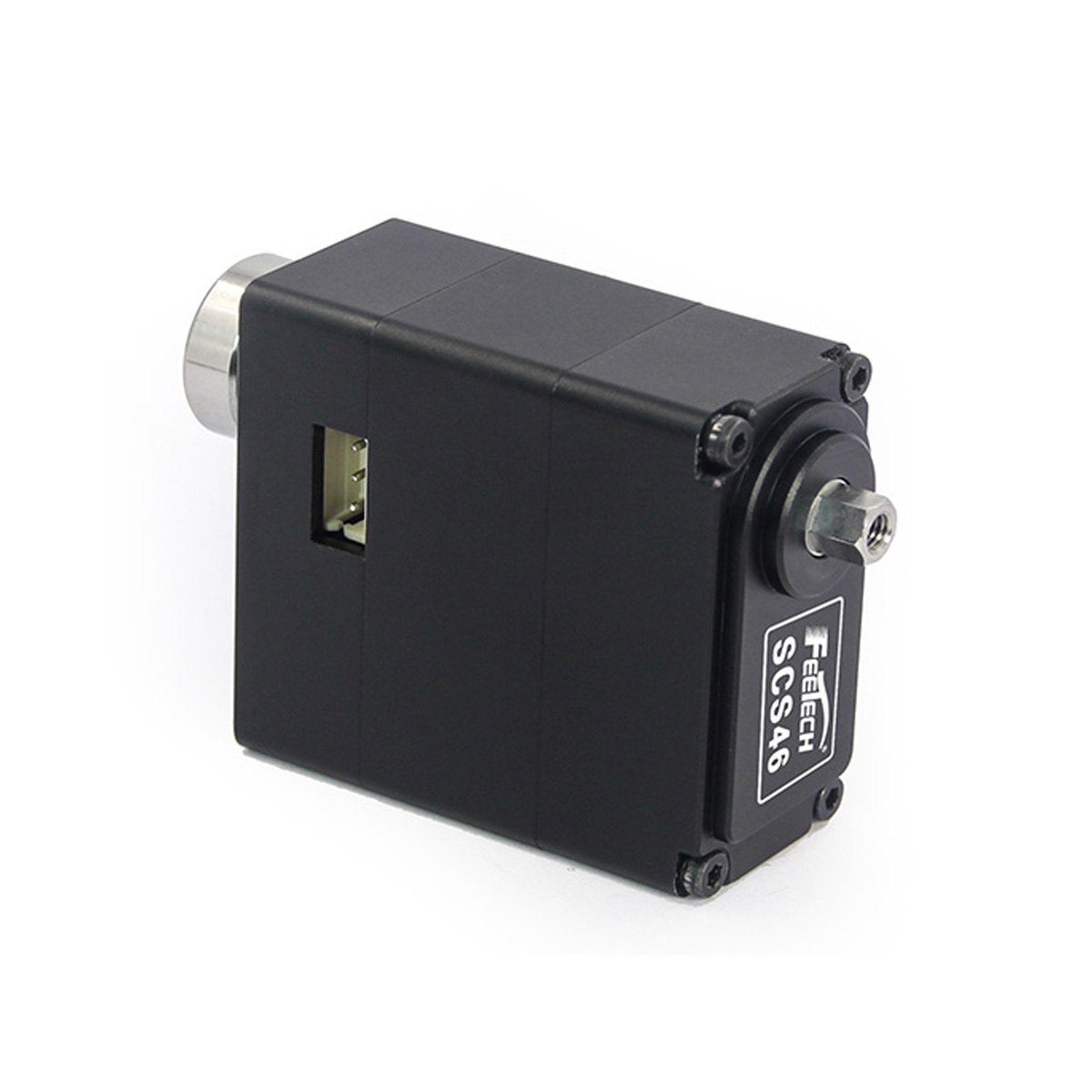

Feetech SCS46-DC 7.4V 40kg Torque Coreless Motor Double Shaft Smart Control Serial Bus Servo
SC-4600-C005 is 7.4V 40kg double shaft serial bus smart servo，aluminum alloy case is used to facilitate heat dissipation，metal gearbox、coreless motor, Feetech self researched and developed TTL control board，high quality potentiometer，25T output shaft. The stall torque is 40kg.cm，The effective control angle is 300°, it has servo mode and continuous rotation motor working mode，can feedback position、speed、voltage、current、temperature、load parameters，thus, overload protection can be realized. It is suitable for the application scenarios of teaching, maker, small torque and low frequency.
Model: SC-4600-C005
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -15℃～70℃

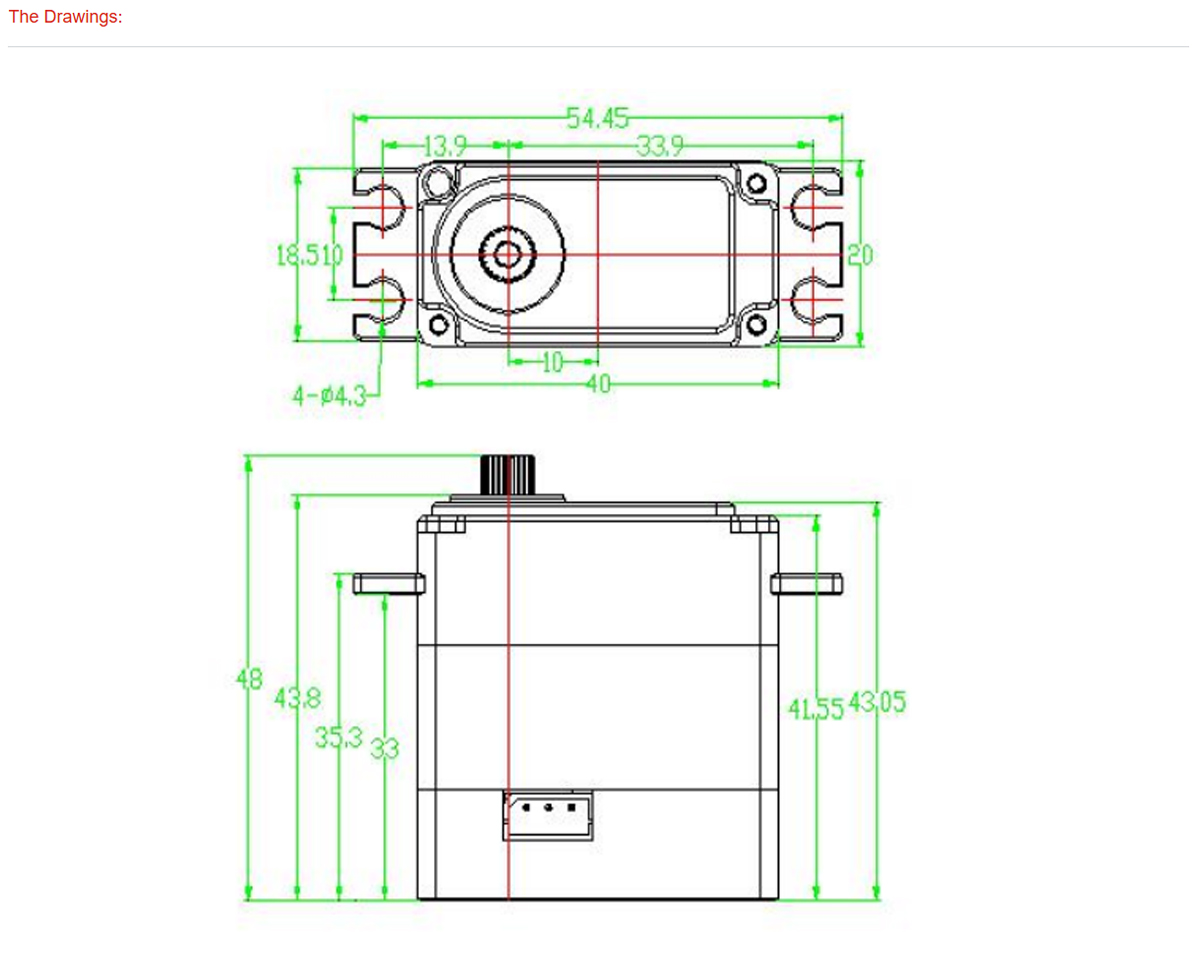

Size: 40*20*43.05mm
Weight: 88±0.2g
Gear Type: Metal Gear
Limit Angle: No Limiter
Bearing: 2 Ball Bearings
Horn Gear Spline: 25T(5.9mm)
Horn Type: Aluminum
Case: Aluminum
Connector Wire: 150mm±5mm
Motor: Coreless Motor
Operating Voltage Range: 6V-8.4V
No Load Speed: 0.21sec/60°@7.4V 47RPM
Running Current (At No Load): 130mA@7.4V
Peak Stall Torque: 40.5kg.cm@7.4V
Rated Torque: 13.5kg.cm@7.4V
Stall Current: 3000mA@7.4V
Command Signal: Bus Packet Communication TTL Level
Protocol Type: Half Duplex Asynchronous Serial Communication
ID Range: 0-253
Communication Speed: 38400bps~1Mbps
Running Degree: 300°
Feedback: Load, Speed, Input Voltage, Current, Temperature
Position Sensor Resolution: Potentiometer(300°/1024)±5%

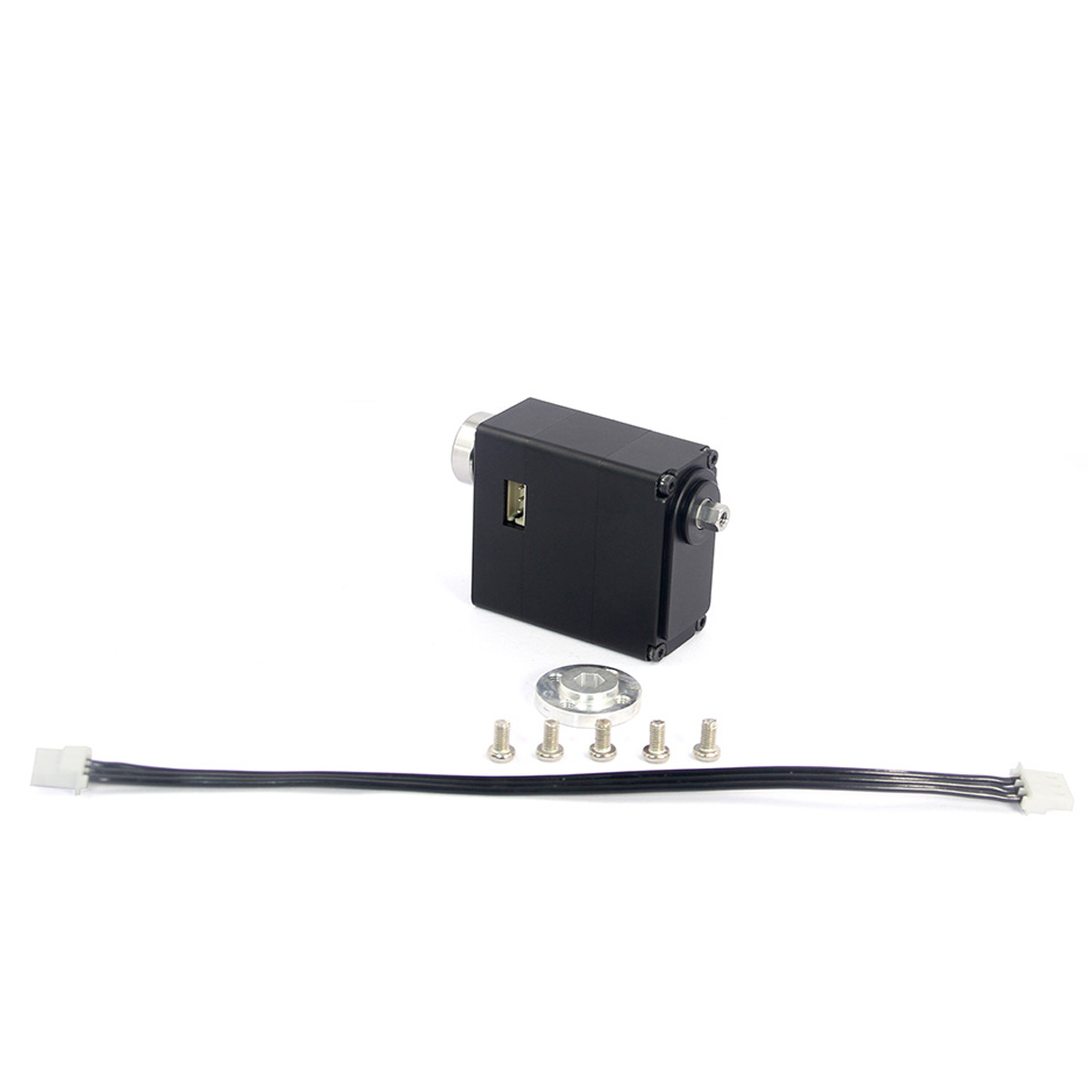

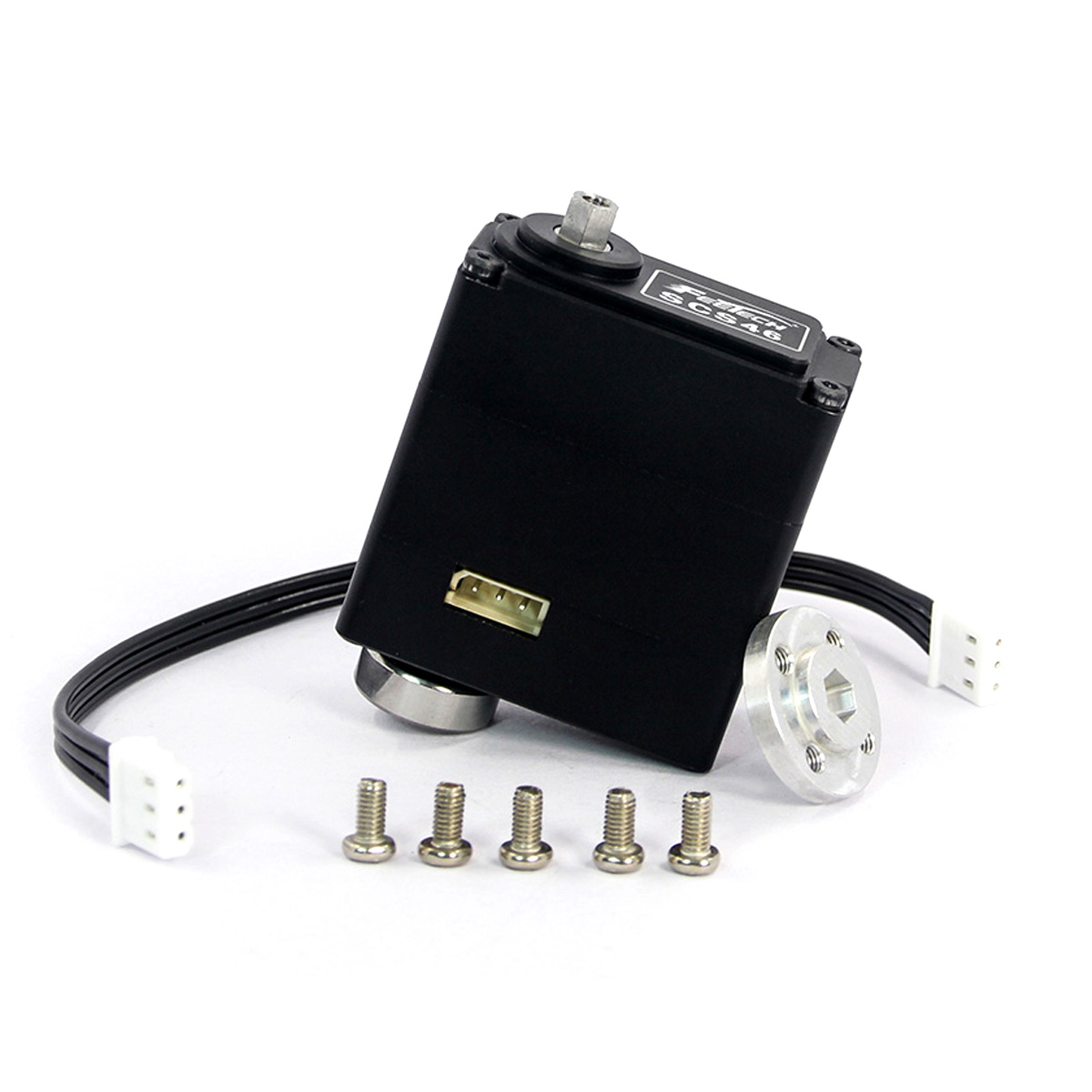

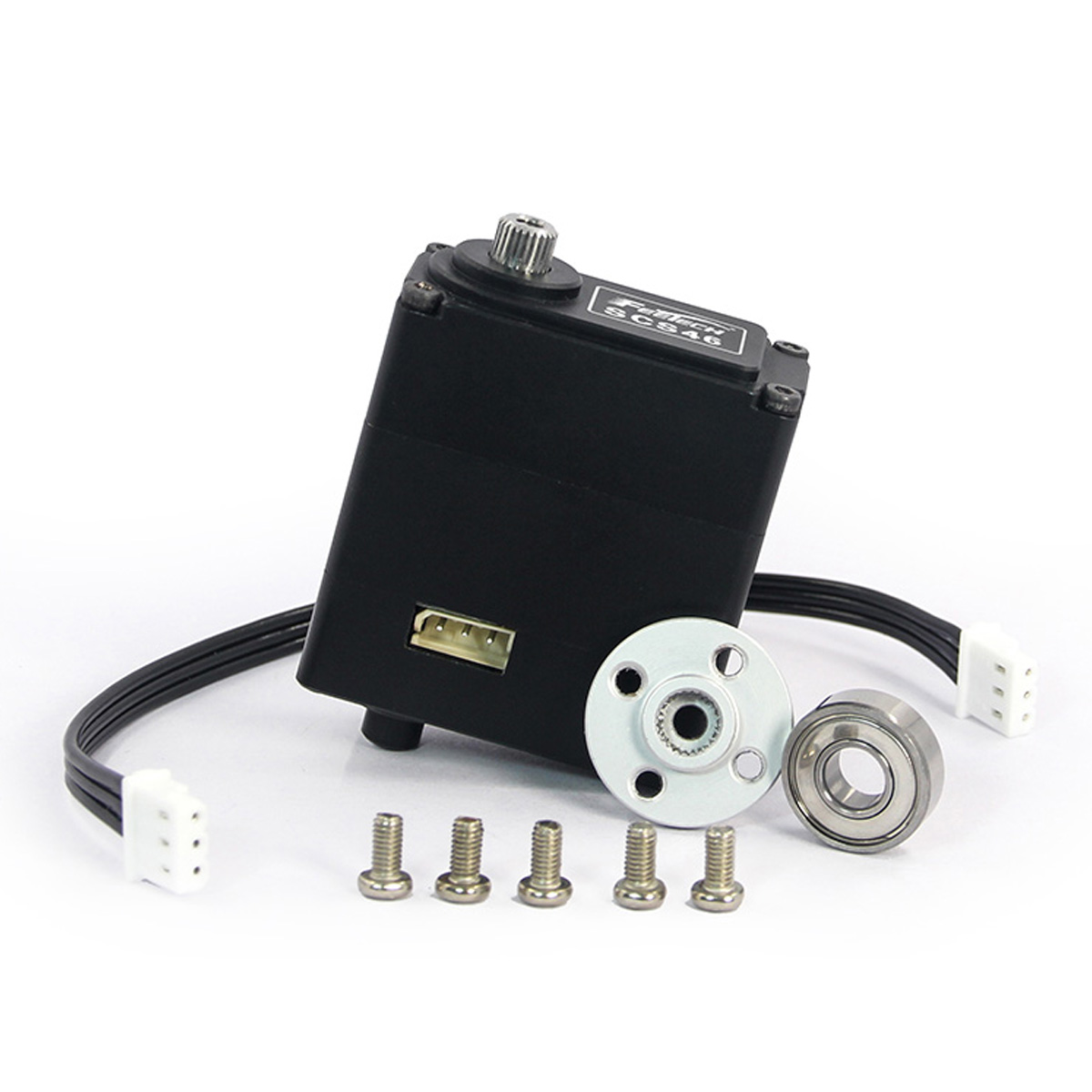

SCS46-DC Servo x1
