Model: FT-1025-C006

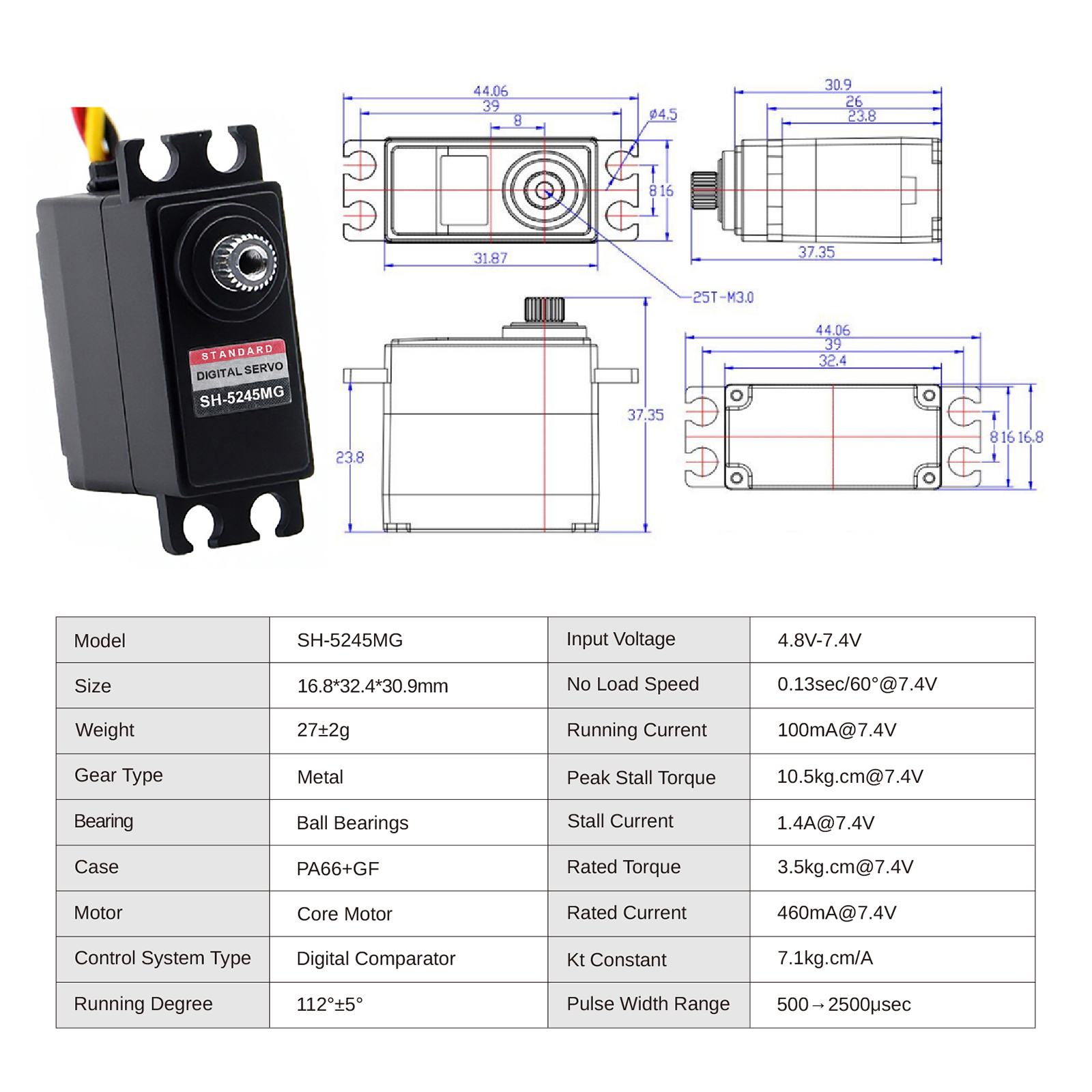

Size: 16.8*32.4*30.9mm
Weight: 27±2g

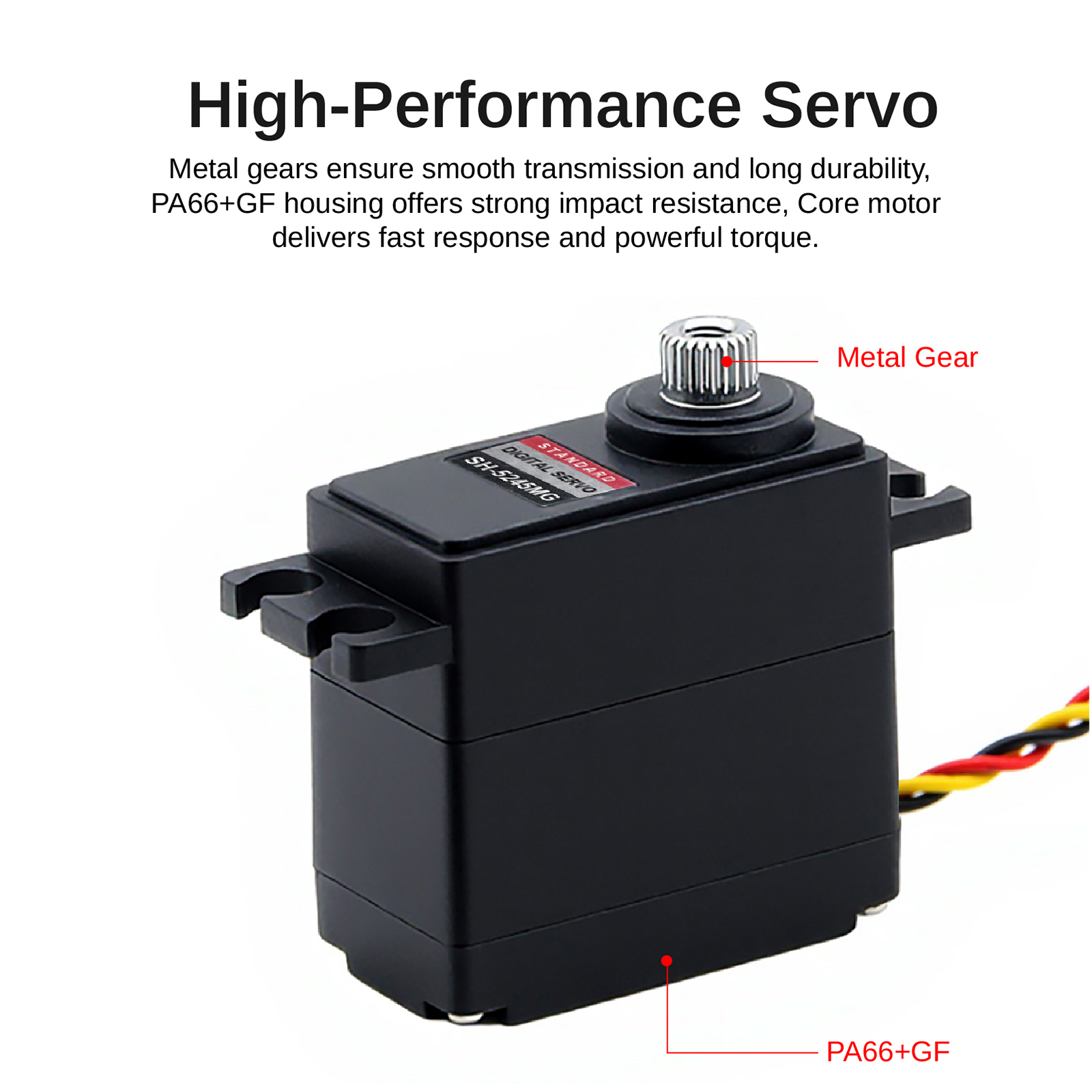

Gear Type: Metal
Limit Angle: No Limit
Bearing: Ball Bearings
Horn Gear Spline: 25T
Case: PA66+GF
Connector Wire: 30CM(JR)
Motor: Core Motor
Working Voltage Range: 4.8V-7.4V
Idle Current (at stopped): 9mA@7.4V
No Load Speed (+/-10% Tolerance): 0.13sec/60°@7.4V
Running Current (at no load) ±10%: 100mA@7.4V
Peak Stall Torque: 10.5kg.cm@7.4V
Stall Current ±10%: 1.4A@7.4V
Rated Torque: 3.5kg.cm@7.4V
Rated Current: 460mA@7.4V
Kt Constant: 7.1kg.cm/A
Command Signal: Pulse Width Modification
Control System Type: Digital Comparator
Pulse Width Range: 500→2500μsec
Stop Position: 1500µsec
Running Degree: 112±5°(at 900→2100μsec)
Dead Band Width: ≤4μsec
Rotating Direction: Clockwise (1500→2000μsec)
