Model: FT-5930-C004
Size: 40.1*20.1*38.9mm
Weight: 61±1g

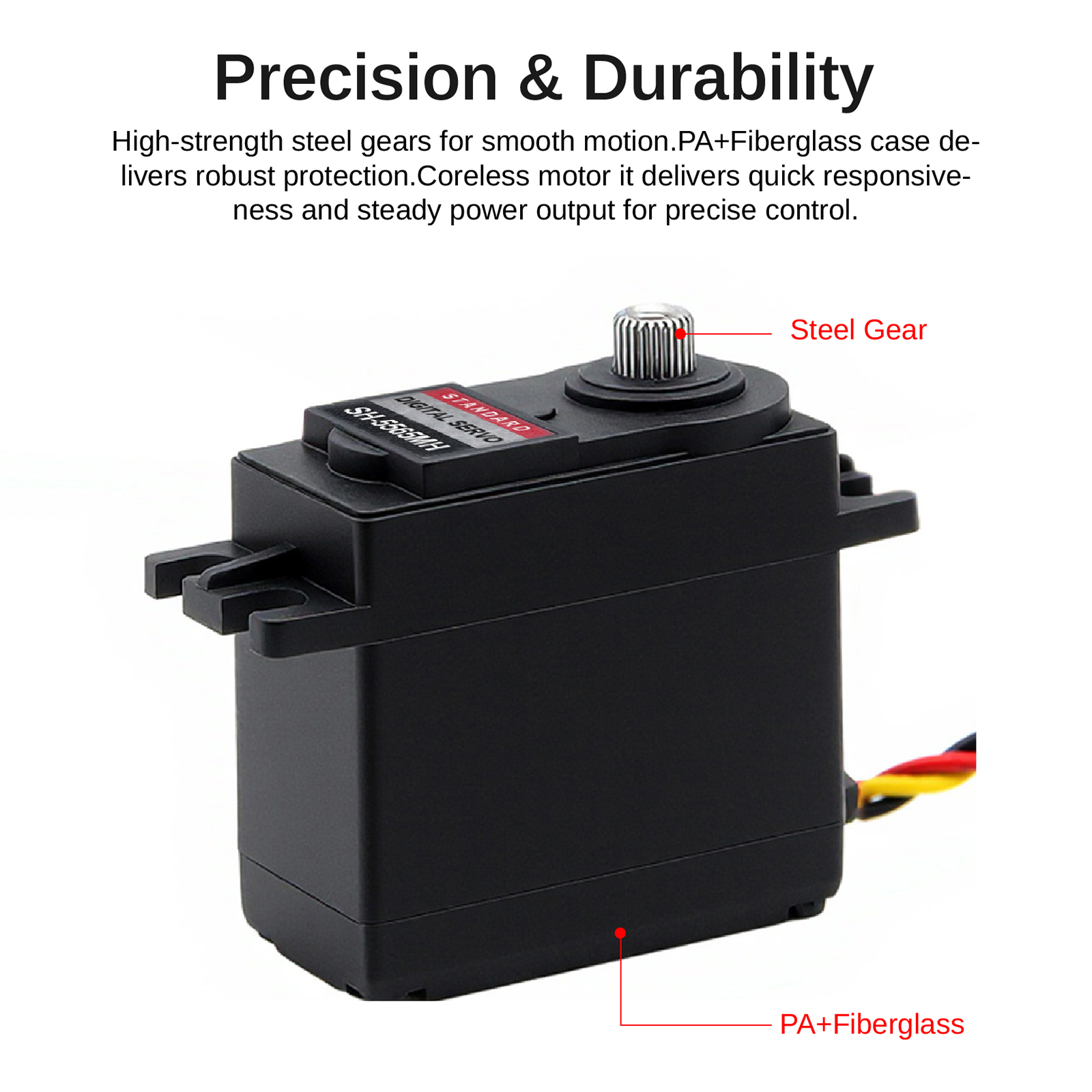

Gear Type: Steel
Limit Angle: No Limit
Bearing: Ball Bearings
Horn Gear Spline: 25T
Case: PA+Fiberglass
Connector Wire: 33CM(JR)
Motor: Coreless Motor
Working Voltage Range: 4.8V-7.4V
Idle Current (at stopped): 6mA@7.4V
No Load Speed (+/-10% Tolerance): 0.11sec/60°@7.4V
Running Current (at no load) ±10%: 280mA@7.4V
Peak Stall Torque: 35.8kg.cm@7.4V
Stall Current ±10%: 4.5A@7.4V
Rated Torque: 11.9kg.cm@7.4V
Rated Current: 1500mA@7.4V
Kt Constant: 8.2kg.cm/A
Command Signal: Pulse Width Modification
Control System Type: Digital Comparator
Pulse Width Range: 500→2500μsec
Stop Position: 1500µsec
Running Degree: 117±5°(at 900→2100μsec)
Dead Band Width: ≤4μsec
Rotating Direction: Clockwise (1500→2000μsec)
