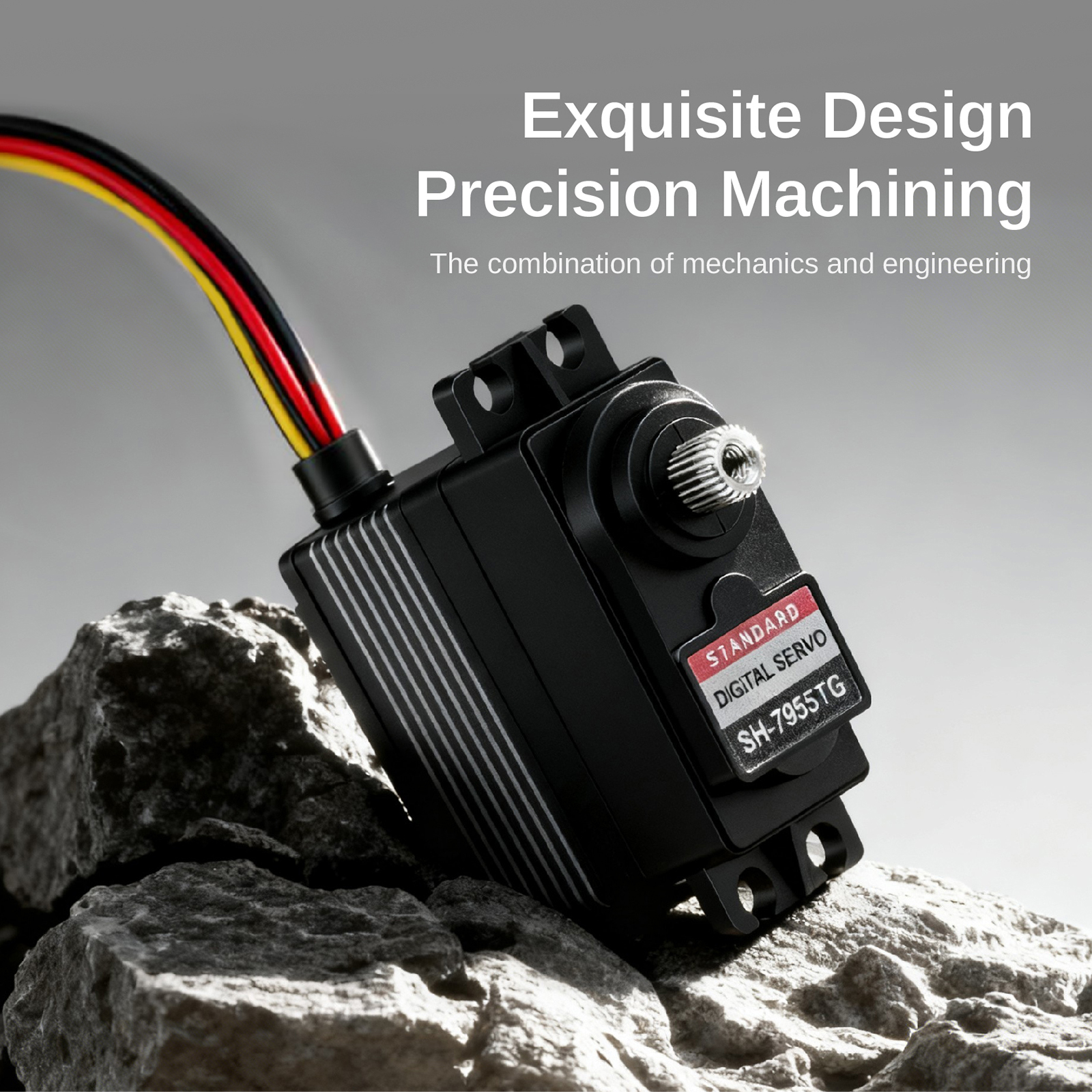

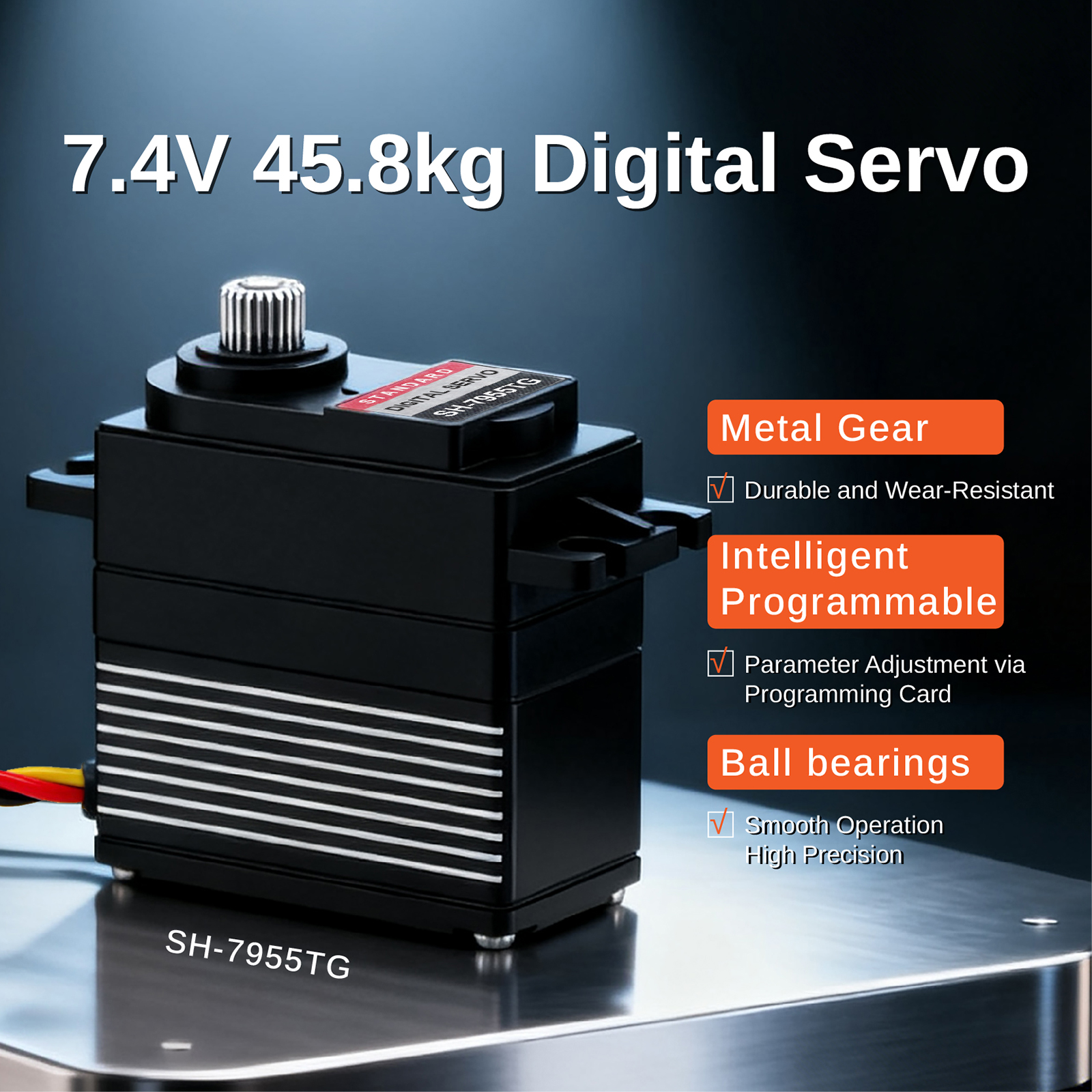

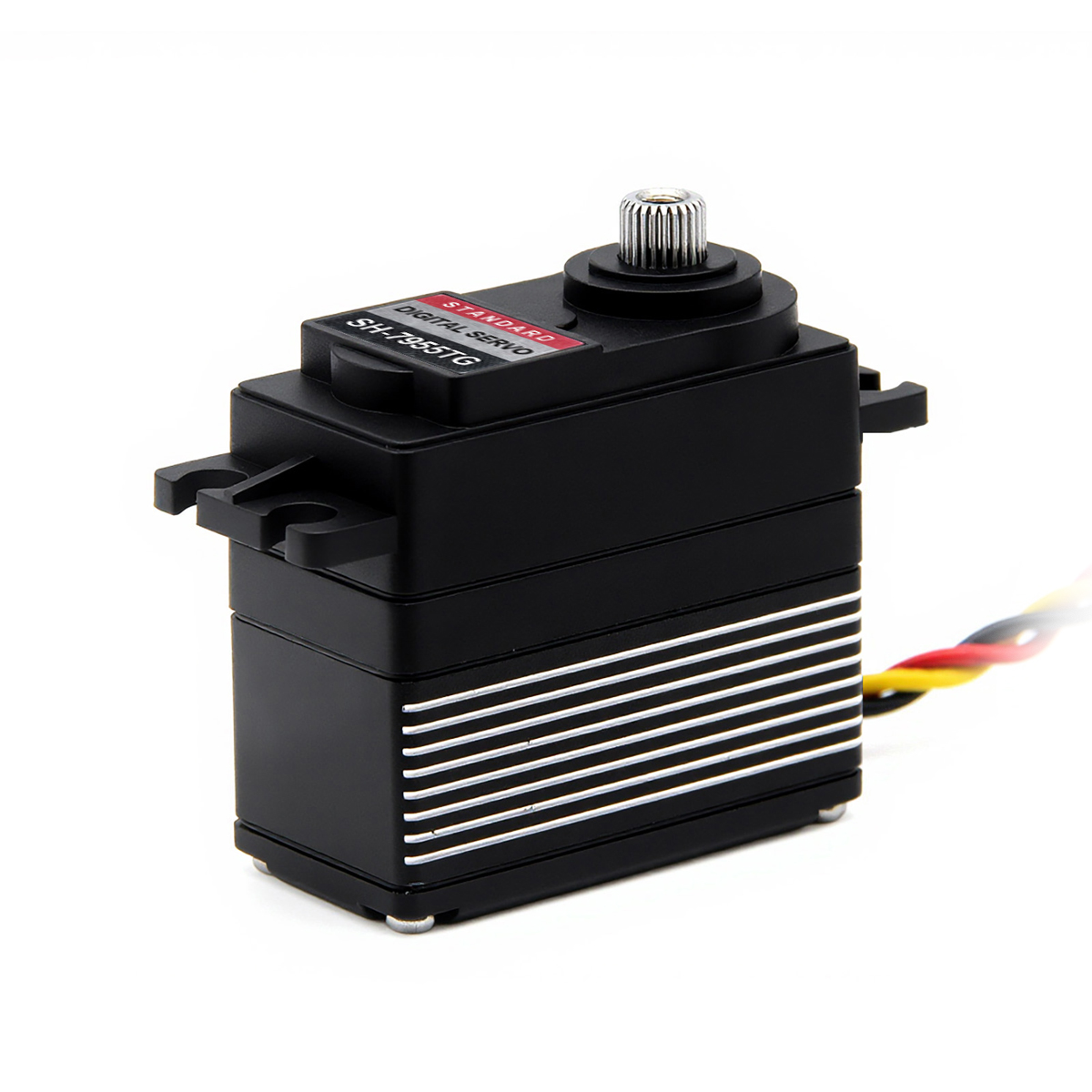

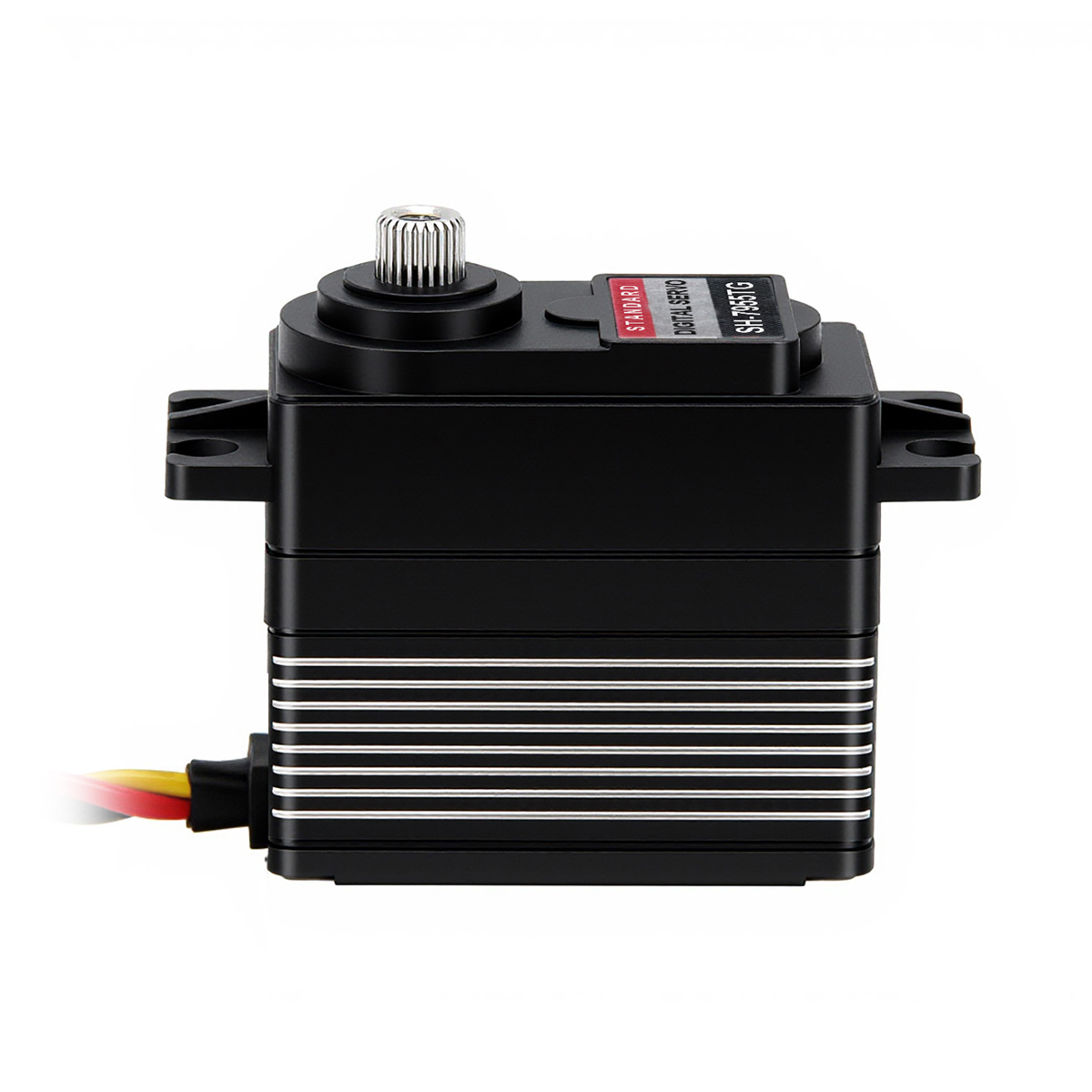

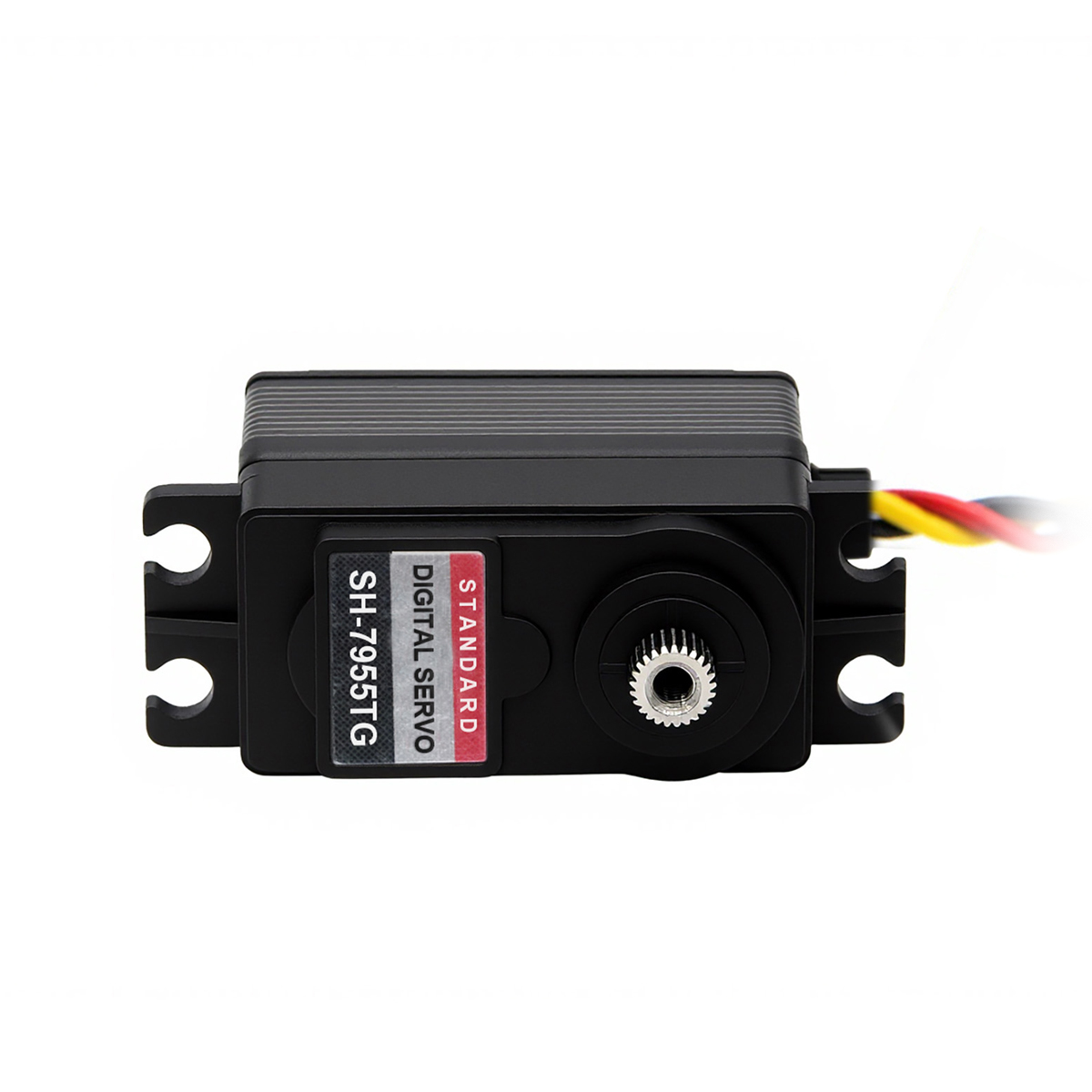

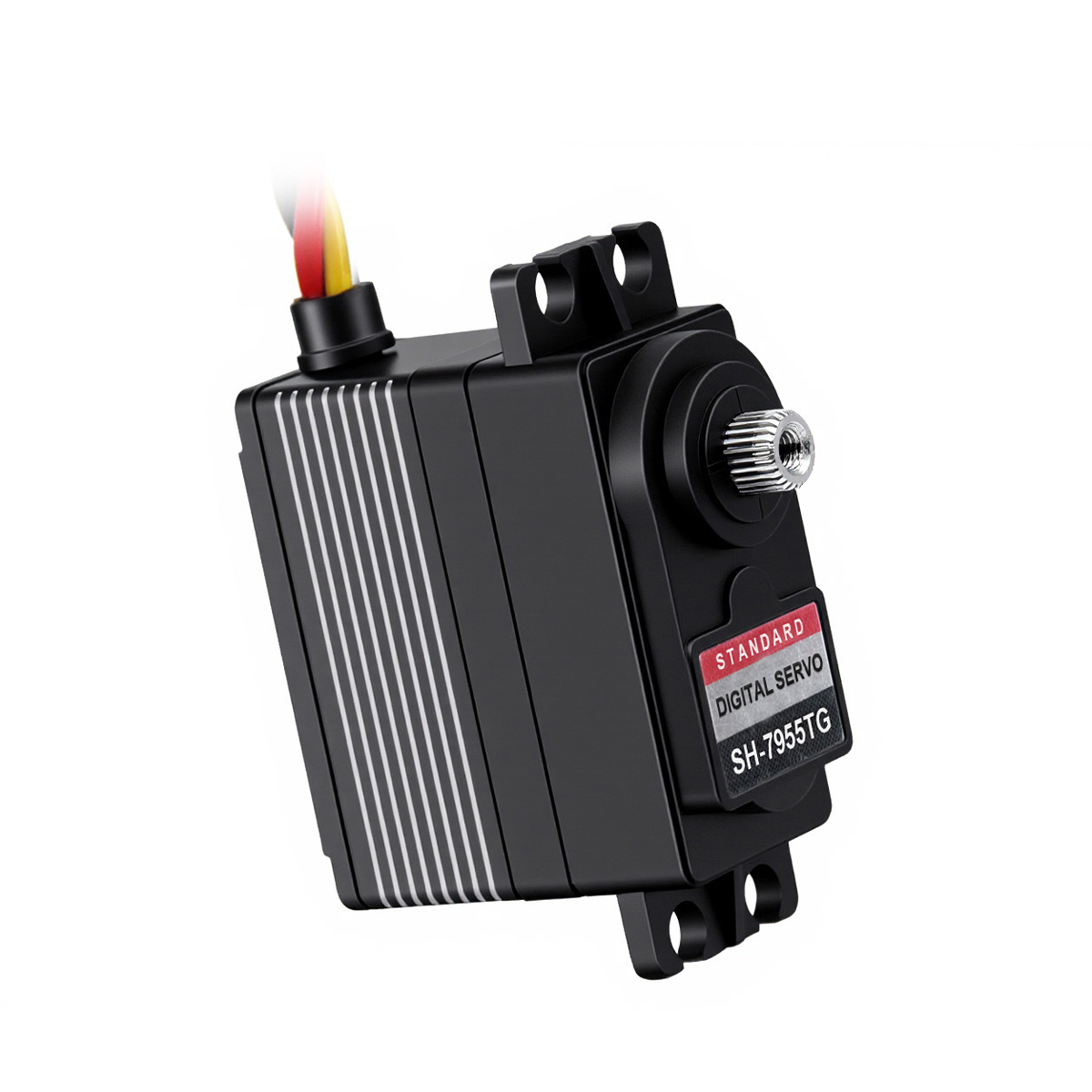

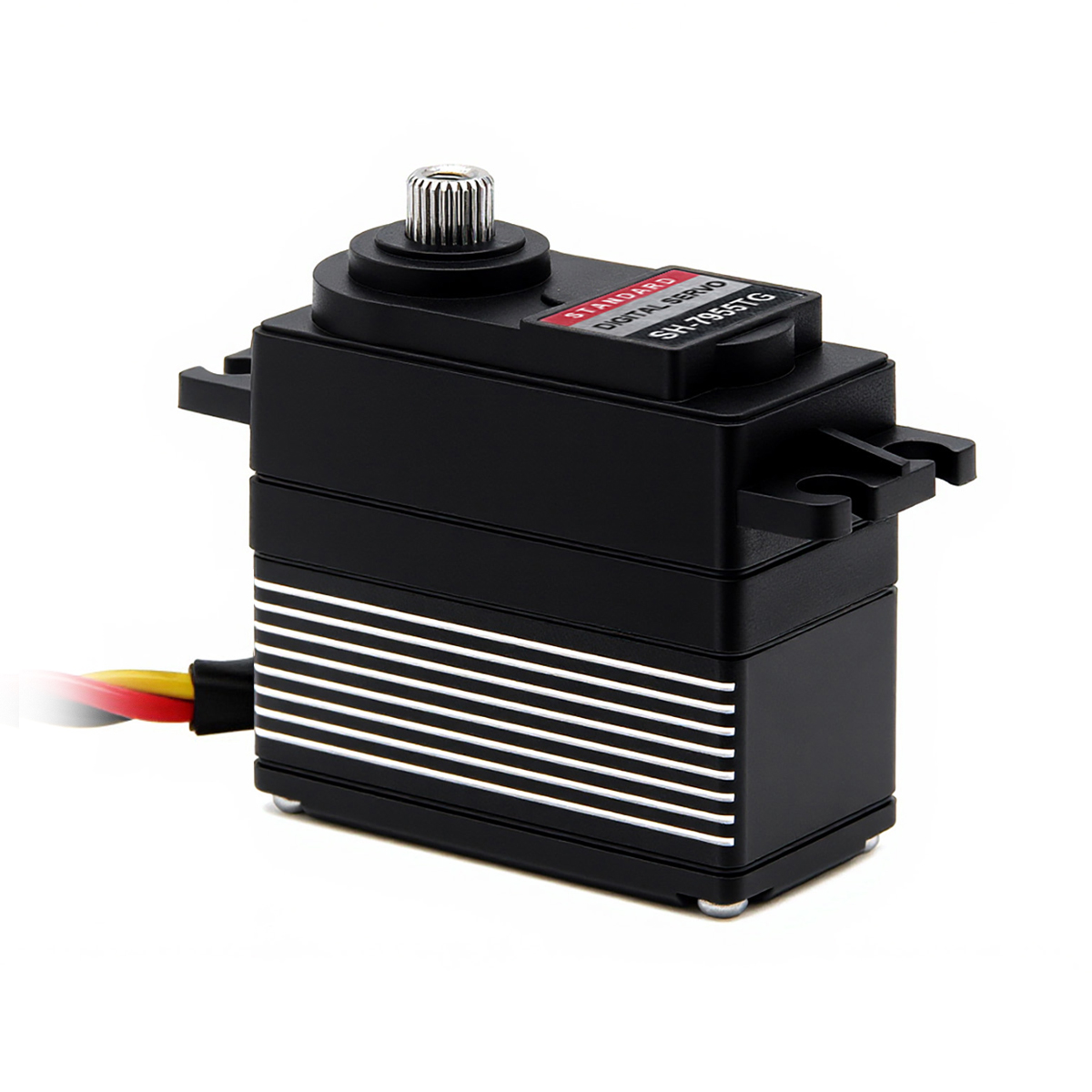

Feetech SH-7955TG 7.4V 45.8kg Steel Gear 180 Degree Coreless Motor Digital Servo for RC Car Boat Robot
Feetech SH-7955TG 7.4V 45.8kg Steel Gear 180 Degree Coreless Motor Digital Servo for RC Car Boat Robot

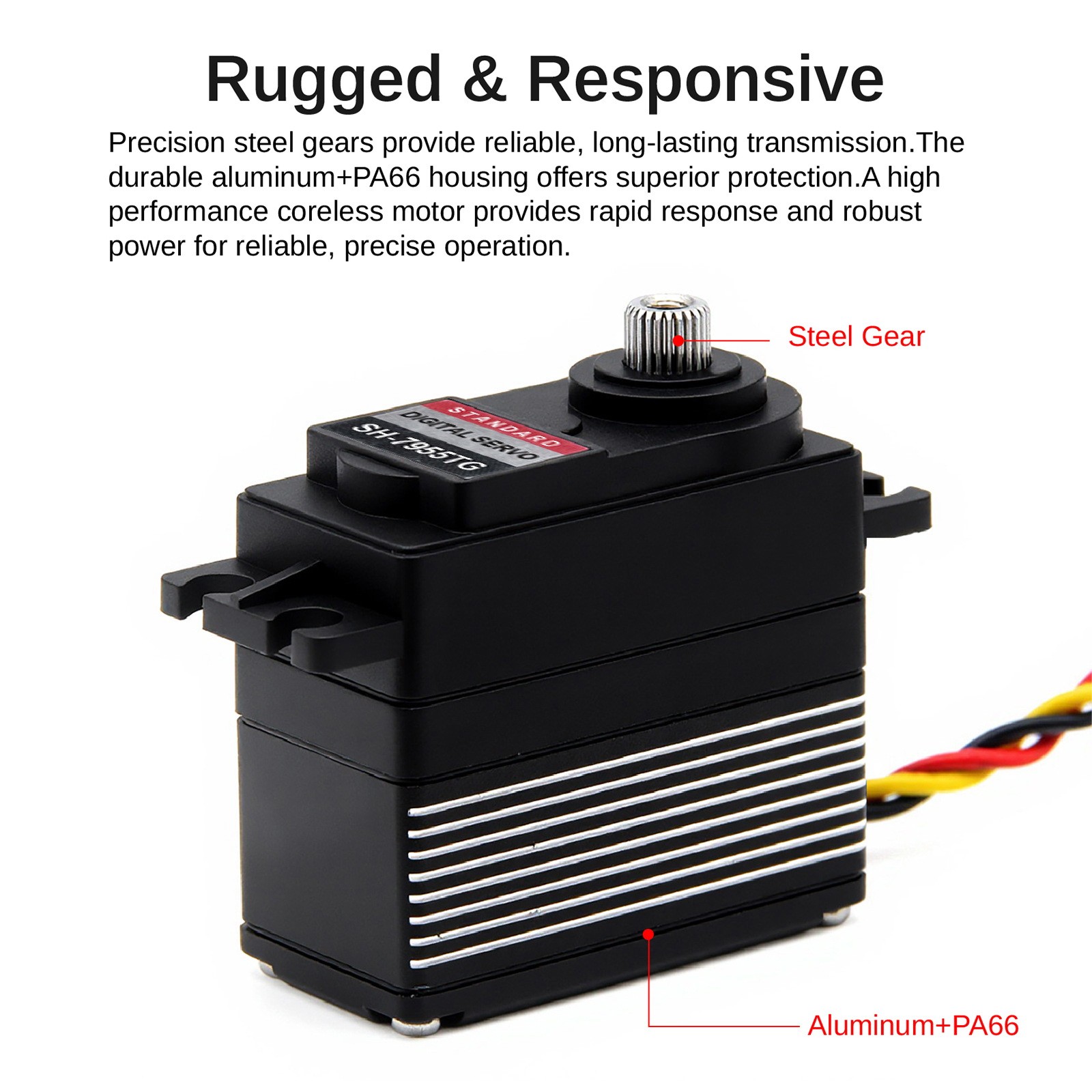

This servo is a high-performance factory alternative to the HS-7955TG model, designed for scenarios requiring strong torque, fast response, and water resistance. It adopts a coreless motor and 2BB bearings, ensuring stable operation and long service life. Suitable for industrial equipment, robotics, remote-controlled machinery, and other high-demand applications
Model: FT-7945-C003

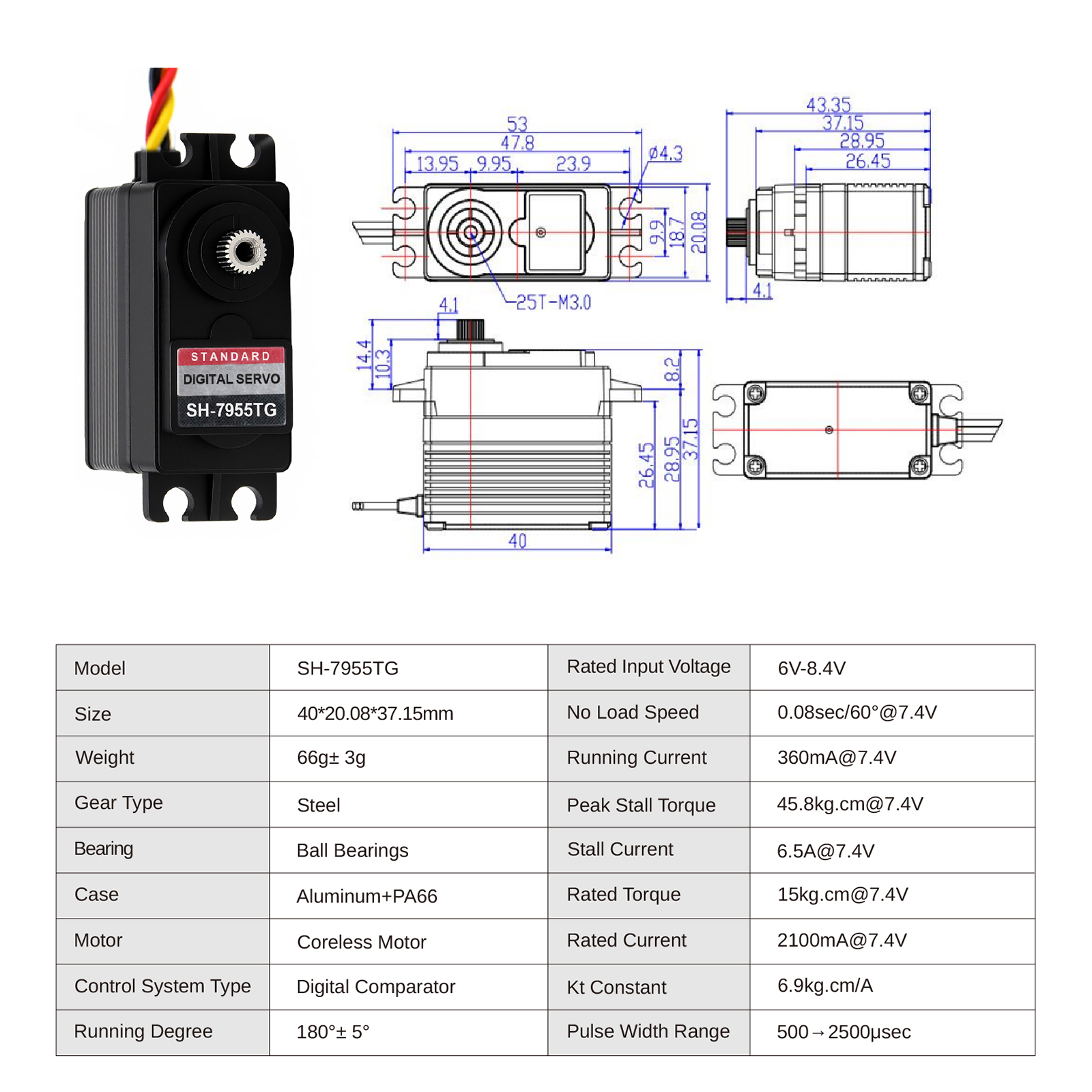

Size: 40*20.08*37.15mm
Weight: 66g±3g
Gear Type: Steel
Limit Angle: No Limit
Bearing: Ball Bearings
Horn Gear Spline: 25T
Case: Aluminum+PA66
Connector Wire: 35CM(JR)
Motor: Coreless Motor
Working Voltage Range: 6V-8.4V
Idle Current (at stopped): 6mA@7.4V
No Load Speed (+/-10% Tolerance): 0.08sec/60°@7.4V
Running Current (at no load) ±10%: 360mA@7.4V
Peak Stall Torque: 45.8kg.cm@7.4V
Stall Current ±10%: 6.5A@7.4V
Rated Torque: 15kg.cm@7.4V
Rated Current: 2100mA@7.4V
Kt Constant: 6.9kg.cm/A
Command Signal: Pulse Width Modification
Control System Type: Digital Comparator
Pulse Width Range: 500→2500μsec
Stop Position: 1500µsec
Running Degree: 180±5°(at 500→2500μsec)
Dead Band Width: ≤4μsec
Rotating Direction: Clockwise (1500→2000μsec)

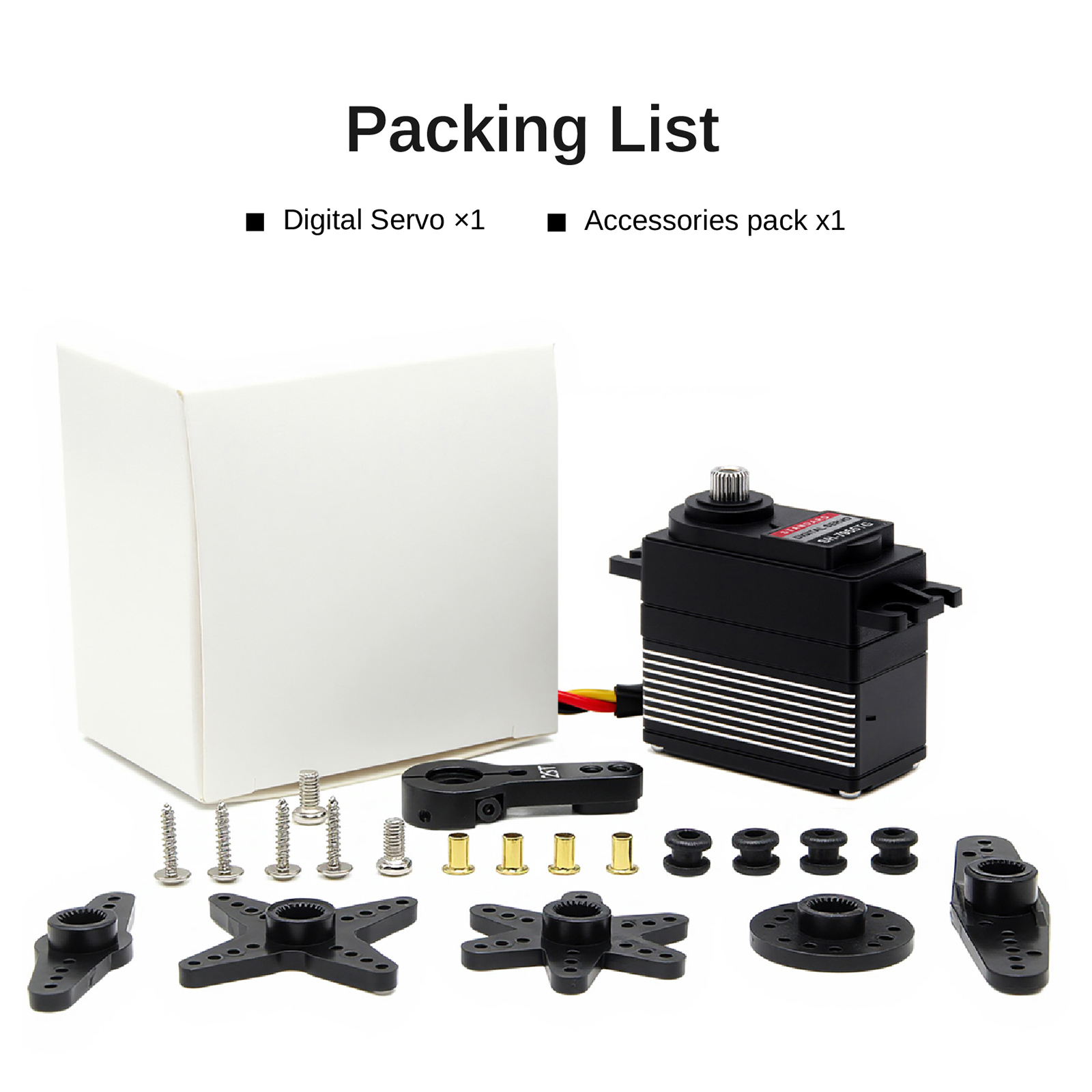

SH-7955TG Servo x1
