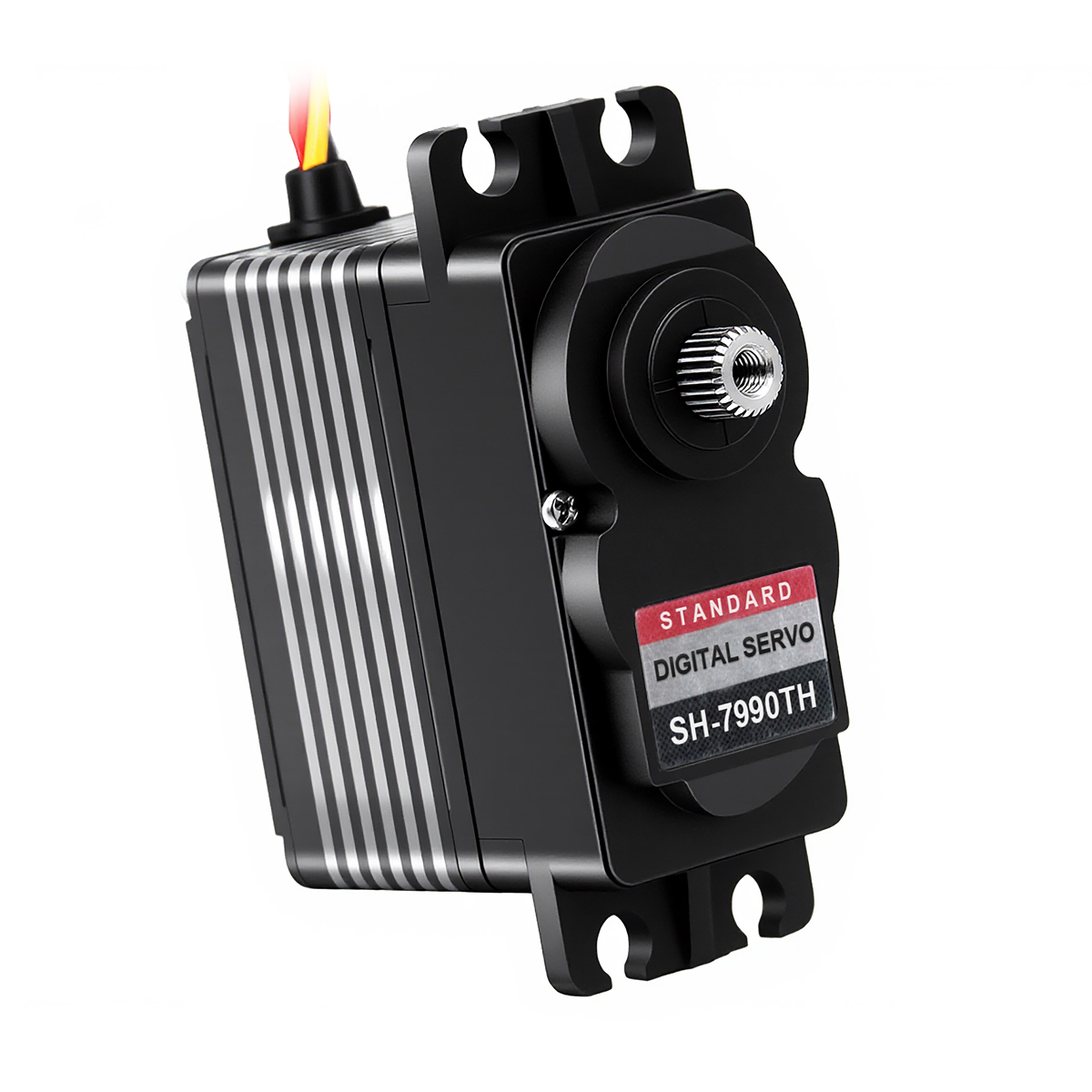

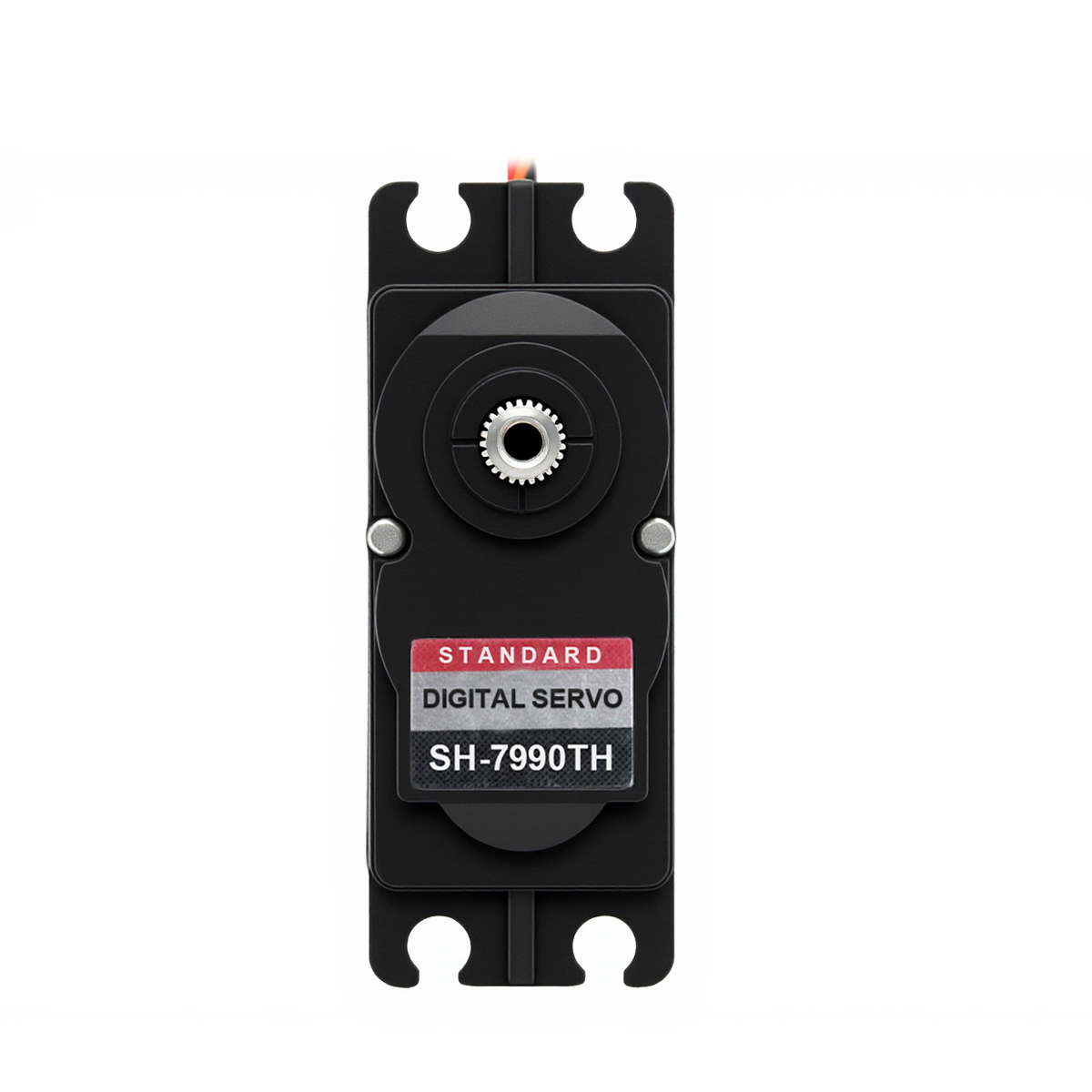

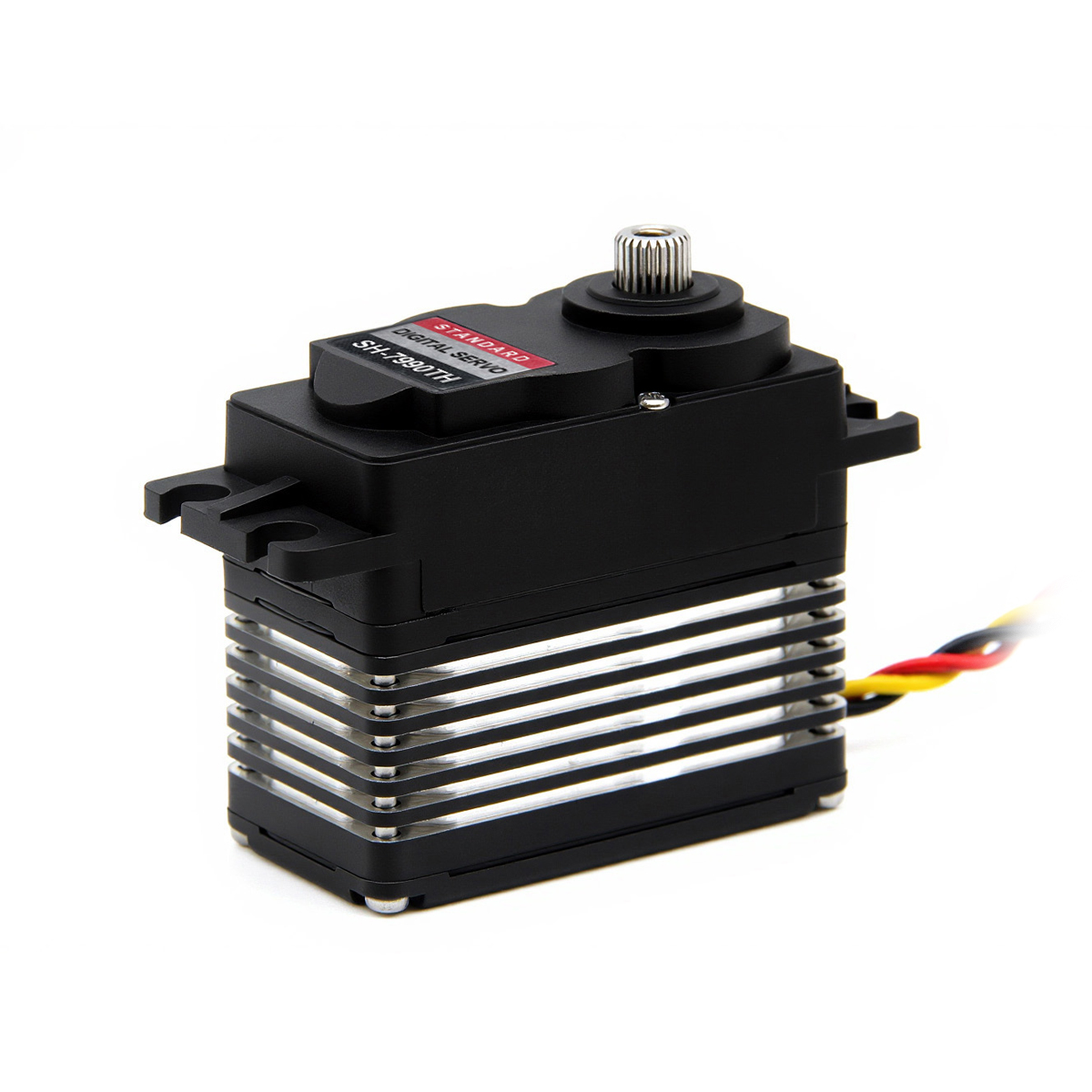

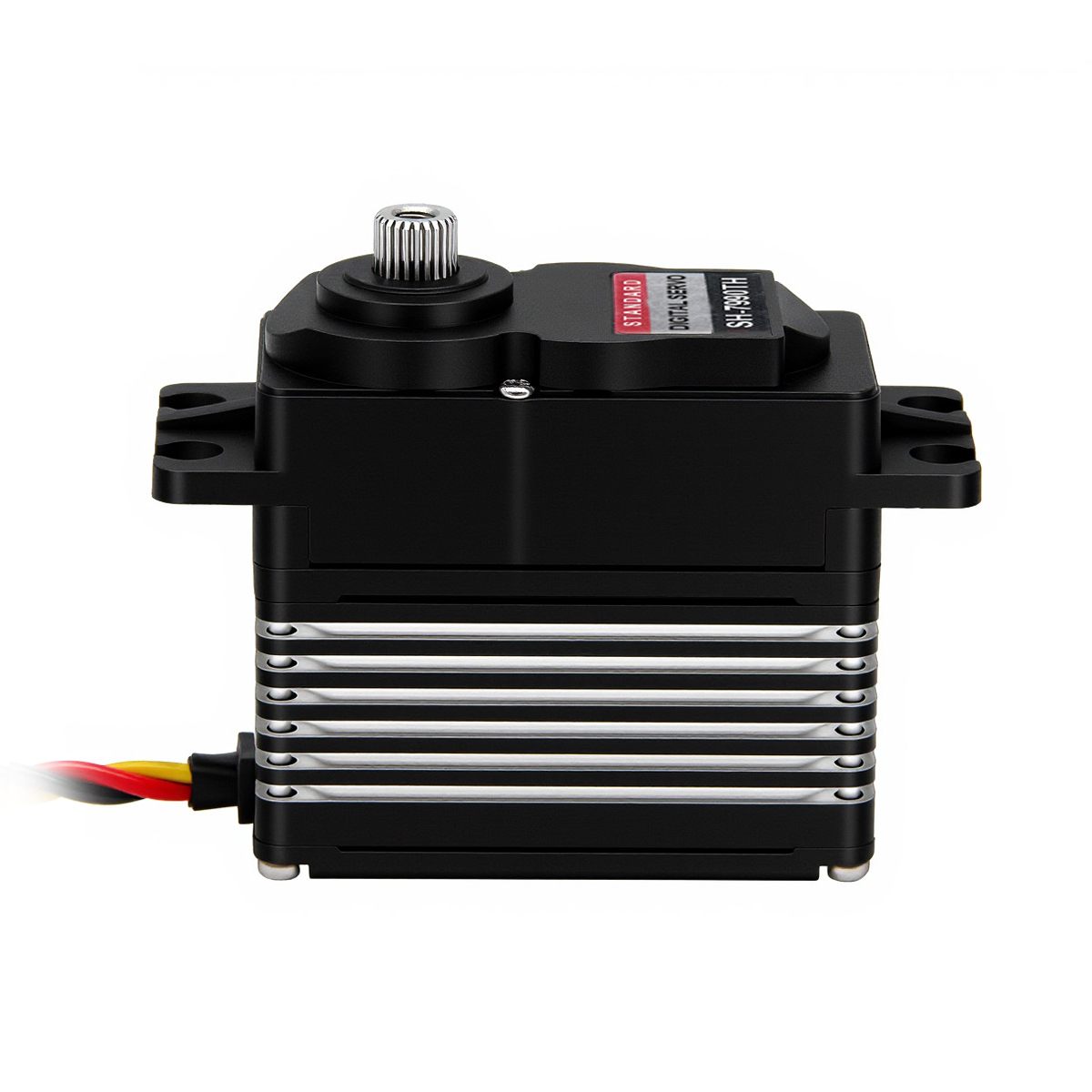

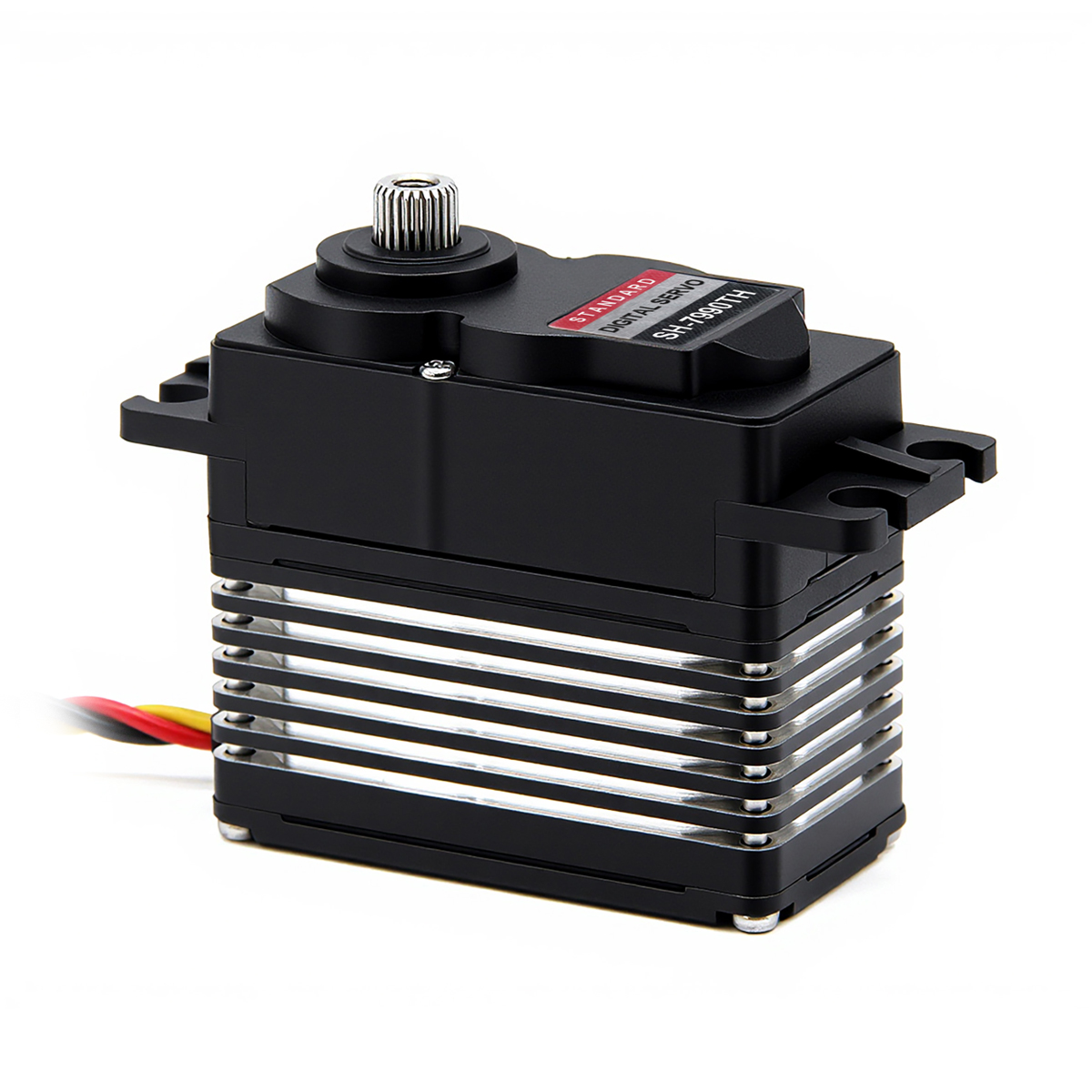

Feetech SH-7990TH 7.4V 55.8kg Steel Gear Coreless Motor Digital Servo Compatible HFP-30 Program Box
Feetech SH-7990TH 7.4V 55.8kg Steel Gear Coreless Motor Digital Servo Compatible HFP-30 Program Box
The SH-7990TH digital servo is a high-performance factory alternative to the HS-7980TH and HS-7990TH models, engineered for heavy-duty applications requiring high torque, stable voltage compatibility, and durable titanium gears. Equipped with a coreless motor and 2BB bearings, it delivers fast response speeds, reliable load-bearing capacity, and long operational life—ideal for industrial automation, robotics, large RC models, and agricultural machinery. Its compact design and JR connector compatibility ensure easy integration into existing systems.

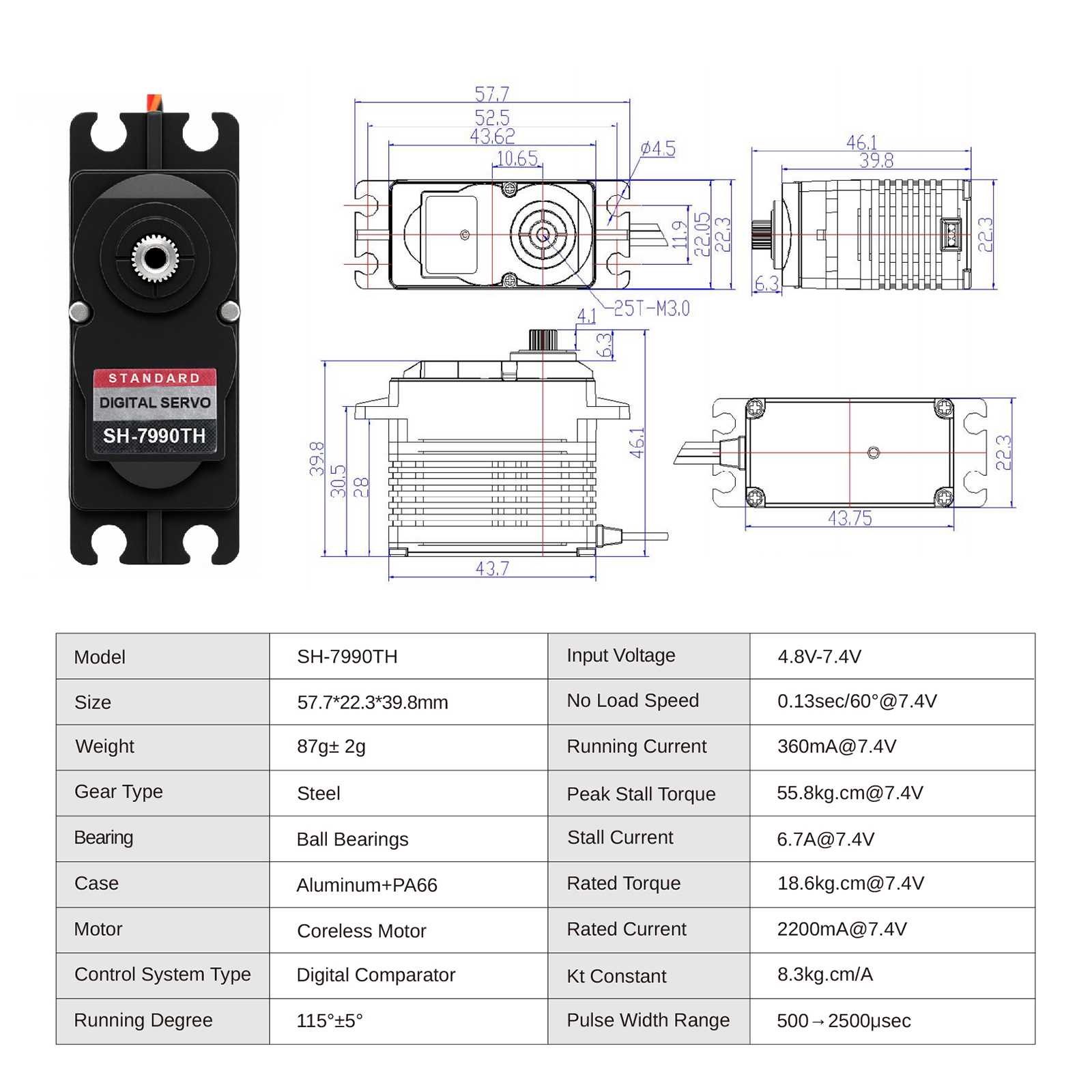

Model: FT-7950-C003
Size: 57.7*22.3*39.8mm
Weight: 87g±2g
Gear Type: Steel
Limit Angle: No Limit
Bearing: Ball Bearings
Horn Gear Spline: 25T

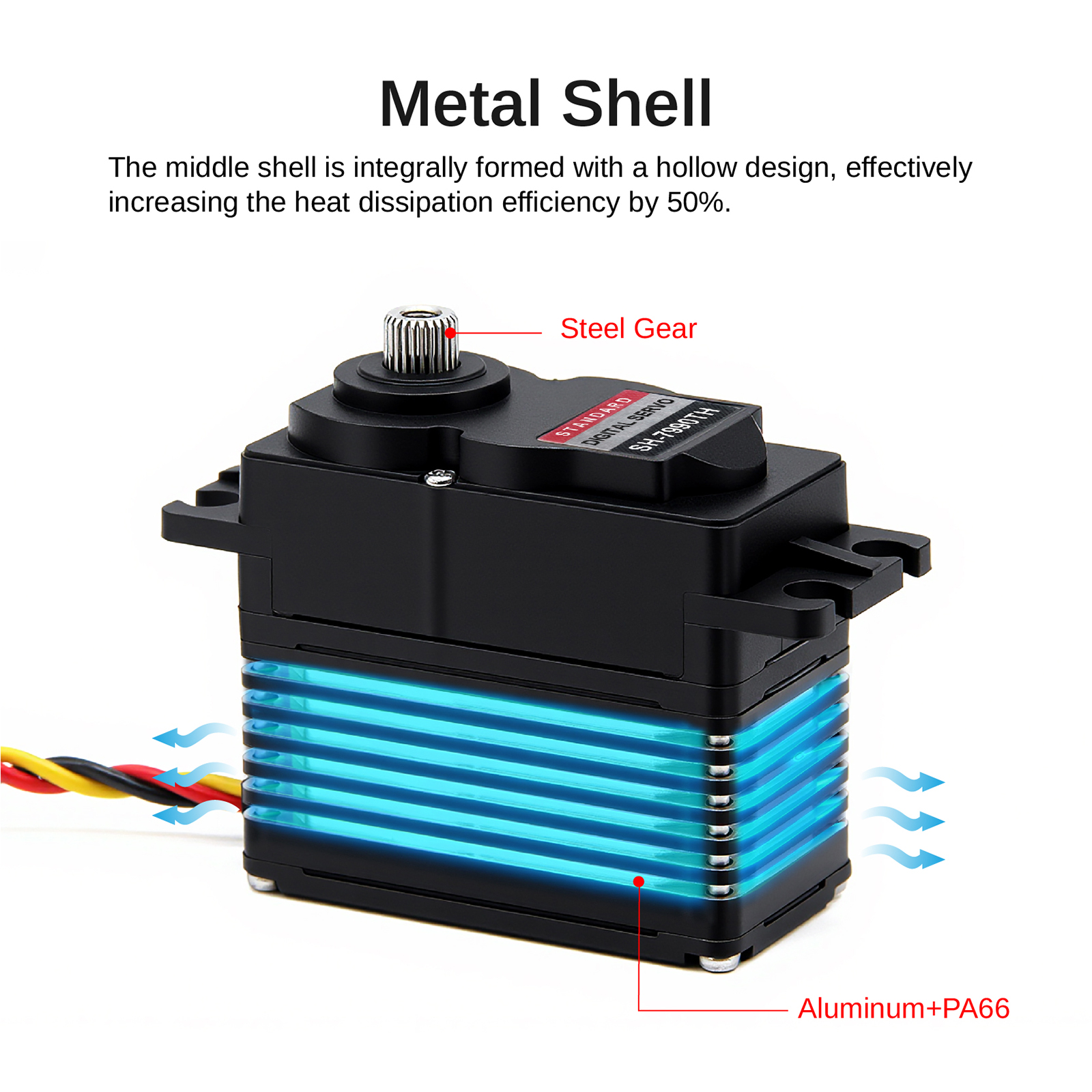

Case: Aluminum+PA66
Connector Wire: 35CM(JR)
Motor: Coreless Motor
Working Voltage Range: 4.8V-7.4V
Idle Current (at stopped): 6mA@7.4V
No Load Speed (+/-10% Tolerance): 0.13sec/60°@7.4V
Running Current (at no load) ±10%: 360mA@7.4V
Peak Stall Torque: 55.8kg.cm@7.4V
Stall Current ±10%: 6.7A@7.4V
Rated Torque: 18.6kg.cm@7.4V
Rated Current: 2200mA@7.4V
Kt Constant: 8.3kg.cm/A
Command Signal: Pulse Width Modification
Control System Type: Digital Comparator
Pulse Width Range: 500→2500μsec
Stop Position: 1500µsec
Running Degree: 115±5°(at 500→2500μsec)
Dead Band Width: ≤4μsec
Rotating Direction: Clockwise (1500→2000μsec)

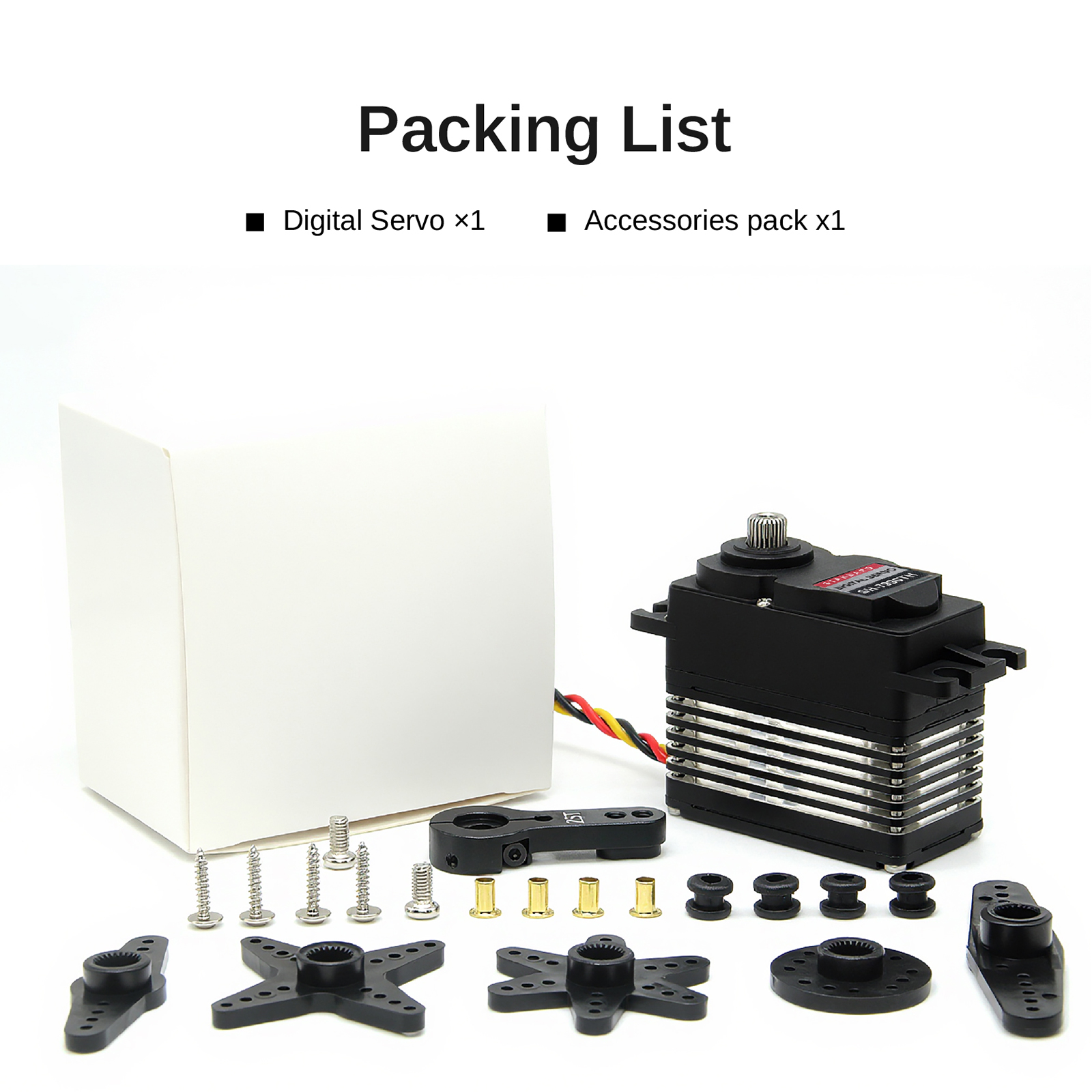

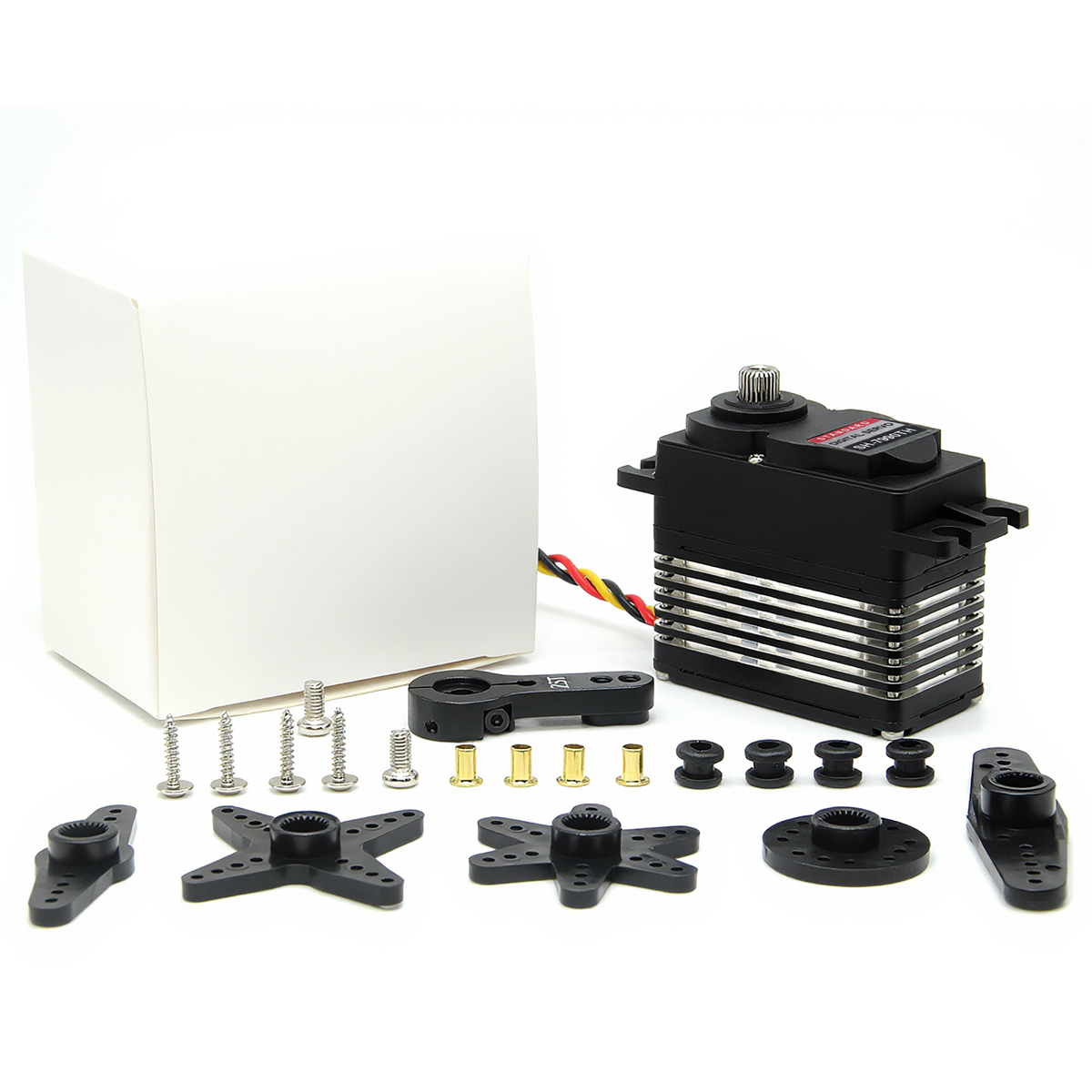

SH-7990TH Servo x1
