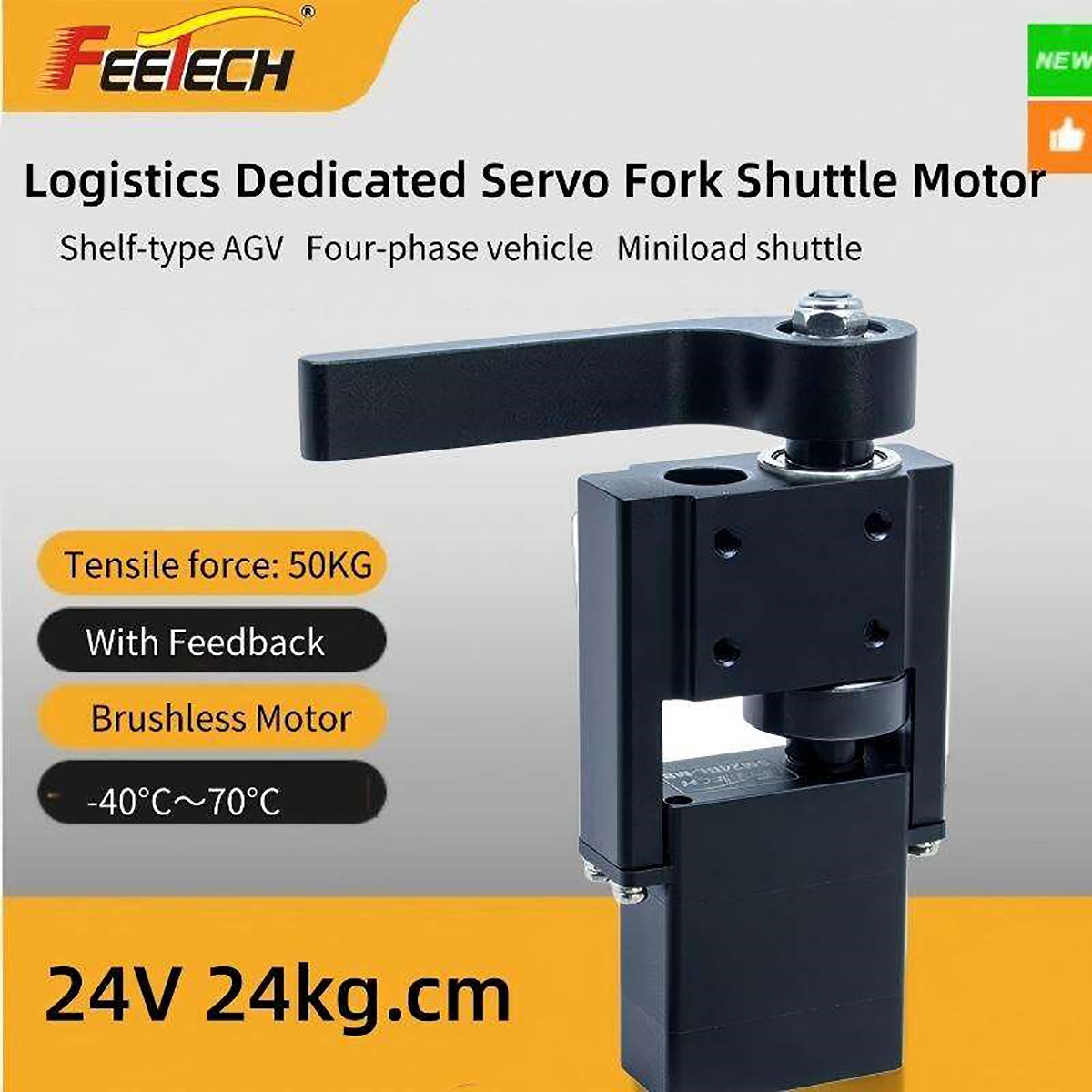

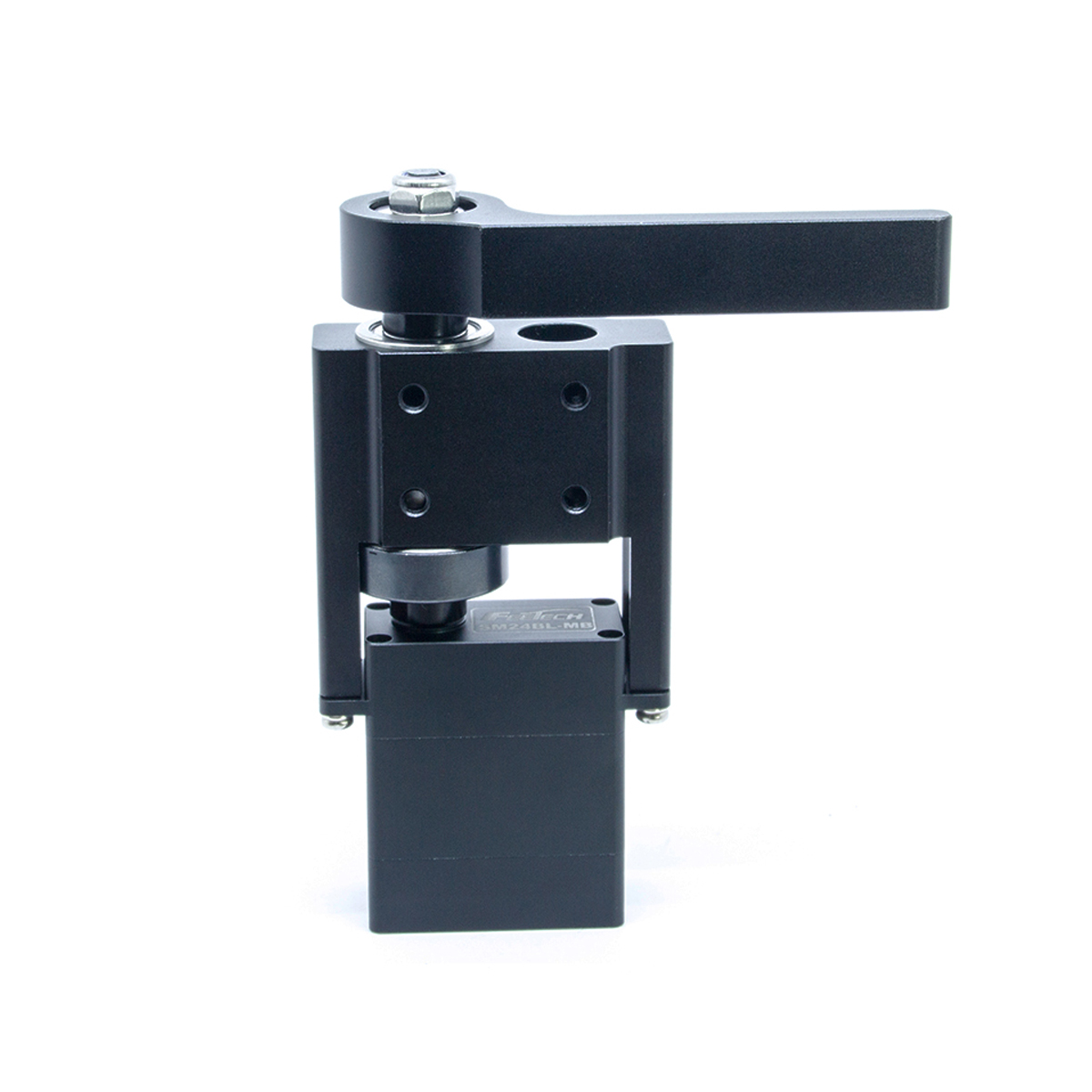

Feetech SM24BL-MB 24V 24kg Modbus-RTU Serial Bus Servo for Logistics Industry Storage Rack Sorting
Feetech SM24BL-MB 24V 24kg Modbus-RTU Serial Bus Servo for Logistics Industry Storage Rack Sorting

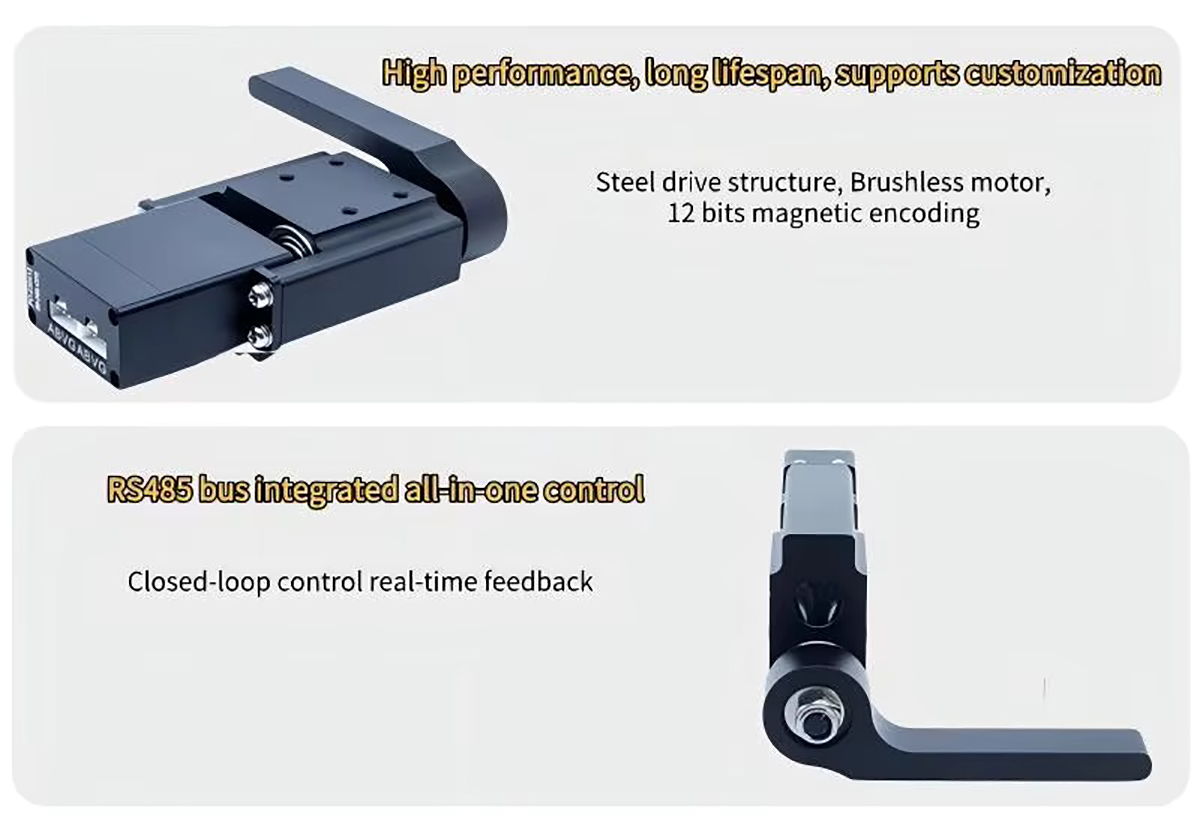

SM-24BL-C015 is compatible 12V/24V serial port smart bus servo，all aluminum alloy shell、brushless motor、steel gearbox、Feetech self researched and developed RS485 control board，12 bit high precision magnetic coding sensor，6T output shaft. The stall torque is 24kg.cm can achieve 0-360 degrees any angle controllable，multi-turn continuous operation mode，it can realize the function of setting the middle point with one key，acceleration slow start and slow stop，can feedback position、speed、voltage、current、temperature、load parameters，thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, logistics, robot and other industries.
Model: SM-24BL-C015
Storage Temperature Range: -40℃～80℃
Operating Temperature Range: -40℃～70℃

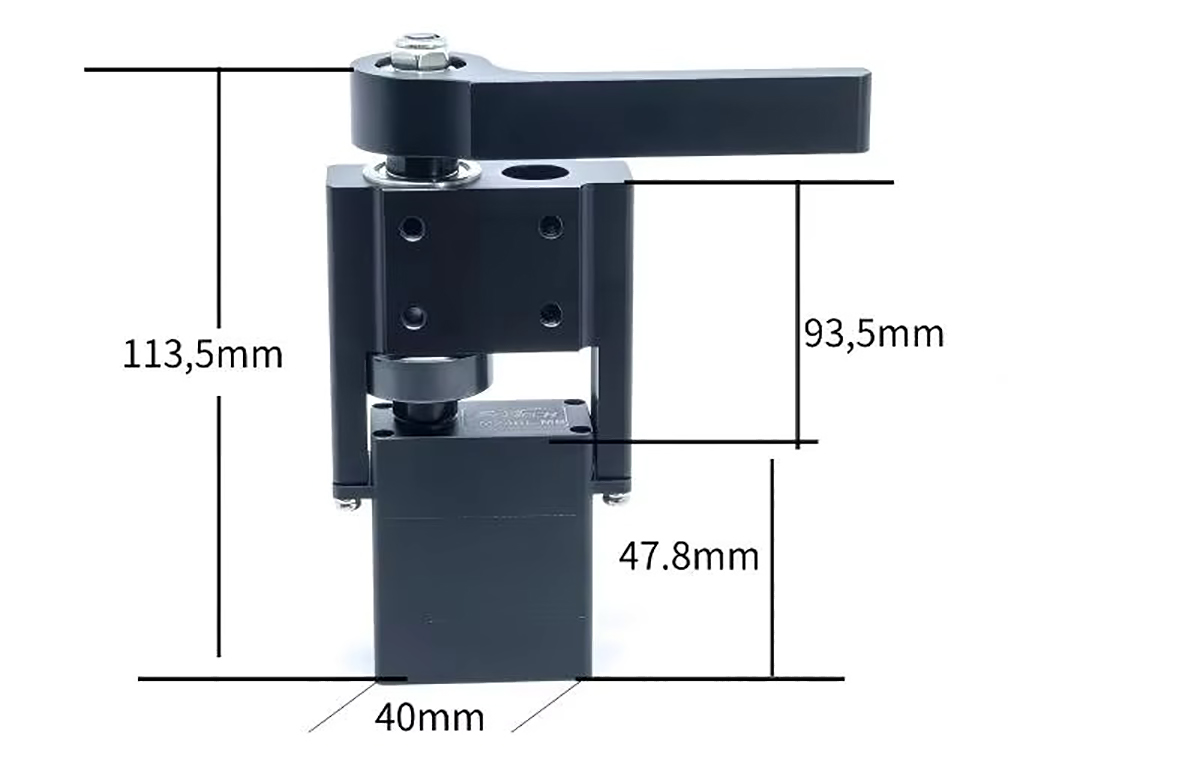

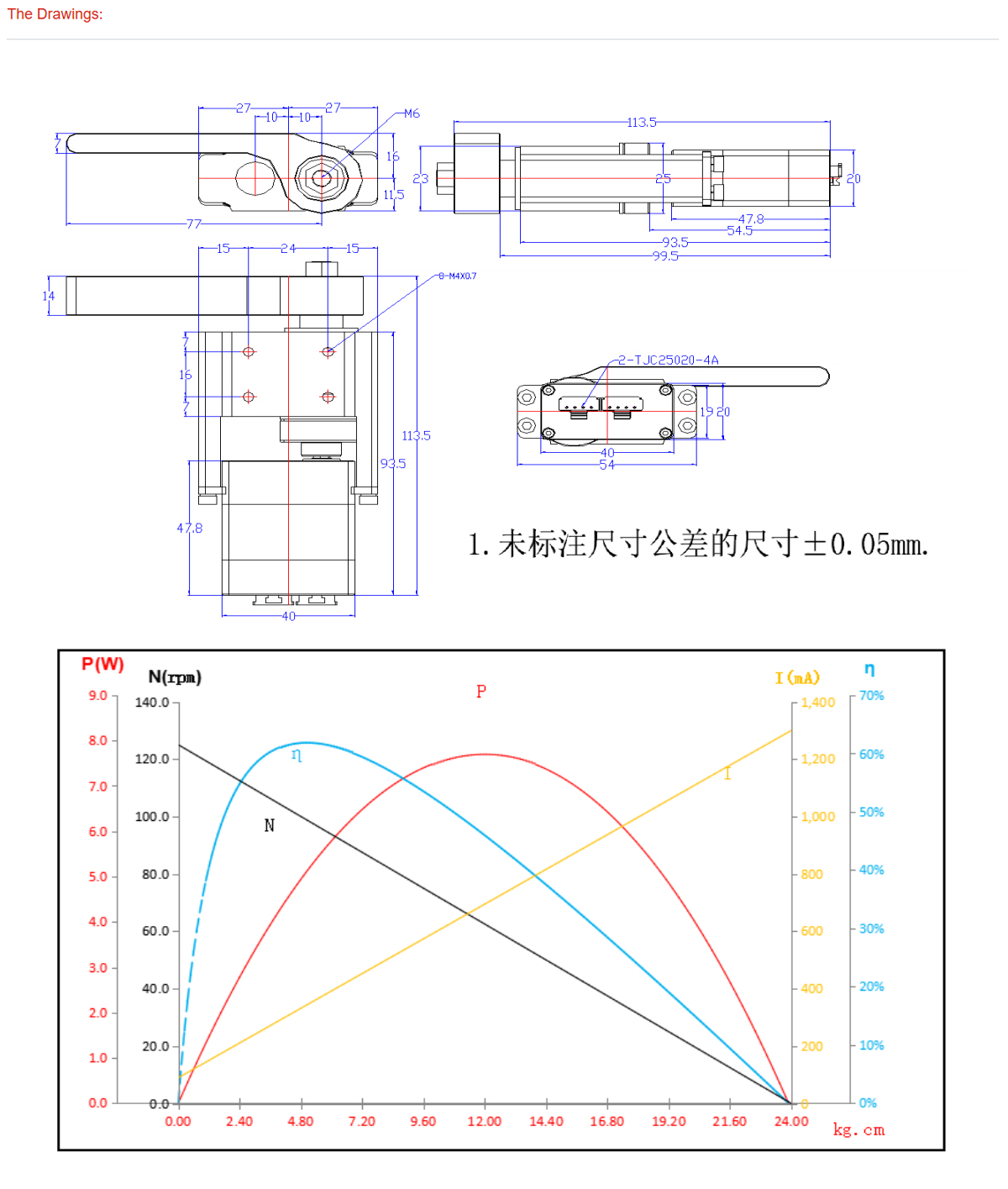

Size: 113.5*20*54mm
Weight: 256.9±3g
Gear Type: Steel
Limit Angle: No Limite
Peak Stall Torque: 24kg.cm
Operating Voltage Range: 9V-25V
No Load Speed (±10%): 0.09sec/60°(110RPM)@24V
Running Current (At No Load) (±10%): 150mA@24V
Stall Current: 1.3A@24V
Rated Torque: 8kg.cm@24V
Rated Current: 350mA@24V
Terminal Resistance: 10.2Ω
Command Signal: Digital Packet

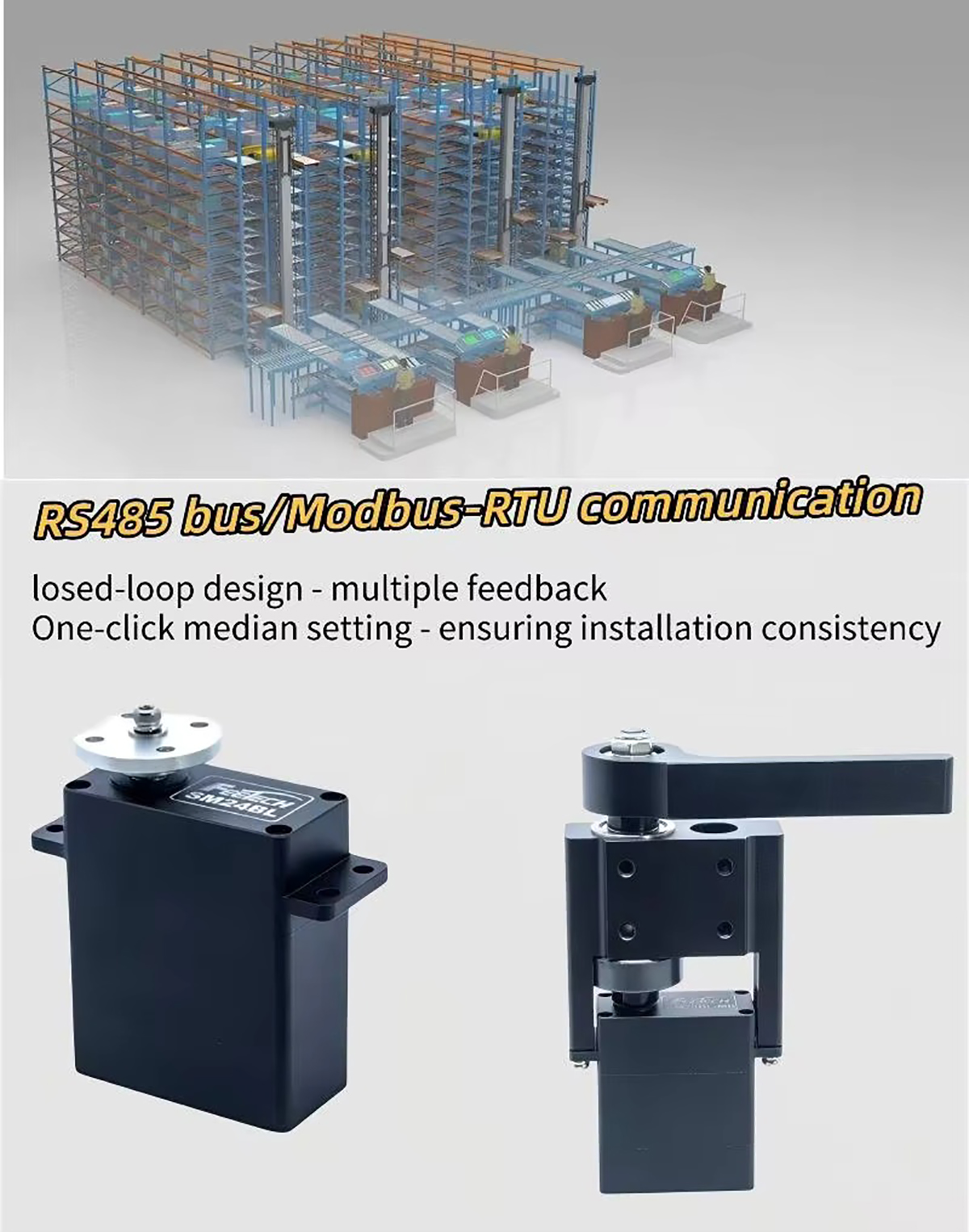

Protocol Type: Modbus-RTU
Communication Speed: 38400bps~1Mbps
Running Degree: 360°(when 0～4095)
Neutral Position: 180°(2047)
Rotating Direction: Clockwise (0→4095)
Feedback: Load, Position, Speed, Input Voltage, Current, Temperature

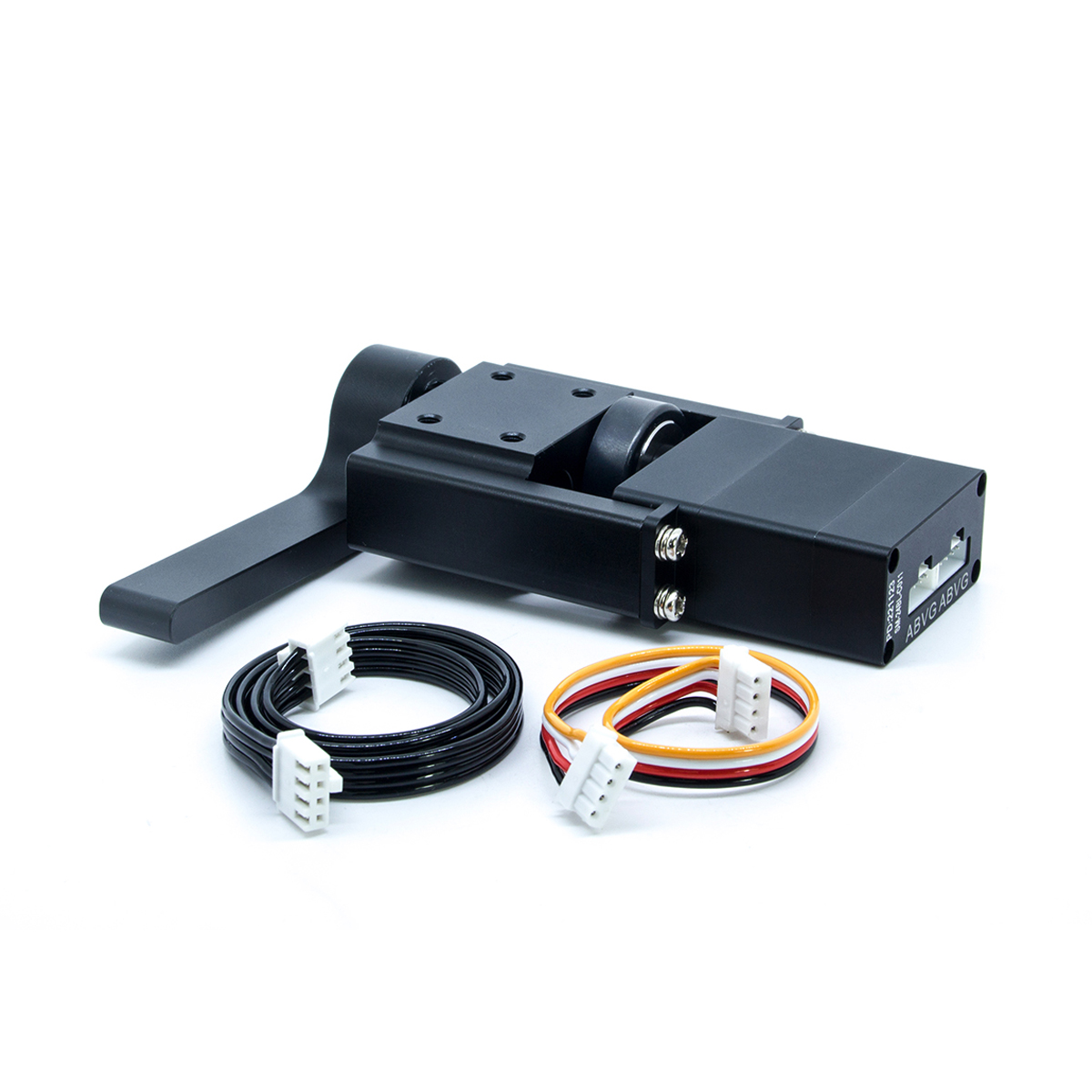

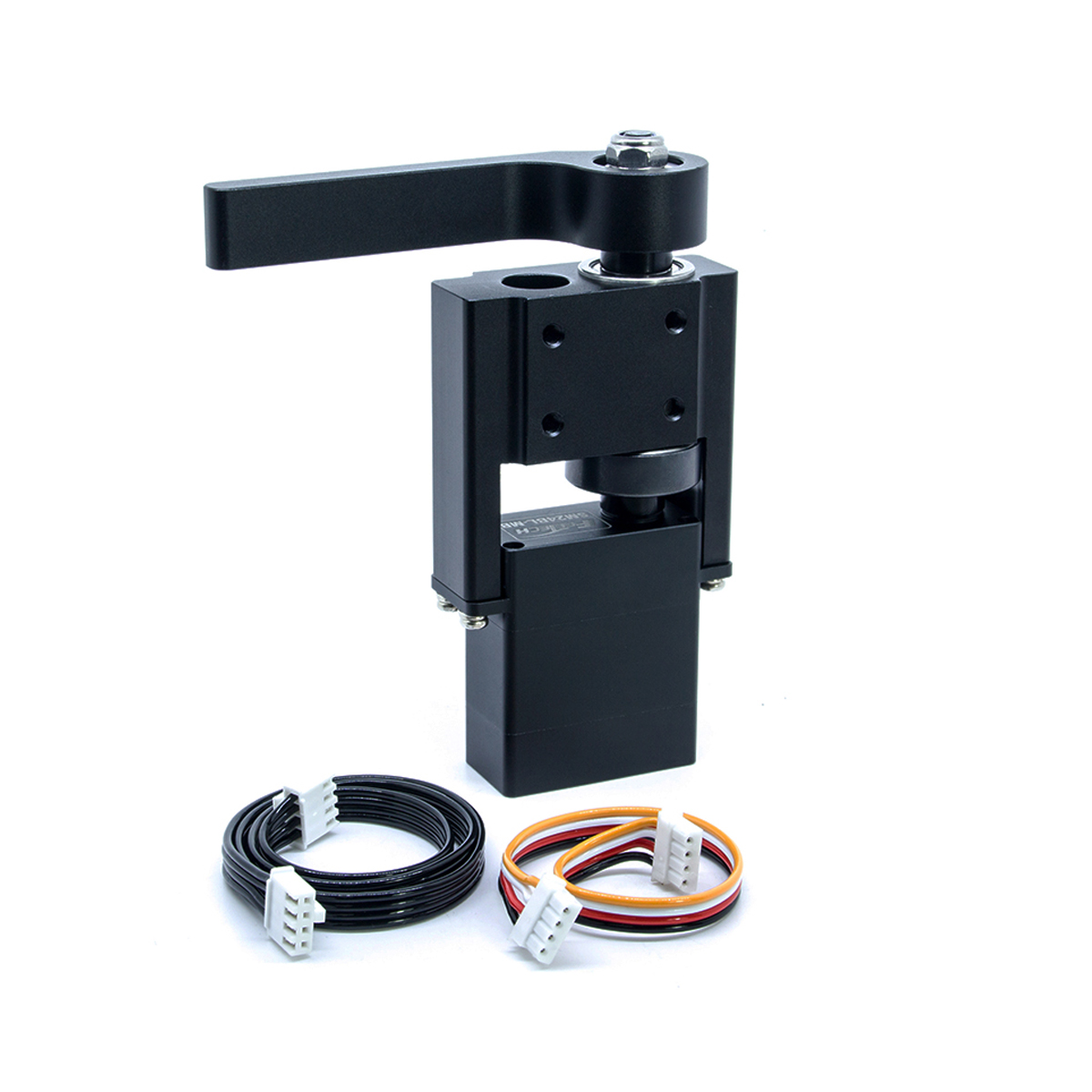

SM24BL-MB Servo x1
