Feetech SM260BL 24V 260kg RS485 Serial Bus Servo 360° Magnetic Encoder for RC Robot
SM260BL is 24V serial port smart bus servo，all aluminum alloy shell is adopted、brushless motor、steel gearbox、Feetech self researched and developed RS485 control board，12 bit high precision magnetic coding sensor，external connec stainless steel main servo horn. The stall torque is 260kg.cm，can achieve 0-360 degrees any angle controllable，multi-turn continuous operation mode，it can realize the function of setting the middle point with one key，acceleration slow start and slow stop，can feedback position、speed、voltage、current、temperature、load parameters，thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and other industries.
Model: SM-260B-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃

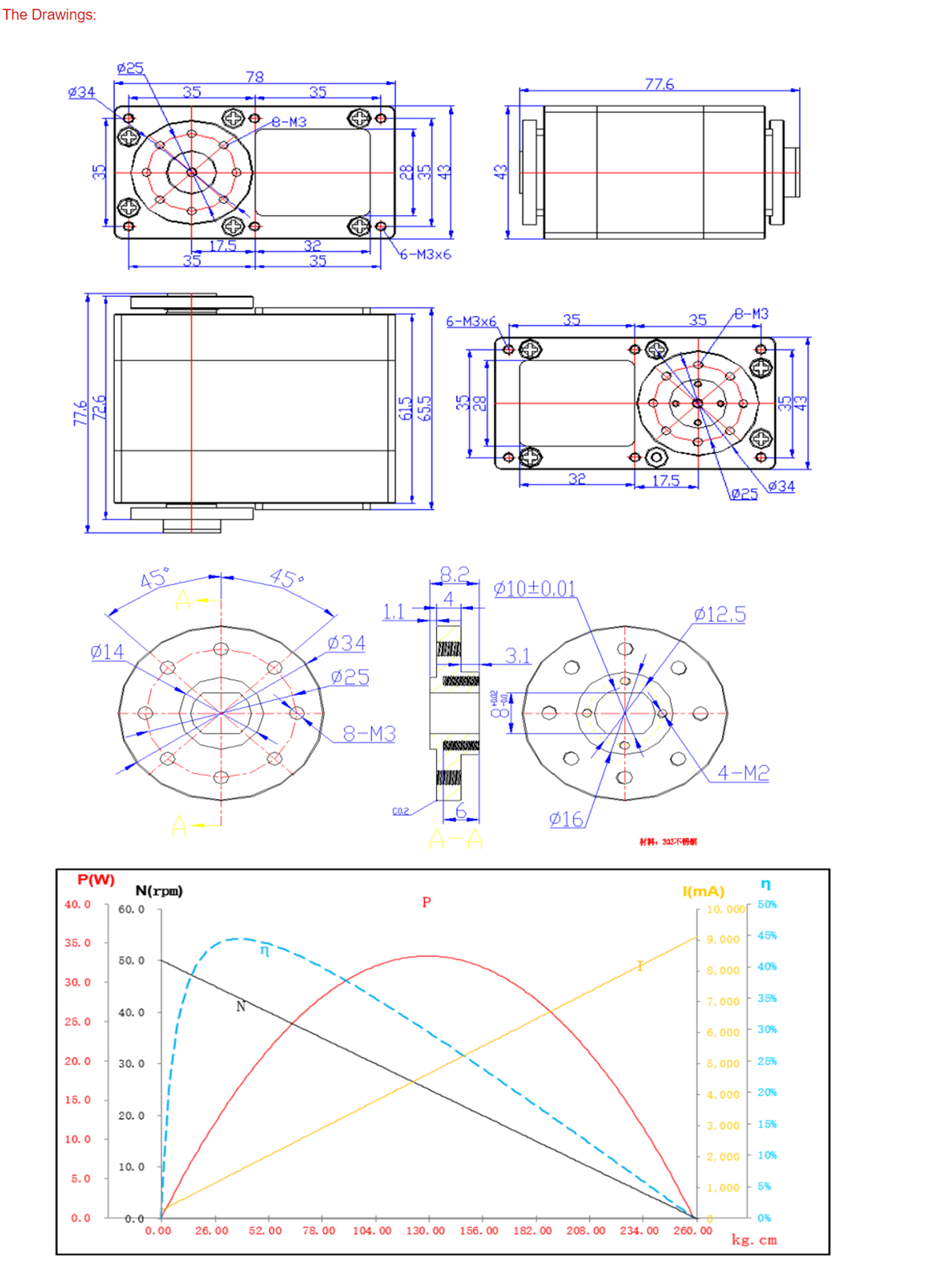

Size: 78*43*65.5mm
Weight: 455g
Gear type: Steel
Limit angle: No limit
Bearing: Ball bearings
Horn gear spline: One character (OD10mm)
Horn type: ≦0.8°
Case: Aluminium
Connector wire: 30CM
Motor: 4 Pole Brushless motor
Operating Voltage Range: 24V
No load speed: 0.192sec/ 60° 52RPM@24V
Running current (at no load): 320 mA@24V
Peak stall torque: 260kg.cm@24V
Stall current: 9.1A@24V
Rated Load: 65kg.cm@24V
Rated current: 2200mA@24V
KM Constant: 28.5kg.cm/A
Terminal resistance: 2.0 Ω
Command signal: Digital Packet
Protocol Type: Half Duplex Asynchronous Serial Communication
ID range: 0-253
Communication Speed: 38400bps ~ 1 Mbps
Running degree: 360° (when 0~4096)
Feedback: Load, Position, Speed, Input Voltage, Current, Temperature
Position Sensor Resolution: 12Bits Magnetic Coding (360°/4096)

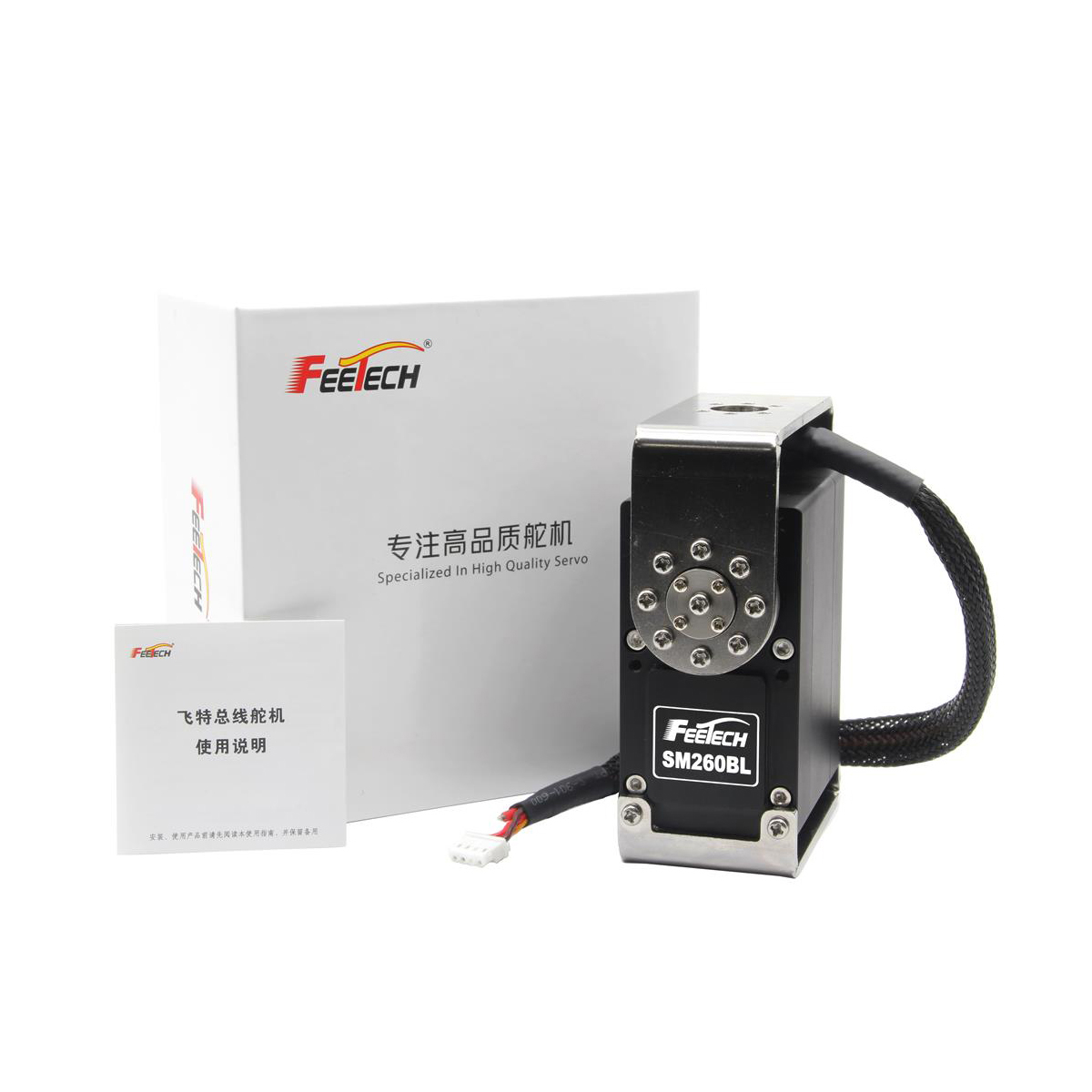

SM260BL Servo x1
