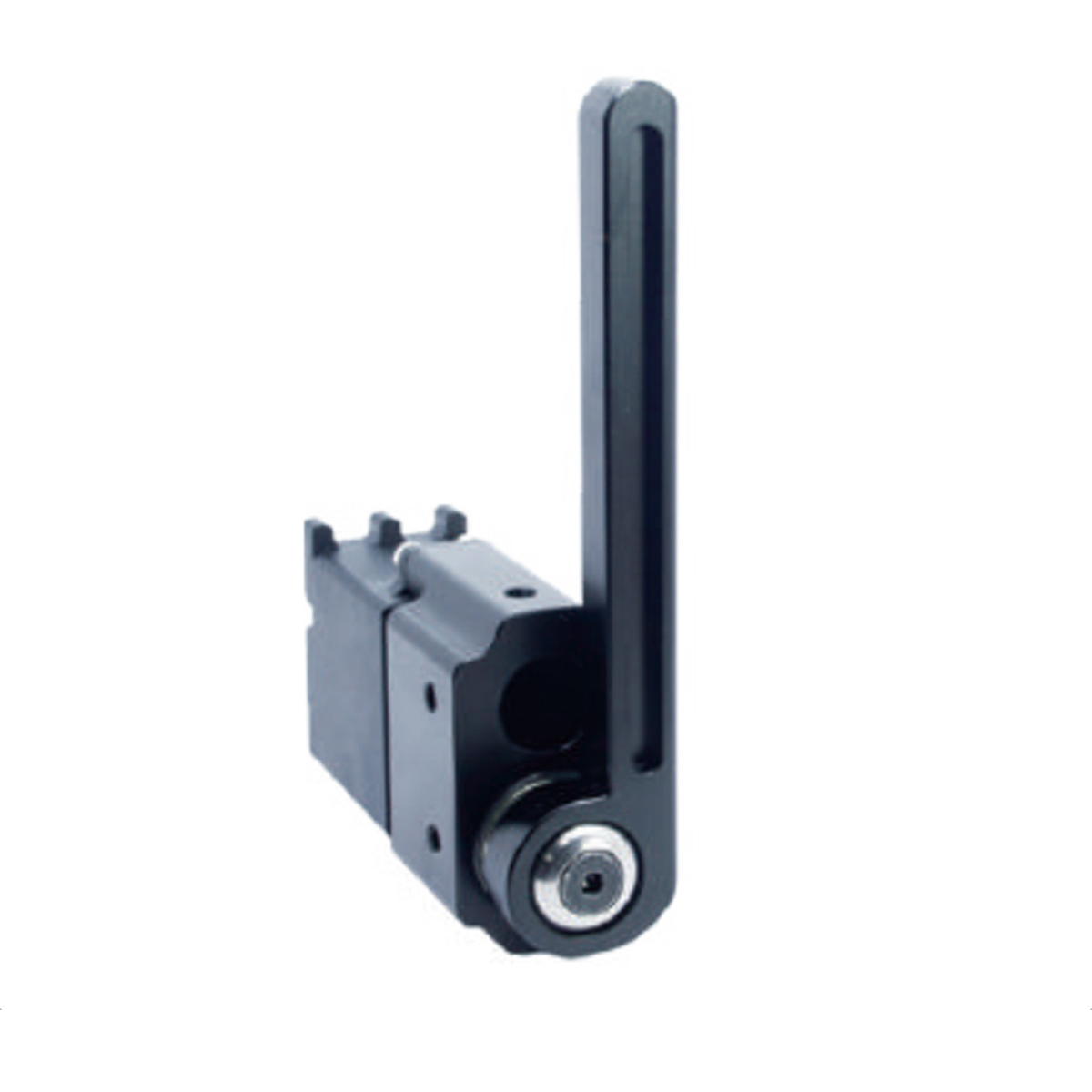

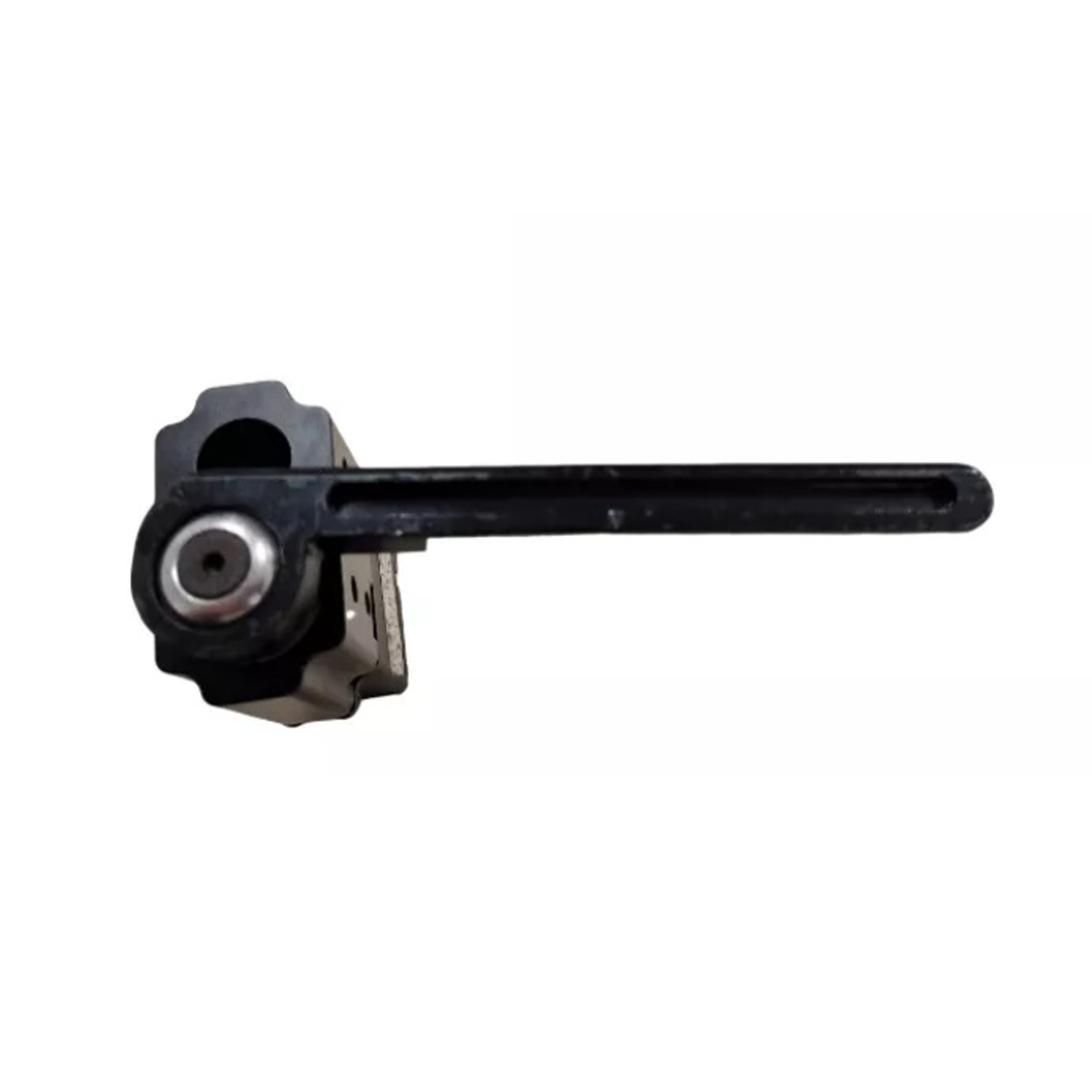

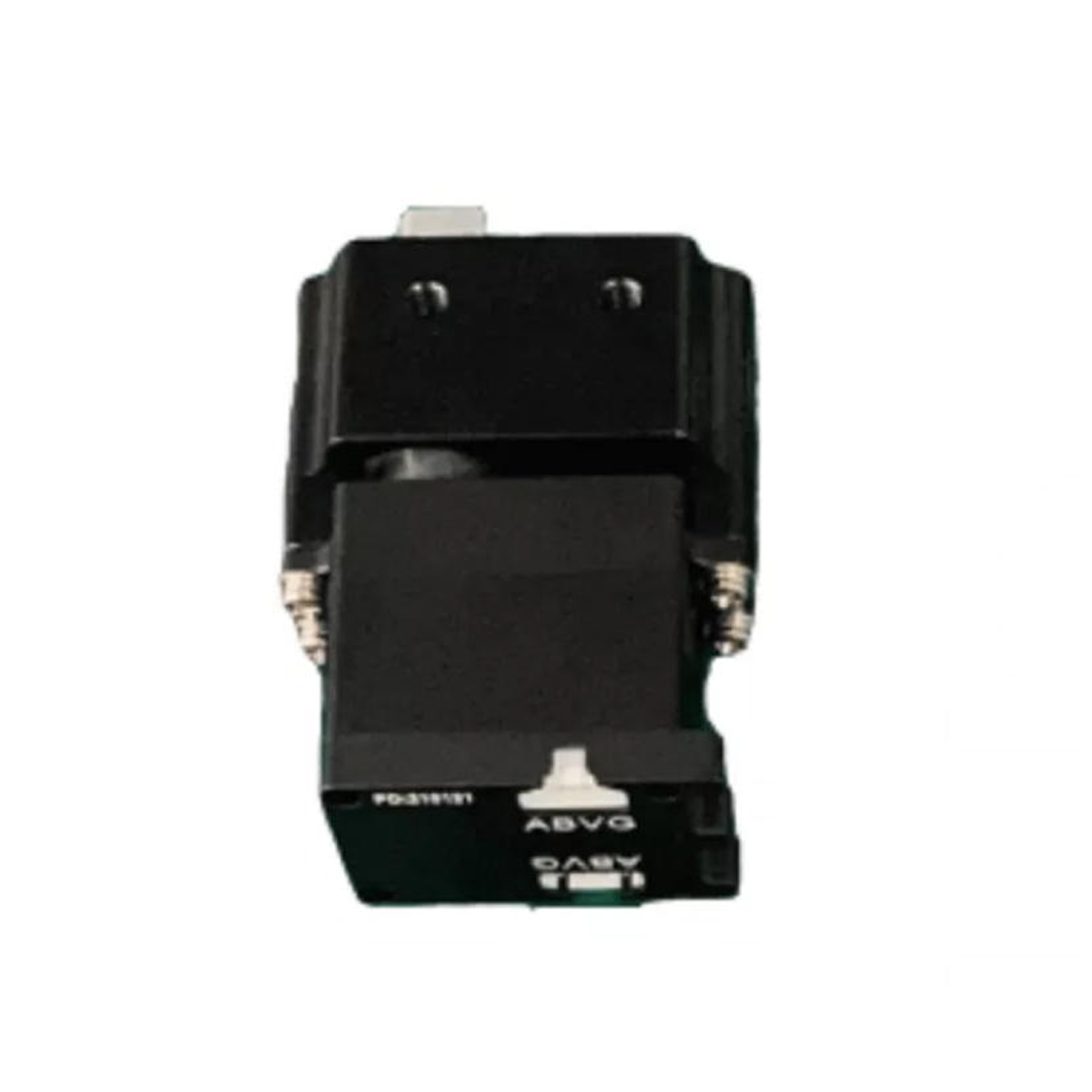

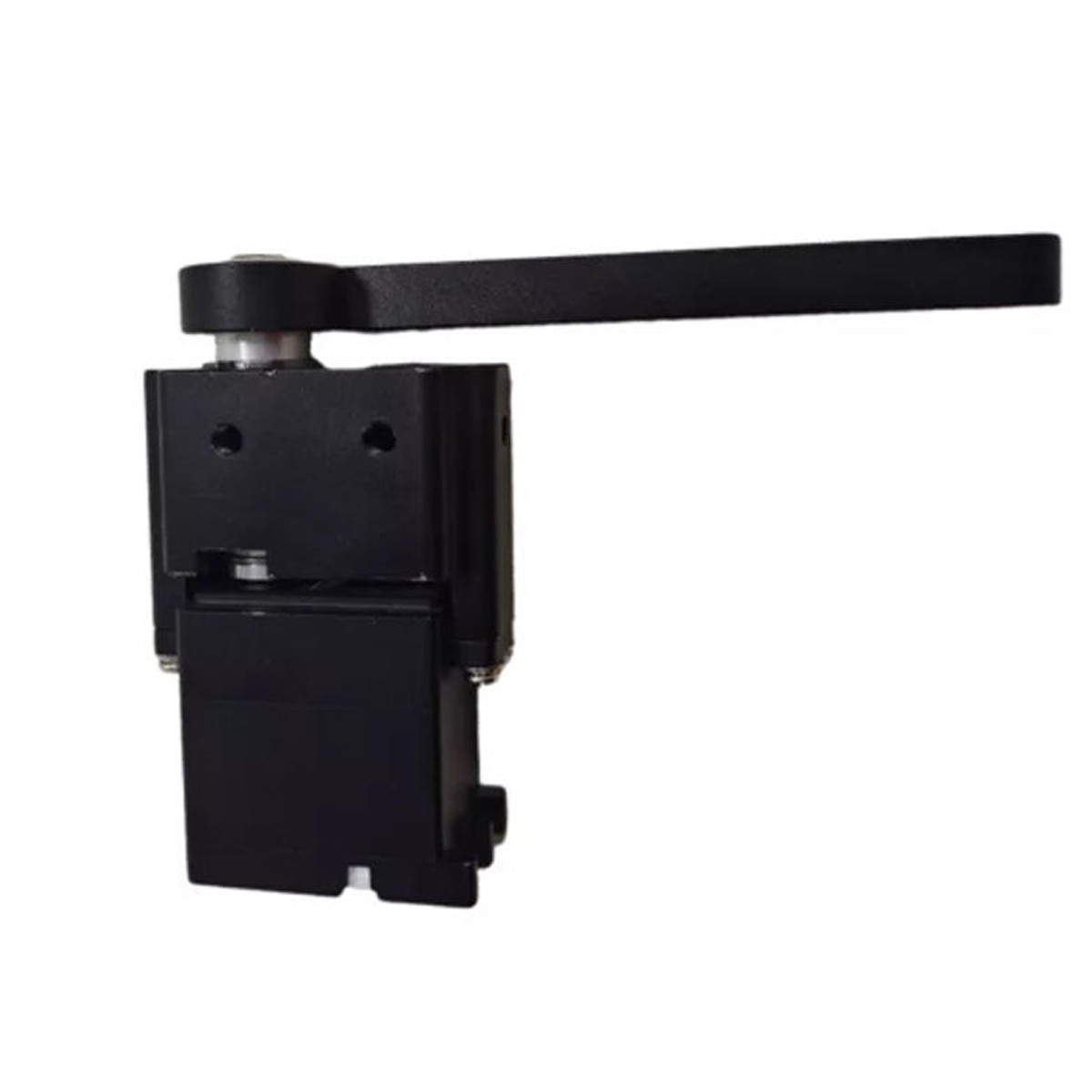

Feetech SM2924BL-MB 24V 20kg RS485 Serial Smart Bus Servo with Driving Lever for Logistics Equipment

SKU SM-2924-C012 Category Tag Brand:



Feetech SM2924BL-MB 24V 20kg RS485 Serial Smart Bus Servo with Driving Lever for Logistics Equipment

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

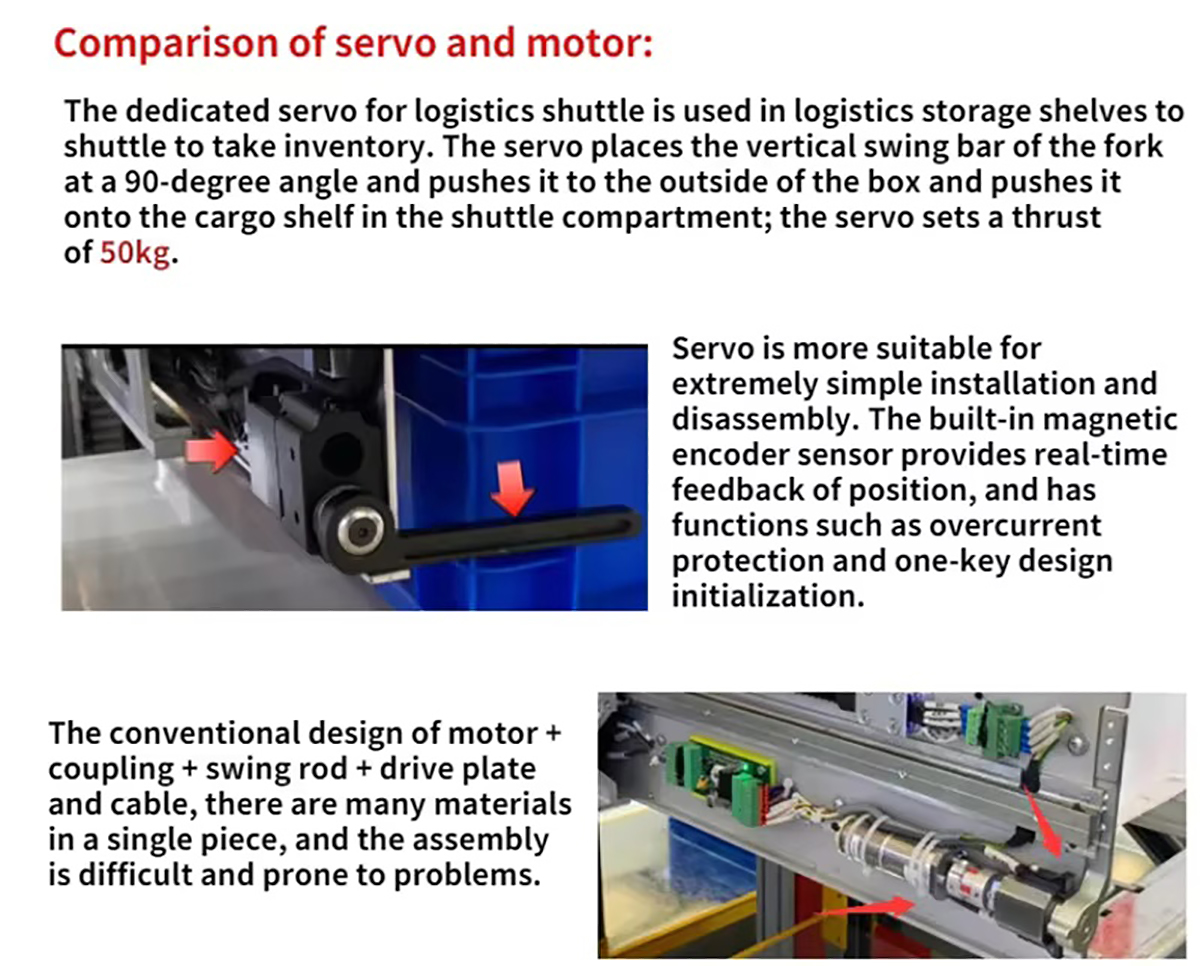

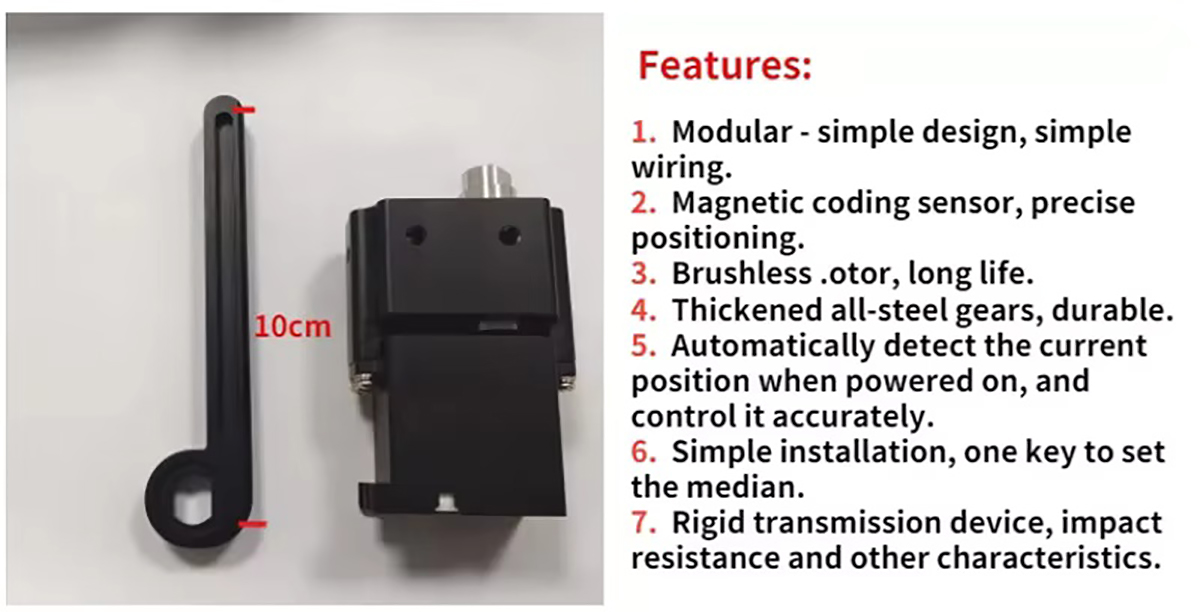

SM-2924-C012 is compatible 12V/24V serial port smart bus servo,all aluminum alloy shell、brushless motor、steel gearbox、Feetech self researched and developed RS485 control board,12 bit high precision magnetic coding sensor,6T output shaft. The stall torque is 20kg.cm can achieve 0-360 degrees any angle controllable,multi-turn continuous operation mode,it can realize the function of setting the middle point with one key,acceleration slow start and slow stop,can feedback position、speed、voltage、current、temperature、load parameters,thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, logistics, robot and other industries.

Model: SM-2924-C012
Storage Temperature Range: -30℃~80℃
Operating Temperature Range: -15℃~60℃

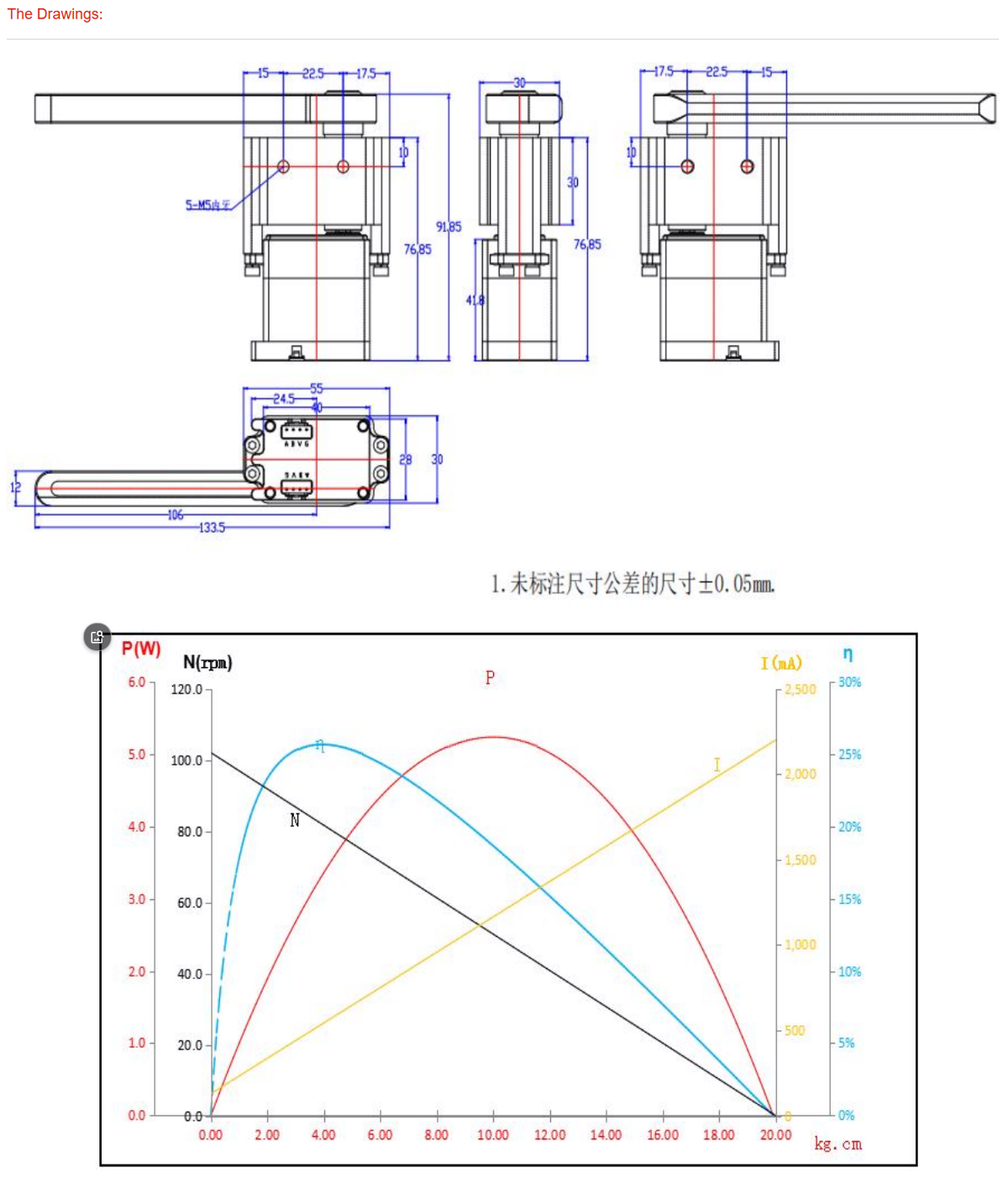

Size: 55*30*91.85mm
Weight: 267±3g
Gear Type: Steel
Limit Angle: No Limit
Peak Stall Torque: 20kg.cm
Operating Voltage Range: 9V-25V
No Load Speed (±10%): 0.098sec/60°(102RPM)@24V
Running Current (At No Load) (±10%): 150mA@24V
Stall Current: 2.7A@24V
Rated Torque: 6kg.cm@24V
Rated Current: 600mA@24V
Terminal Resistance: 1.13Ω
Command Signal: Digital Packet
Protocol Type: Modbus-RTU
Communication Speed: 38400bps~1Mbps
Running Degree: 360°(when 0~4095)
Neutral Position: 180°(2047)
Rotating Direction: Clockwise (0→4095)
Feedback: Load, Position, Speed, Input Voltage, Current, Temperature

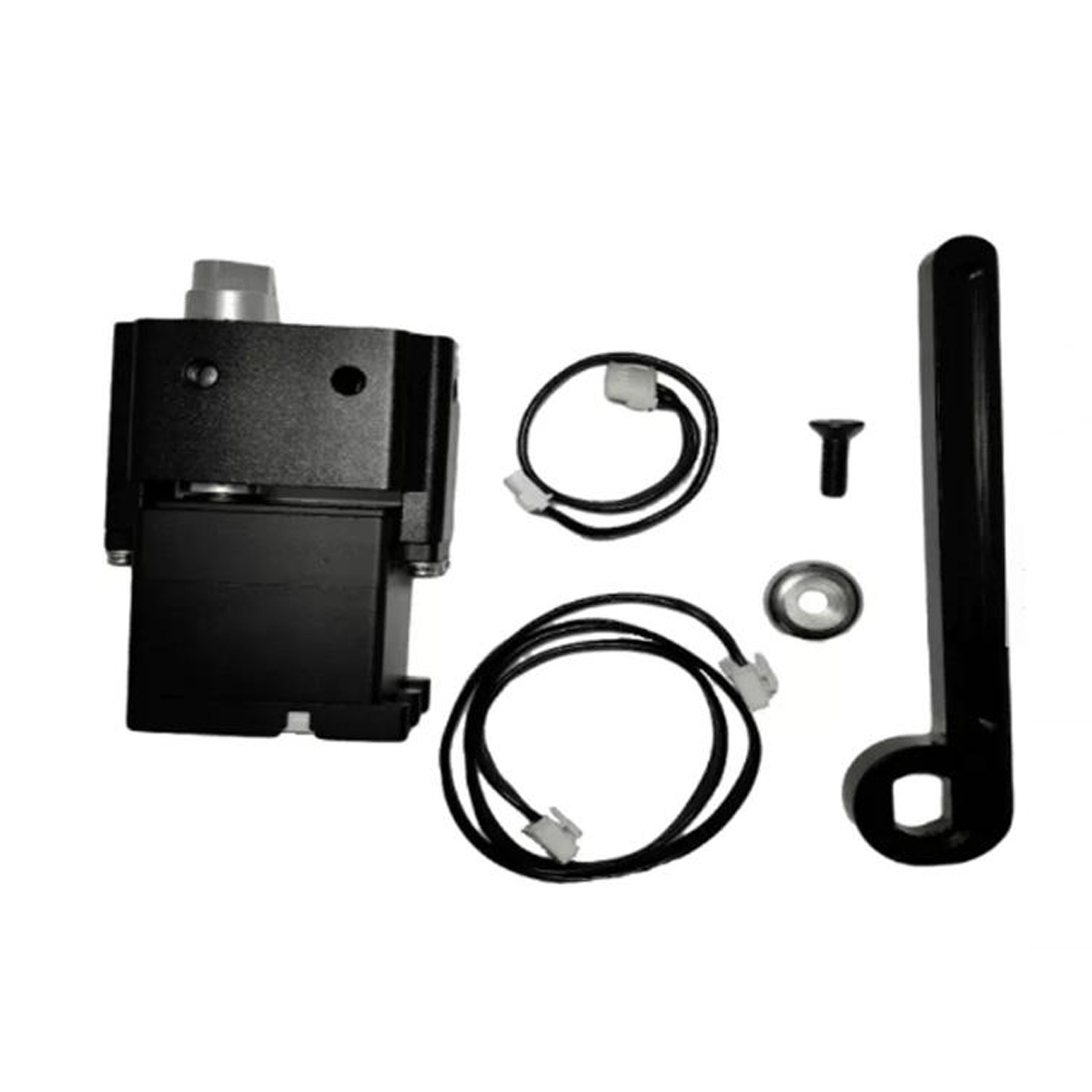

SM2924BL-MB Servo x1
