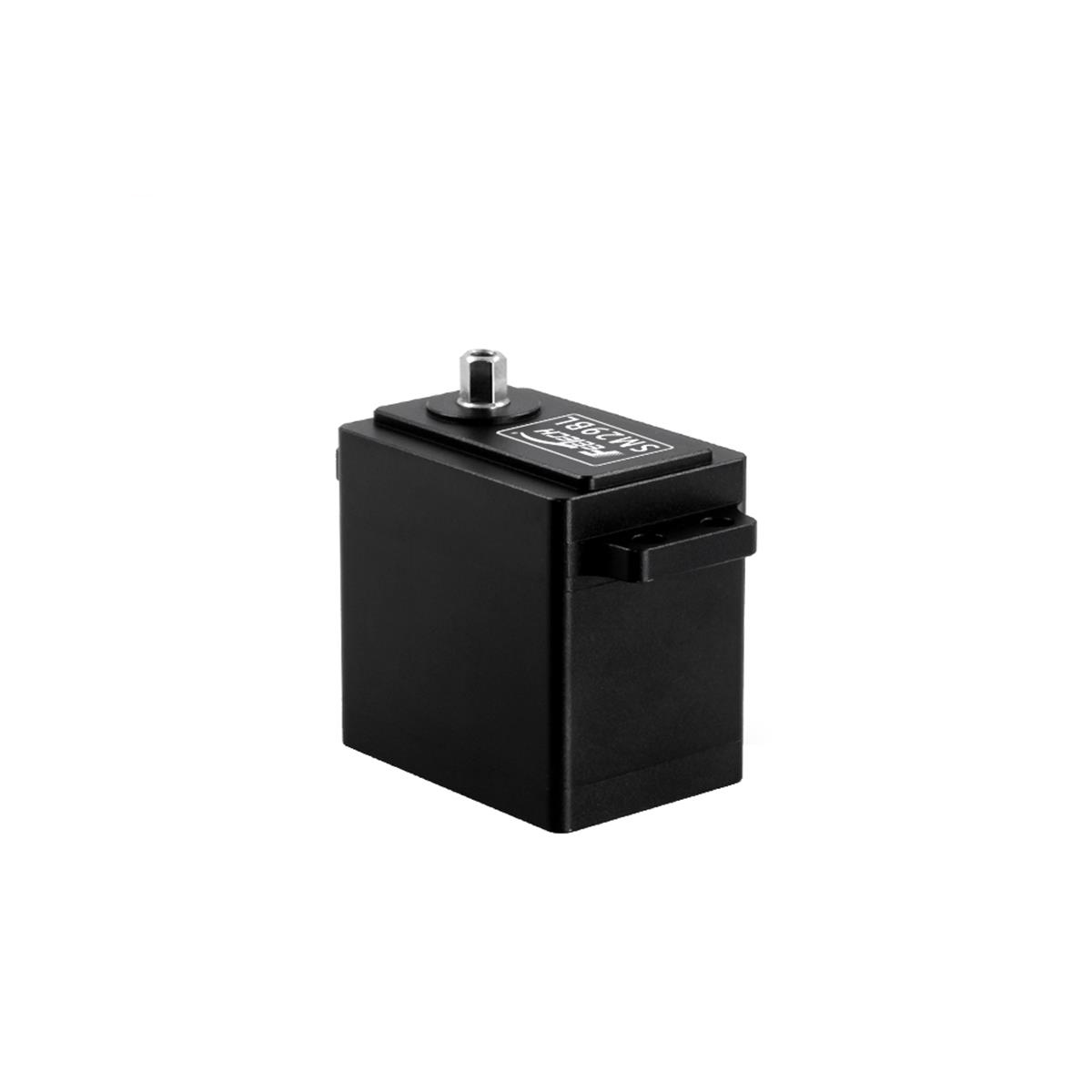

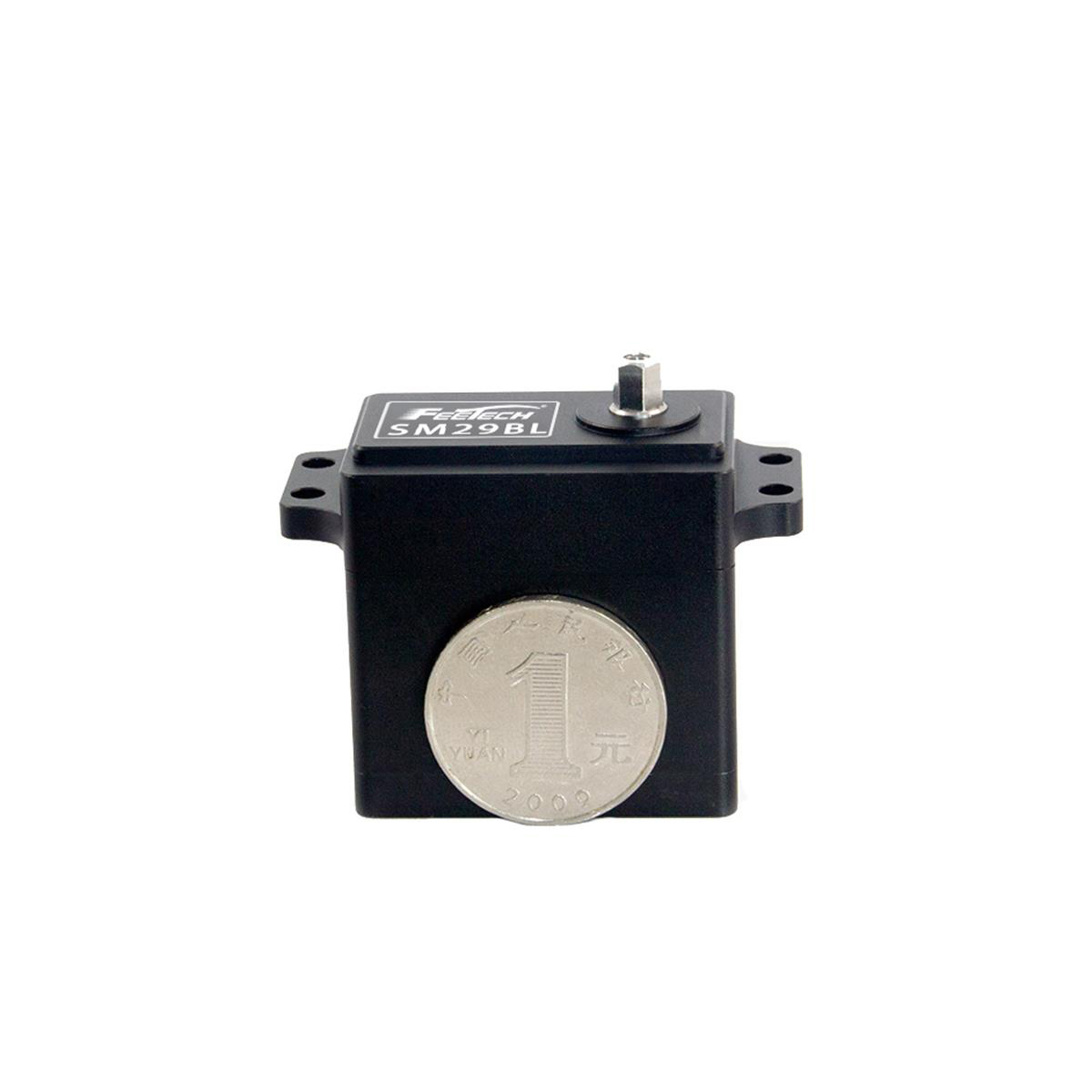

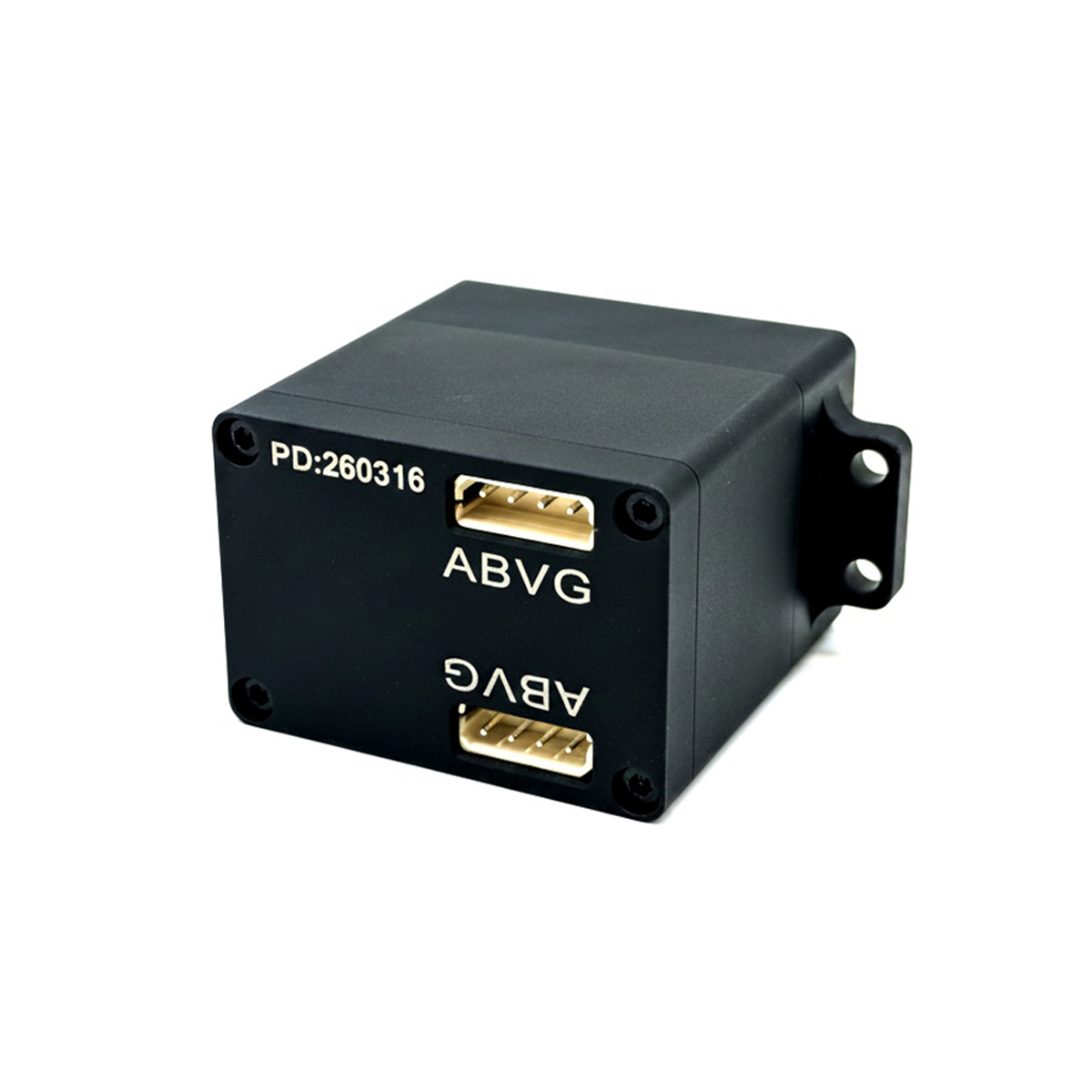

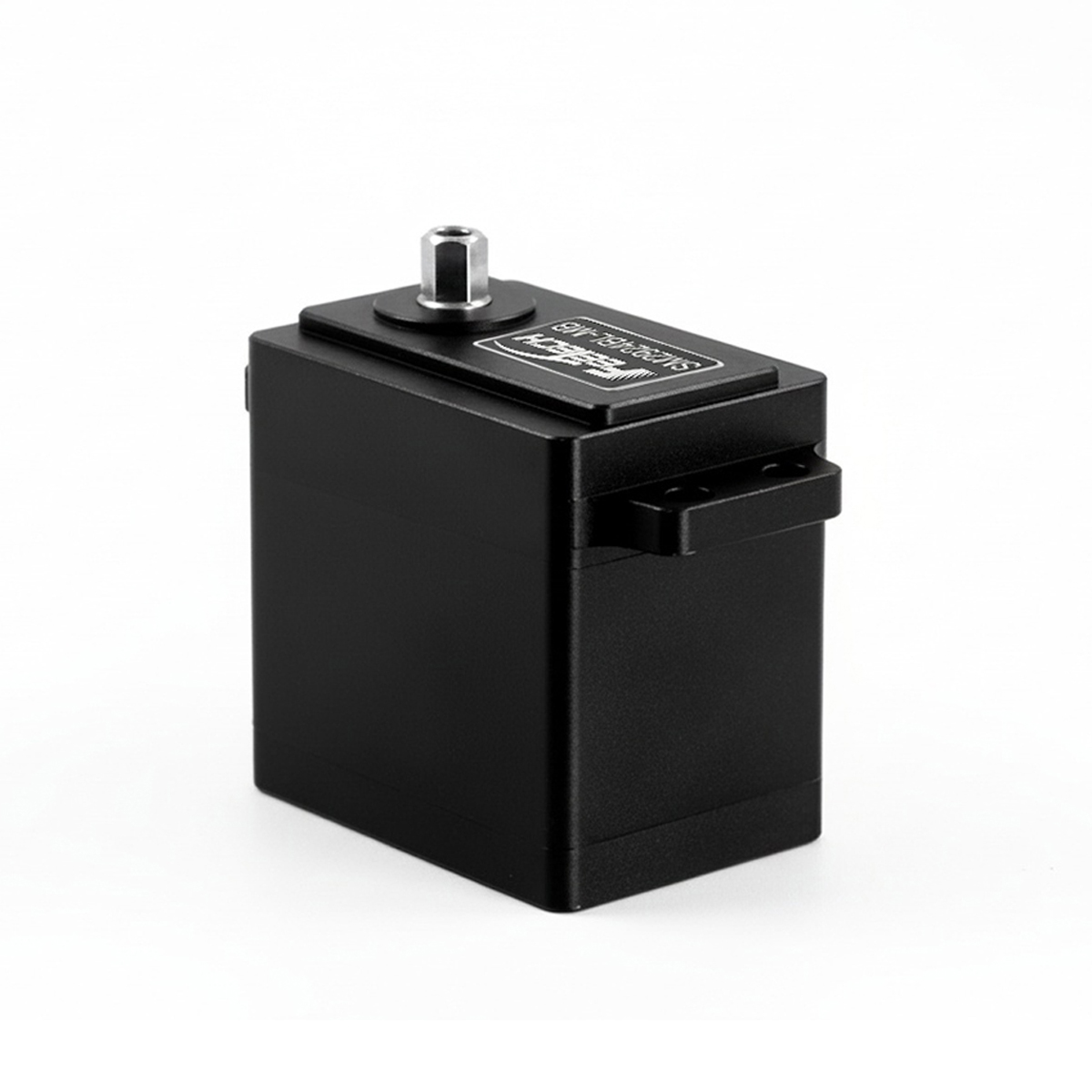

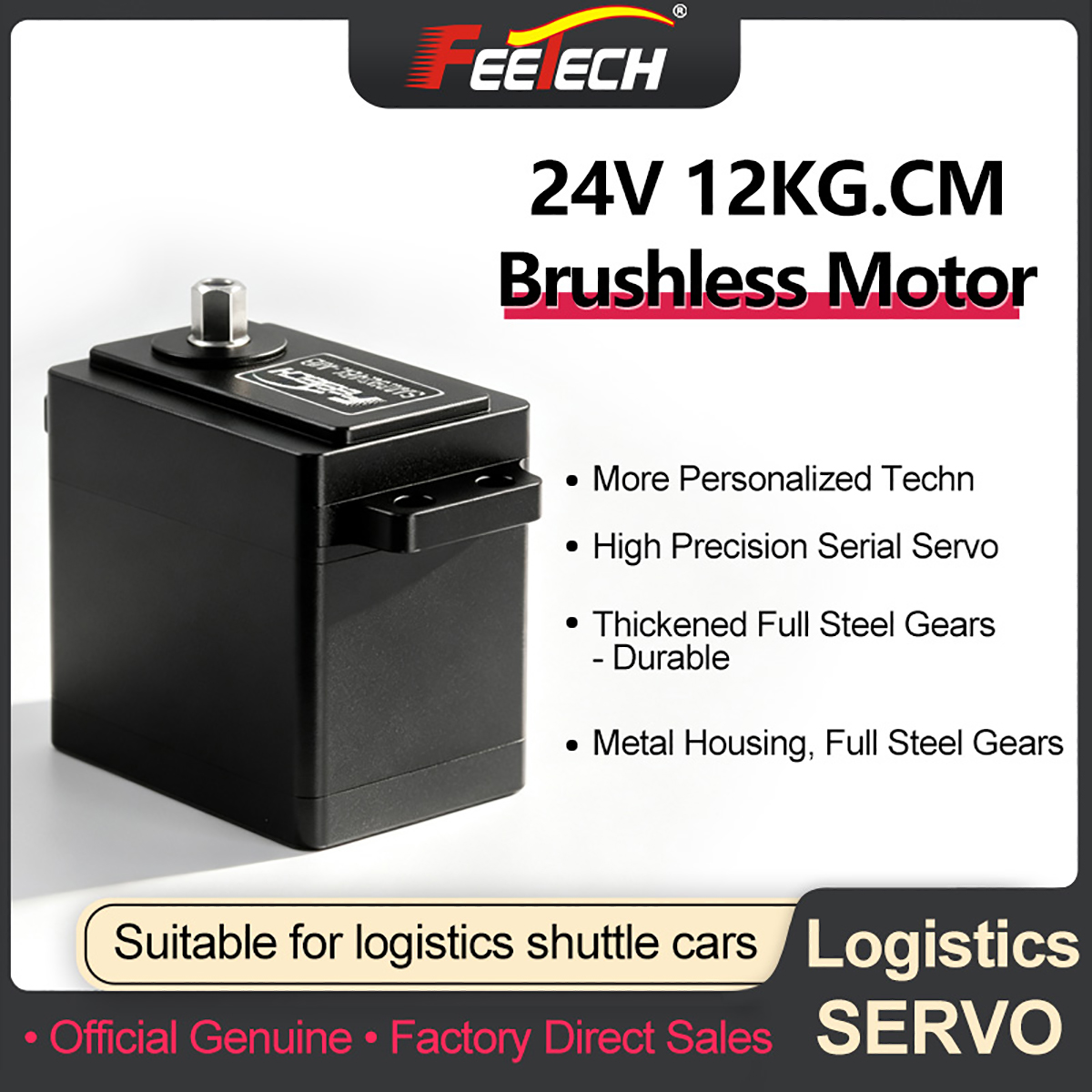

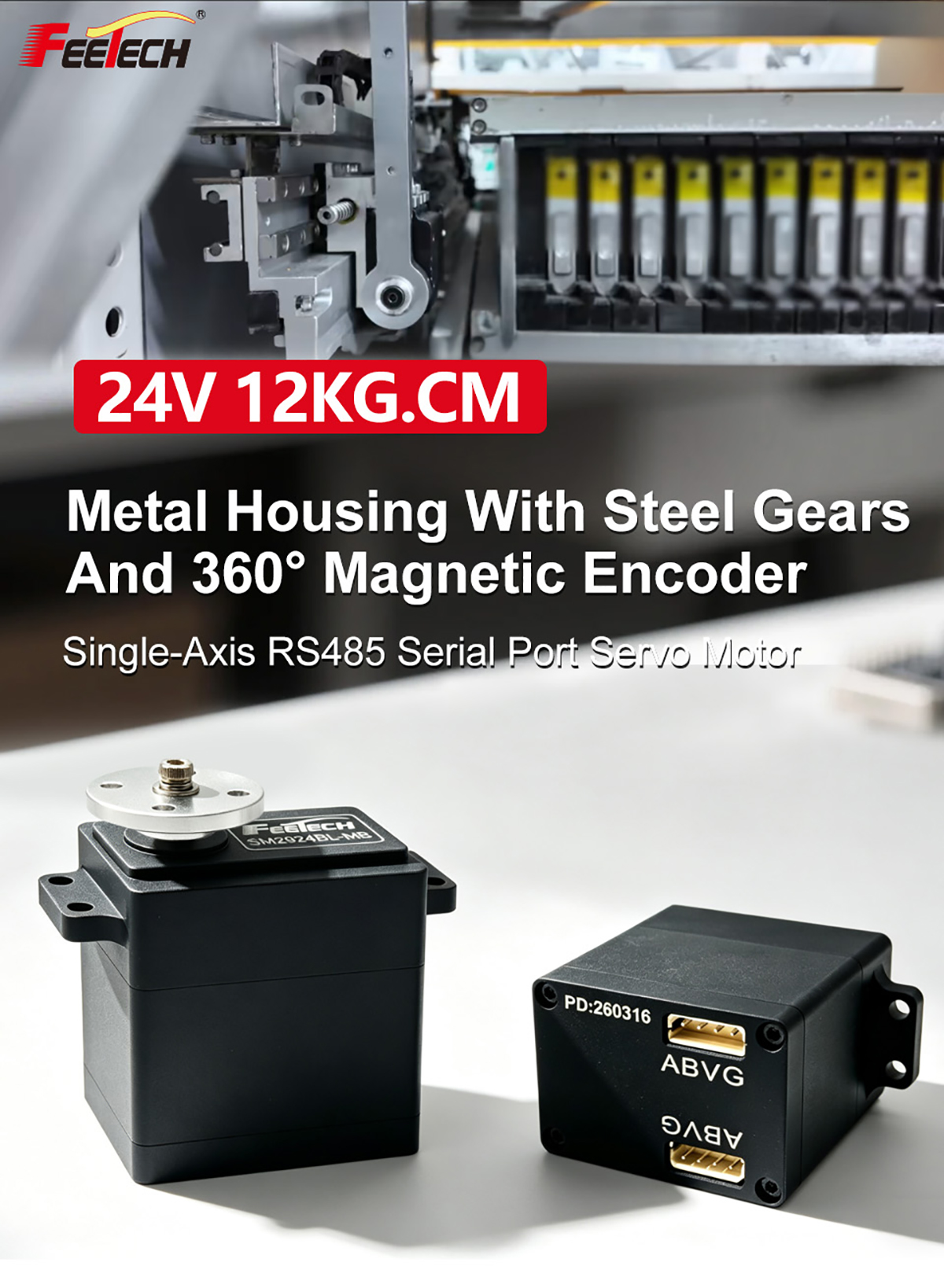

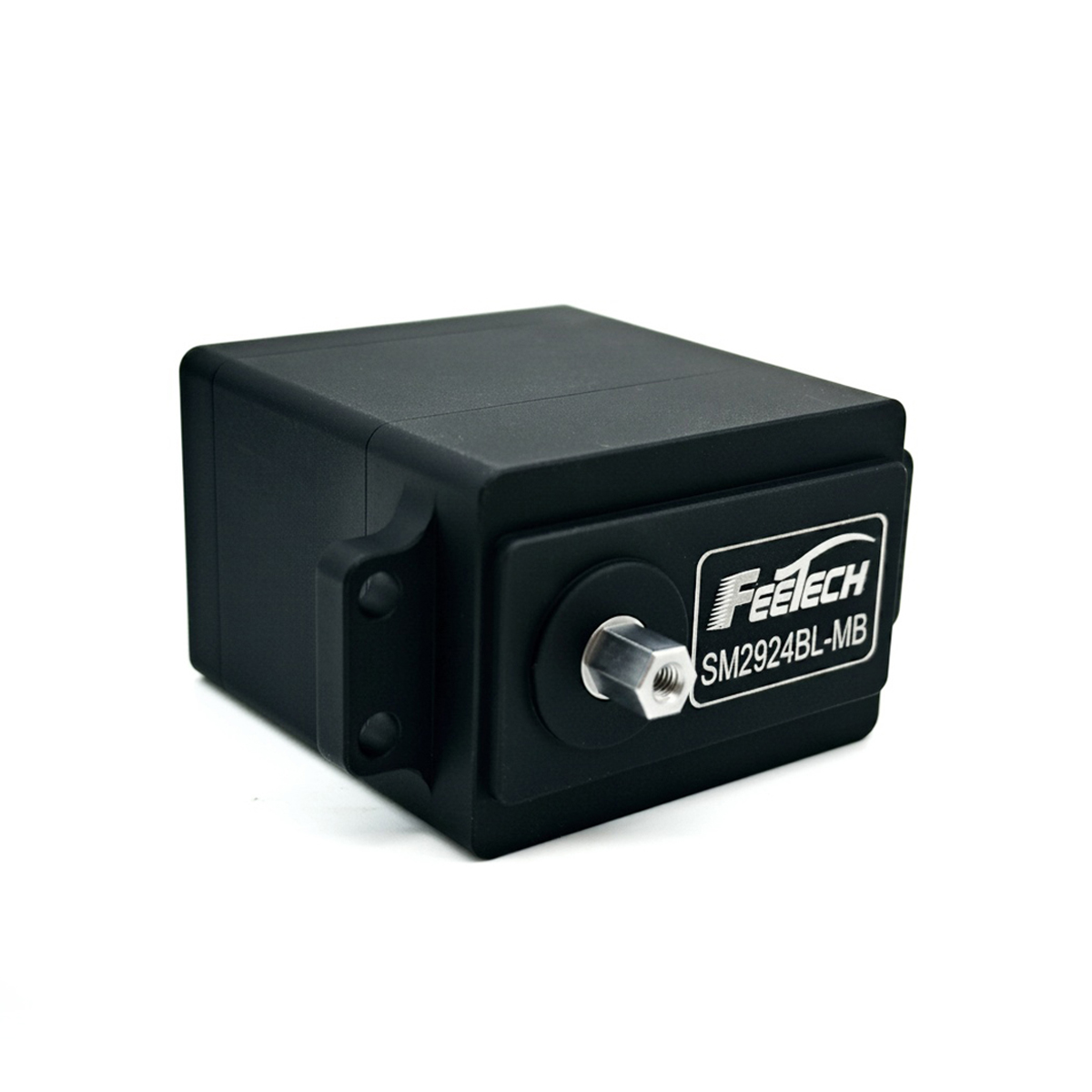

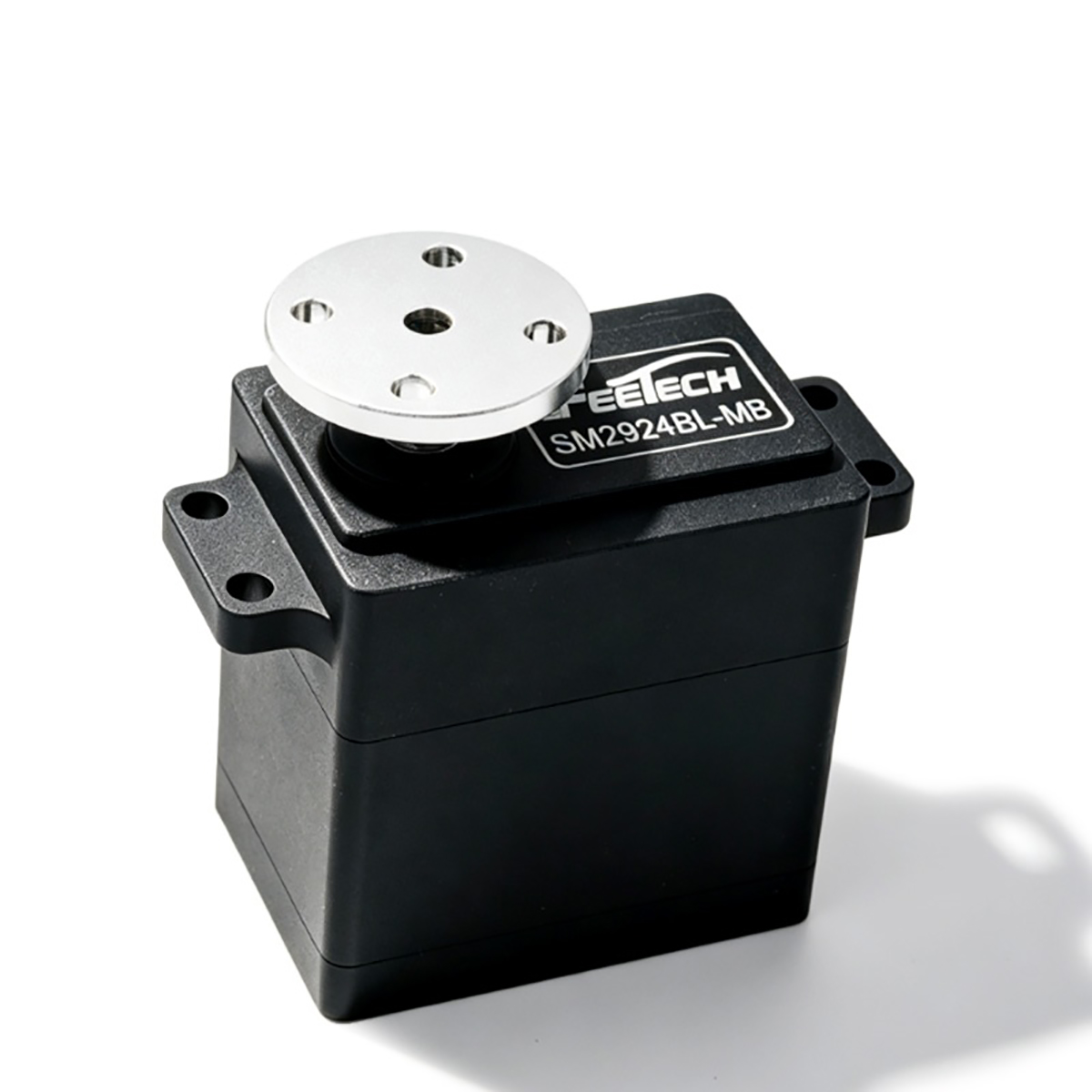

Feetech SM2924BL-MB 24V 12kg Modbus-RTU Servo 360 Degree Magnetic Encoding for Logistics Equipment
Feetech SM2924BL-MB 24V 12kg Modbus-RTU Servo 360 Degree Magnetic Encoding for Logistics Equipment

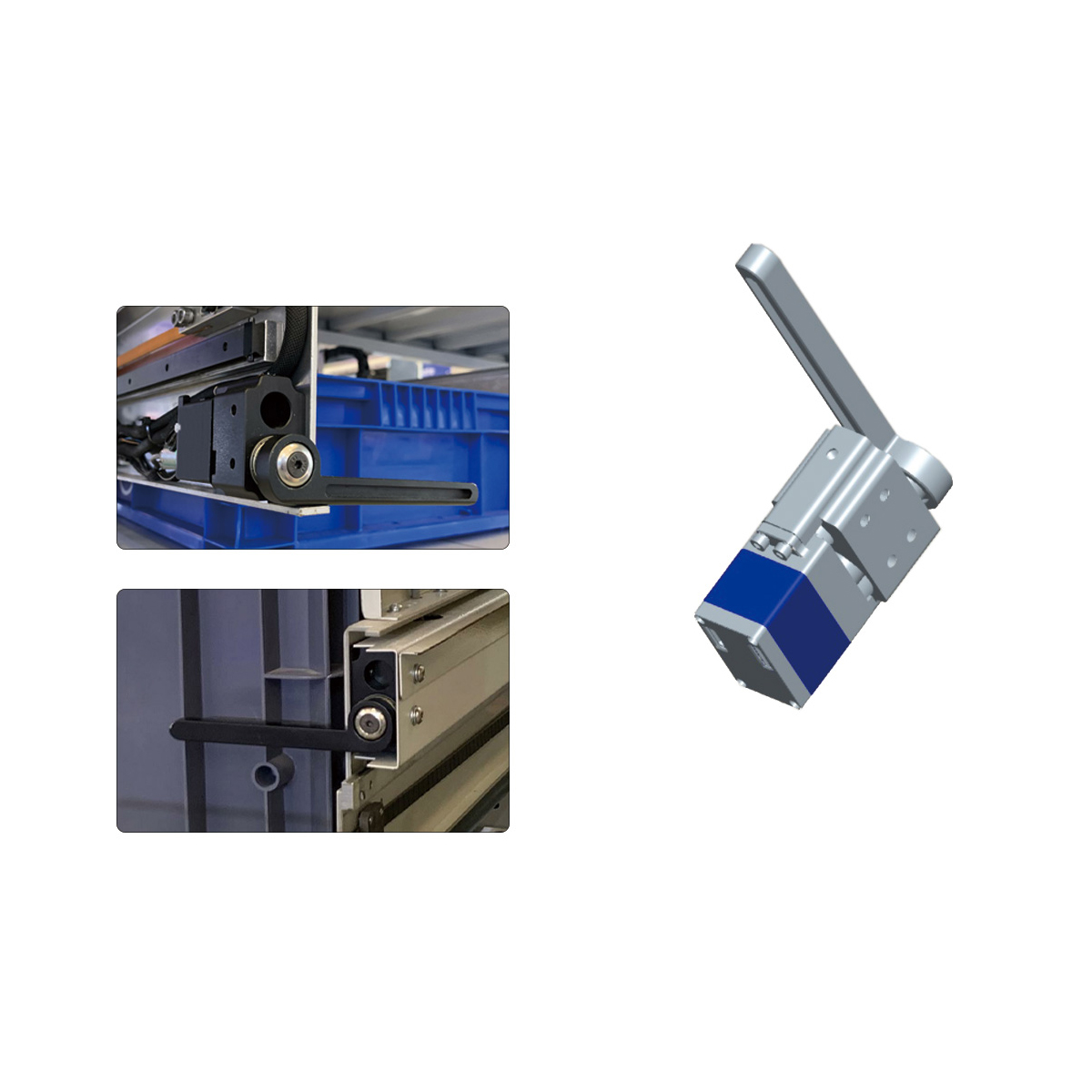

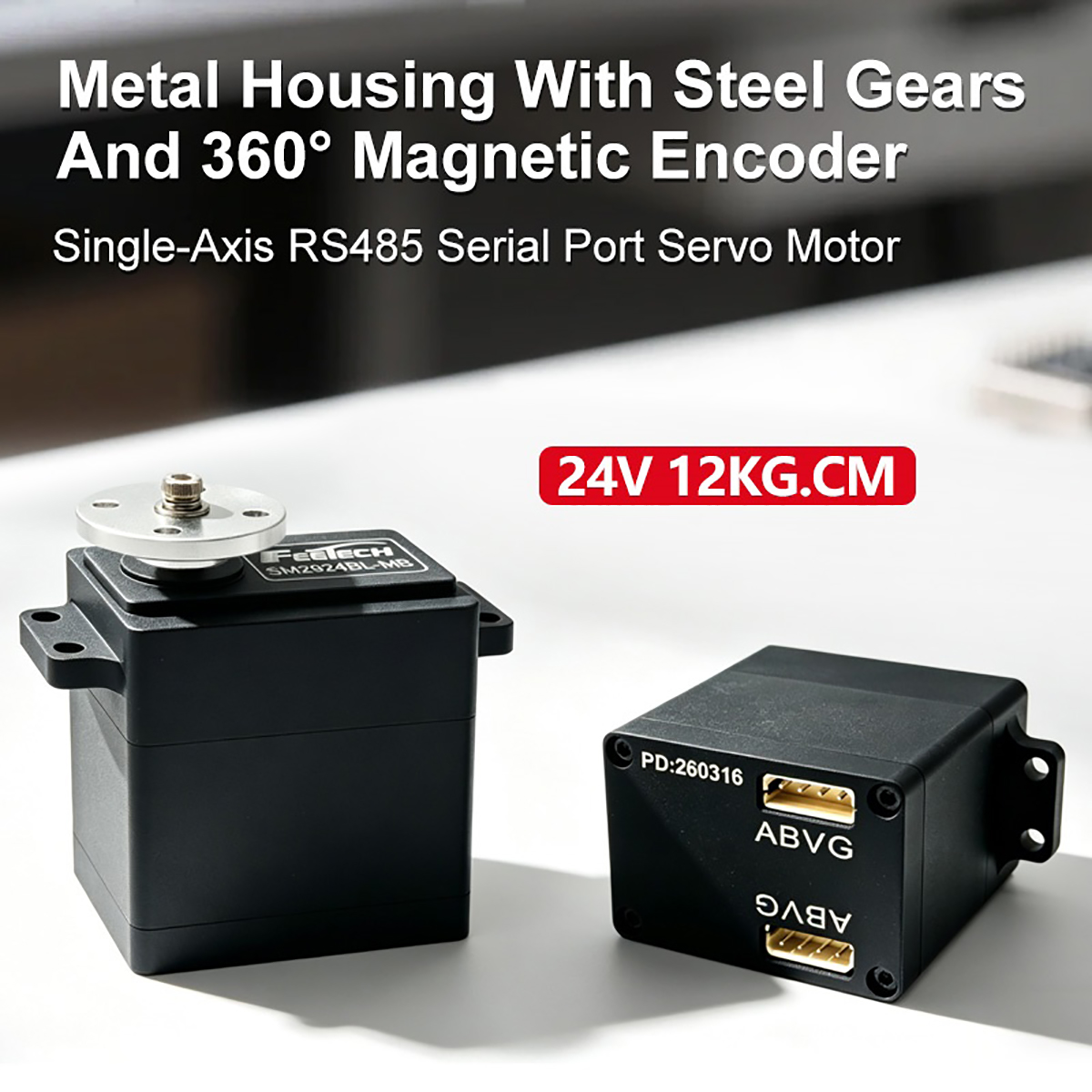

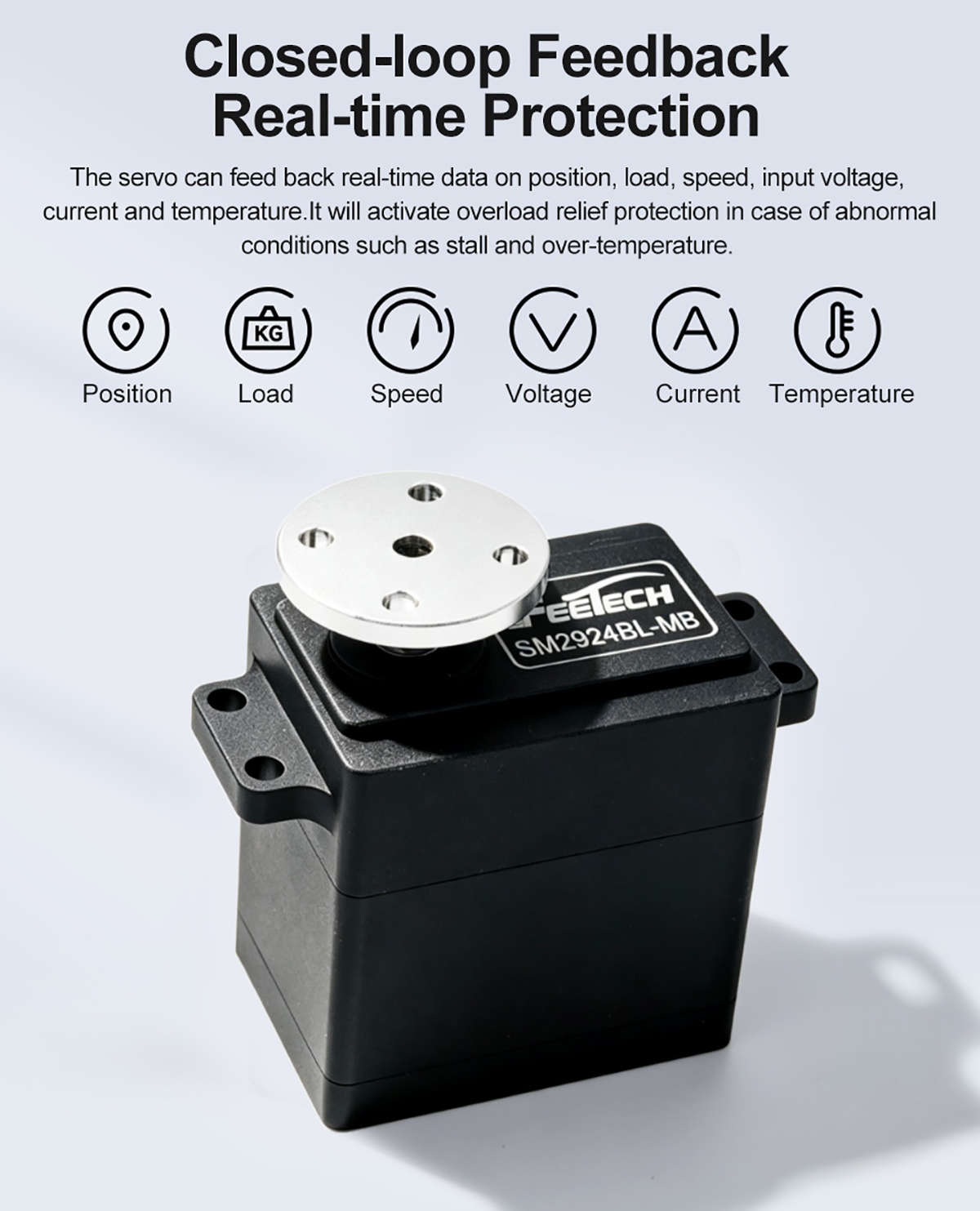

SM-2924-C001 is compatible 12V/24V Modbus-RTU servo，all aluminum alloy shell、brushless motor、steel gearbox、Feetech self researched and developed RS485 control board，12 bit high precision magnetic coding sensor，6T output shaft. The stall torque is 24kg.cm（please note：this version is internal current limiting version），can achieve 0-360 degrees any angle controllable，multi-turn continuous operation mode，it can realize the function of setting the middle point with one key，acceleration slow start and slow stop，can feedback position、speed、voltage、current、temperature、load parameters，thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, logistics, robot and other industries

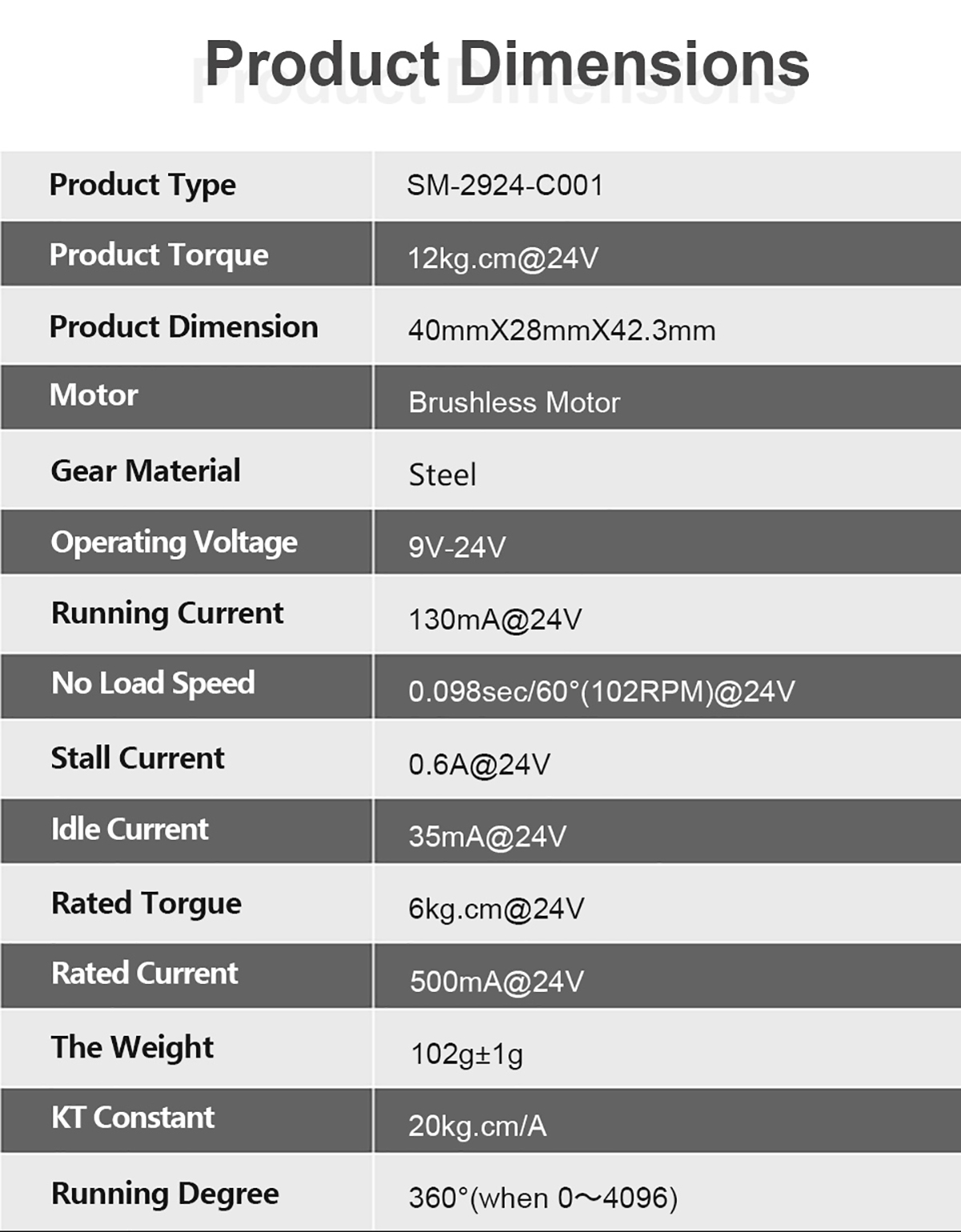

Model: SM-2924-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -15℃～80℃

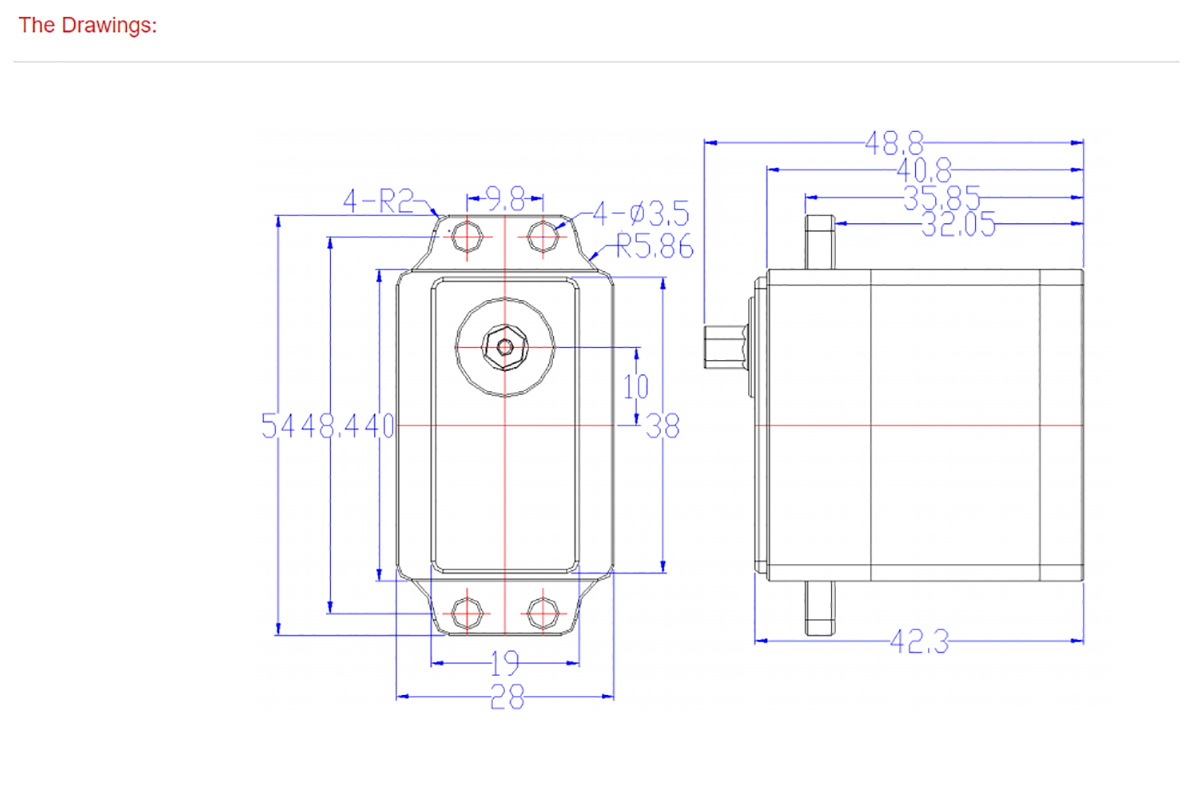

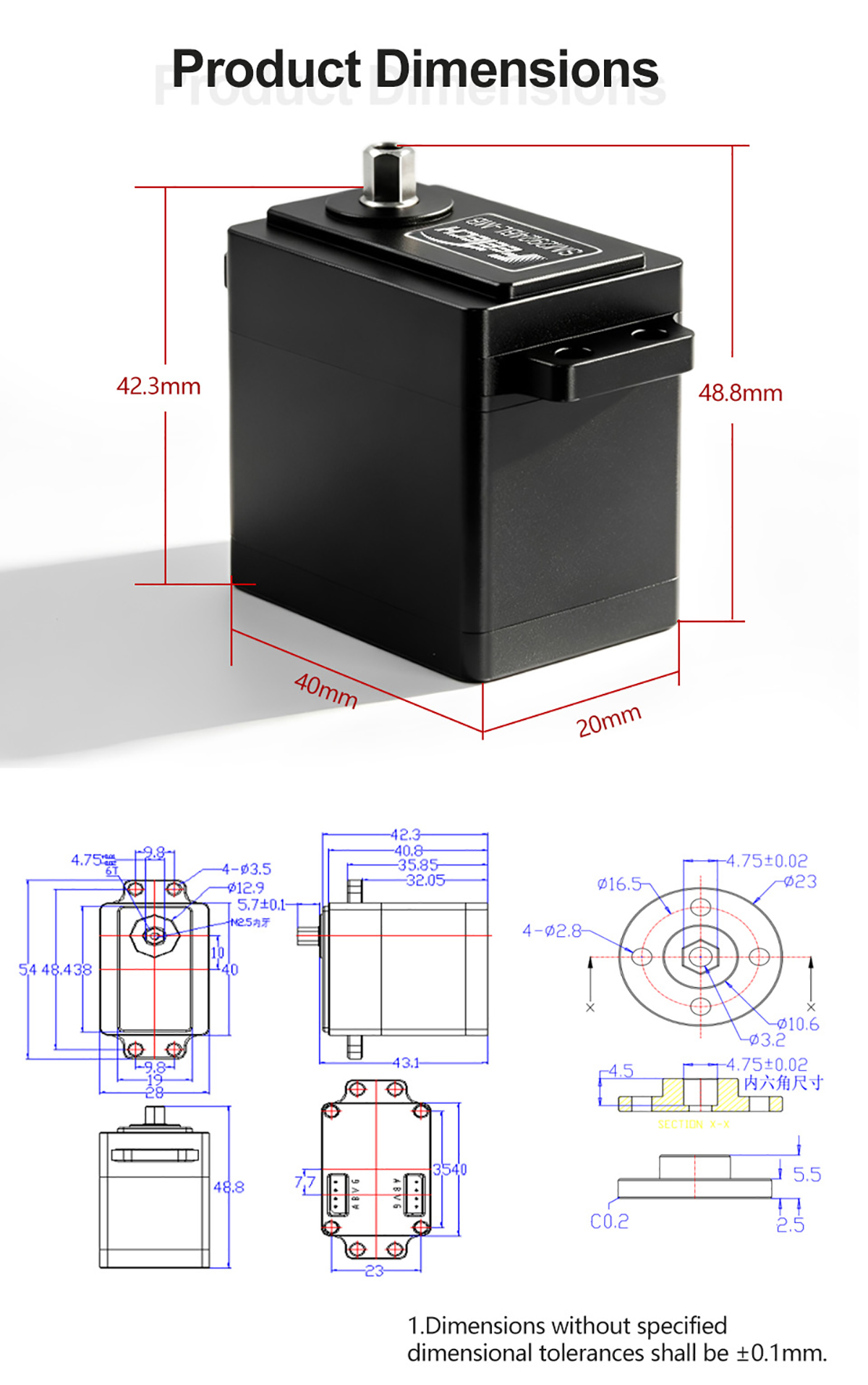

Size: 40*28*42.3mm
Weight: 102g
Gear type: High-precision all-metal gear
Limit angle: No Limiter
High torque: 12Kg.cm@24V
Wide operating voltage: 12-24V

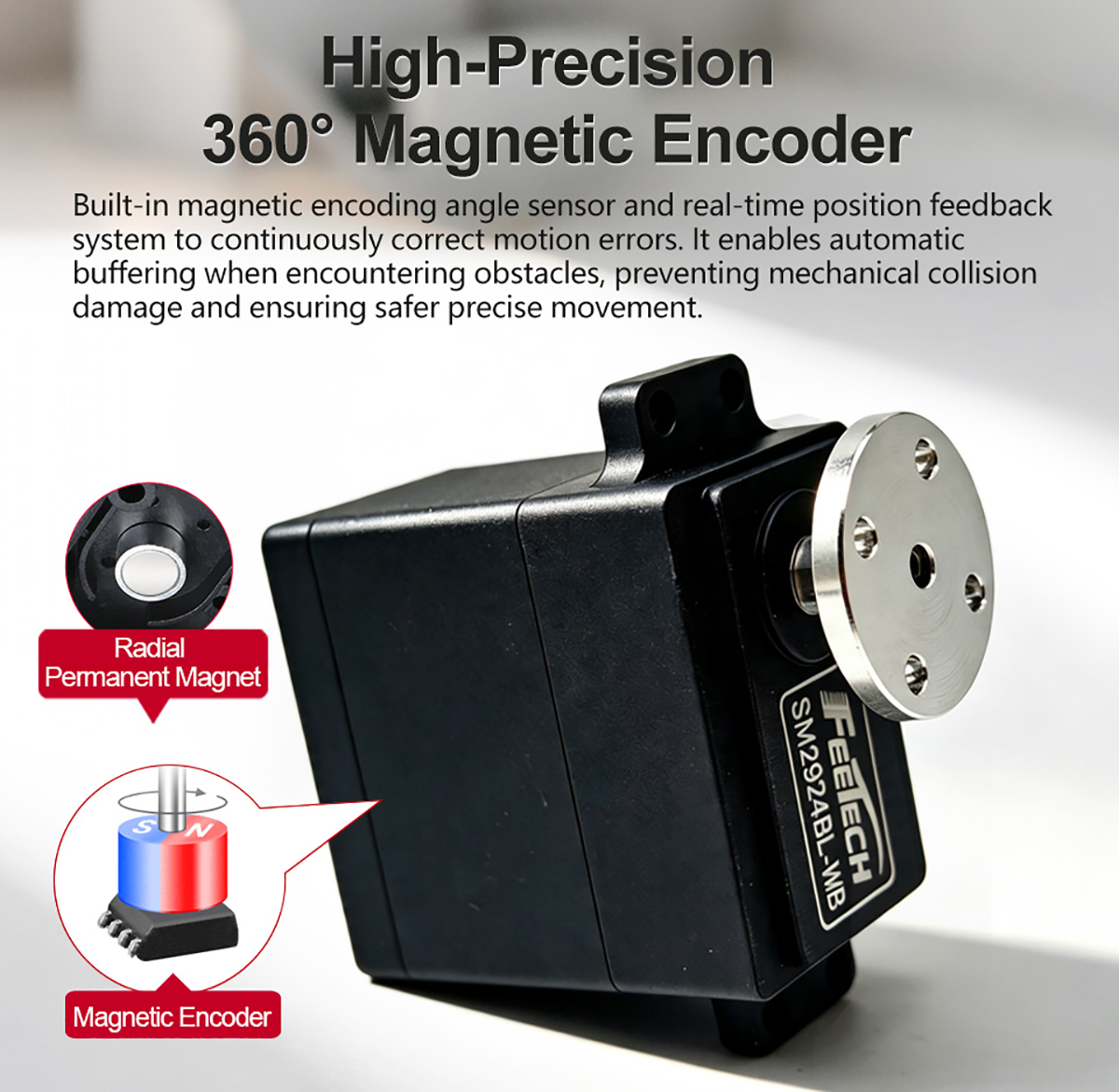

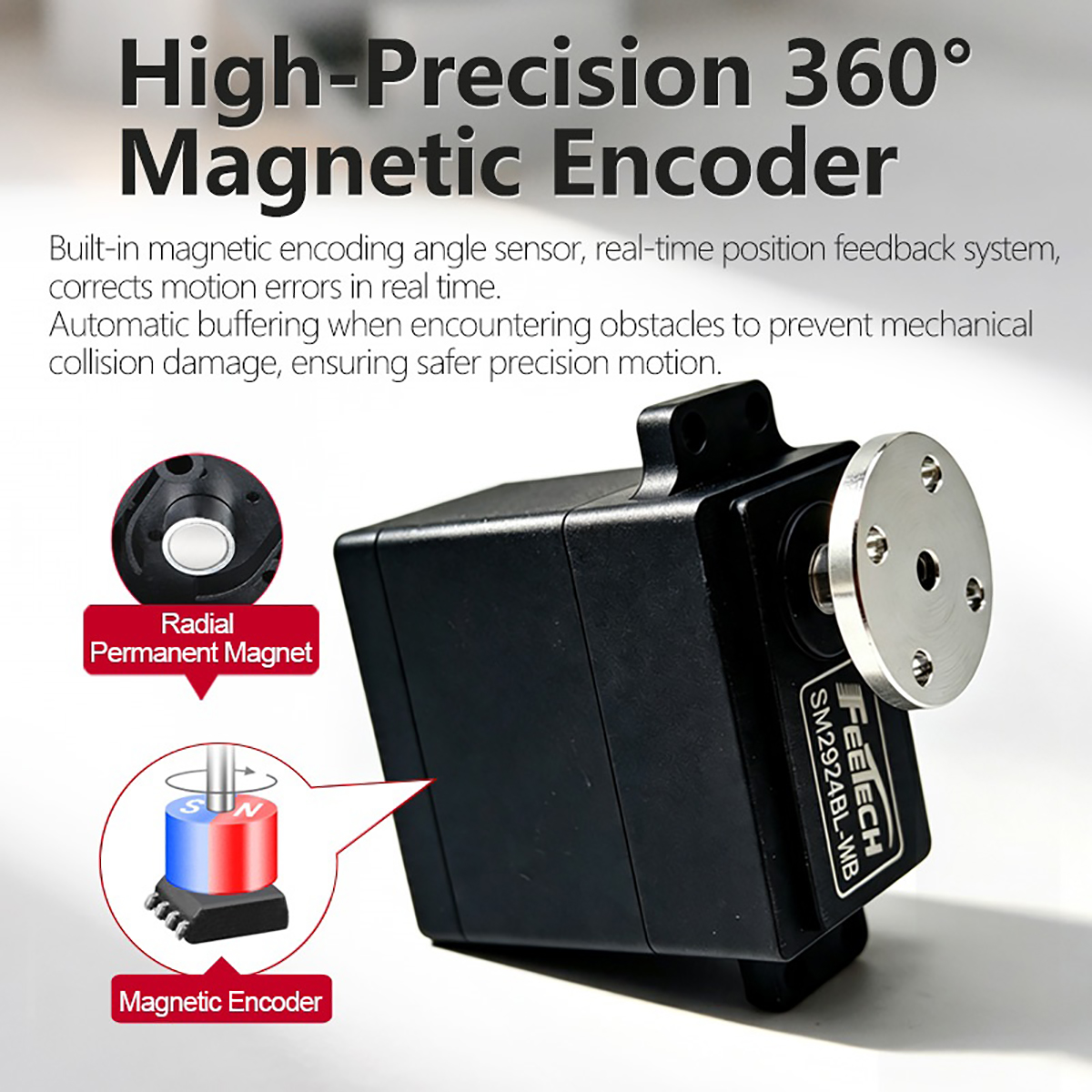

High resolution: 12-bit Encoder (360°/4096, 0.088°)
Servo control mode: Rotation Range 0-360° and Multi-turn Arbitrary Angle
Duplex asynchronous: Modbus-RTU Communication Protocol

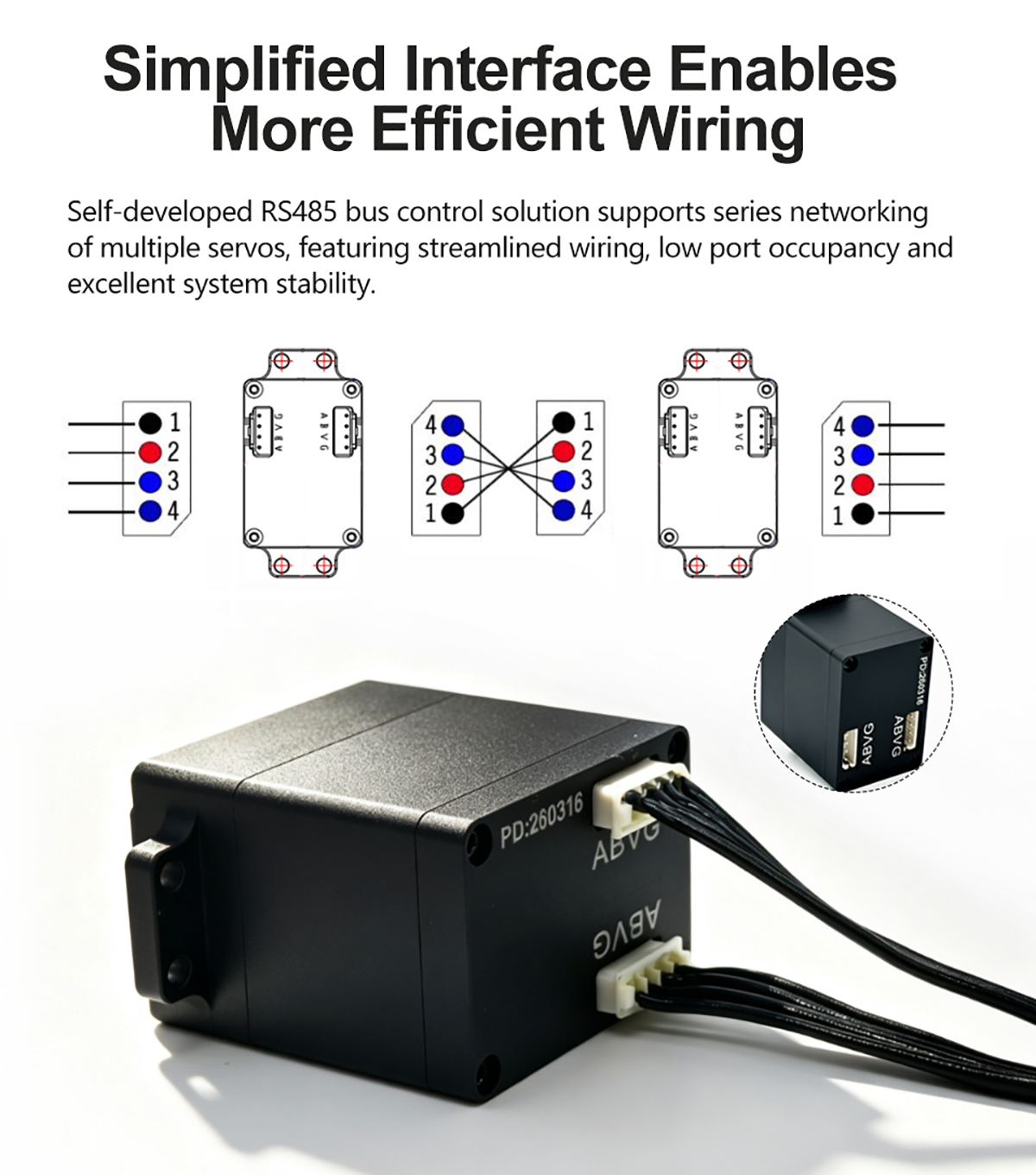

Serial bus connection: 254 ID Addresses Optional
Baud rate: 9600~256000 bps
Power Supply Voltage: 24 VDC
Continuous current: 0.8 A
Maximum axial load: 3N
Maximum radial load: 10N
Quiescent Current: 35mA
No-load current: 200mA
Stall current: 1200mA
PWM frequency: 16KHZ
Position resolution: 0.088º
Stall torque: 24kg.cm@24V
Maximum speed: 110RPM

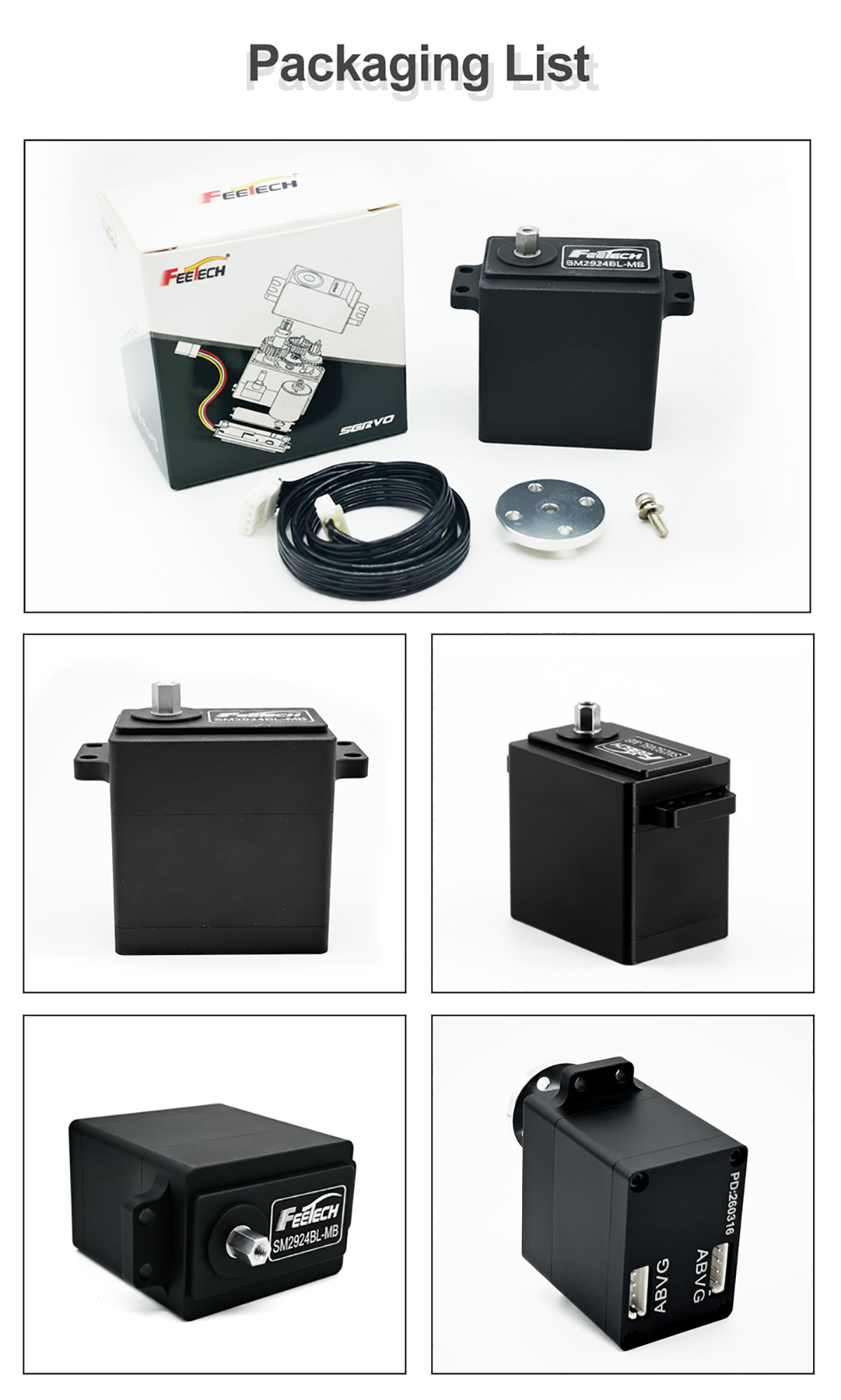

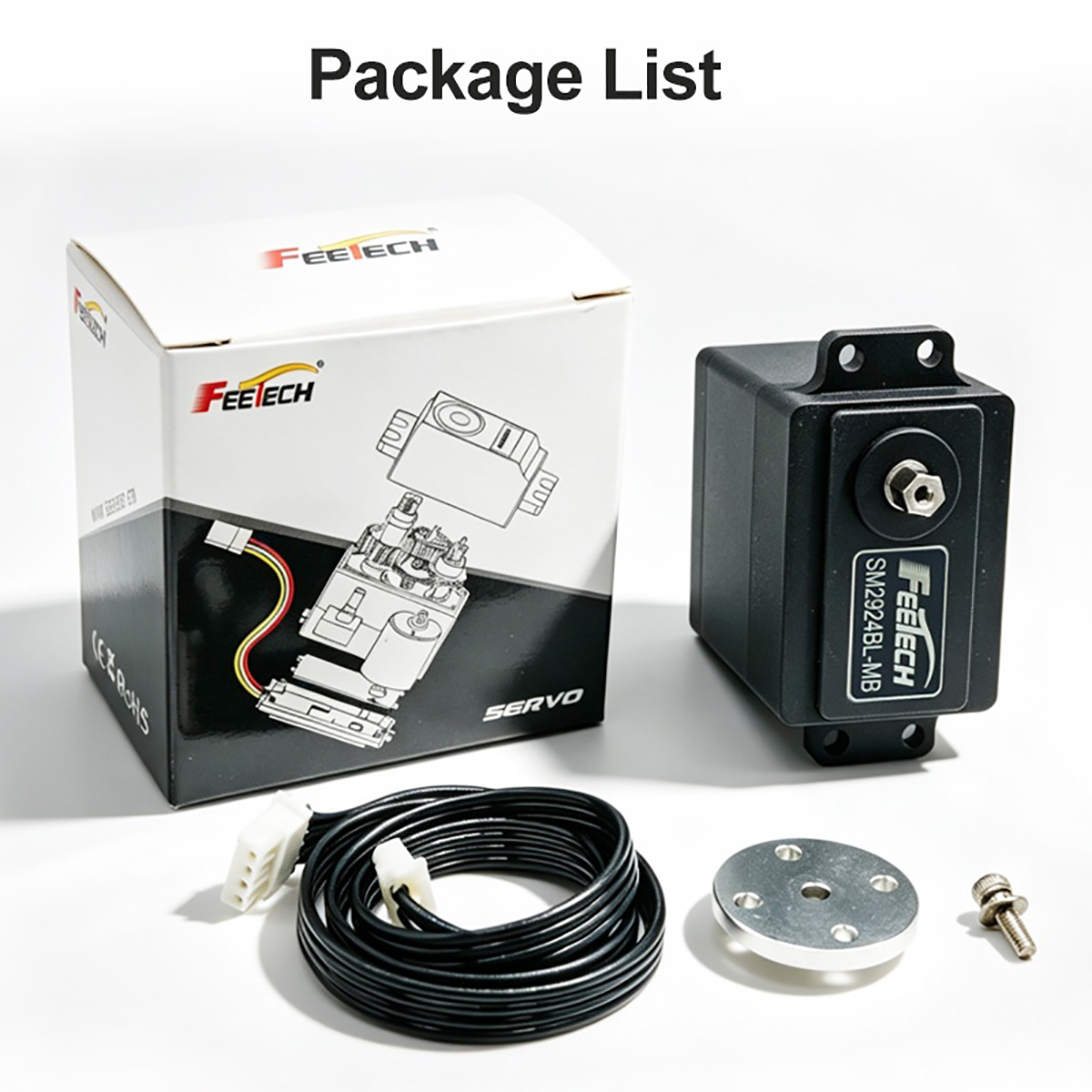

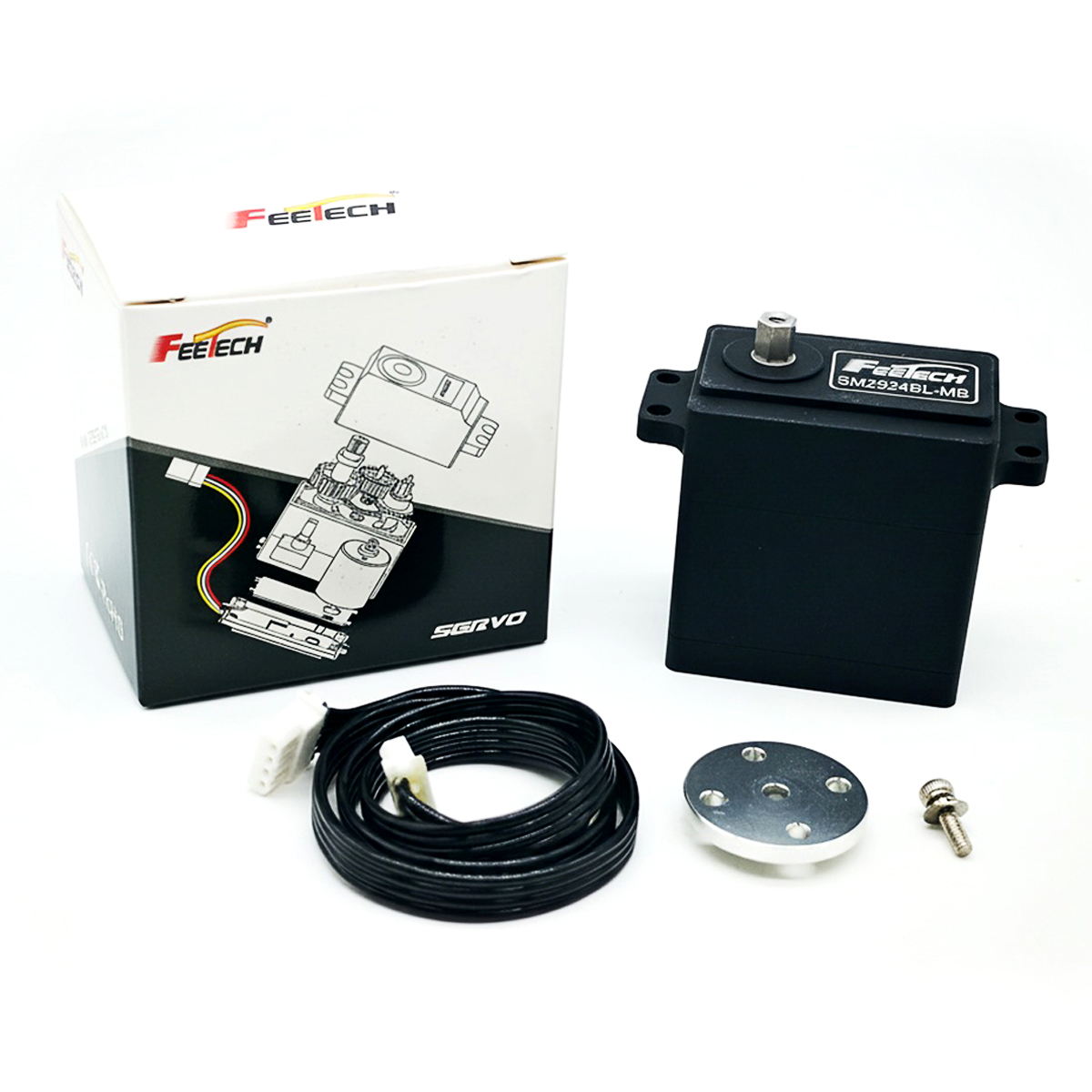

SM-2924-C001 Servo x1
