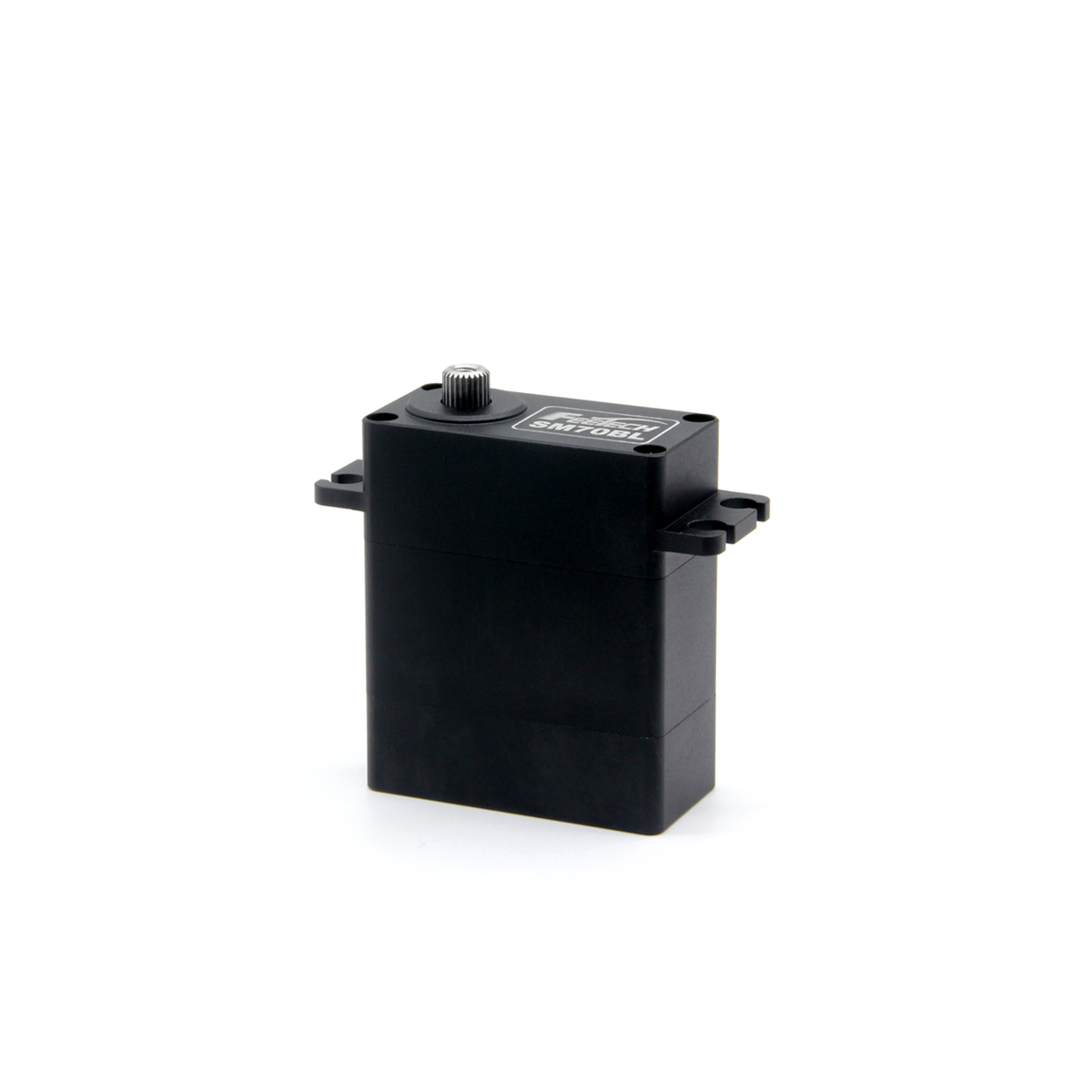

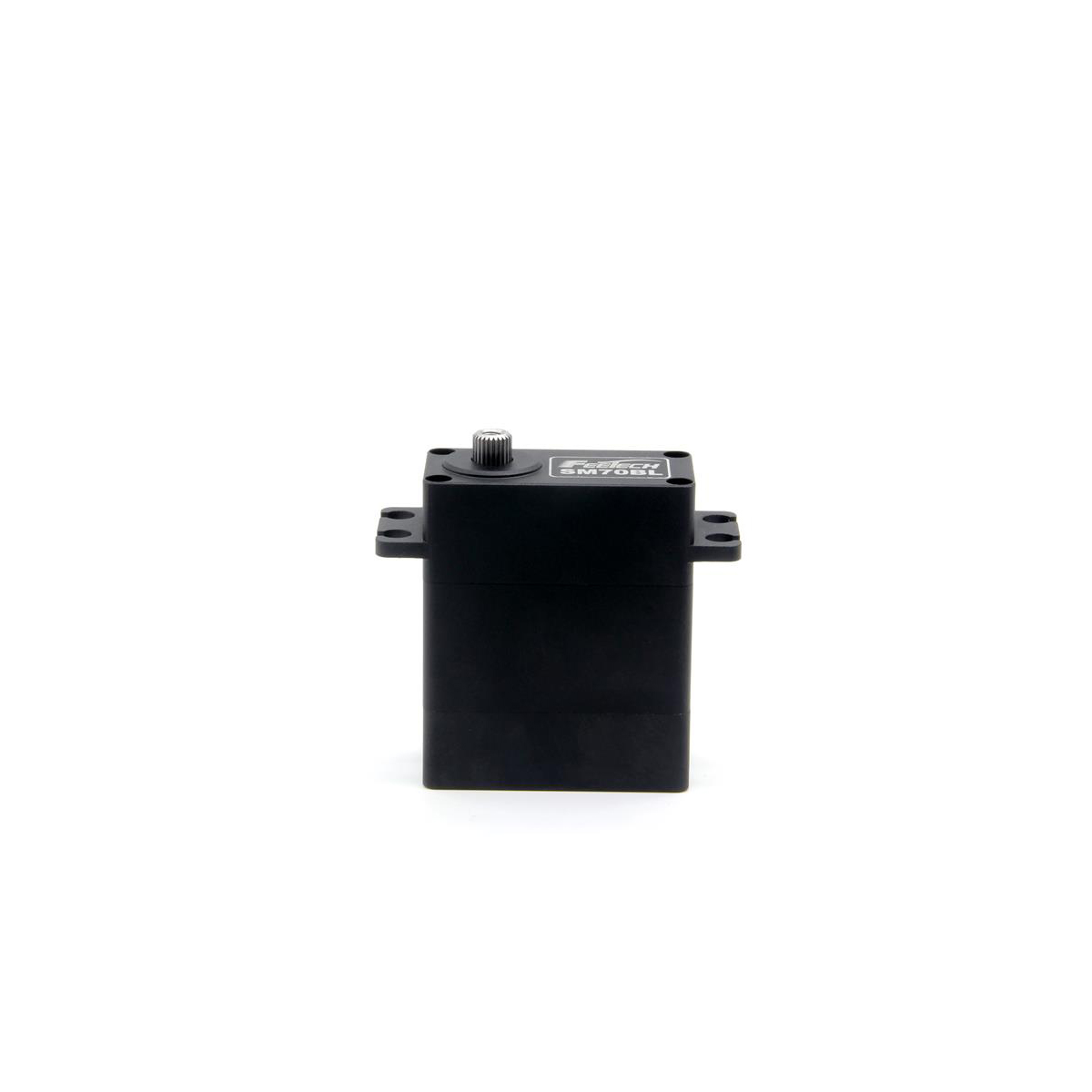

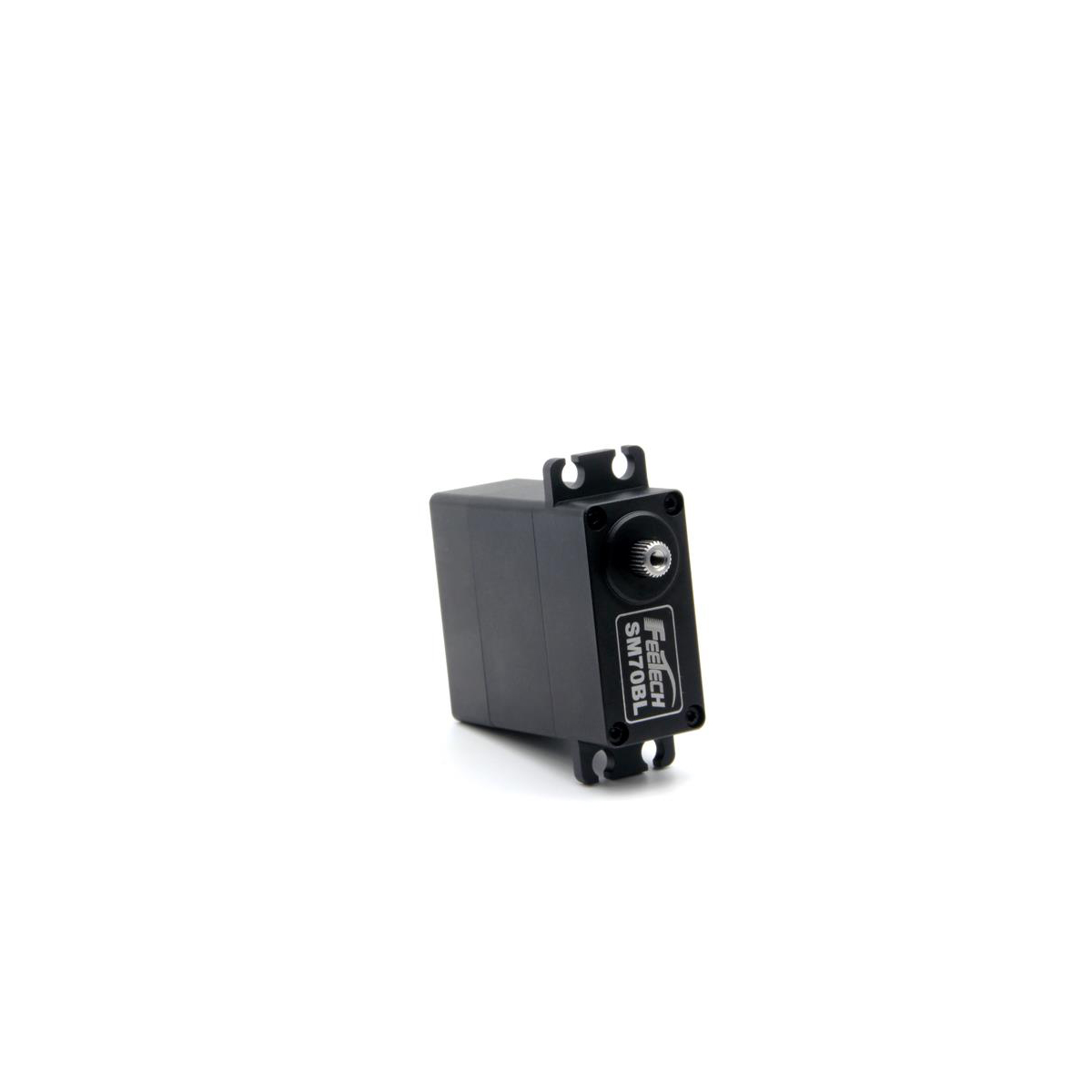

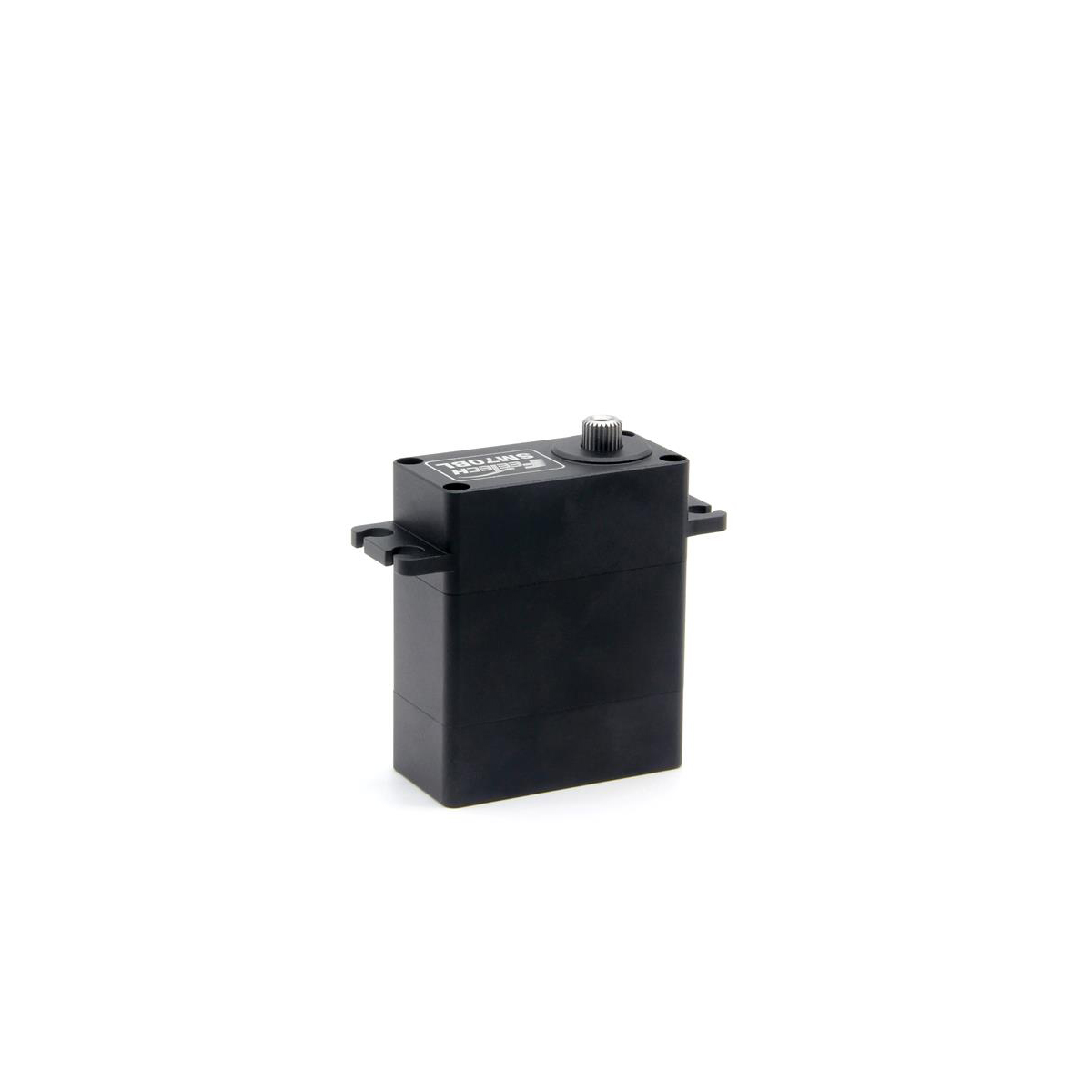

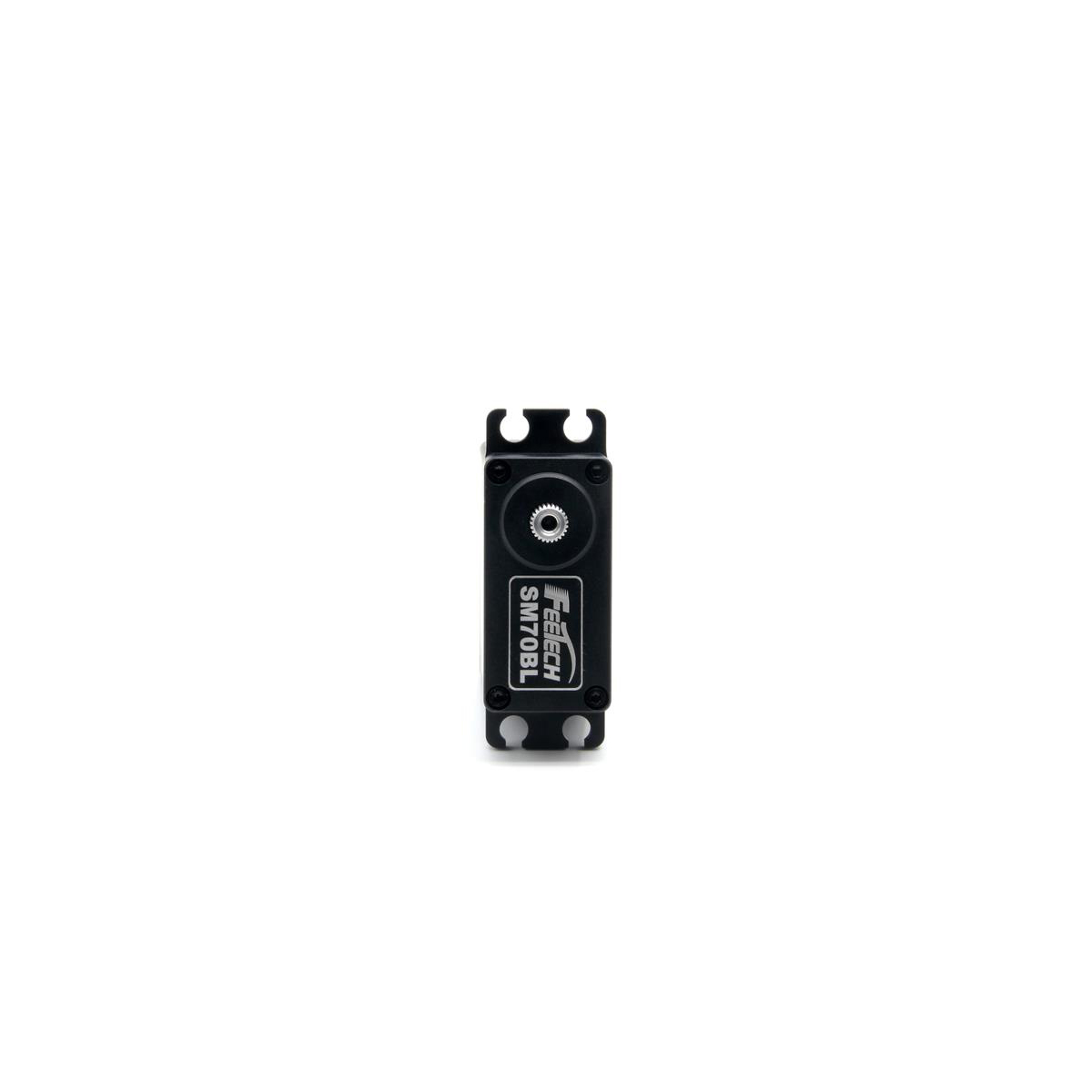

Feetech SM70BL 24V 70kg RS485 Serial Bus Servo 360 Degrees Angle Controllable Brushless Servo Motor Robot Arm
Feetech SM70BL 24V 70kg RS485 Serial Bus Servo 360 Degrees Angle Controllable Brushless Servo Motor Robot Arm
SM70BL is compatible 12V/24V serial port smart bus servo，all aluminum alloy shell、brushless motor、steel gearbox、Feetech self researched and developed RS485 control board，12 bit high precision magnetic coding sensor，25T output shaft. The stall torque is 70kg.cm can achieve 0-360 degrees any angle controllable，multi-turn continuous operation mode，it can realize the function of setting the middle point with one key，acceleration slow start and slow stop，can feedback position、speed、voltage、current、temperature、load parameters，thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, logistics, robot and other industries.
Model: SM-70BL-C001
Storage Temperature Range: -40℃～70℃
Operating Temperature Range: -40℃～70℃

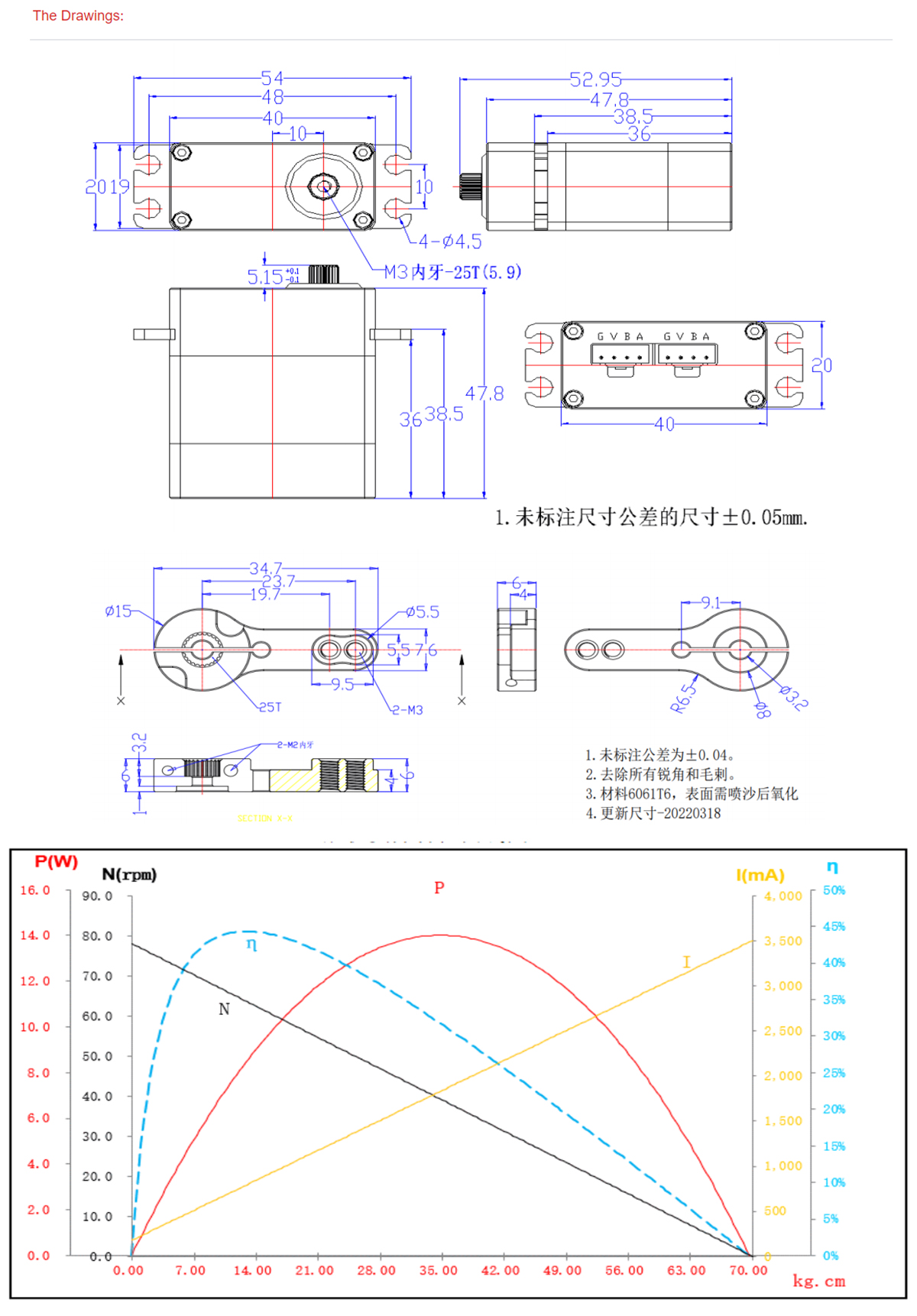

Size: 40*20*47.8mm
Weight: 91.6±1g
Gear type: Steel
Limit angle: No Limit
Stall Torque (at locked): 70Kg.cm
Input Voltage (Operating Voltage): 16.8V-25.2V
No Load Speed (±10%): 0.13sec/60°(78RPM)@24V
Running Current (±10%, at no load): 180mA@24V
Stall Current (at locked): 3.5A@24V
Rated Torque: 17.5kg.cm@24V
Rated Current: 870mA@24V
Terminal resistance (Motor Internal Resistance): 4.55 Ω
Command Signal (Control Signal): Digital Packet
Protocol Type: Half Duplex Asynchronous Serial Communication
Communication Baud (Communication Baud Rate): 38400bps ~ 1 Mbps
Running degree (Rotation Angle): 360°(when 0～4095)
Rotating Direction: Clockwise(0→4095）
Feedback: Load, Position, Speed, Input Voltage, Current, Temperature

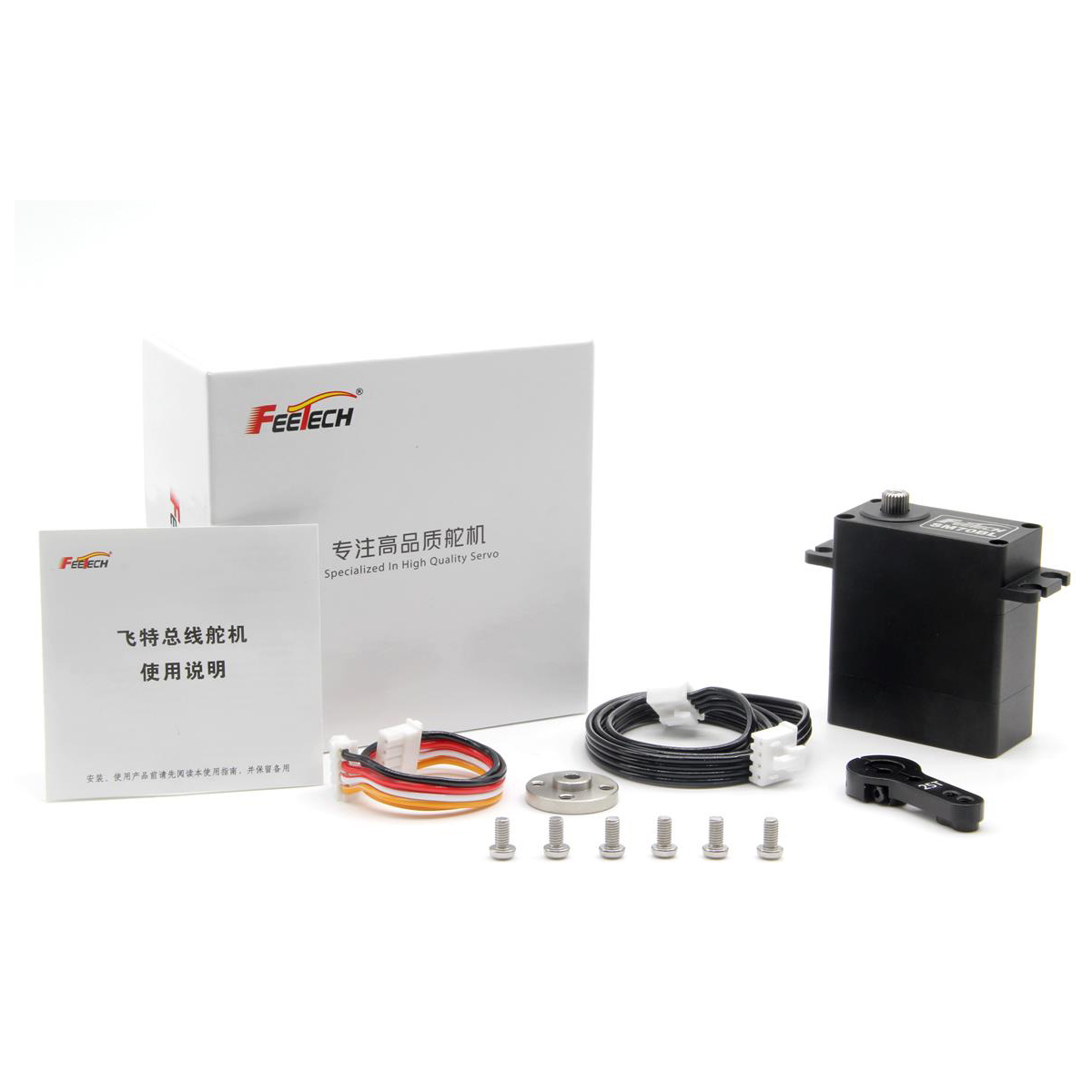

SM70BL Servo x1
