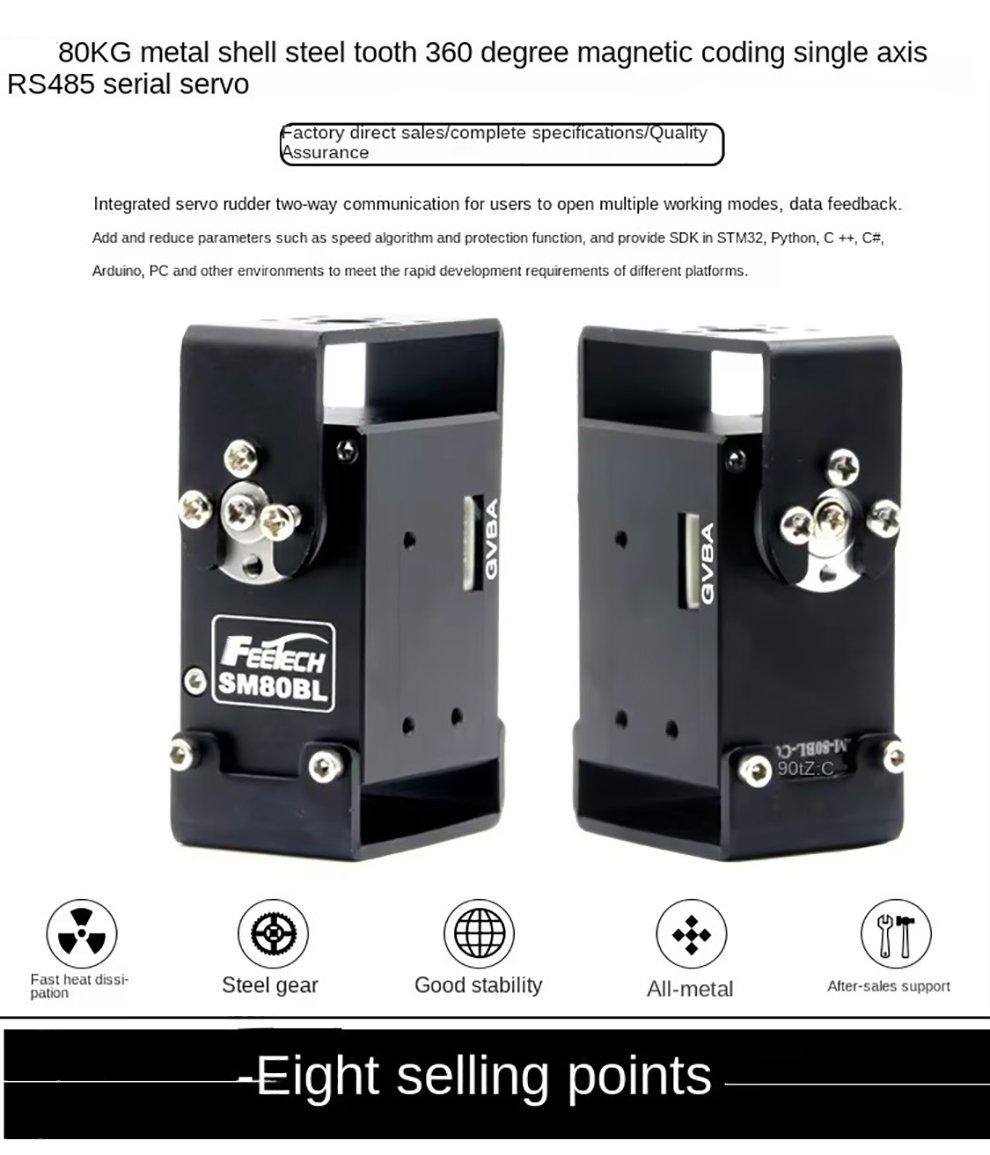

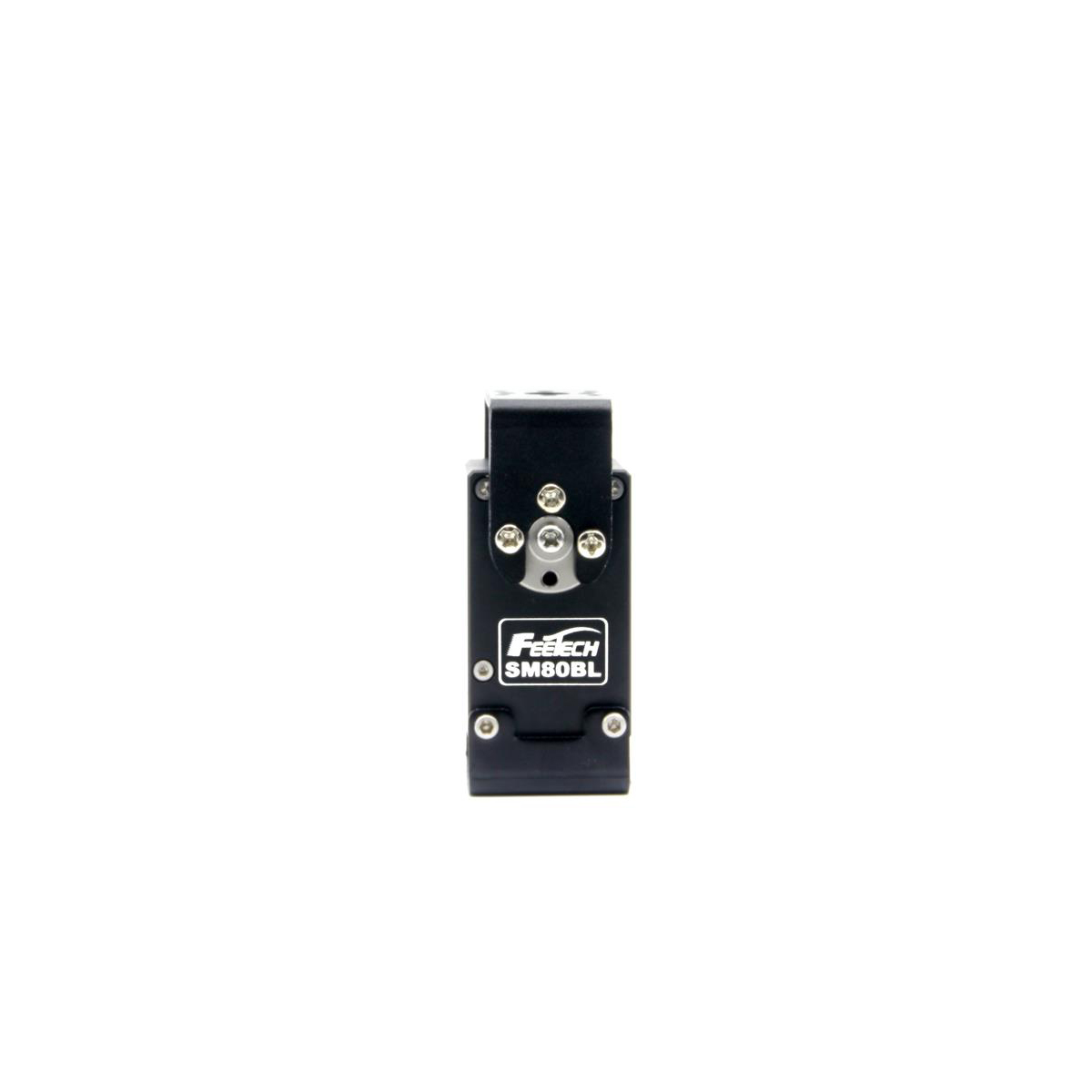

Feetech SM80BL 12V 80kg RS485 Serial Bus Servo Brushless Motor Metal Gear RC Toy Servo
SM80BL is 12V serial port smart bus servo，all aluminum alloy shell、brushless motor、steel gearbox、Feetech self researched and developed RS485 control board，12 bit high precision magnetic coding sensor，external connect stainless steel main servo horn. The stall torque is 80kg.cm，can achieve 0-360 degrees any angle controllable，multi-turn continuous operation mode，it can realize the function of setting the middle point with one key，acceleration slow start and slow stop，can feedback position、speed、voltage、current、temperature、load parameters，thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and other industries.

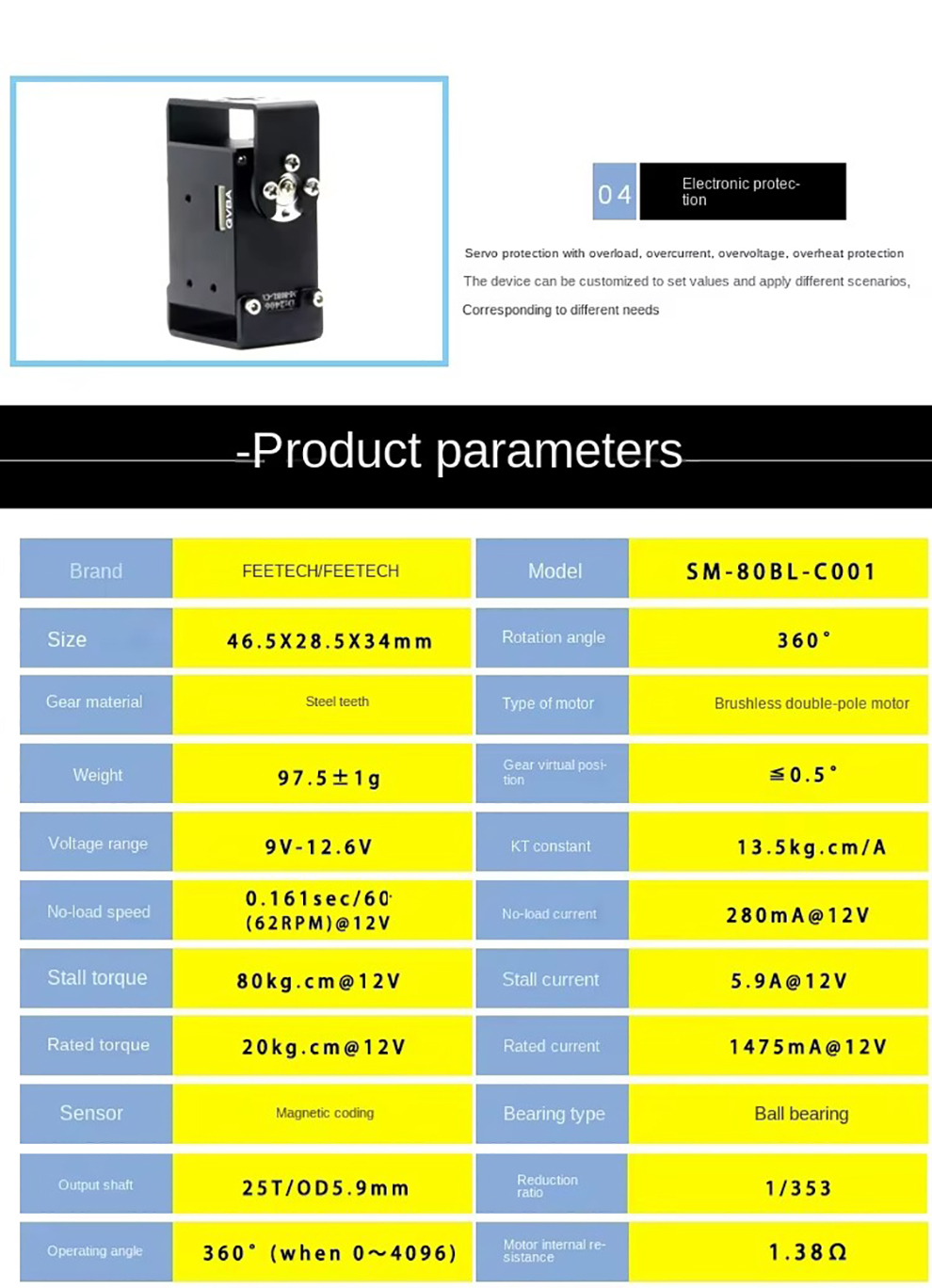

Model: SM-80BL-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～80℃

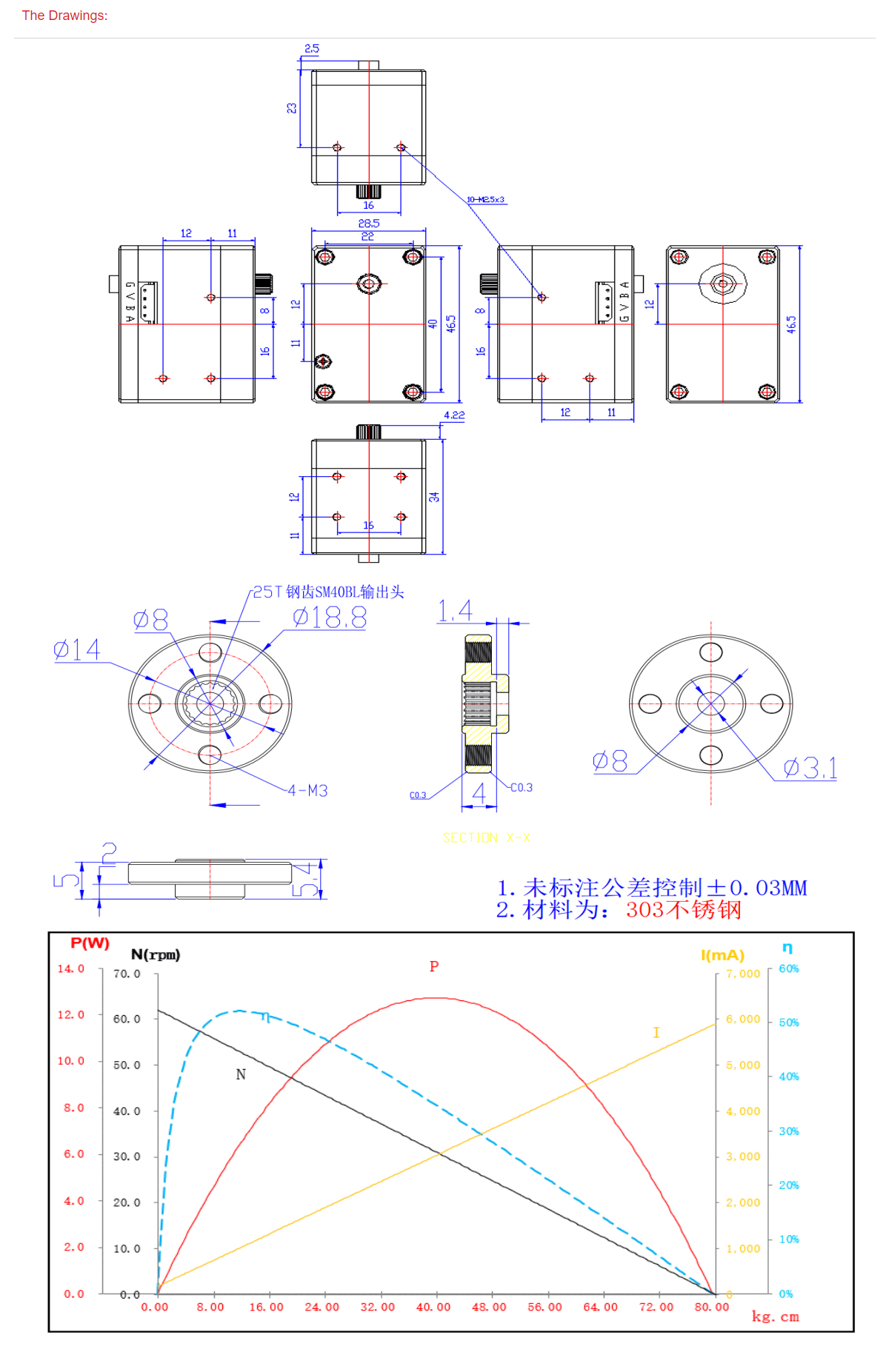

Size: 46.5*28.5*34mm
Weight: 97.5±1g
Gear type: Steel
Limit angle: No limit
Bearing: Ball bearings
Horn gear spline: 25T/OD5.9mm
The rocker phantom: 0°
Case: Aluminium
Connector wire: 40CM
Motor: 4 Pole Brushless motor
Operating Voltage Range: 12V
Idle current (at stopped): 45mA@12V
No load speed: 0.161sec/60° (62RPM)@12V
Running current (at no load): 280mA@12V
Peak stall torque: 80kg.cm@12V
Rated current: 1475mA@12V
Rated torque: 20kg.cm≤@12V
Stall current: 5.9A@12V
Command signal: Digital Packet
Protocol Type: Half Duplex Asynchronous Serial Communication
ID range: 0-253
Communication Speed: 38400bps ~ 1 Mbps
Running degree: 360°(when 0～4095)
Feedback: Load, Position, Speed, Input Voltage, Current, Temperature
Position Sensor Resolution: 0.088°(360°/4095)

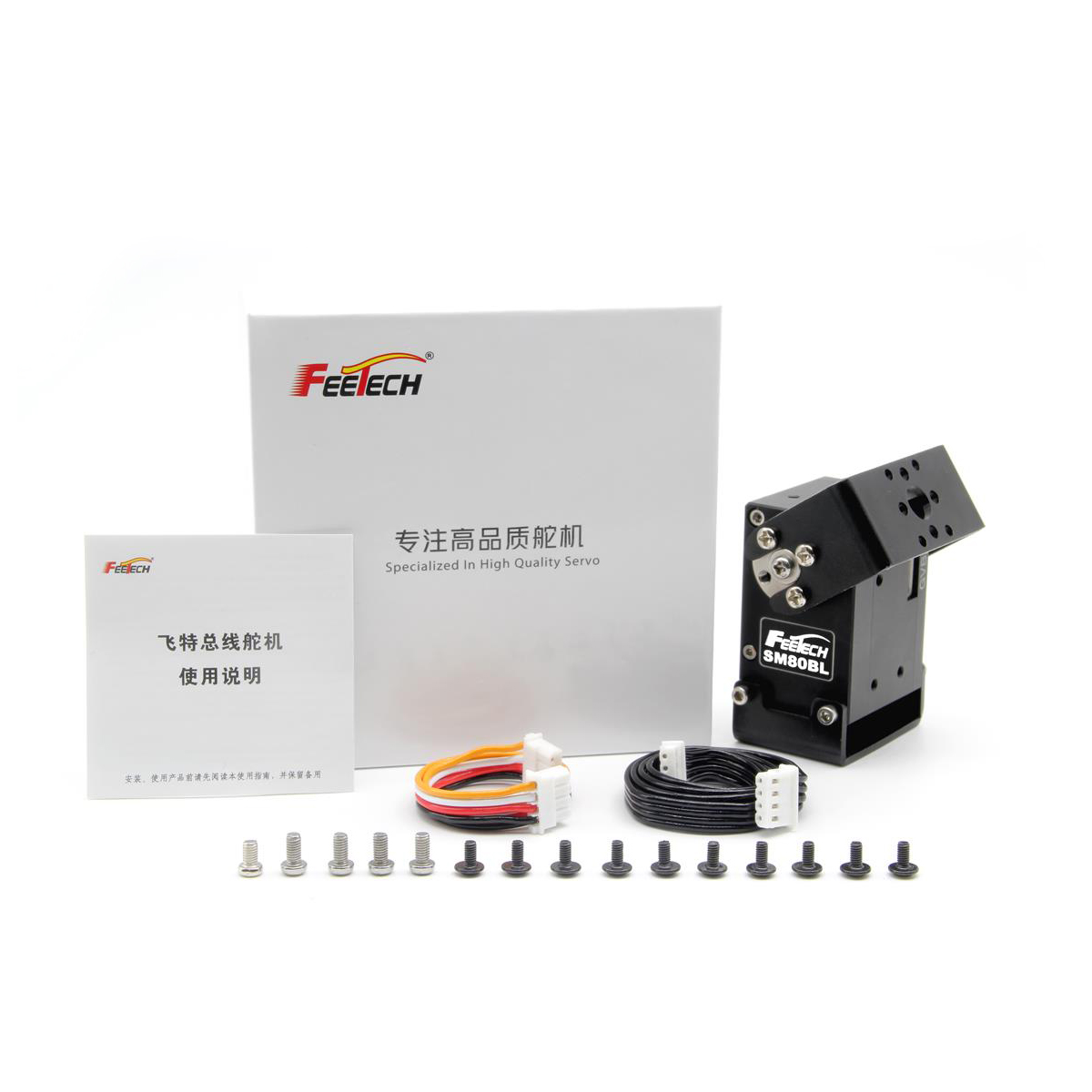

SM80BL Servo x1
