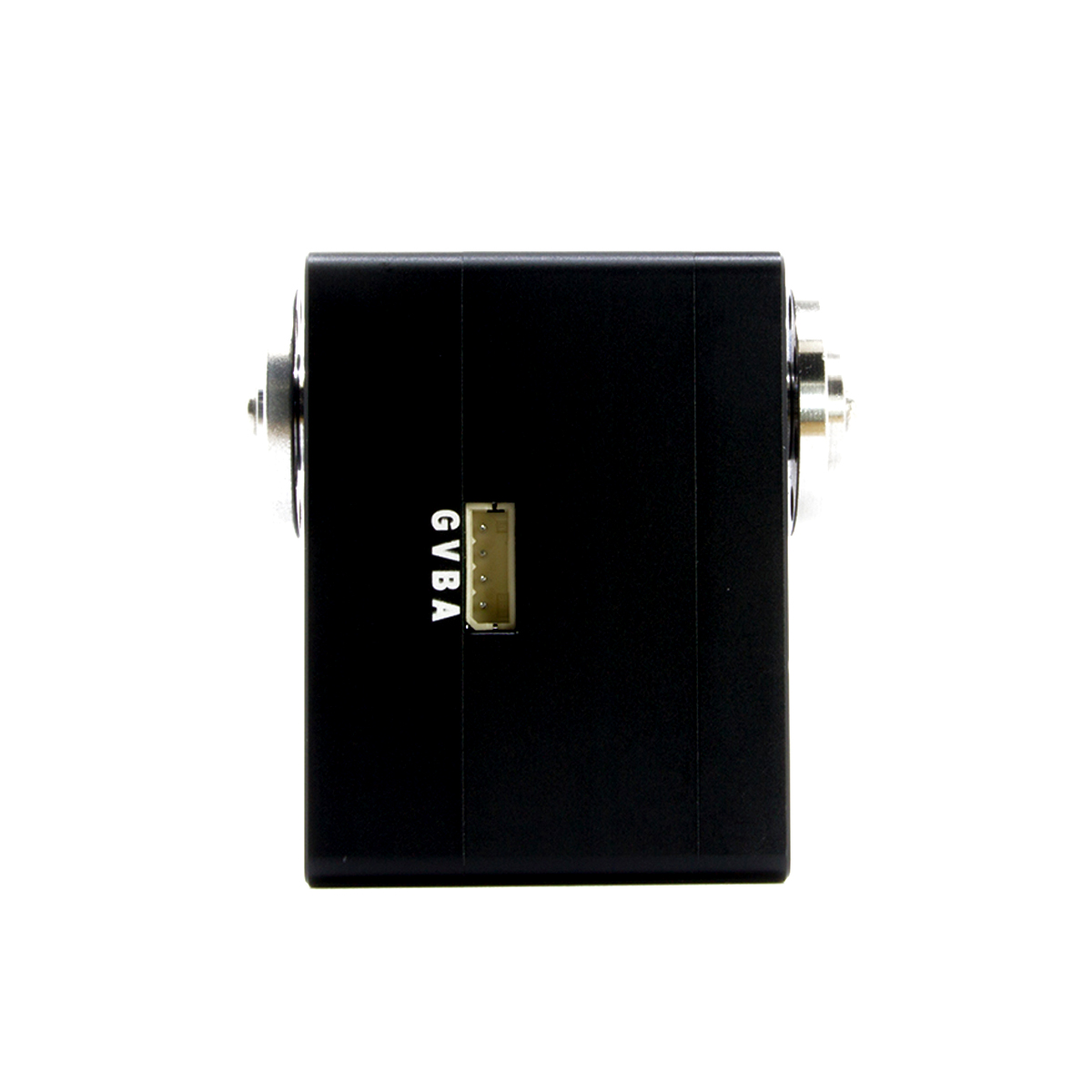

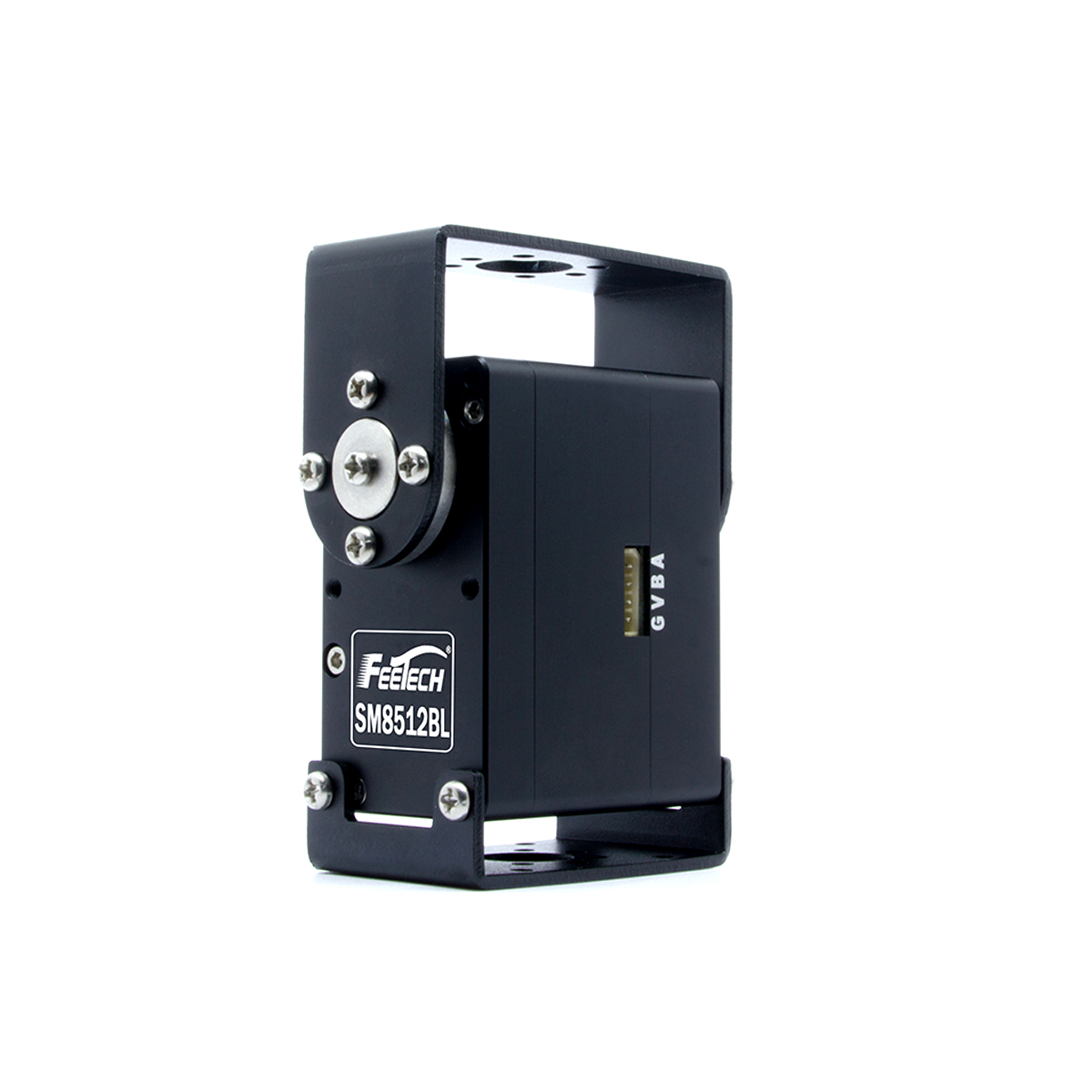

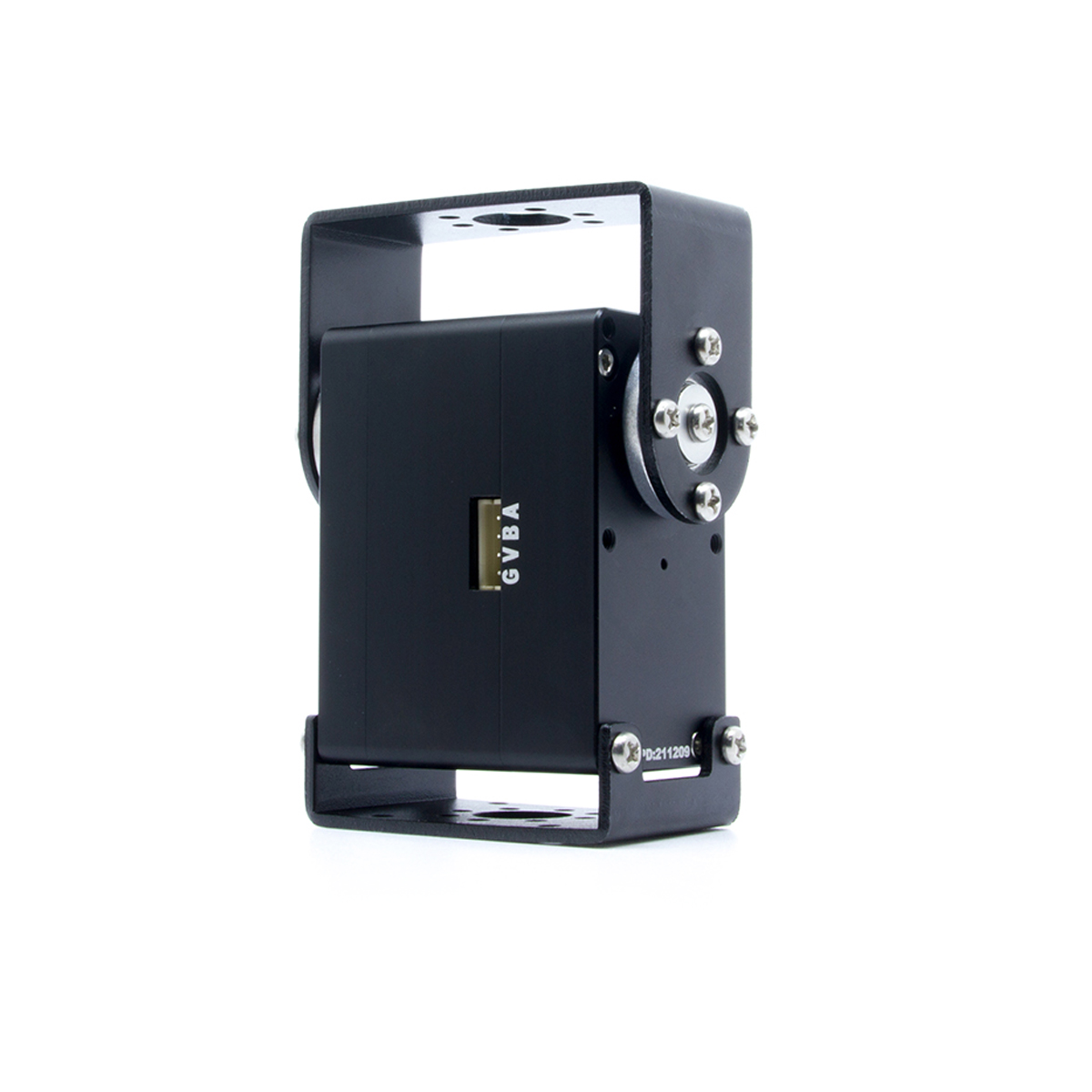

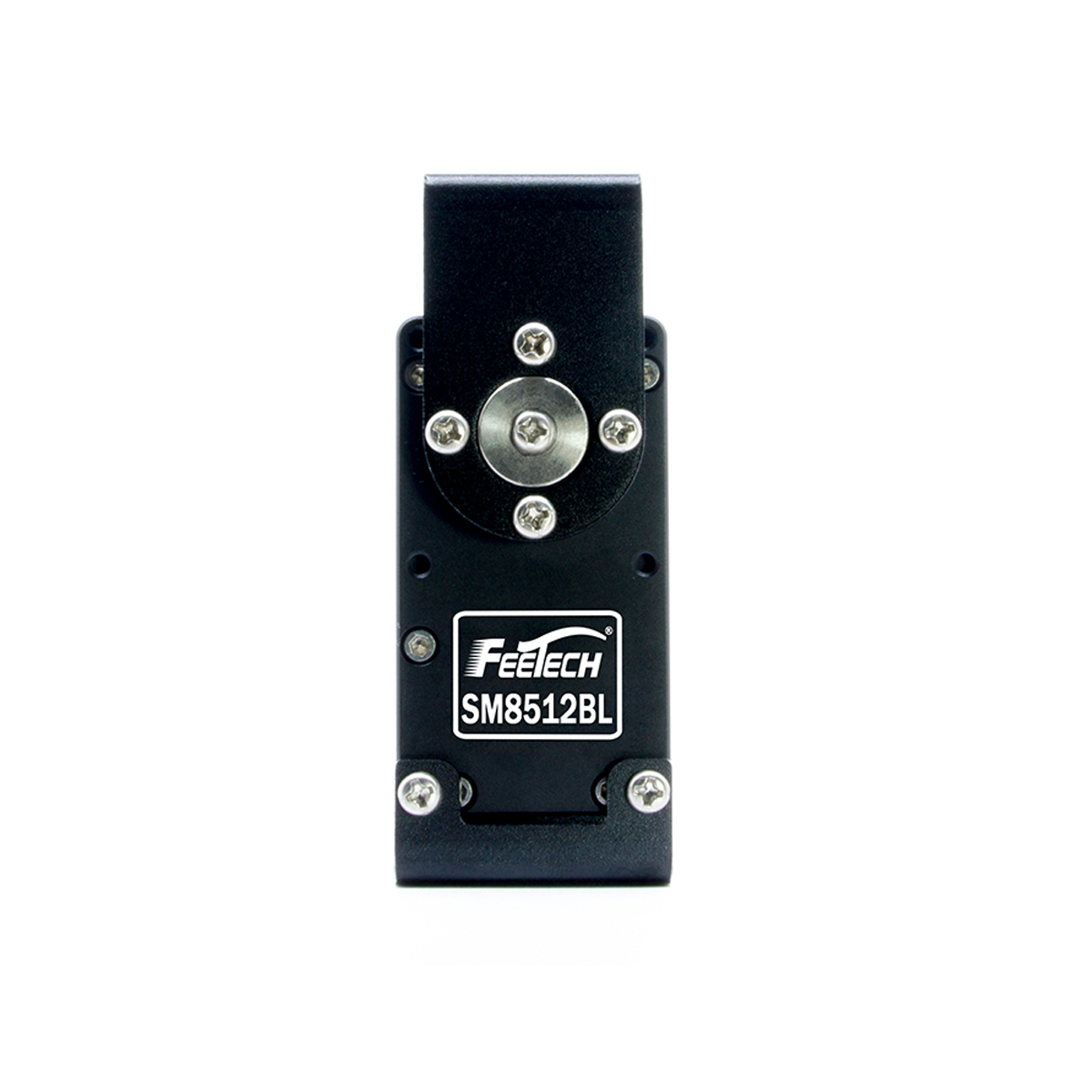

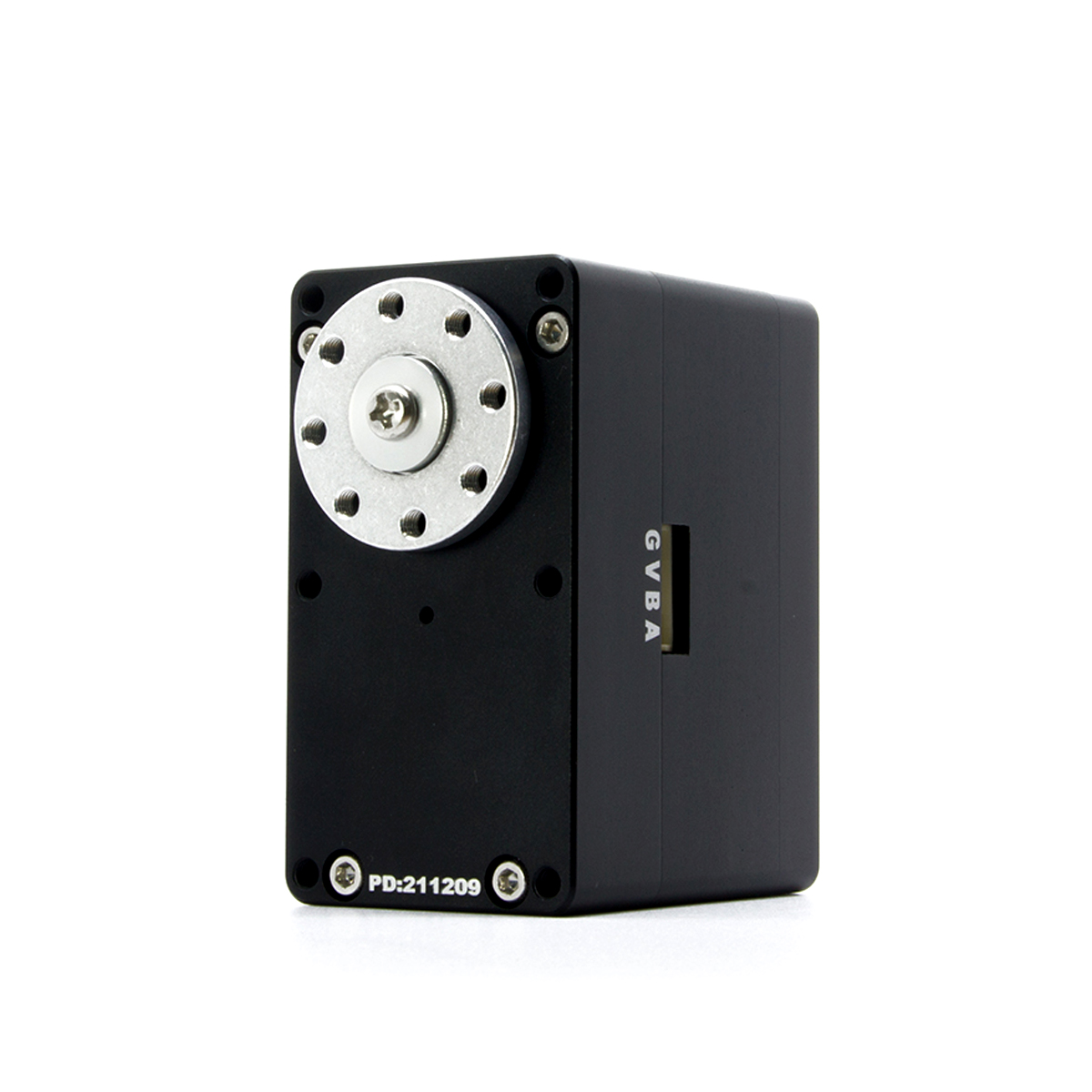

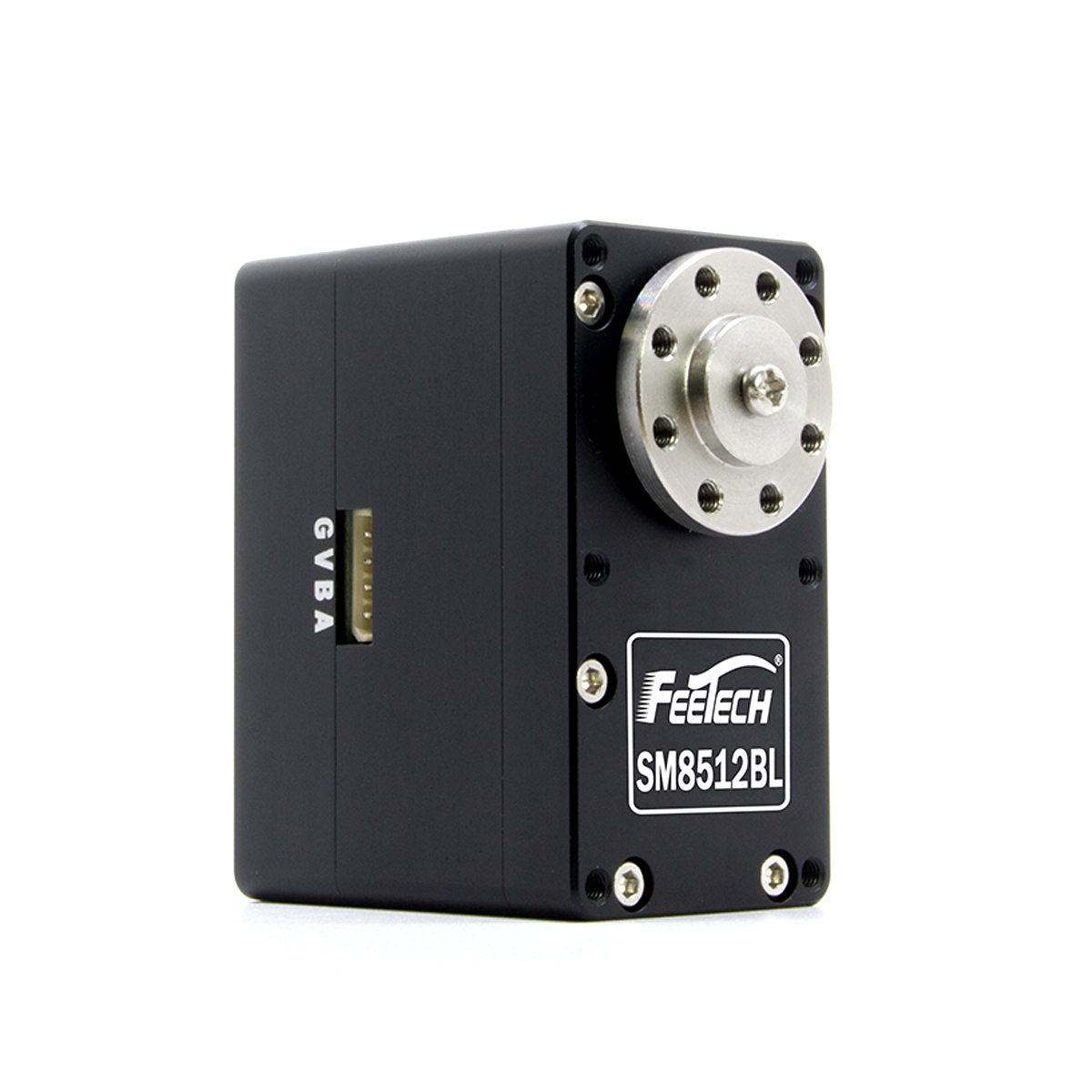

Feetech SM8512BL 12V 85kg Brushless Motor 360 Degrees Serial Control RS485 Servo for Intelligent Robot Toy
Feetech SM8512BL 12V 85kg Brushless Motor 360 Degrees Serial Control RS485 Servo for Intelligent Robot Toy

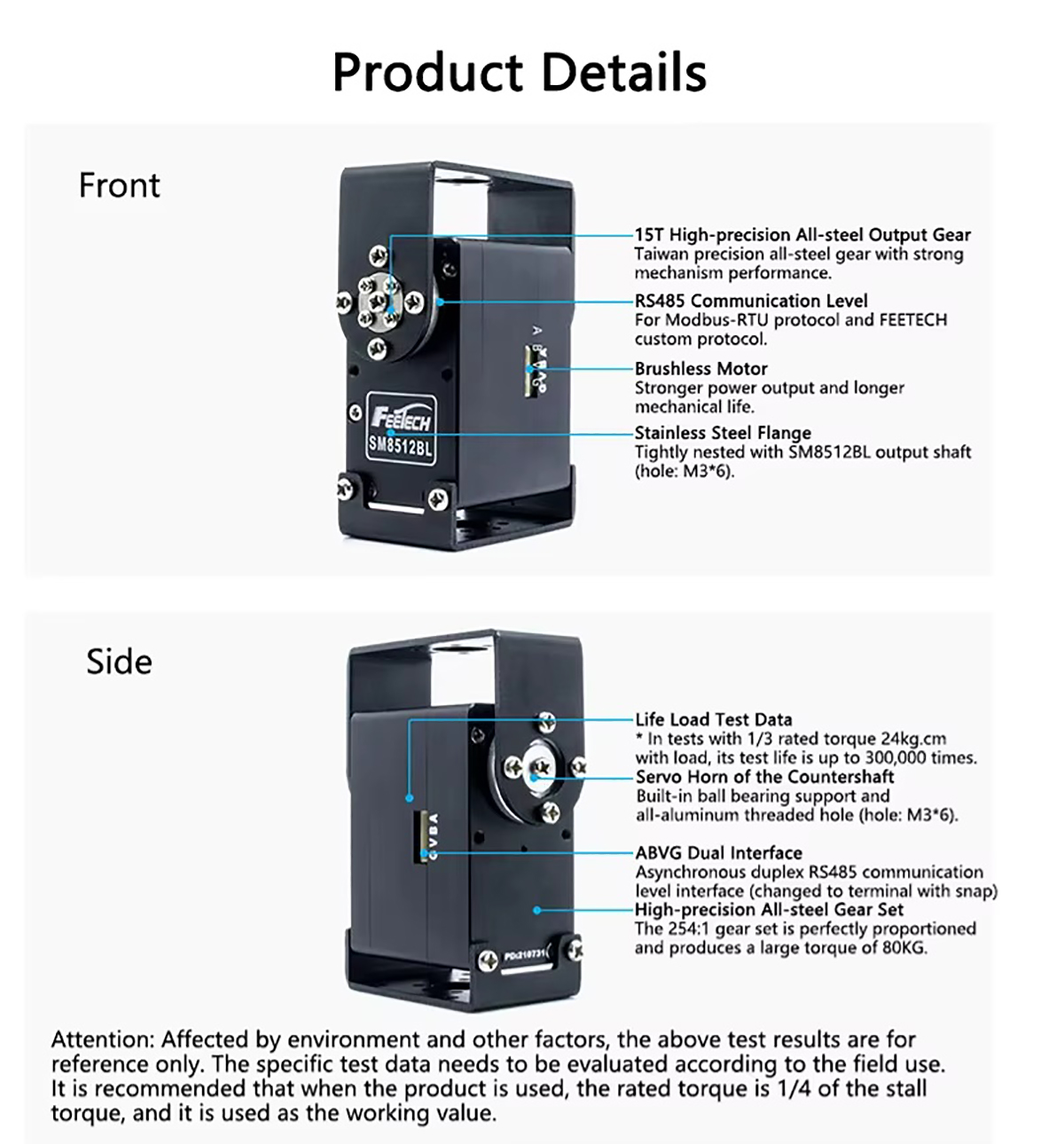

SM8512BL is 12V serial port smart bus servo，all aluminum alloy shell is adopted、brushless motor、steel gearbox、Feetech self researched and developed RS485 control board，12 bit high precision magnetic coding sensor，external connect stainless steel main servo horn. The stall torque is 85kg.cm，can achieve 0-360 degrees any angle controllable，multi-turn continuous operation mode，it can realize the function of setting the middle point with one key，acceleration slow start and slow stop，can feedback position、speed、voltage、current、temperature、load parameters，thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and other industries.
Model: SM-8512-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～70℃

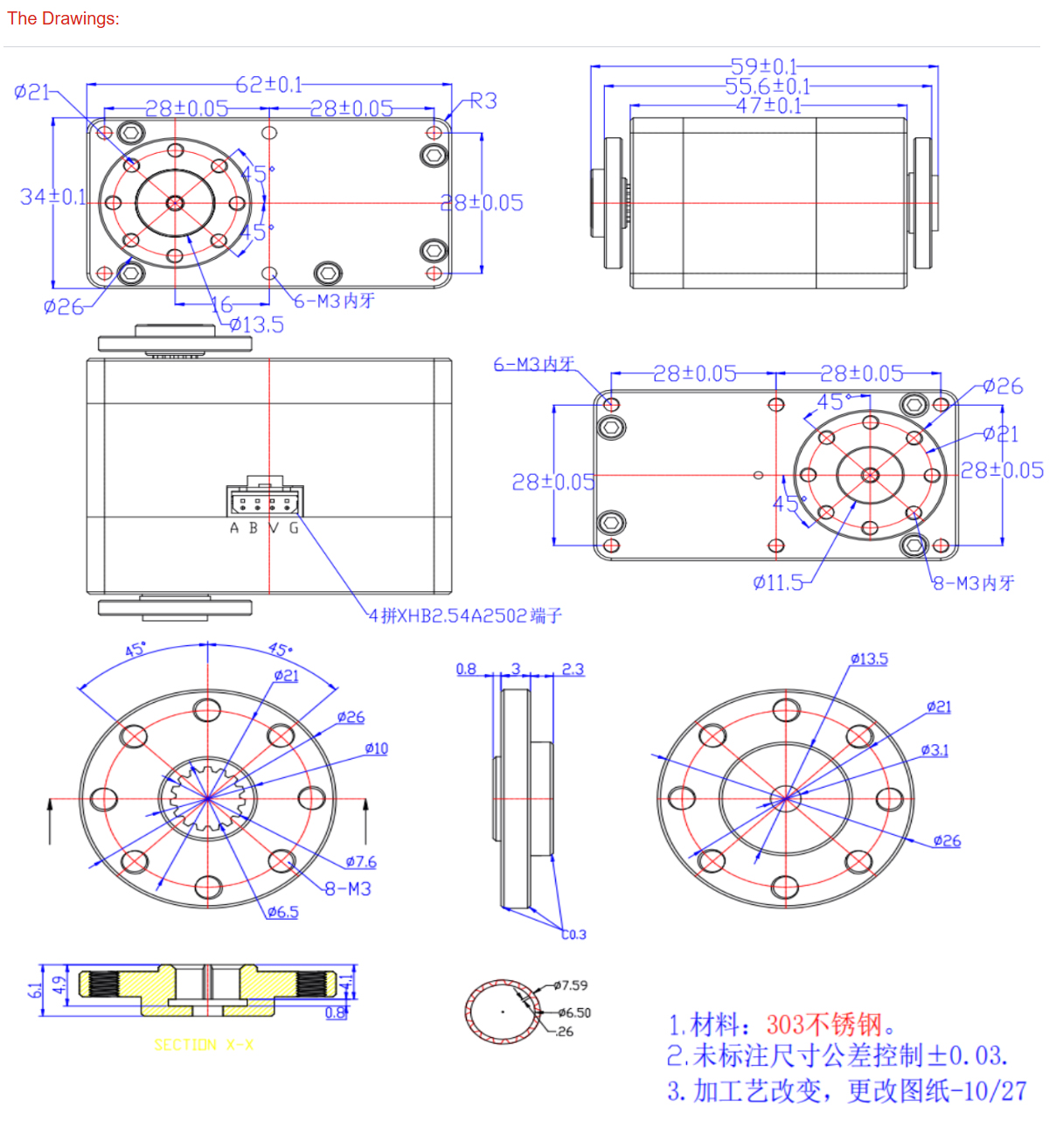

Size: 62*34*47mm
Weight: 215±1g
Gear Type: Steel
Limit Angle: No Limit
Bearing: Ball Bearings
Horn Gear Spline: 15T(7.6mm)
Horn Type: Aluminium
Case: Aluminium
Connector Wire: 40CM
Motor: Brushless Motor
Operating Voltage Range: 12V
No Load Speed: 0.167sec/60°@12V
Running Current (At No Load): 540mA@12V
Peak Stall Torque: 85kg.cm@12V
Rated Torque: 28kg.cm@12V
Stall Current: 7.9A@12V
Command Signal: Digital Packet
Protocol Type: Half Duplex Asynchronous Serial Communication
ID Range: 0-253
Communication Speed: 38400bps ~ 1Mbps
Running Degree: 360° (when 0~4095)
Feedback: Load, Position, Speed, Input Voltage, Current, Temperature

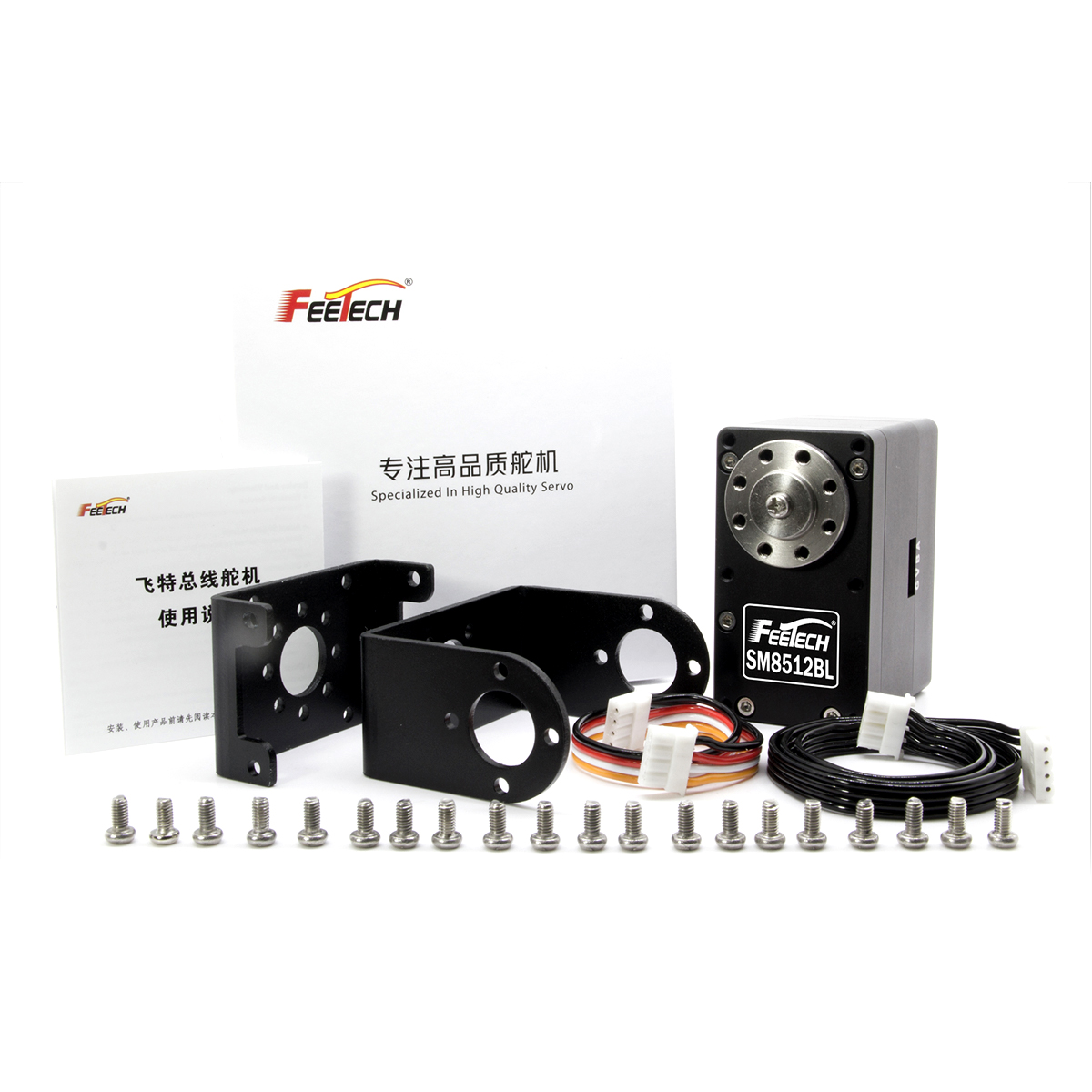

SM8512BL Servo x1
