Feetech SM8524BL-MB 24V 85kg Steel Gear Brushless Motor Modbus-RTU Servo for RC Robot Industrial
Feetech SM8524BL-MB 24V 85kg Steel Gear Brushless Motor Modbus-RTU Servo for RC Robot Industrial

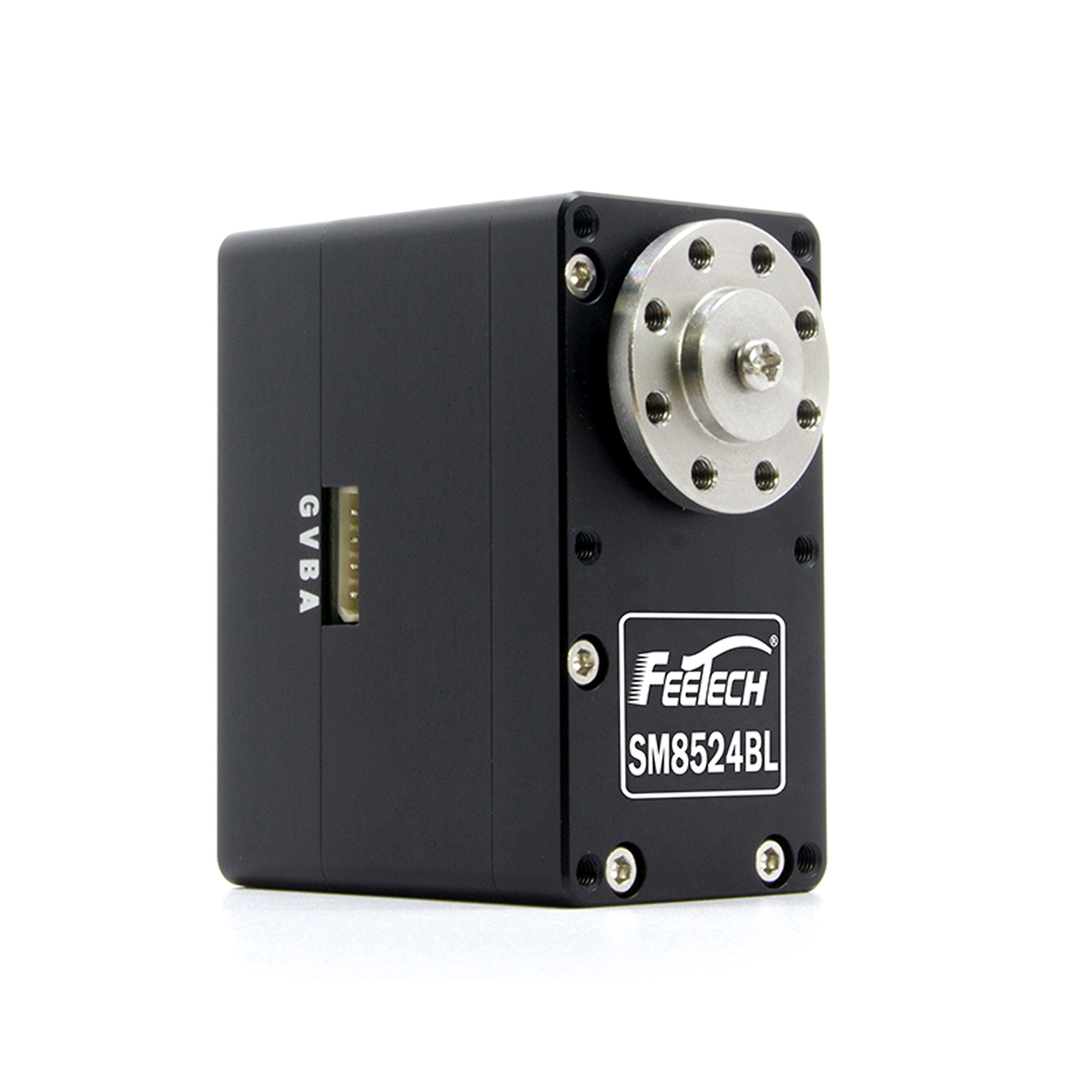

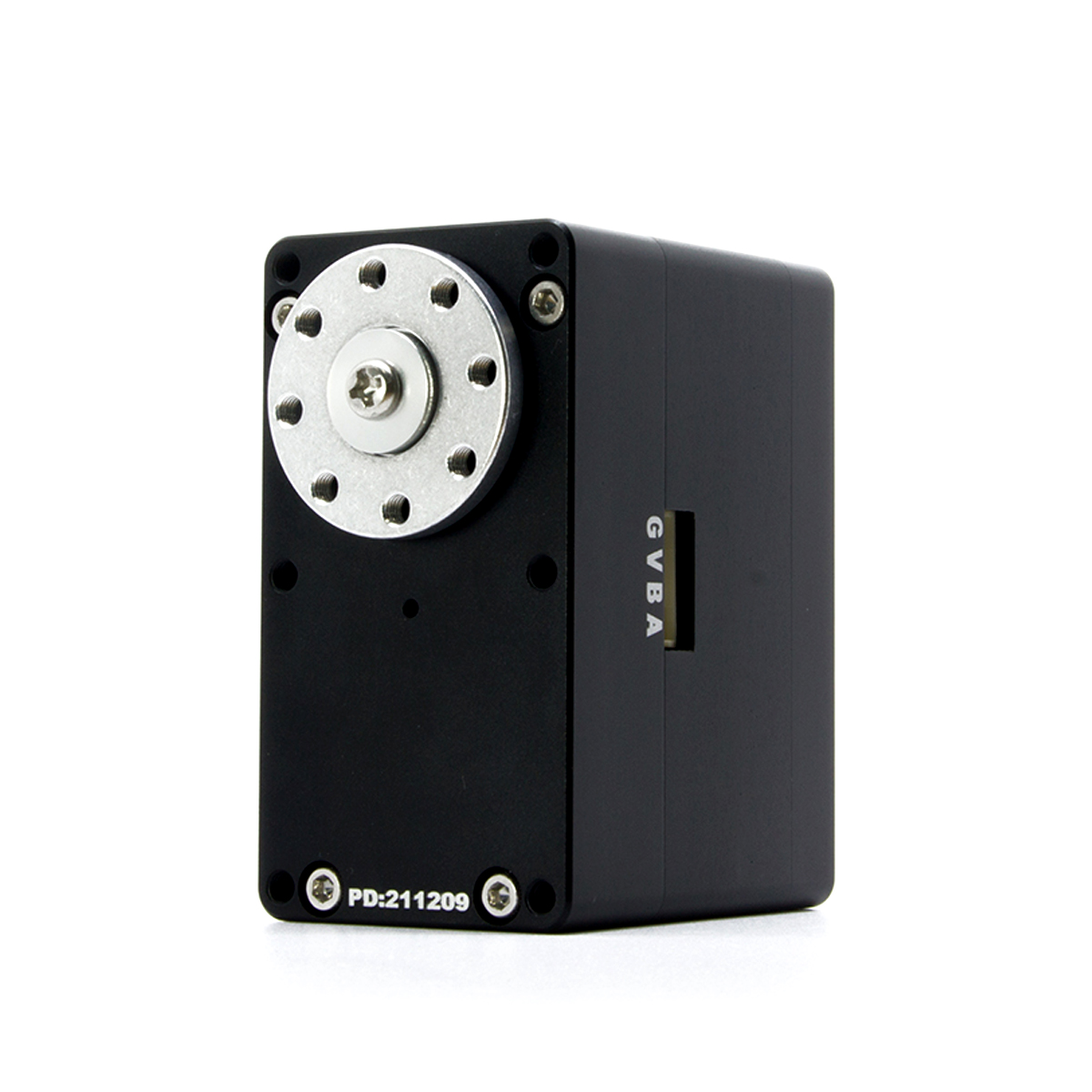

SM-8524-C002 is 24V Modbus-RTU smart servo，all aluminum alloy shell、brushless motor、steel gearbox、Feetech self researched and developed RS485 control board，12 bit high precision magnetic coding sensor，external connect stainless steel main servo horn. The stall torque is 85kg.cm，can achieve 0-360 degrees any angle controllable，multi-turn continuous operation mode，it can realize the function of setting the middle point with one key，acceleration slow start and slow stop，can feedback position、speed、voltage、current、temperature、load parameters，thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and other industries.
Model: SM-8524-C002
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～70℃
Size: 62*34*47mm
Weight: 215g
Gear Type: Steel
Limit Angle: No Limiter
Bearing: Ball Bearings
Horn Gear Spline: 15T/OD7.6mm
Horn Type: Aluminum
Case: Aluminum
Connector Wire: 400mm
Motor: Brushless Motor
Operating Voltage Range: 9V-24V
No Load Speed: 0.154sec/60°@24V
Running Current (At No Load): 250mA@24V
Peak Stall Torque: 85kg.cm@24V
Rated Torque: 28kg.cm@24V
Stall Current: 5.6A@24V
Command Signal: Digital Packet
Protocol Type: Modbus-RTU
ID Range: 0-253
Communication Speed: 38400bps~1Mbps
Running Degree: 360°(when 0~4095)
Feedback: Load, Position, Speed, Input Voltage, Current, Temperature

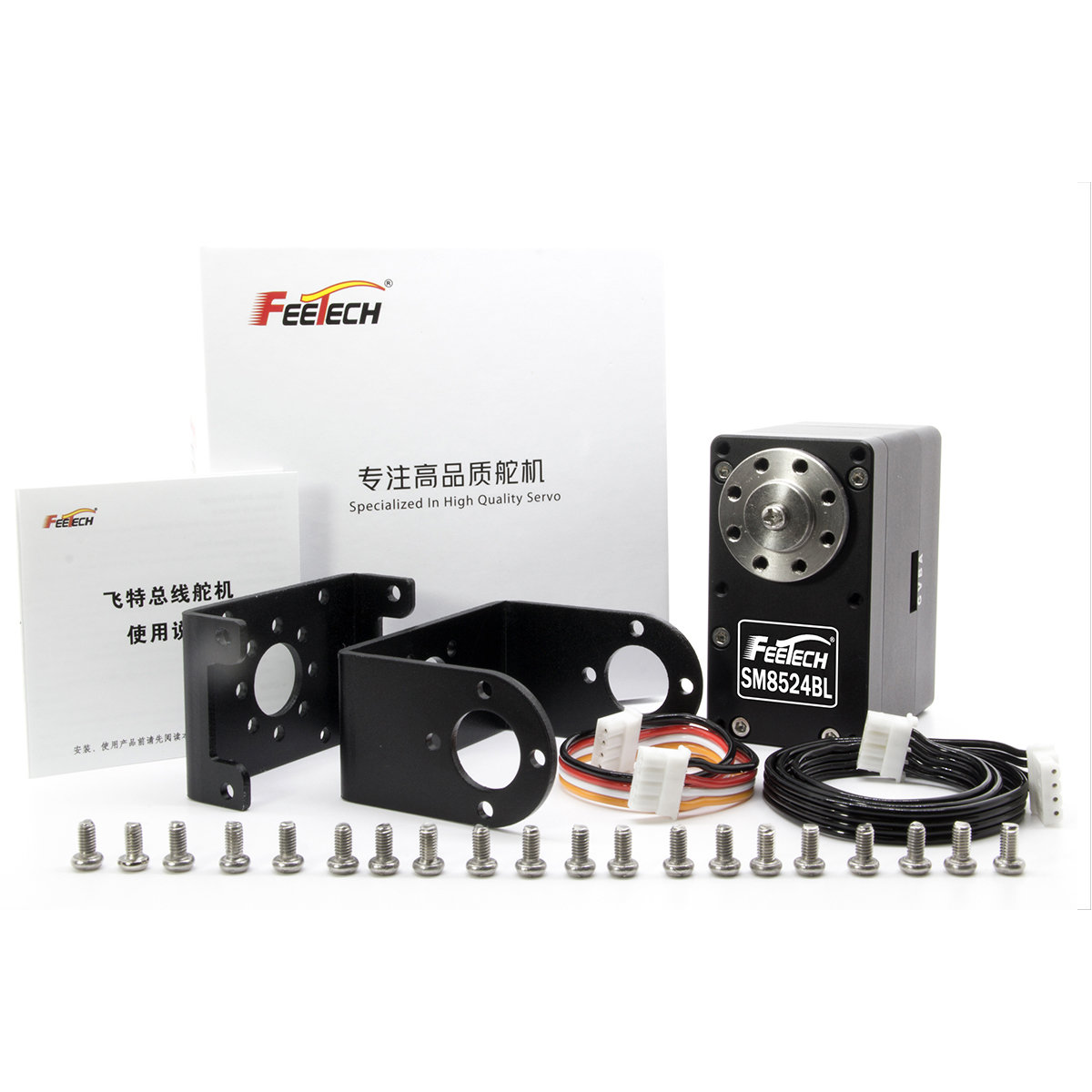

SM8524BL-MB Servo x1
