Feetech STS3025BL-C002 12V 40kg Brushless Motor 360 Degrees Double Shaft TTL Servo for Rotor Arm
Feetech STS3025BL-C002 12V 40kg Brushless Motor 360 Degrees Double Shaft TTL Servo for Rotor Arm
ST-3025-C002 is 12V 40kg 85RPM serial bus smart servo，aluminum alloy case is used、brushless motor、metal gearbox 、Feetech self researched and developed TTL control board，12 bit high precision magnetic coding sensor. The stall torque is 20kg.cm，can achieve 0-360 degrees any angle controllable，multi-turn continuous operation mode，it can realize the function of setting the middle point with one key，acceleration slow start and slow stop，can feedback position、speed、voltage、current、temperature、load parameters，thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and Small torque drive application scenarios.
Model: ST-3025-C002
Product Name: 12V 40kg.cm Magnetic Encoder Double Shaft TTL Servo
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃

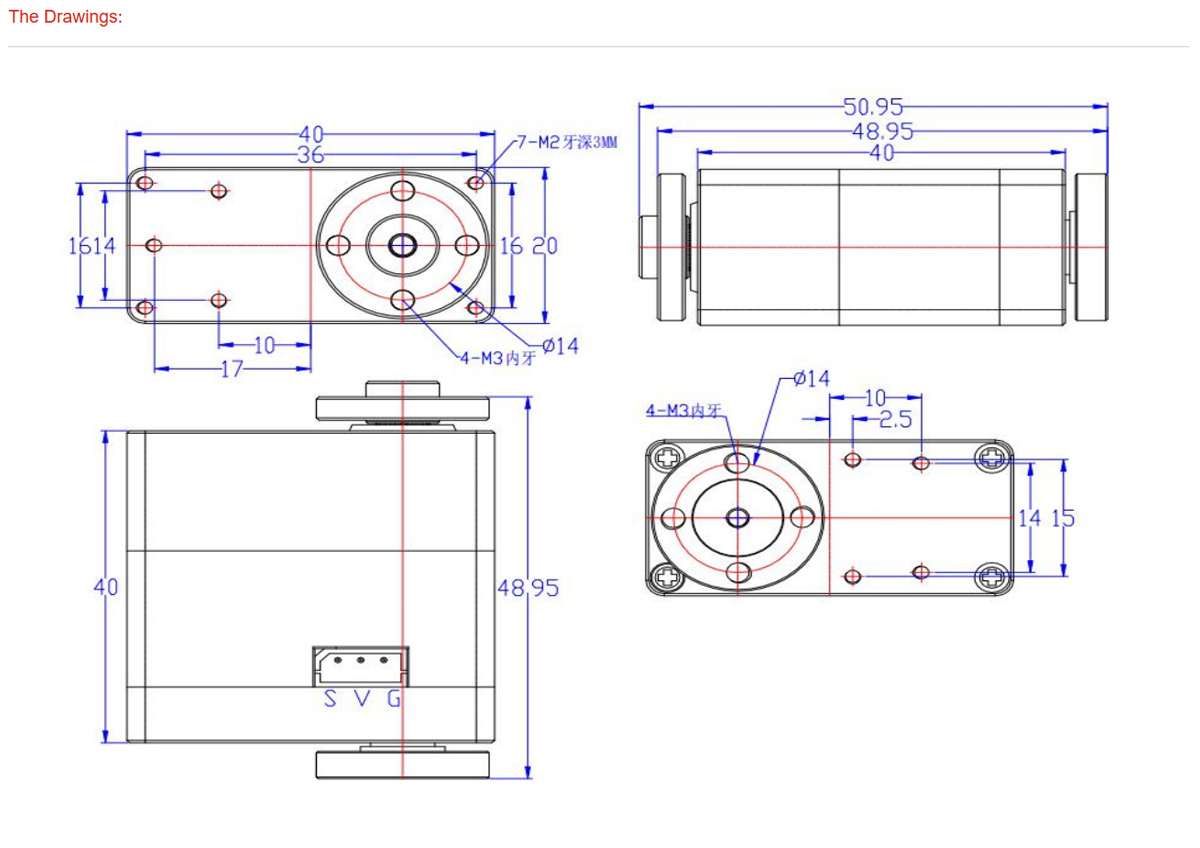

Size: 40*20*40mm
Weight: 89±1g
Gear Type: Steel Gear
Limit Angle: No Limit
Bearing: Ball Bearings
Horn Gear Spline: 25T/OD5.9mm
Rocker Backlash: 0°
Case: Aluminum
Connector Wire: 150mm
Motor: Brushless Motor
Operating Voltage Range: 12V
No Load Speed: 0.117sec/60°(85RPM)@12V
Running Current (At No Load): 380mA@12V
Peak Stall Torque: 40kg.cm@12V
Rated Torque: 10kg.cm@12V
Stall Current: 4.4A@12V
Command Signal: Digital Packet
Protocol Type: Half Duplex Asynchronous Serial Communication
ID Range: 0-253
Communication Speed: 38400bps~1Mbps
Running Degree: 360°(when 0~4096)
Feedback: Load, Position, Speed, Input Voltage, Current, Temperature

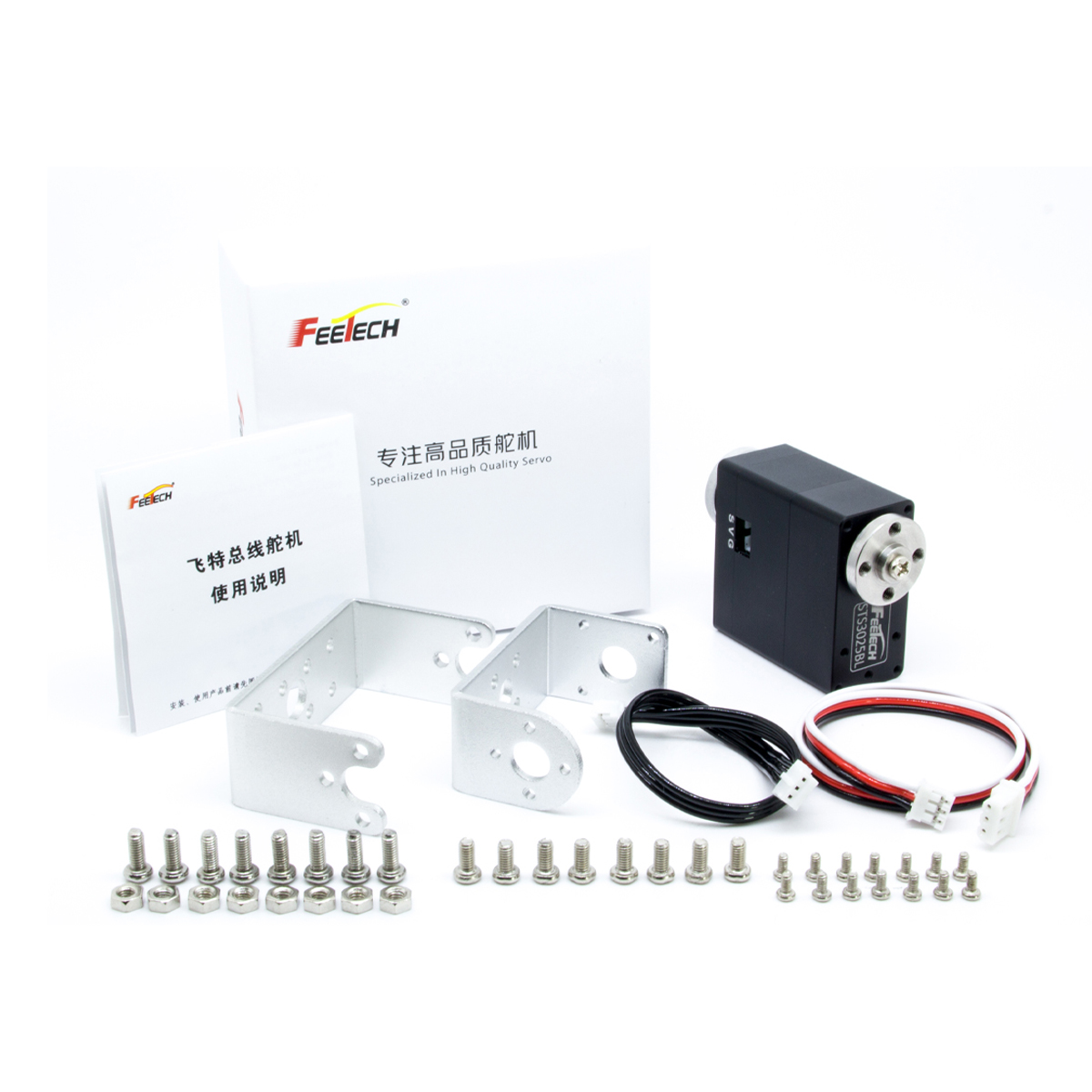

STS3025BL-C002 Servo x1
