Feetech STS3035 12V 35kg Aluminum Middle Case Core Motor Double Shaft Serial Control Bus Servo
Feetech STS3035 12V 35kg Aluminum Middle Case Core Motor Double Shaft Serial Control Bus Servo
ST-3035-C001 is 12V 35kg serial bus smart servo，adopt middle aluminum alloy case、core motor、metal gearbox, Feetech self researched and developed TTL control board, 12 bit high precision magnetic coding sensor. The stall torque is 35kg.cm, can feedback position、speed、voltage、current、temperature、load parameters，thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and transmission application scenarios.
Model: ST-3035-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -10℃～60℃

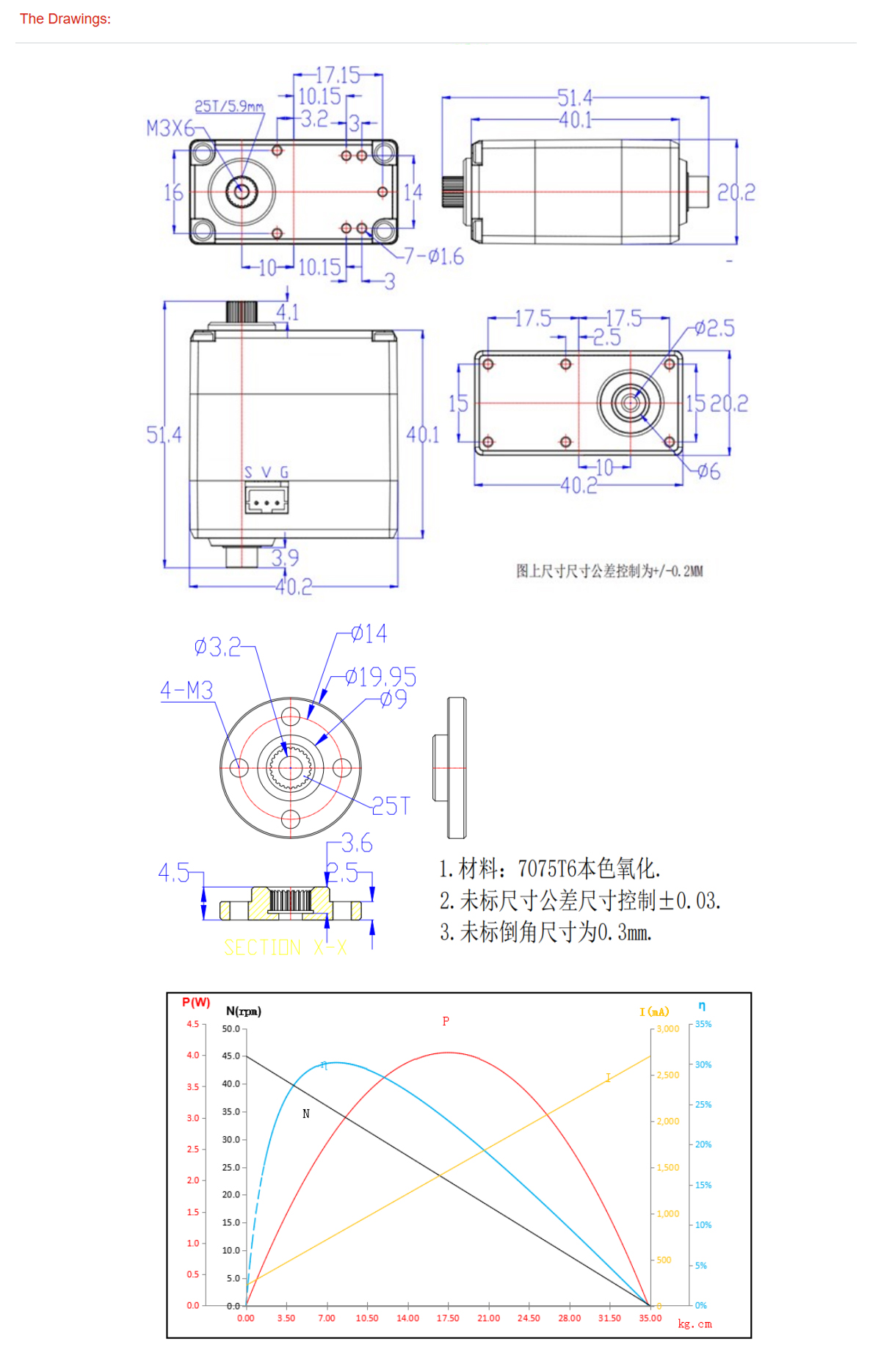

Size: 40.2*20.2*40mm
Weight: 62.5±2g
Gear Type: Copper
Limit Angle: No Limit
Bearing: Ball Bearings
Horn Gear Spline: 25T/OD5.9mm
Case: PA+Aluminum
Connector Type: PH2.0-3P
Connector Wire: 150mm
Motor: Core Motor
Operating Voltage Range: 9V-12V
Idle Current (At Stopped): 32mA@12V
No Load Speed: 0.22sec/60°(45RPM)@12V
Running Current (At No Load): 220mA (Max)@12V
Peak Stall Torque: 35kg.cm@12V
Rated Torque: 11.6kg.cm@12V
Stall Current: 900mA@12V
Command Signal: Digital Packet
Protocol Type: Half Duplex Asynchronous Serial Communication
ID Range: 0-253
Communication Speed: 38400bps~1Mbps
Running Degree: 360°(when 0~4095)
Feedback: Load, Position, Speed, Input Voltage, Current, Temperature
Position Sensor Resolution: 12Bits Magnetic Coding(360°/4095)

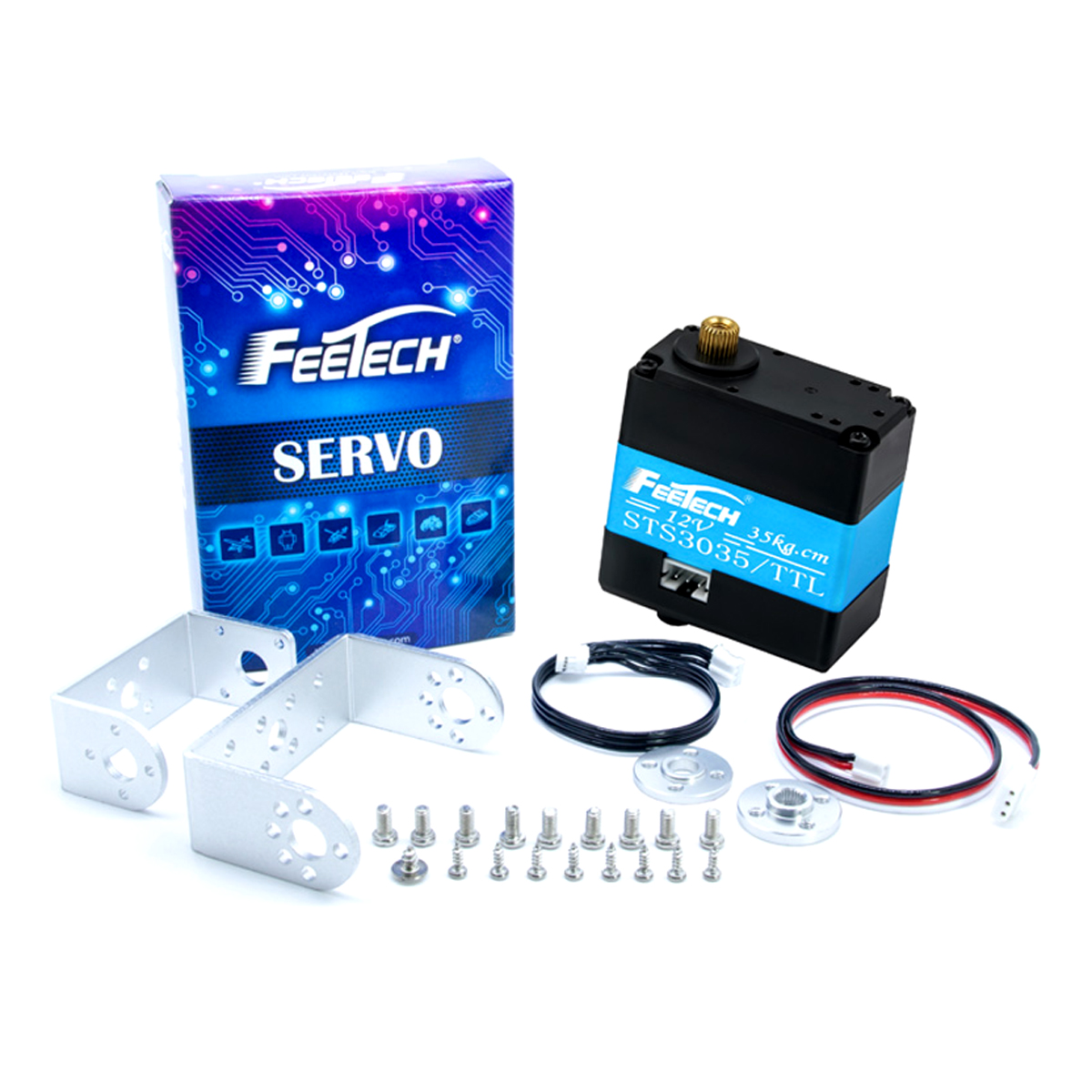

STS3035 Servo x1
