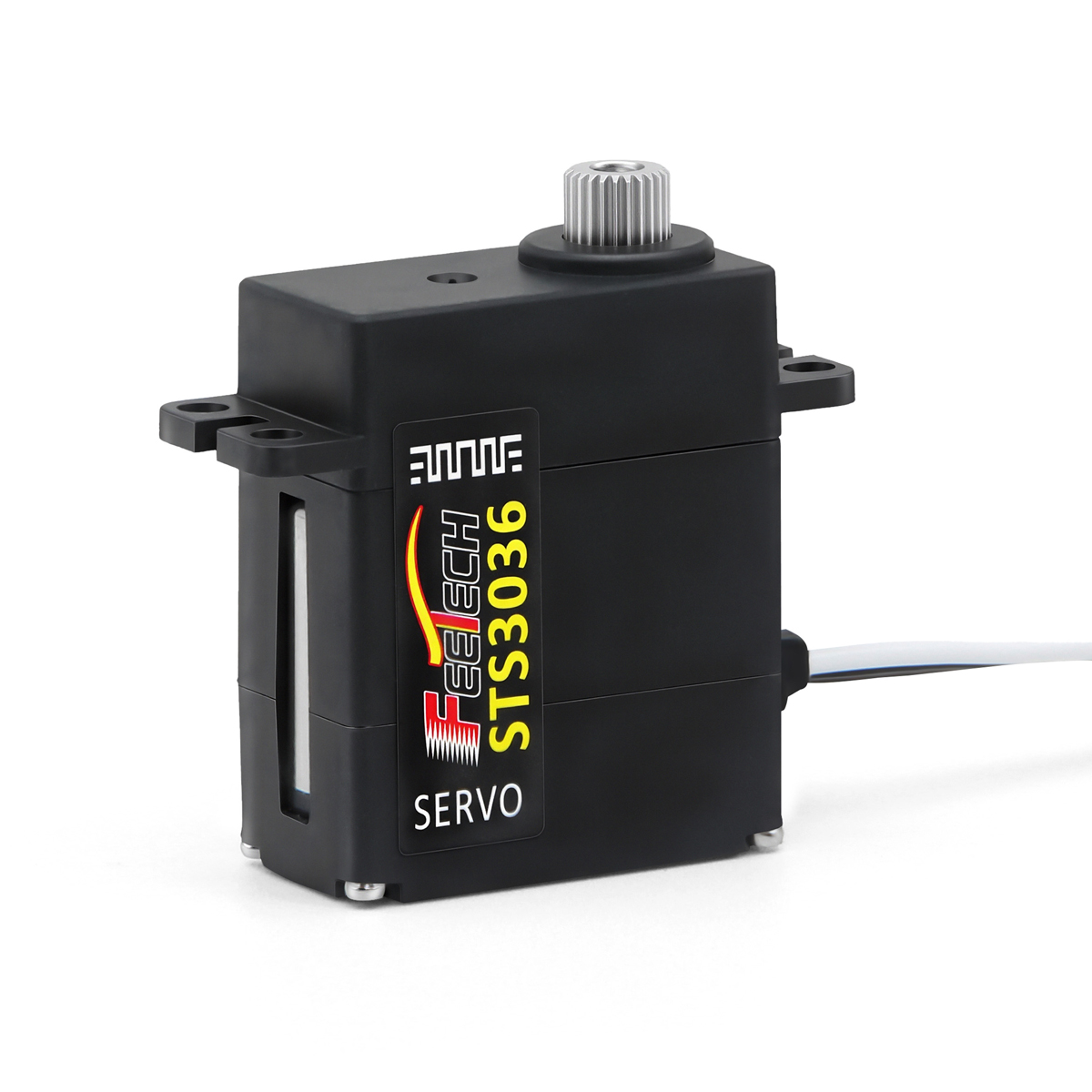

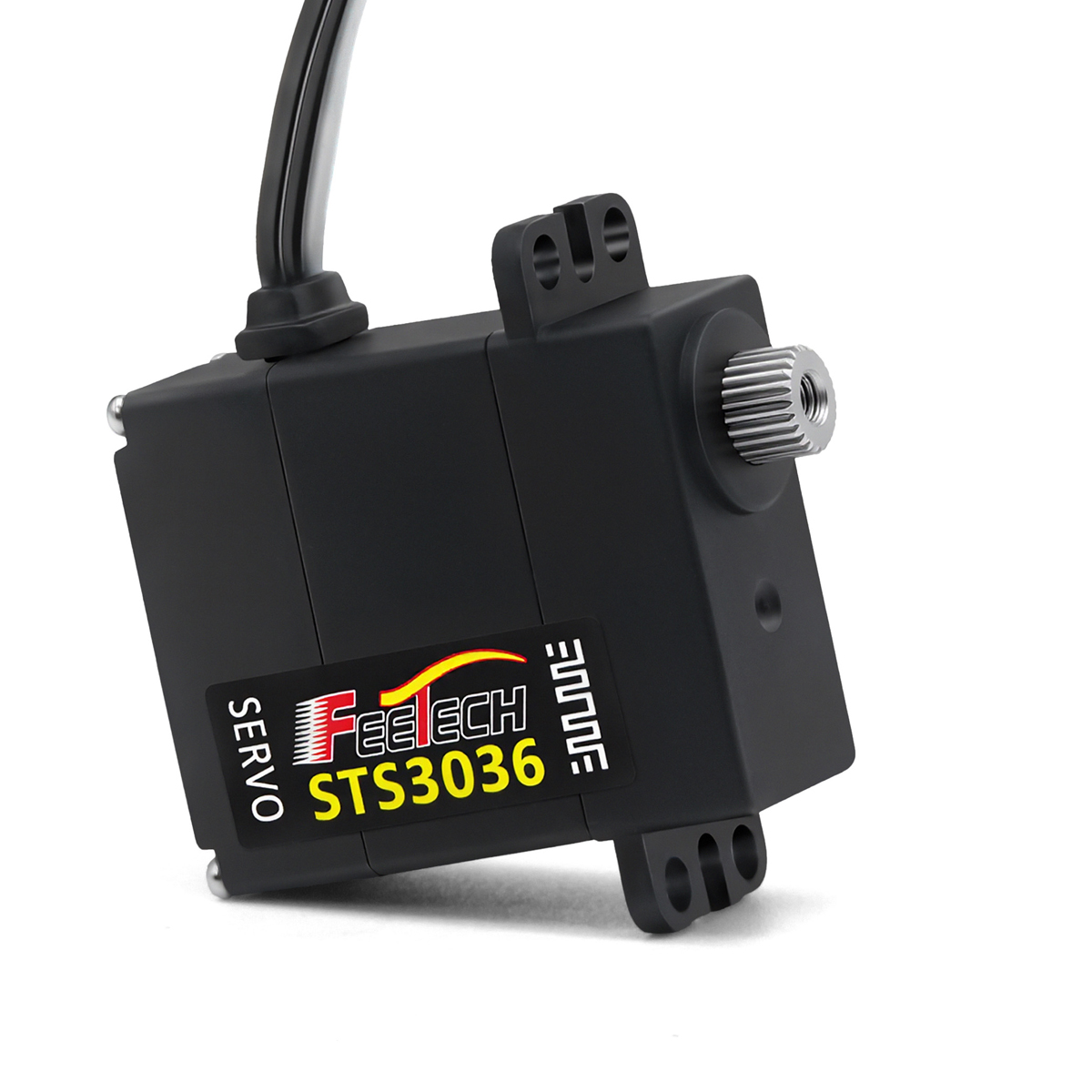

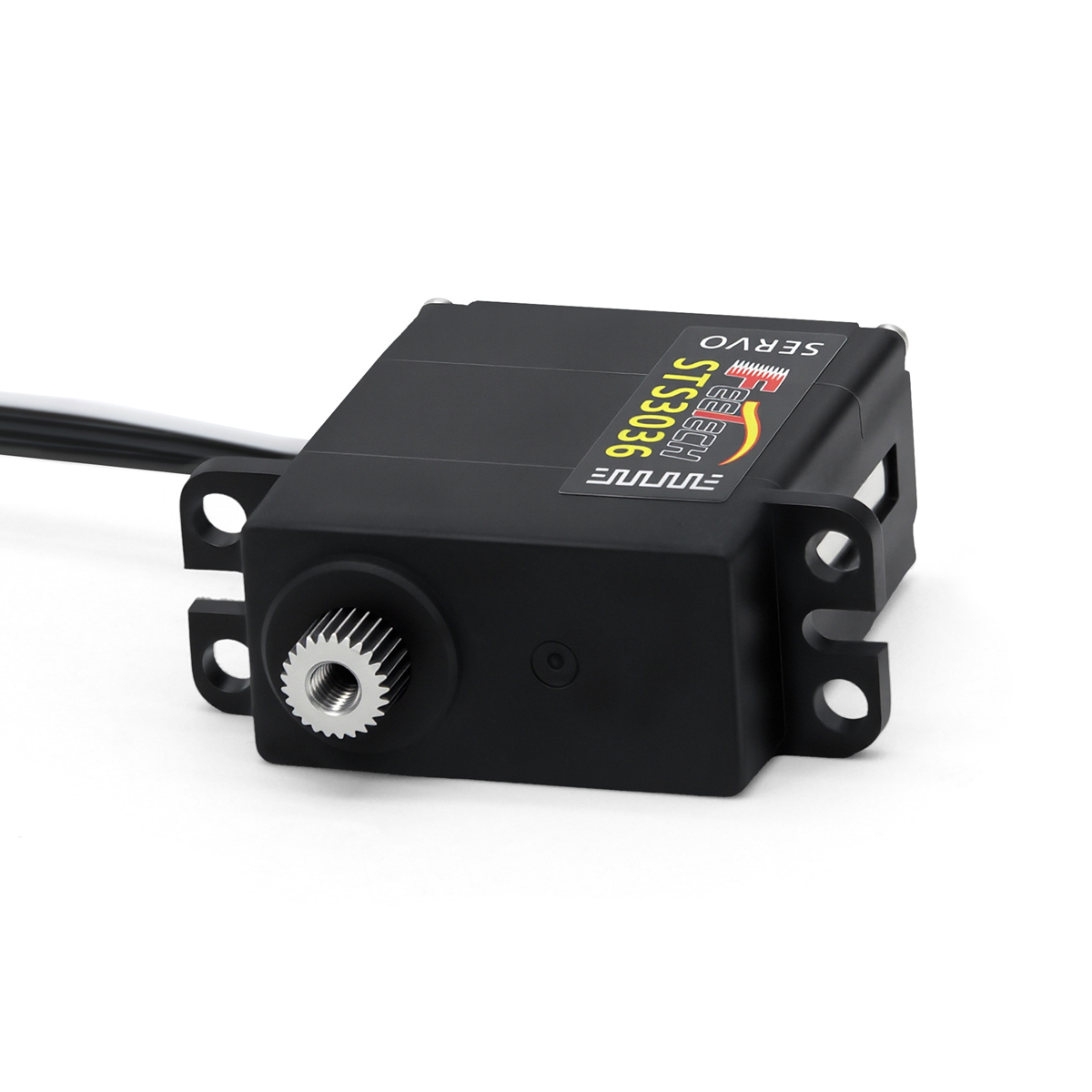

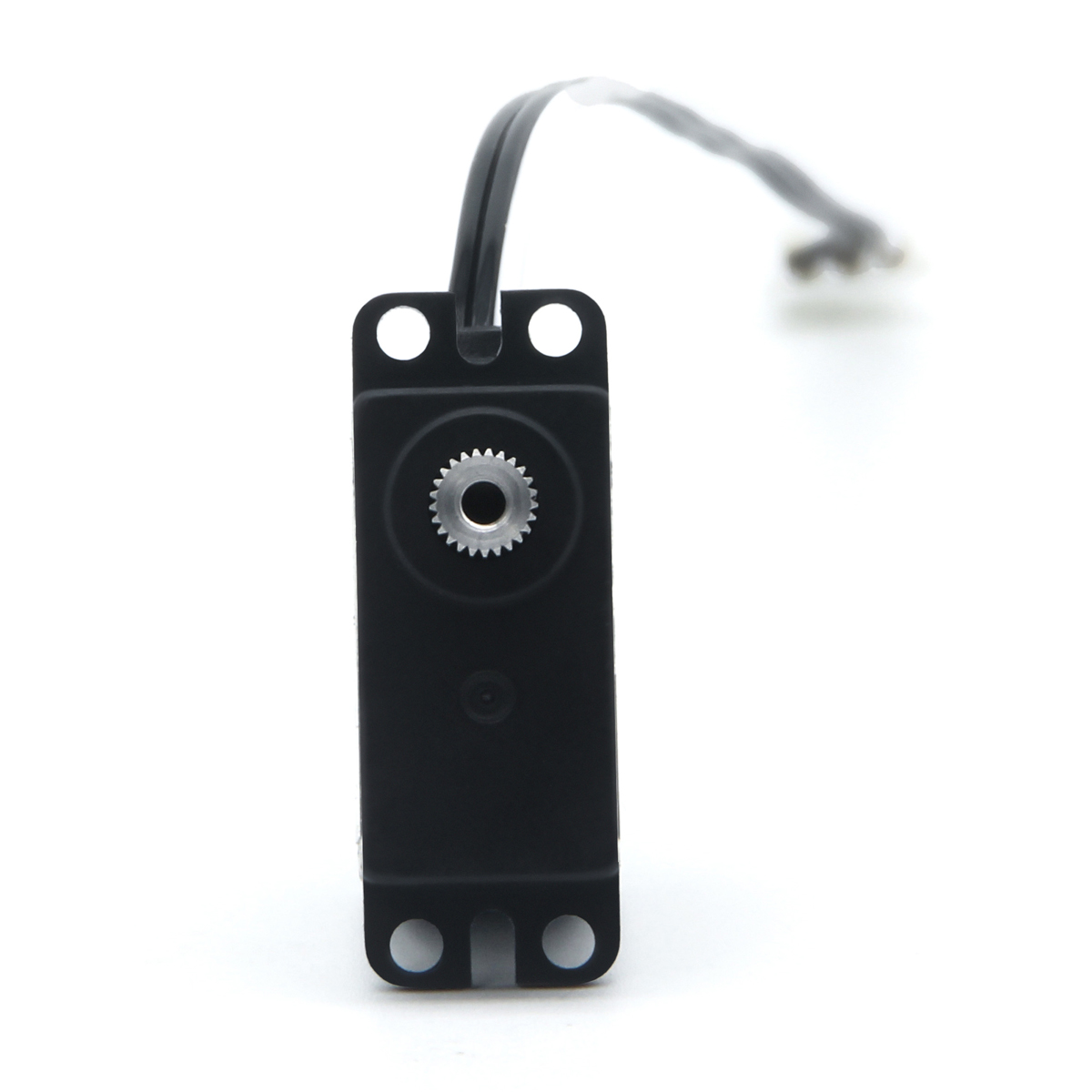

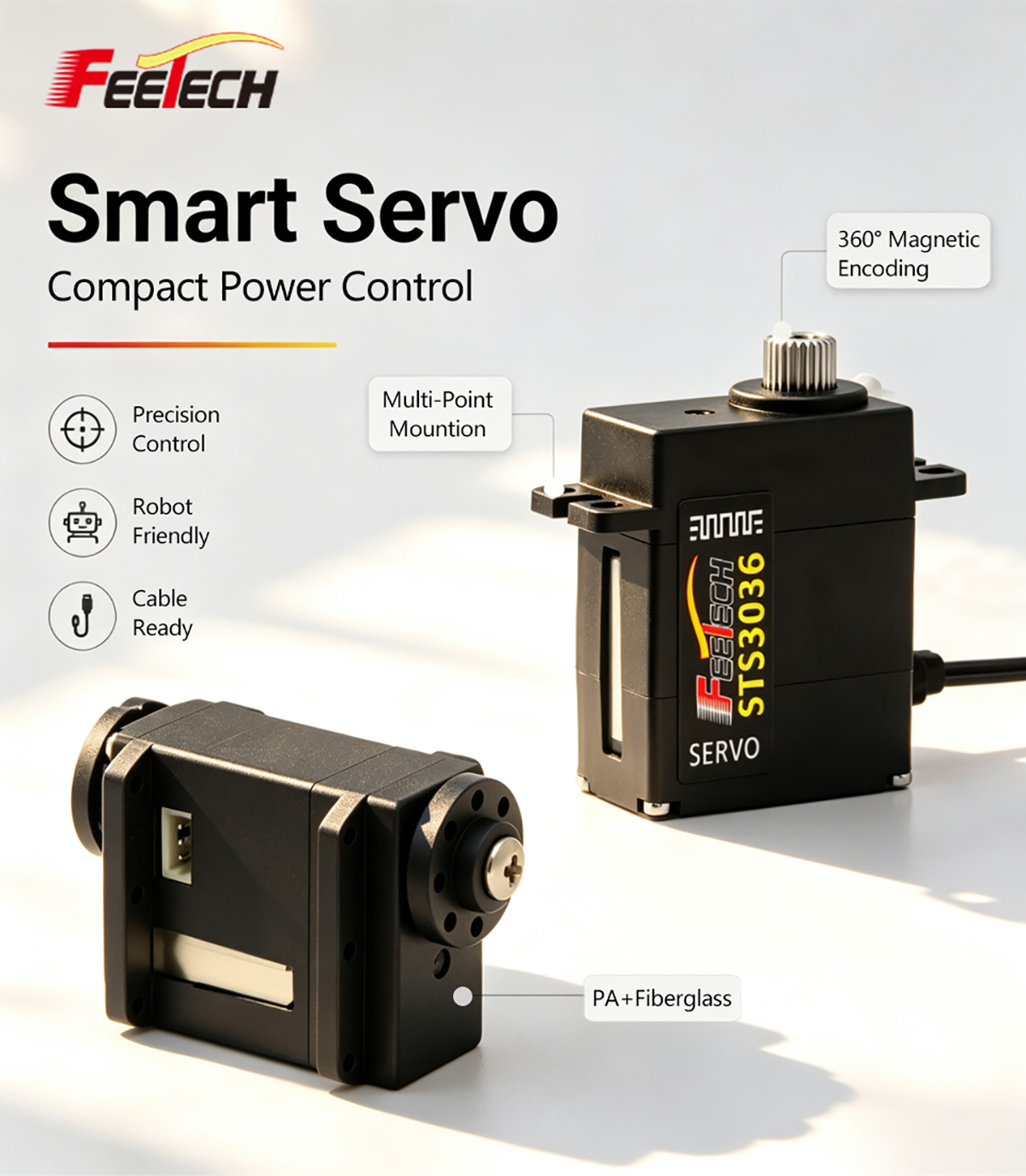

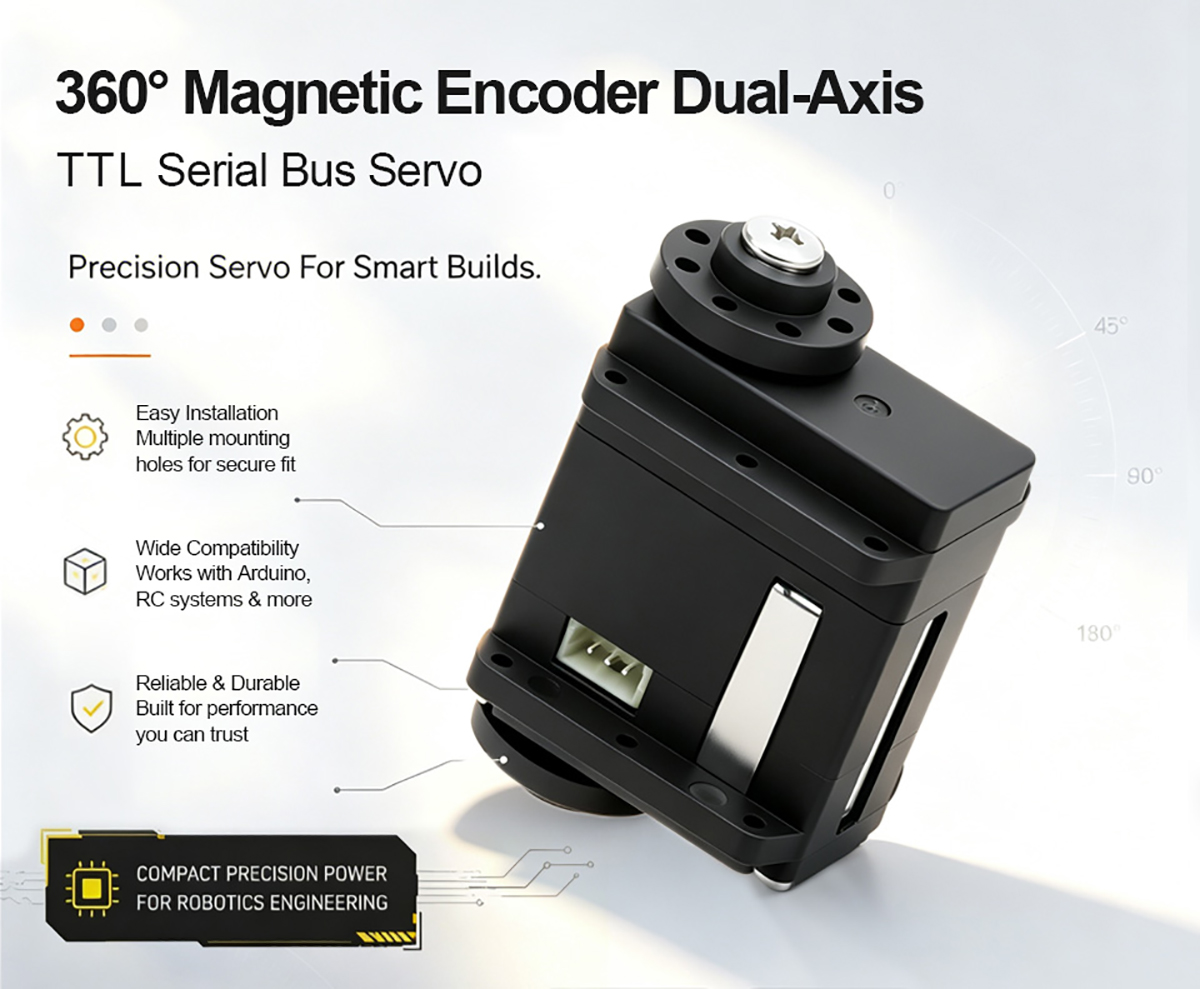

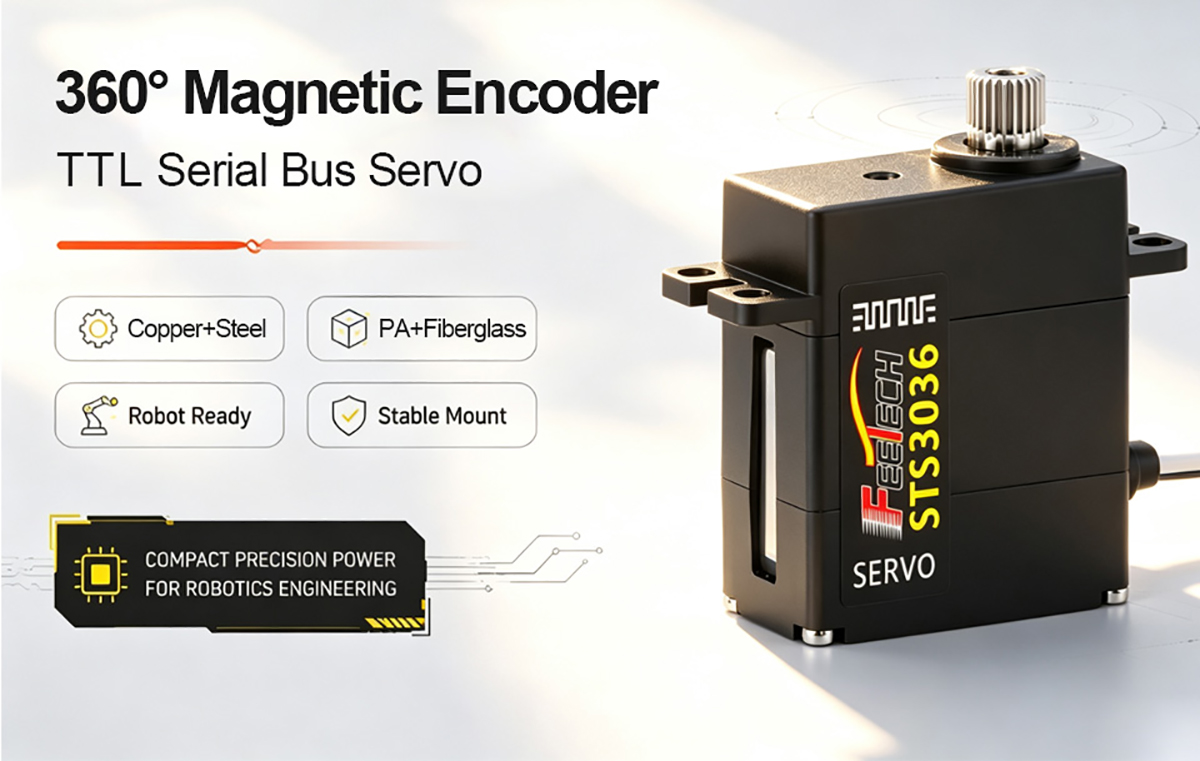

Feetech STS3036 6V 4.5kg Metal Gear Coreless Motor 360 Degree Magnetic Encoder TTL Serial Bus Servo
Feetech STS3036 6V 4.5kg Metal Gear Coreless Motor 360 Degree Magnetic Encoder TTL Serial Bus Servo

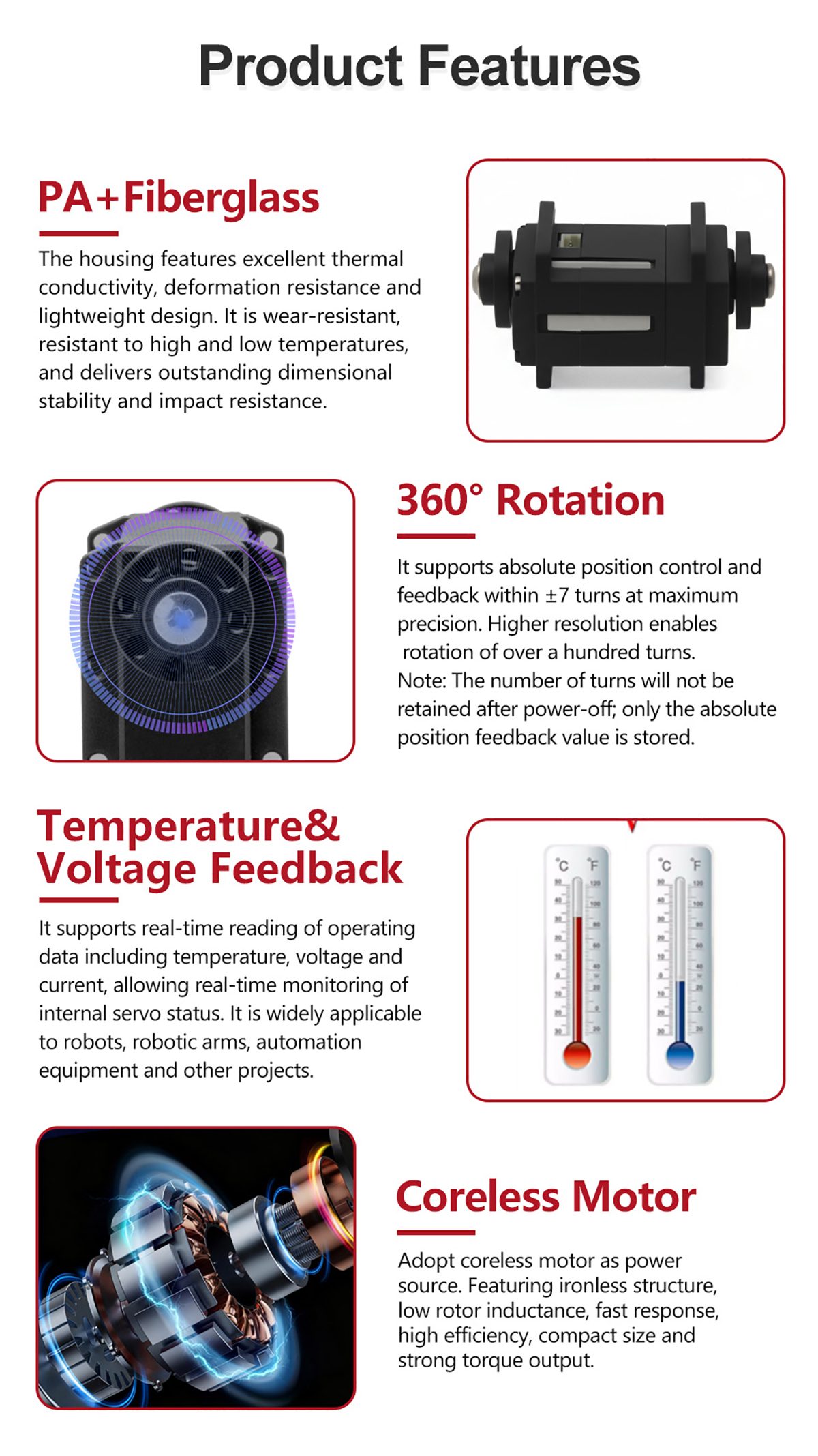

ST-3036 -C001 is 6V 4.5kg Single-axis serial bus intelligent servo motor，plastic shell with steel teeth、coreless motor、metal gearbox, Feetech self researched and developed TTL control board, 12 bit high precision magnetic coding sensor. The stall torque is 4.5kg.cm, can achieve 0-360 degrees any angle controllable, multi-turn continuous operation mode, it can realize the function of setting the middle point with one key, acceleration slow start and slow stop, can feedback position、speed、voltage、current、temperature、load parameters，thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and small torque drive small size application scenarios.

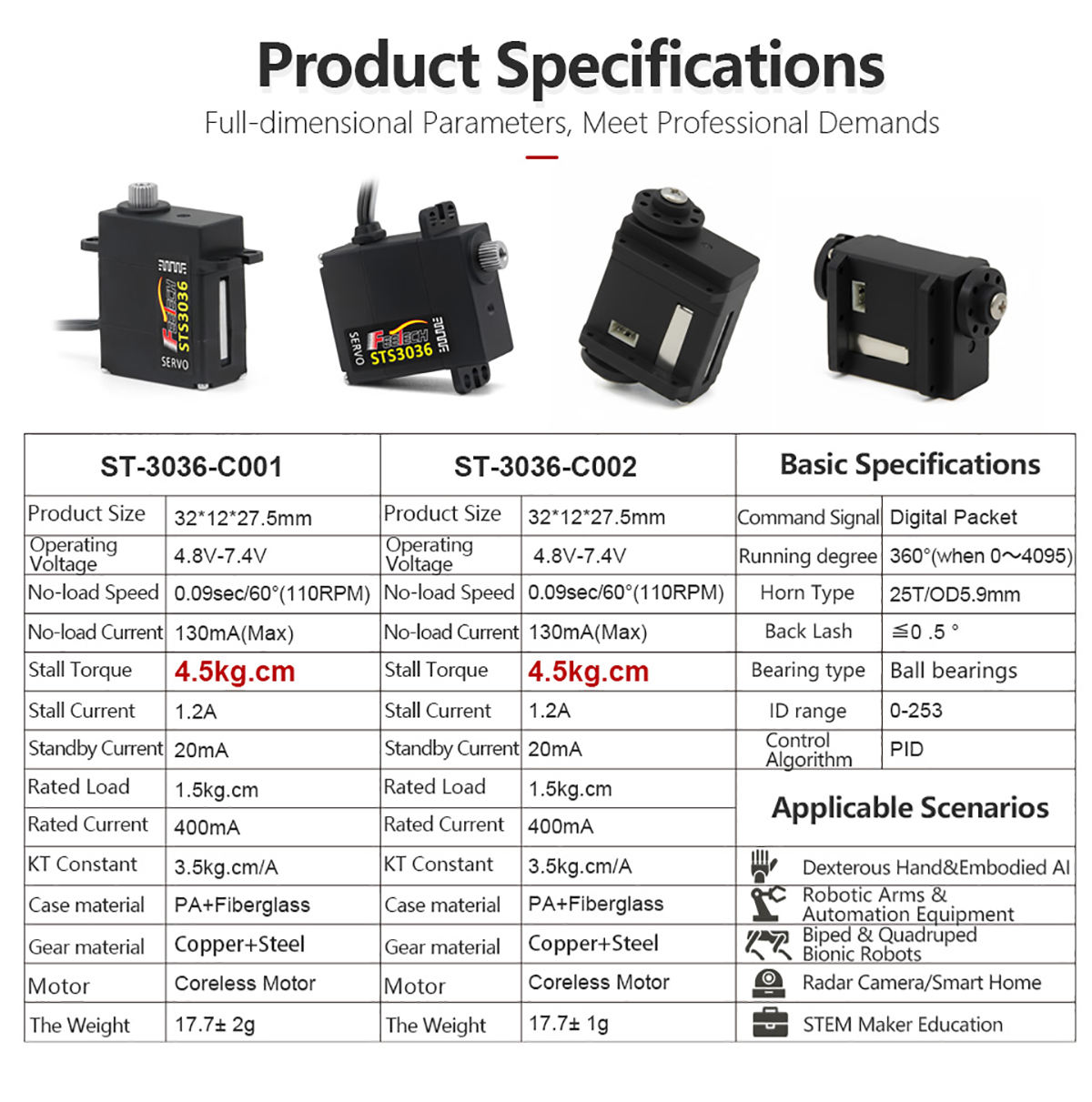

Model: ST-3036-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃

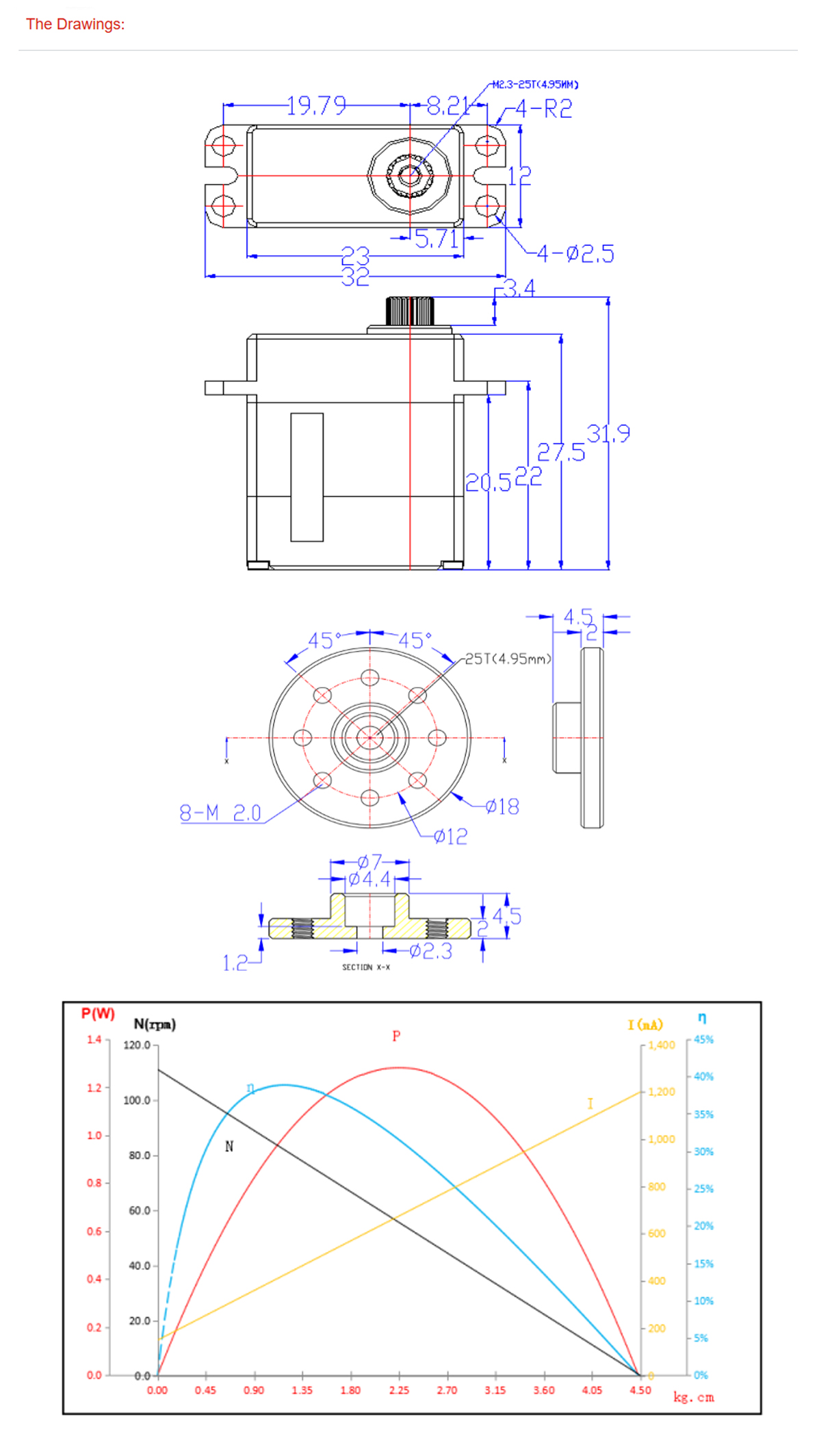

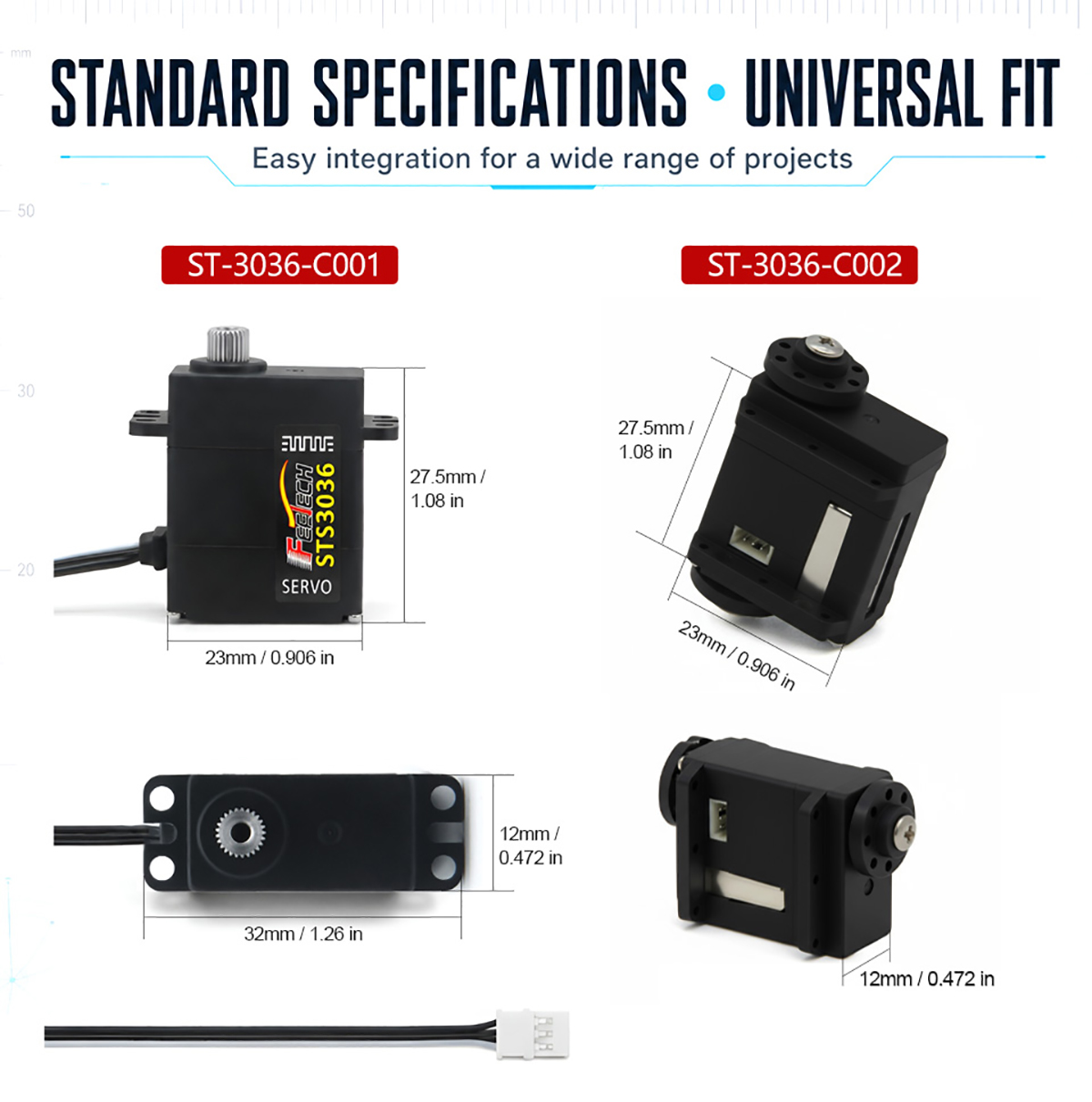

Size: 32*12*27.5mm
Weight: 17.7±2g

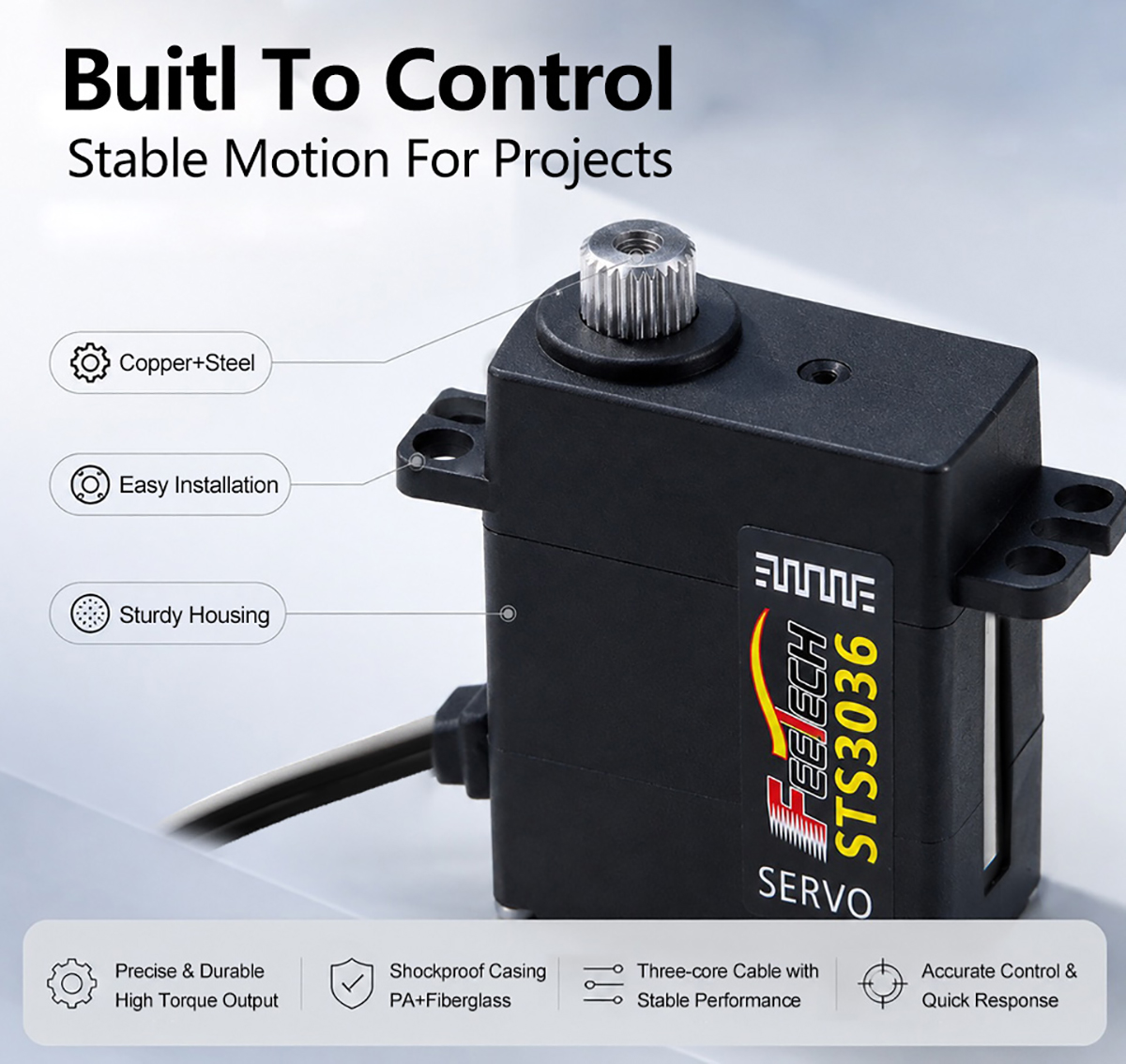

Gear Type: Copper + Steel
Limit Angle: No Limit
Bearing: Ball Bearings
Output Shaft Spline: 25T/OD4.95mm
Case: PA+Fiberglass
Connector Wire: 15CM
Motor: Coreless Motor
Operating Voltage Range: 4.8V-7.4V
No Load Speed: 0.09sec/60°(110RPM)@6V
No Load Running Current: 130mA(Max)@6V
Peak Stall Torque: 4.5kg.cm@6V
Rated Torque: 1.5kg.cm@6V
Stall Current: 1.2A@6V
Command Signal: Digital Packet
Protocol Type: Half Duplex Asynchronous Serial Communication

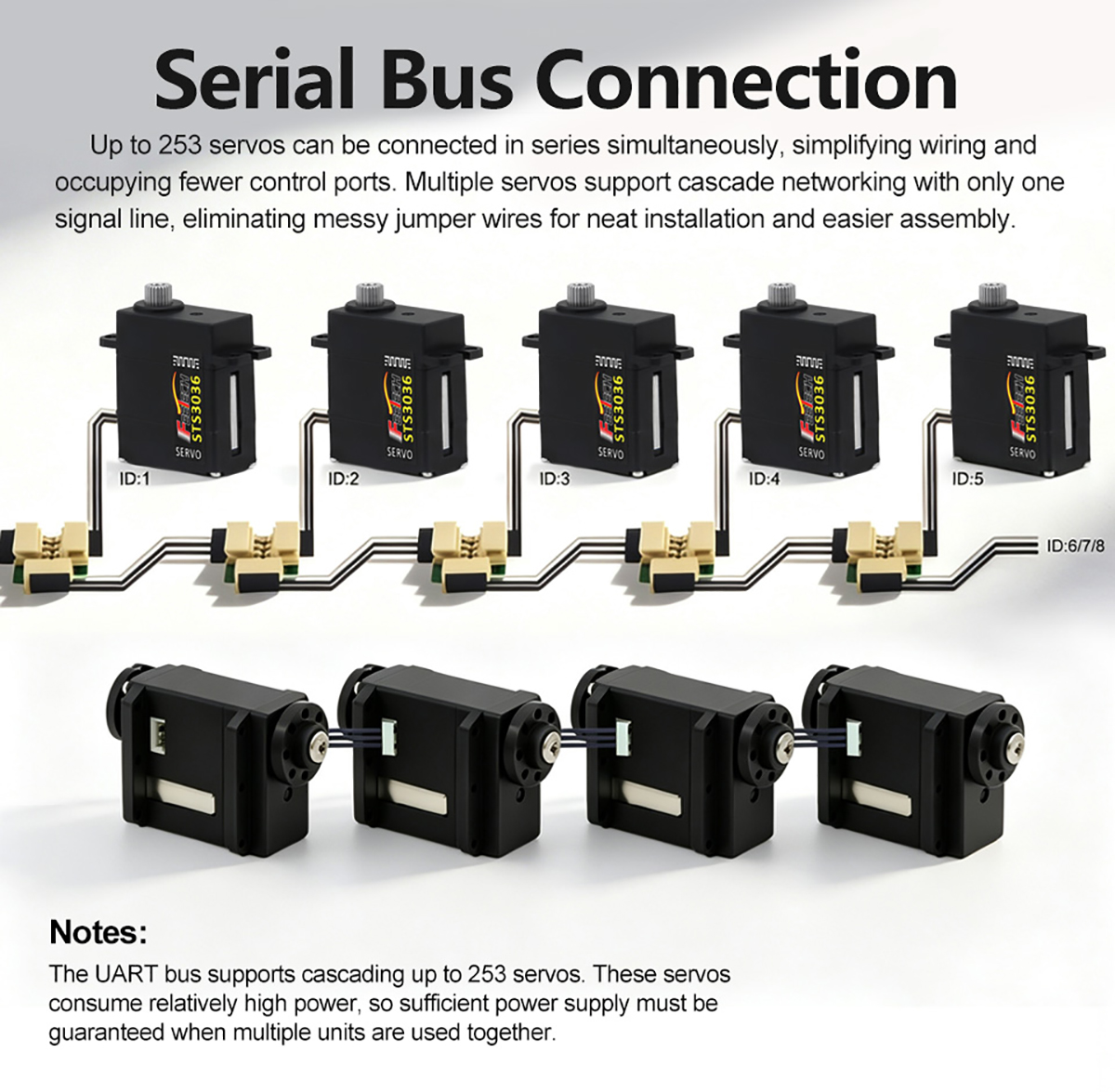

ID Range: 0-253
Communication Speed: 38400bps ~ 1 Mbps
Neutral Position: 2048
Running Degree: 360°(0～4096)

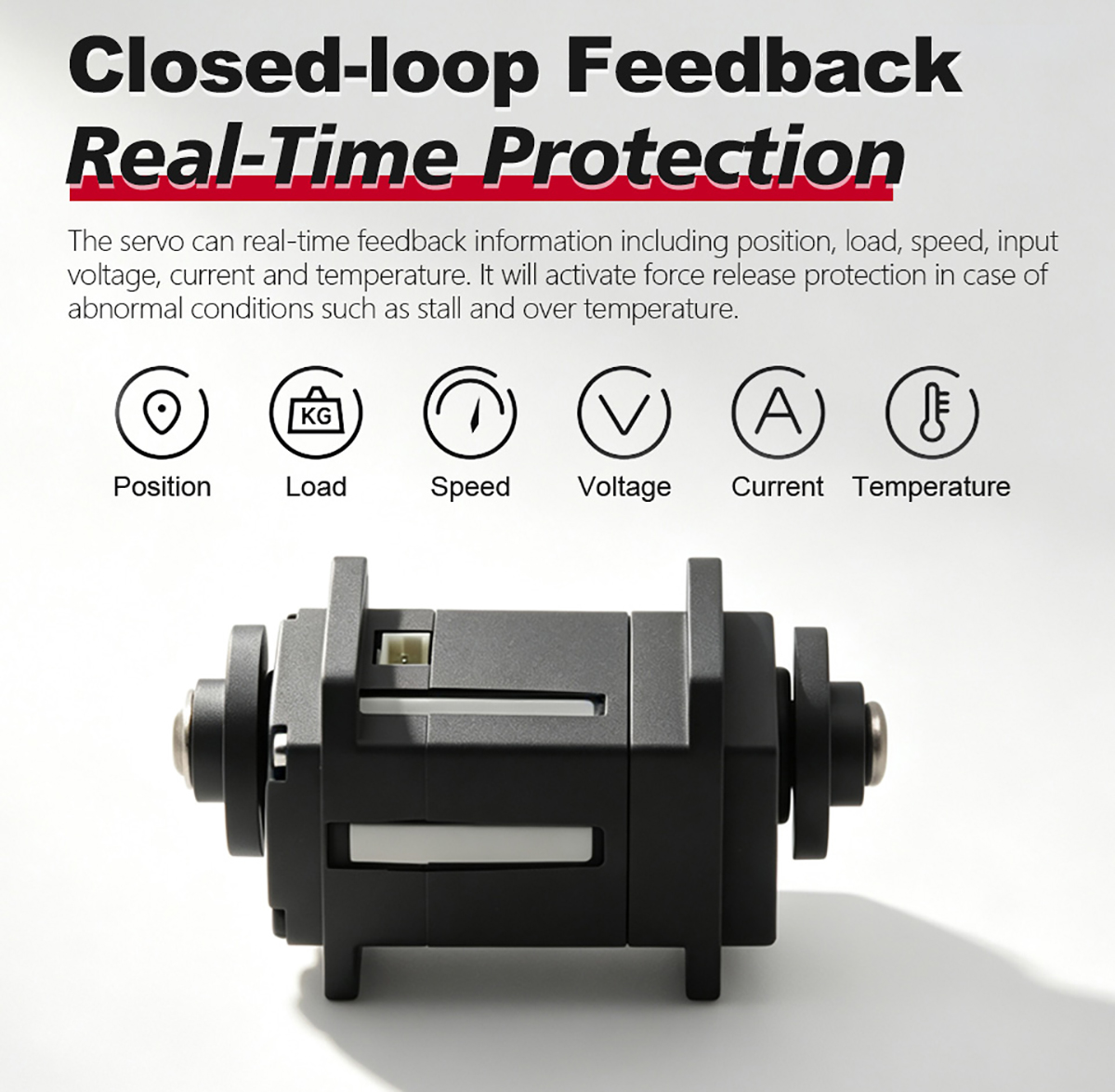

Feedback: Load, Position, Speed, Input Voltage, Temperature
Resolution: 0.088°(360°/4096)

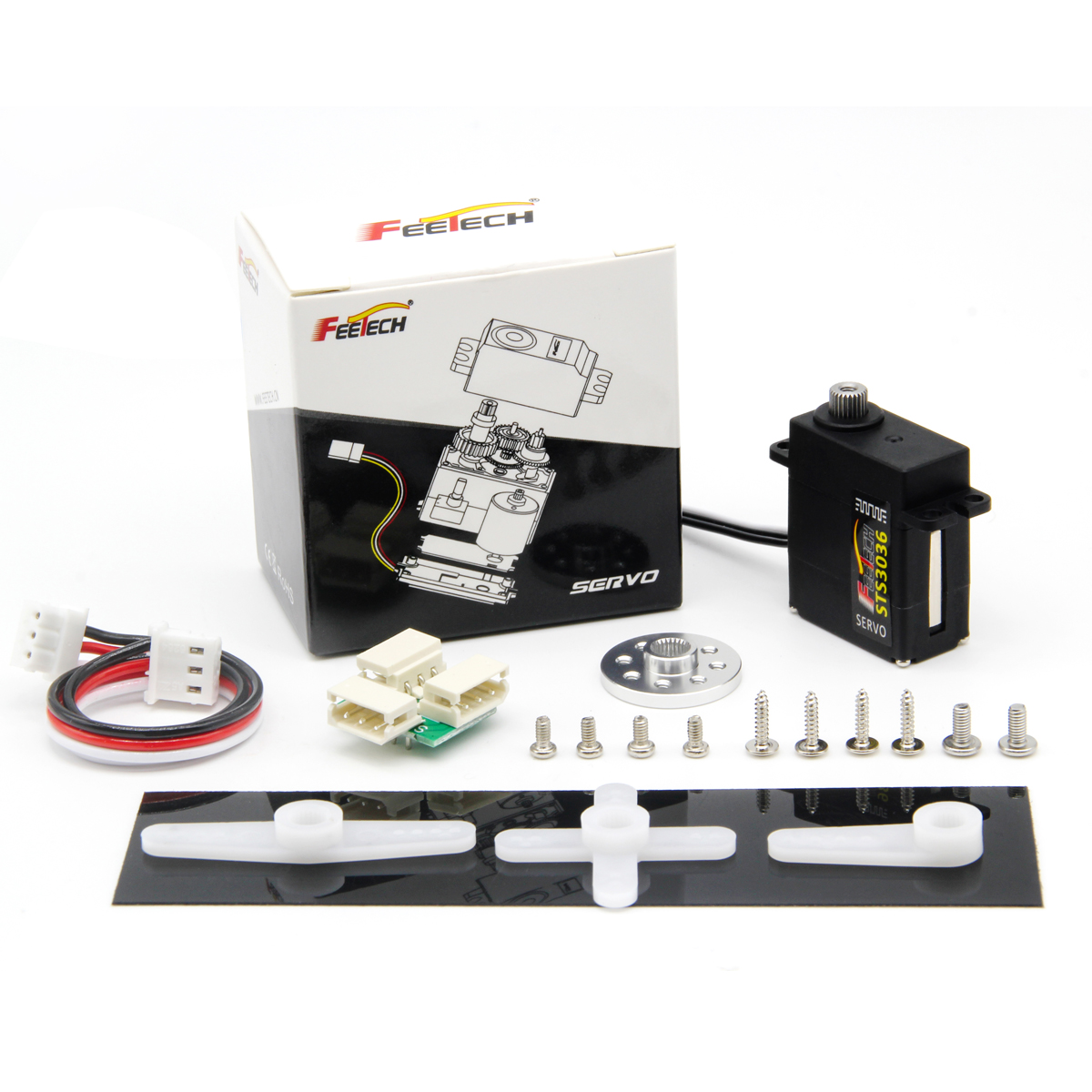

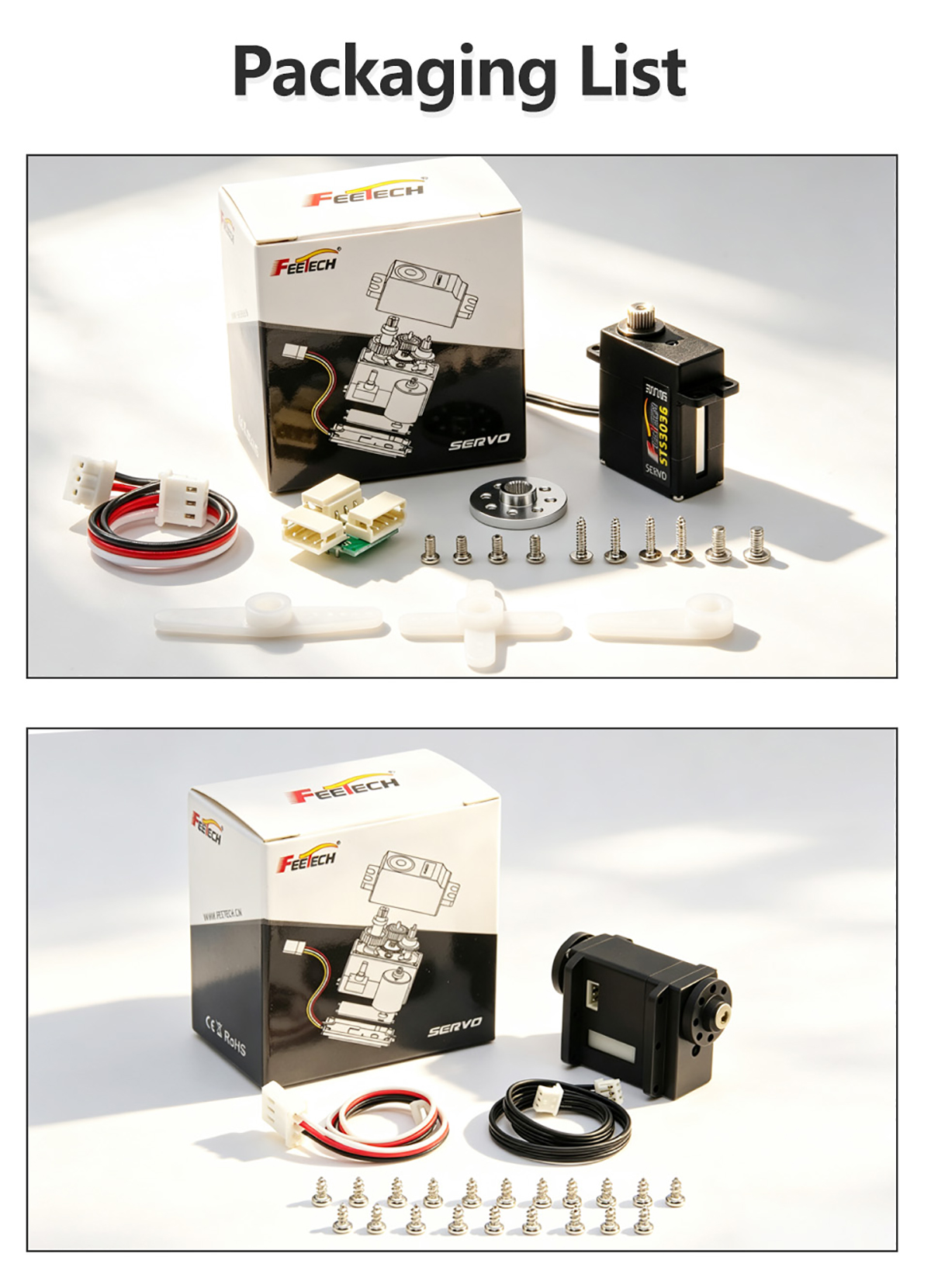

STS3036 Servo x1
