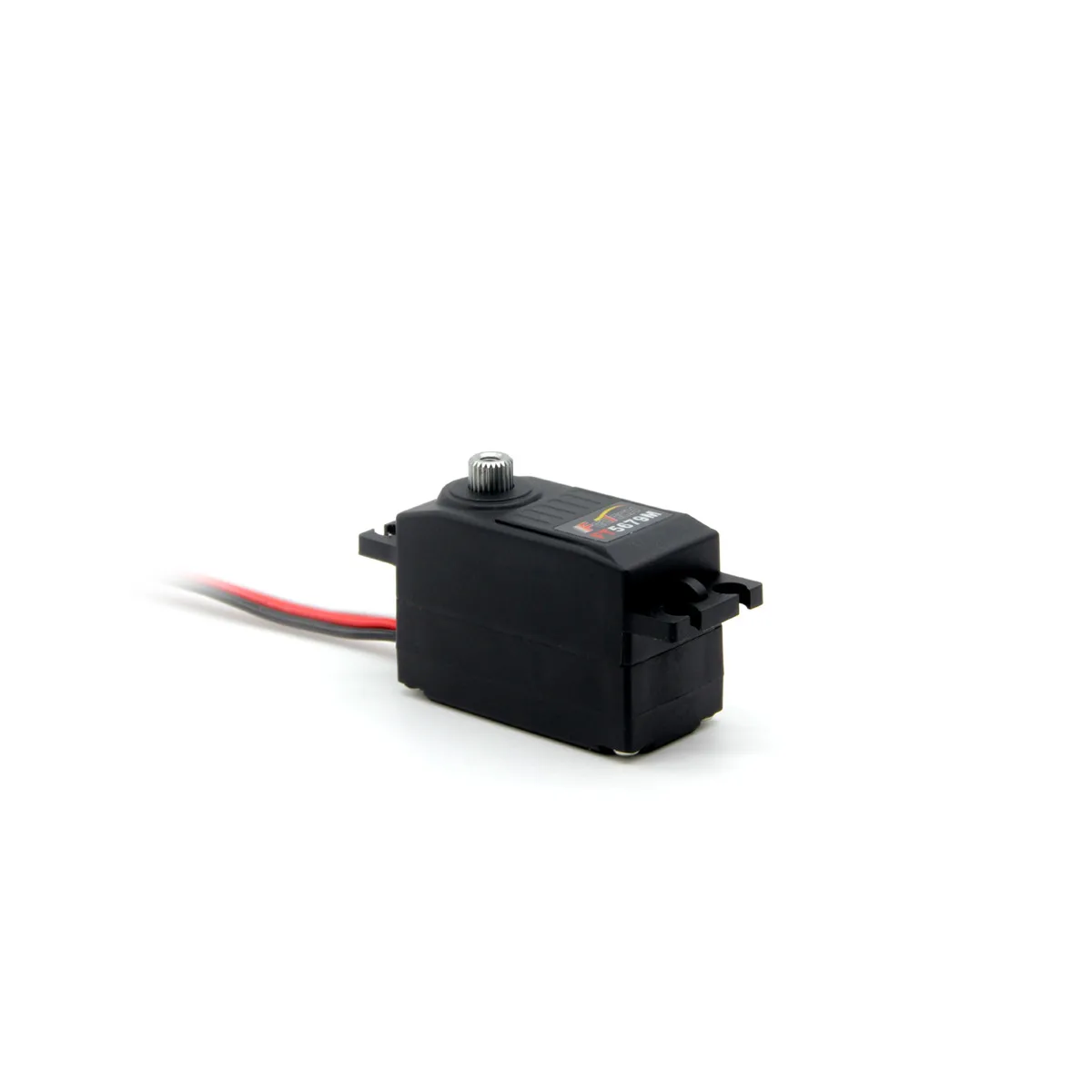

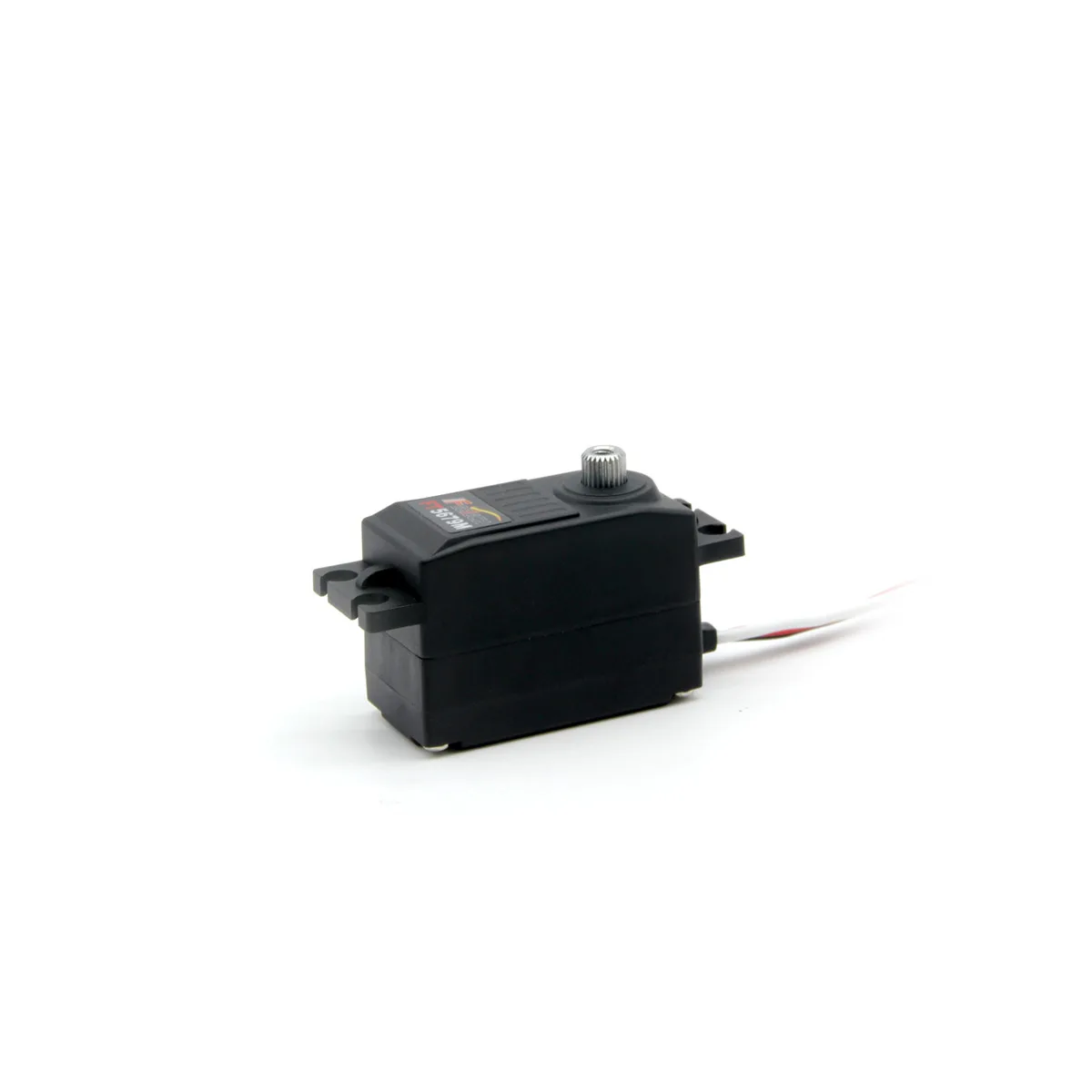

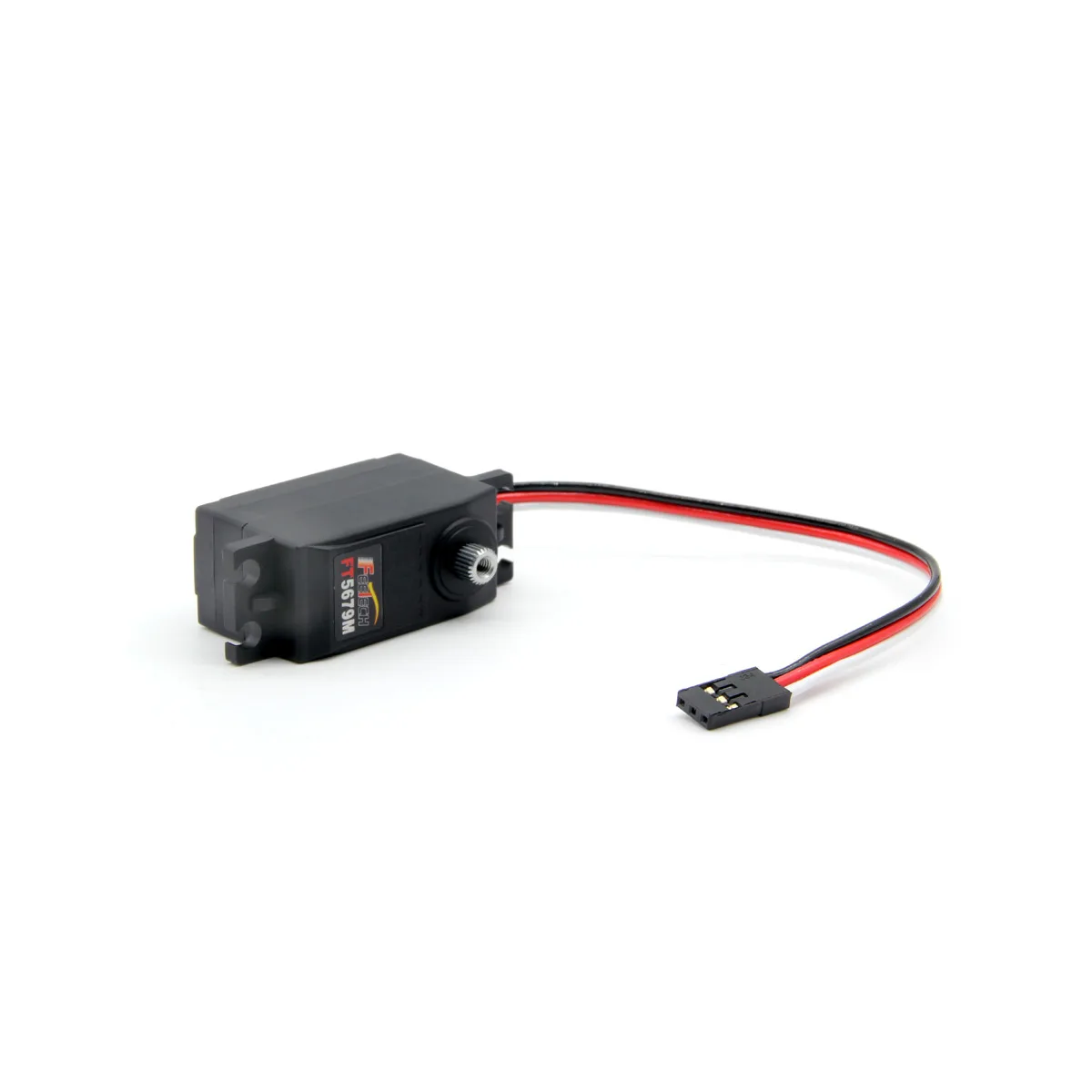

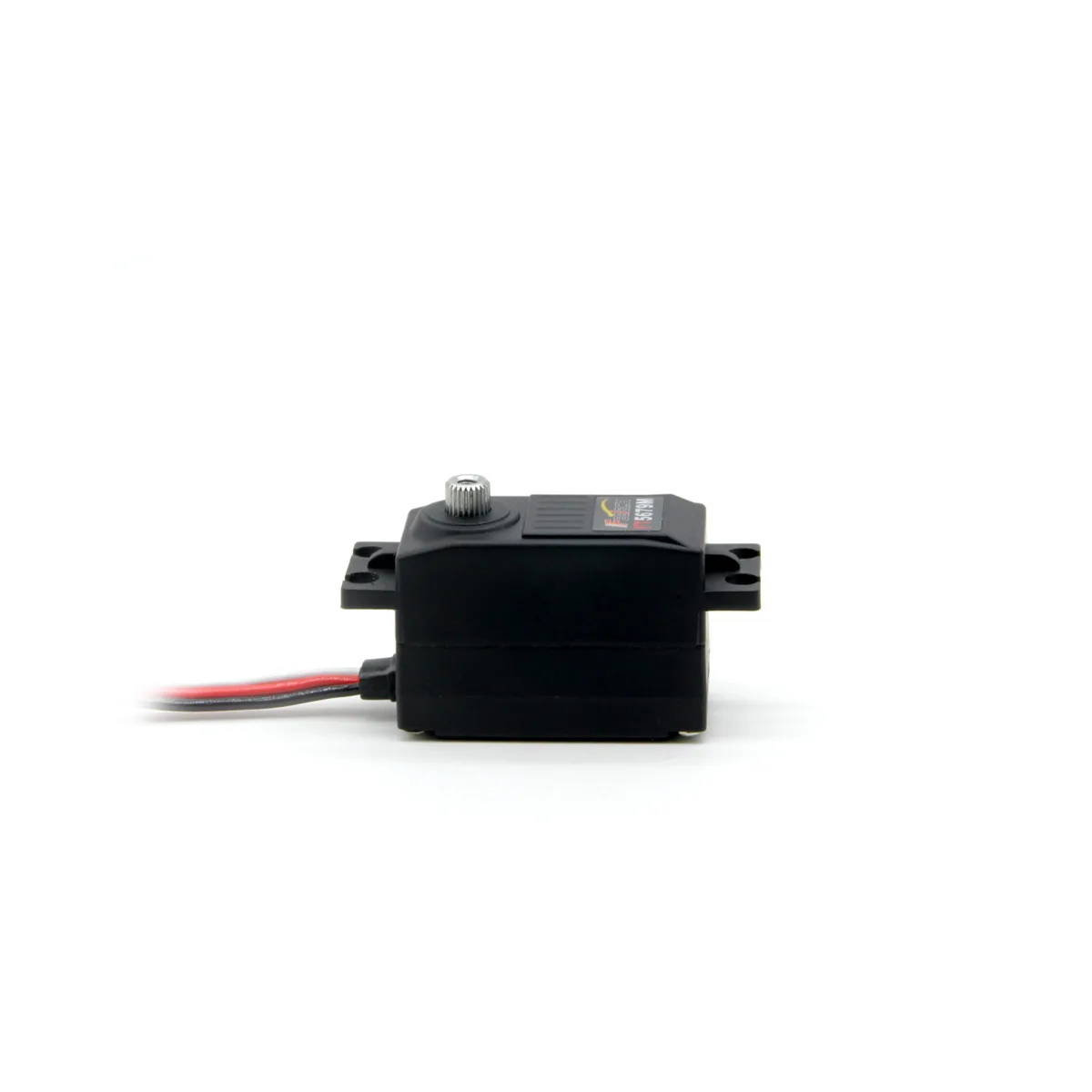

Feetech FT5679M 7.4V 25kg 180 Degree Metal Gear Coreless Motor Digital Servo for 1/10 RC Drift Racing Truck Car
Feetech FT5679M 7.4V 25kg 180 Degree Metal Gear Coreless Motor Digital Servo for 1/10 RC Drift Racing Truck Car
25KG Large torque Digital Waterproof servo,adopt Core motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,6.0V ~8.4V High Operation Voltage Range,
It’s a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!
Model: FT-5679-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃
Size: 40.6*20*26.6mm
Weight: 43.6±2g
Gear type: Metal
Limit angle: No limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Gear Ratio: 1/258
Case: PA+GF
Connector wire: 14±0.5CM
Motor: Coreless Motor
Operating Voltage Range: 4-9V
Idle current (at stopped): 20mA@8.4V
No load speed: 0.098sec/60°(102RPM)@8.4V
Running current(at no load): 440mA@8.4V
Peak stall torque: 25.8kg.cm@8.4V
Rated torque: 7kg.cm@8.4V
Stall current: 3.6A@8.4V
Command signal: Pulse width modification
Control System Type: Digital comparator
Pulse width range: 500~2500 μsec
Stop position: 1500 μsec
Running degree: 180°±5°(at 500→2500μsec)
Dead band width: ≤4 μsec

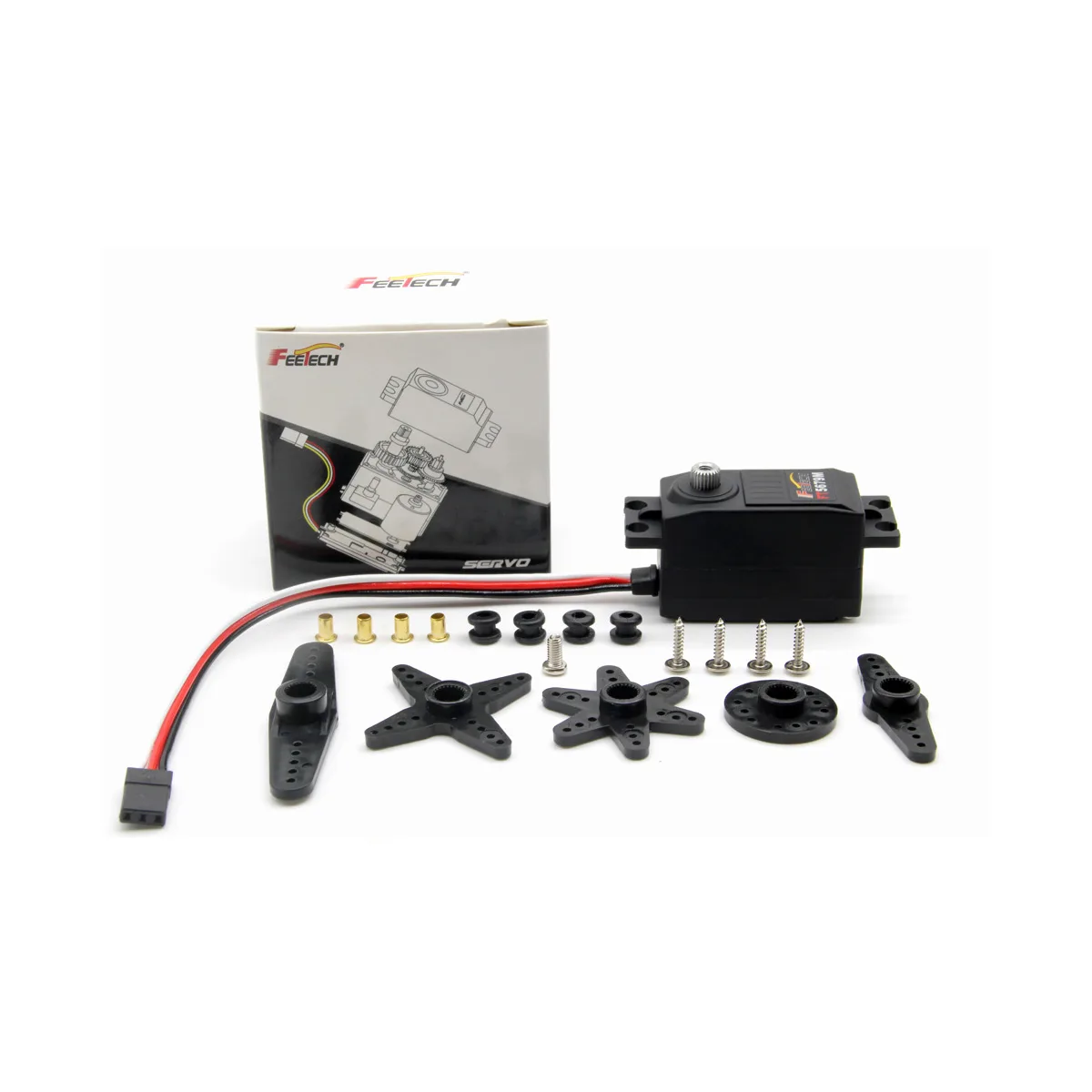

FT5679M Servo x1
