FEETECH STS3250 12V 50KG Magnetic Encoder Double Shaft TTL Servo Metal Gear Large Torque Servo
FEETECH STS3250 12V 50KG Magnetic Encoder Double Shaft TTL Servo Metal Gear Large Torque Servo
STS3250 is 12V 50kg serial bus smart servo，aluminum alloy case is used、corless motor、metal gearbox 、Feetech self researched and developed TTL control board，12 bit high precision magnetic coding sensor. The stall torque is 50kg.cm，can achieve 0-360 degrees any angle controllable，multi-turn continuous operation mode，it can realize the function of setting the middle point with one key，acceleration slow start and slow stop，can feedback position、speed、voltage、current、temperature、load parameters，thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and Small torque drive application scenarios
Model：ST-3250
Product Name：12V 50KG Magnetic Encoder Double Shaft TTL Servo
Storage Temperature Range：-30℃～80℃
Operating Temperature Range：-20℃～60℃

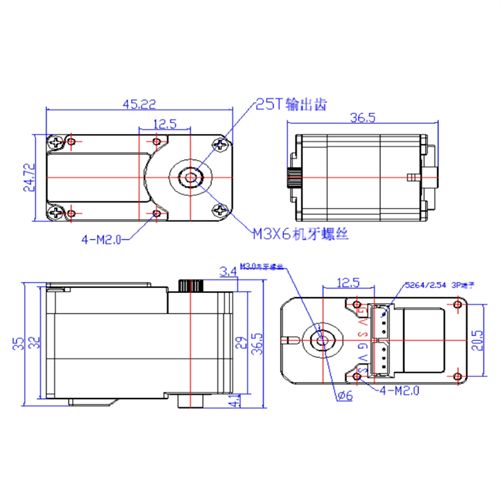

Size：A：45.22mm B：24.72mm C：35mm
Weight：74.5± 1g
Gear type：steel Gear
Limit angle：NO limit
Bearing：Ball bearings

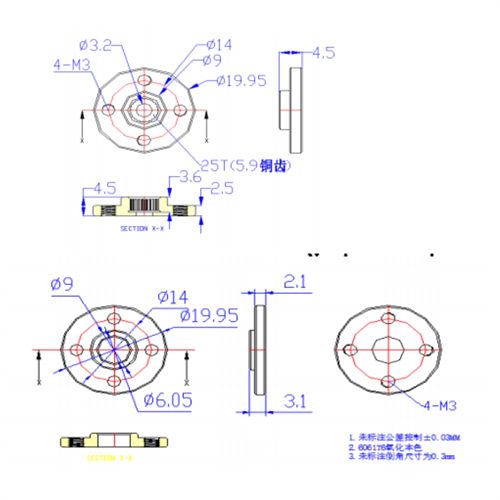

Horn gear spline：25T/OD5.9mm
The rocker phantom：0°
Case：Aluminium
Connector wire：15CM
Motor：Coreless Motor
Operating Voltage Range：6-12V
No load speed：0.133sec/60°@12V
Runnig current(at no load)：280mA@12V
Peak stall torque：50kg.cm@12V
Rated torque：16kg.cm@12V
Stall current：4.2A@12V
Command signal：Digital Packet
Protocol Type：Half Duplex Asynchronous Serial Communication
ID range：0-253
Communication Speed：38400bps ~ 1 Mbps
Running degree：360° (when 0~4096)
Neutral Position：180°（2048）
Feedback: Load, Position, Speed, Input Voltage,Temperature
12V 50KG Magnetic Encoder Double Shaft TTL Servo x1
