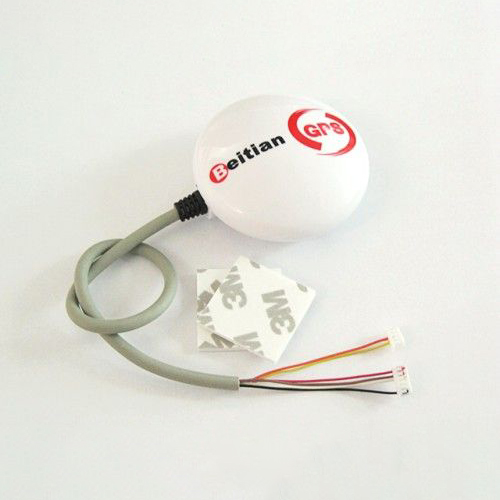

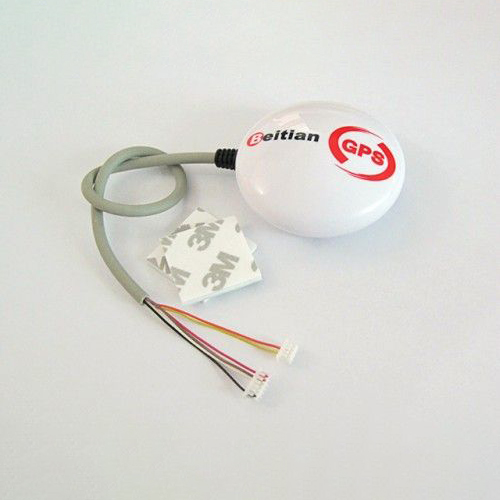

Flight Controller GPS Module with Shell & Stand for PX4 Pixhawk V2.4.5 APM 2.6 Compatible
Flight Controller GPS Module with Shell & Stand forPX4 Pixhawk V2.4.5 APM 2.6 Compatible
– Power supply: DC 2.8-6.0V
– Power consumption: 50mA@5V
– Receive format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
– Receive channel: 72
– Receive sensitivity: -167dbm for tracking; -148dbm for capture
– Location time: Cold start 26S; Warm start 25S; Hot start 3S
– Horizontal precision: 2.0m at open space
– Output frequency: 1hz~10hz, default 1Hz
– Speed precision: 0.1m/s(without aid)
– Acceleration precision: 0.1m/s2(without aid)
– Dynamic features: Max.height 18,000m; Max.speed 515m/s; Max.acceleration 4g
– UART port: UART communication: TXDA/RXDA, support speed ratio 4800bps~115200bps, default 9600bps
– Work temperature: -40~+85°C
– With electronic compass: IC HMC5883L
– Power consumption: 50mA@5V
– Receive format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
– Receive channel: 72
– Receive sensitivity: -167dbm for tracking; -148dbm for capture
– Location time: Cold start 26S; Warm start 25S; Hot start 3S
– Horizontal precision: 2.0m at open space
– Output frequency: 1hz~10hz, default 1Hz
– Speed precision: 0.1m/s(without aid)
– Acceleration precision: 0.1m/s2(without aid)
– Dynamic features: Max.height 18,000m; Max.speed 515m/s; Max.acceleration 4g
– UART port: UART communication: TXDA/RXDA, support speed ratio 4800bps~115200bps, default 9600bps
– Work temperature: -40~+85°C
– With electronic compass: IC HMC5883L
– 1 x GPS Module
– 1 x GPS stand
