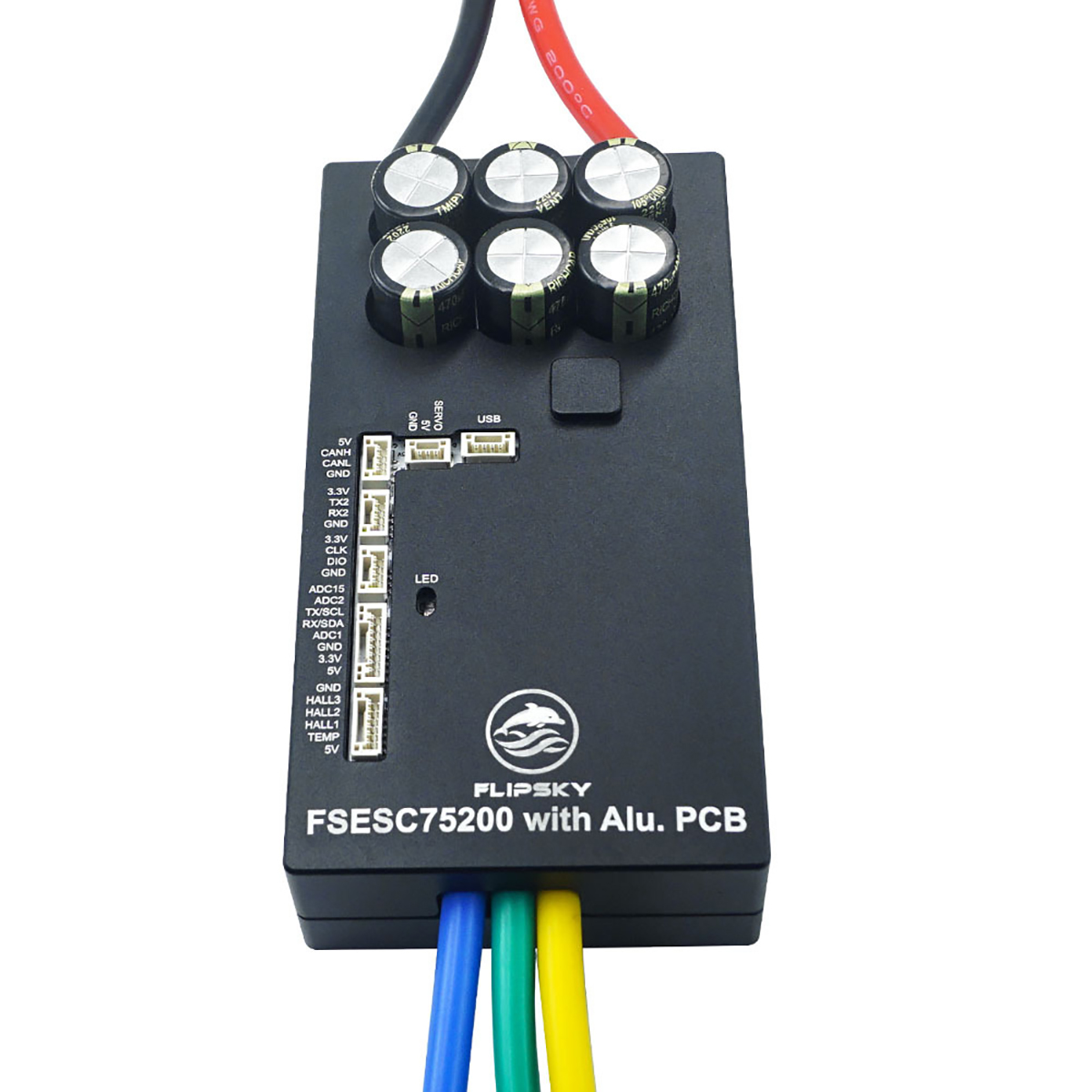

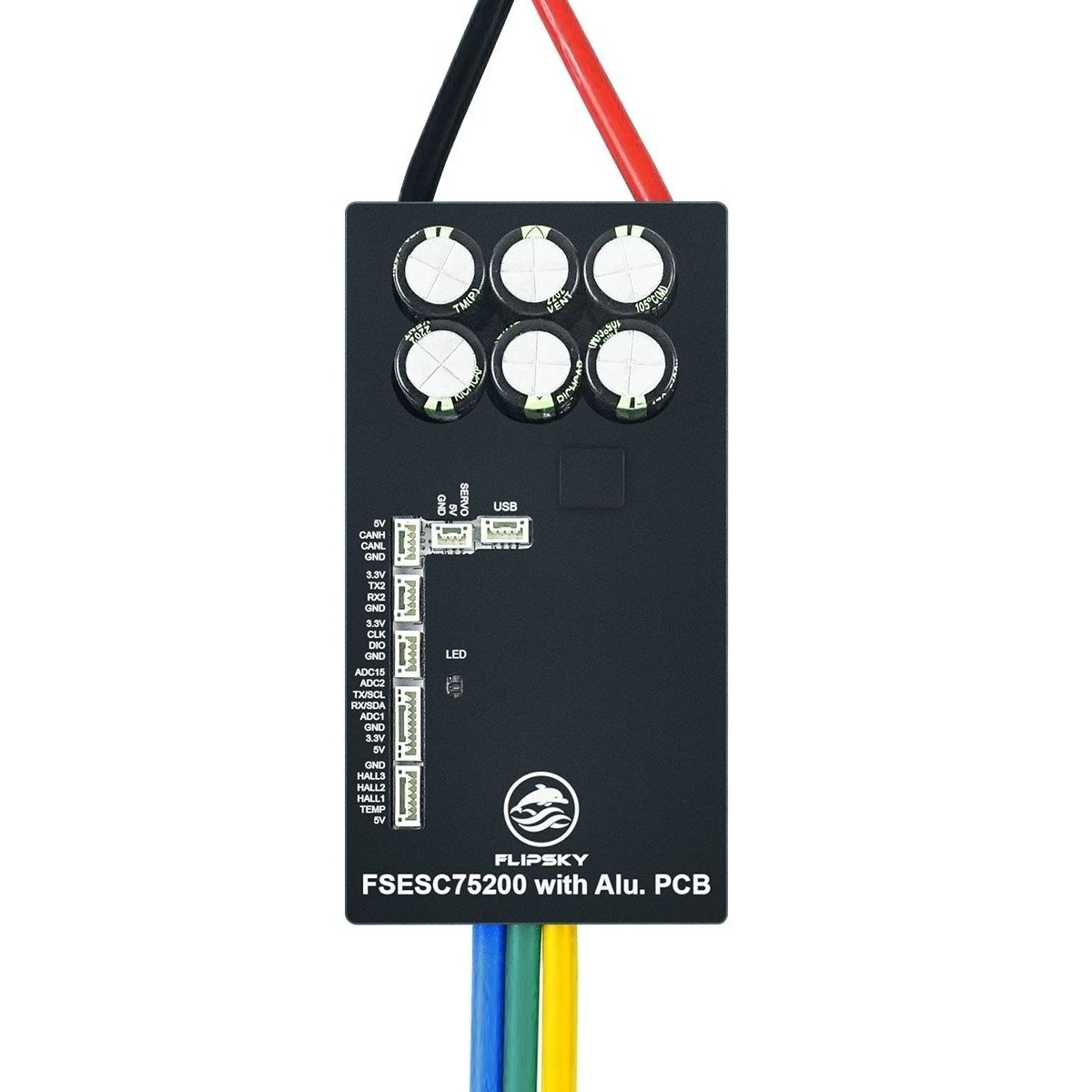

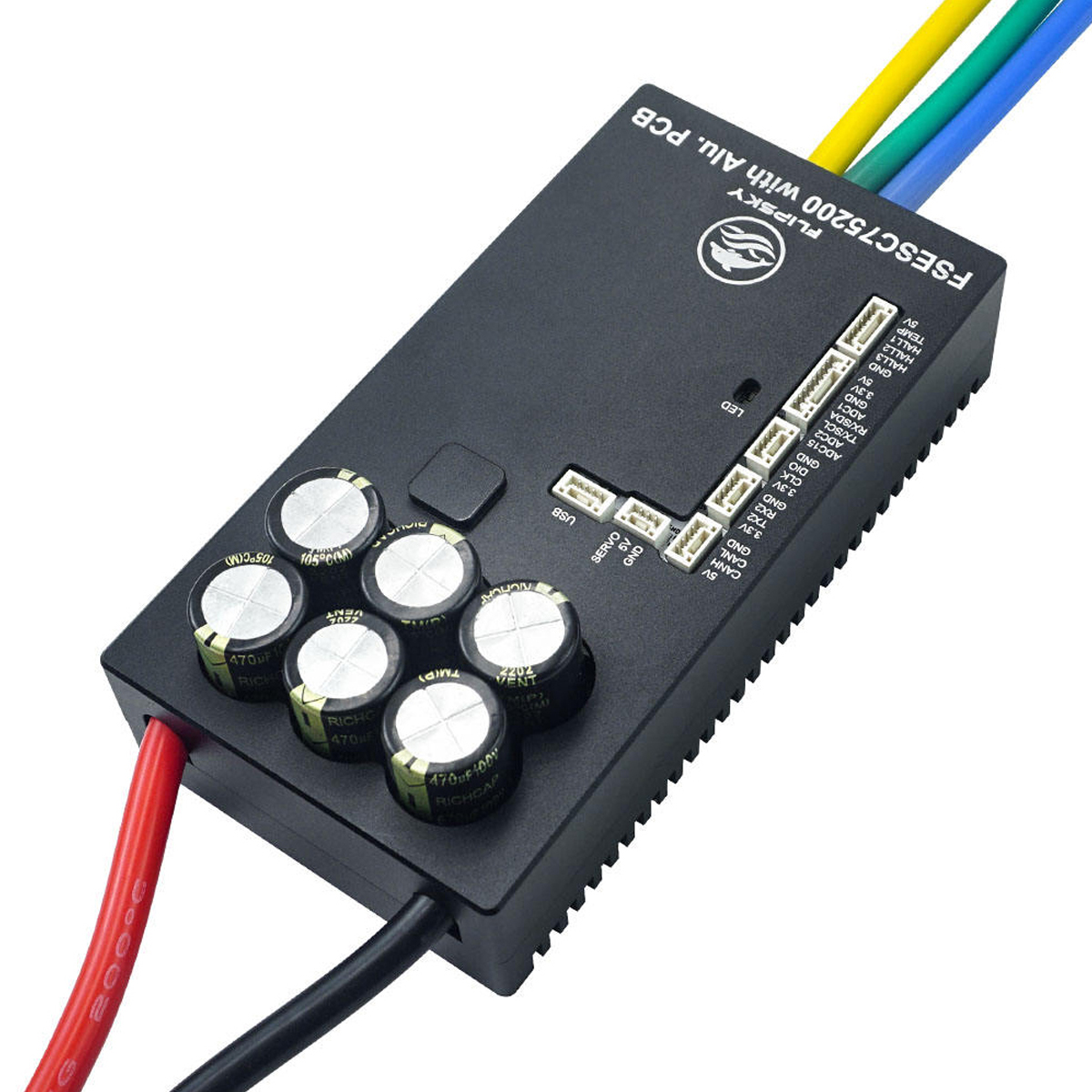

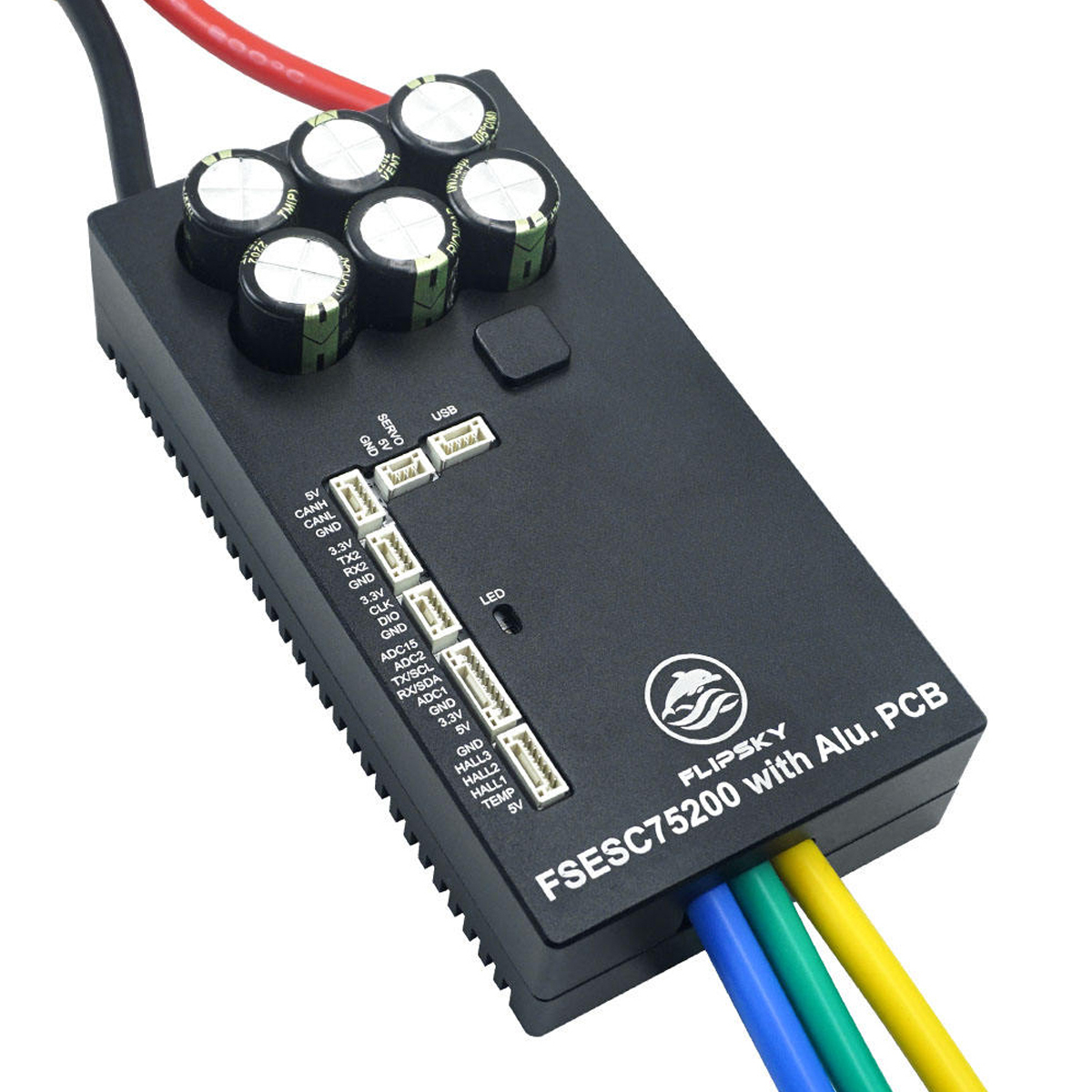

Flipsky FSESC 75200 with Aluminum PCB 84V 200A ESC FOC Controller Based on VESC for E-Foil Robot Surfboard
Flipsky FSESC 75200 with Aluminum PCB 84V 200A ESC FOC Controller Based on VESC for E-Foil Robot Surfboard
Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection.
Support various control modes: Current / Duty cycle / Speed / PID control modes.
Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
CPU:32F405 with frequency 168MHz

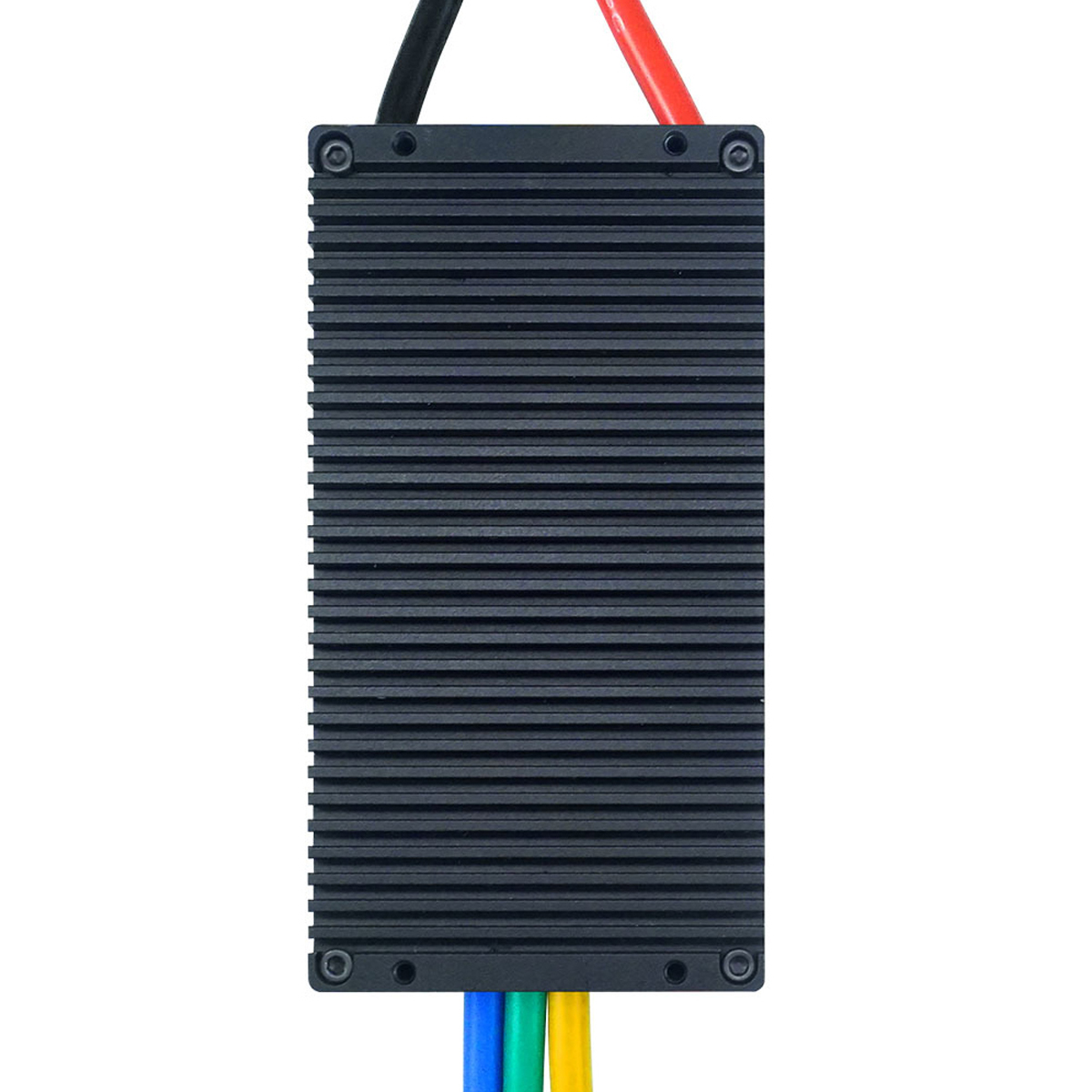

Aluminum PCB with good heat dissipation to expand life span.
Model: 75200 With Aluminum Case
Firmware: 5.2, supports firmware upgrade
Voltage: 14-84V (safe for 4-20S)
Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300A
BEC: 5V@1A
Support Modes: DC, BLDC, FOC (sinusoidal)
ERPM: 150000

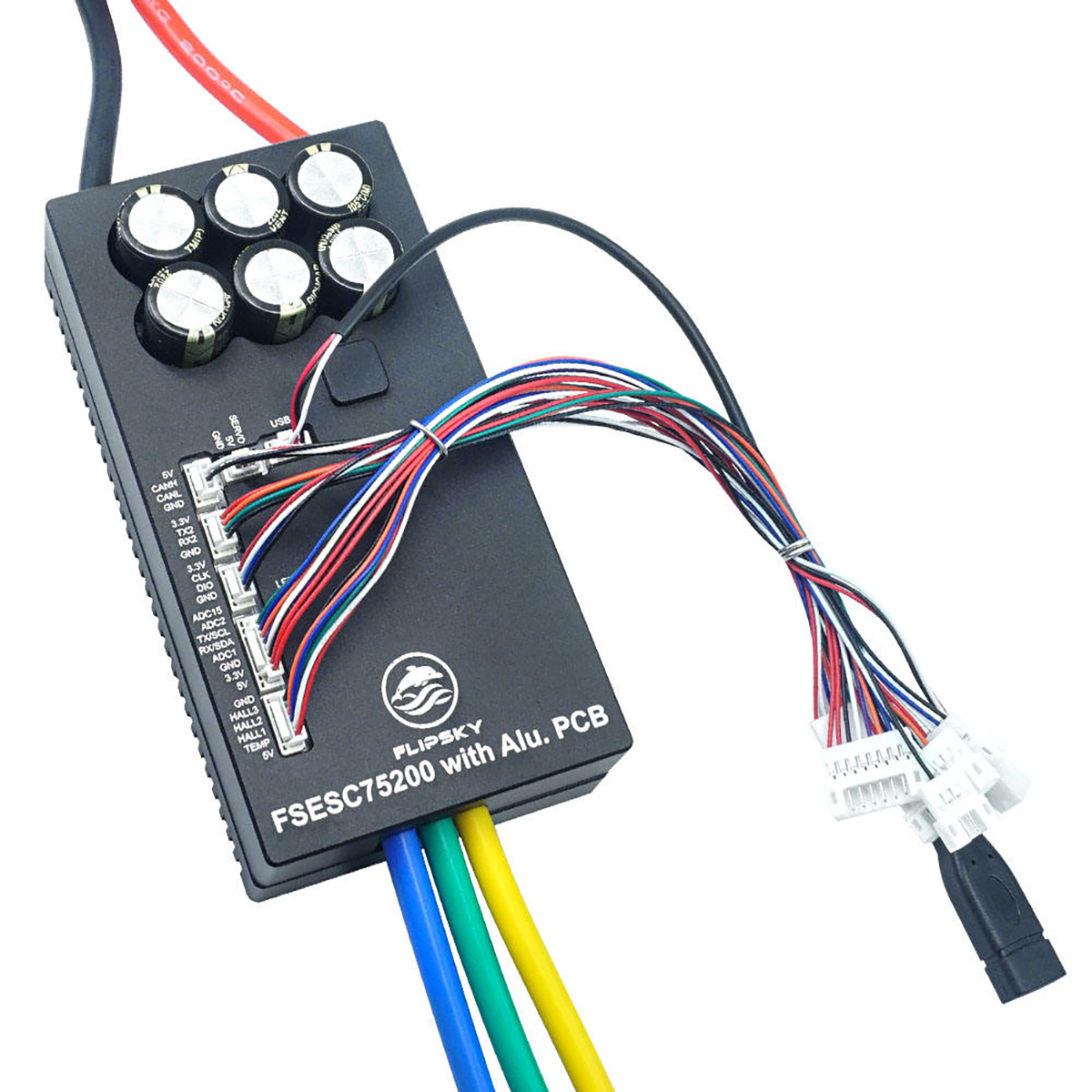

Communication Ports: USB, CAN, UART, SPI, IIC
Supported Sensors: ABI, HALL, AS5047, AS5048A
Input Source Support: PPM, ADC, NRF, UART
Supported Sensorless: Yes
Regenerative capacity: Yes
Programmable via VESC_TOOL: Yes
Size:130×67.7×40.1mm(Including alu. case)
Motor/power wire size: 8 AWG
75200 With Aluminum Case x1
