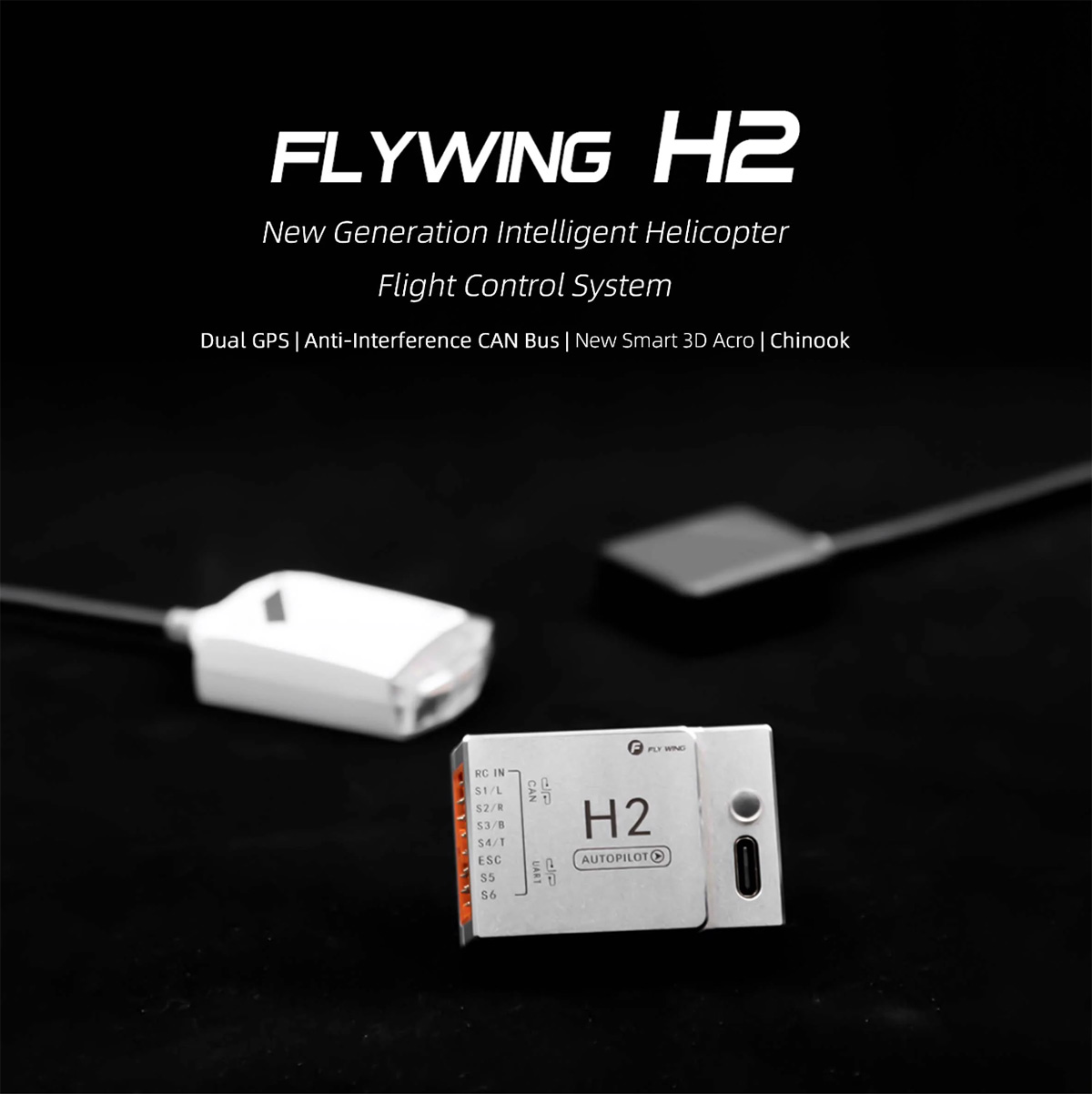

Fly Wing H2 Flight Control Gyro GPS Self Stabilization for 3D Model Helicopters
Fly Wing H2 Flight Control Gyro GPS Self Stabilization for 3D Model Helicopters

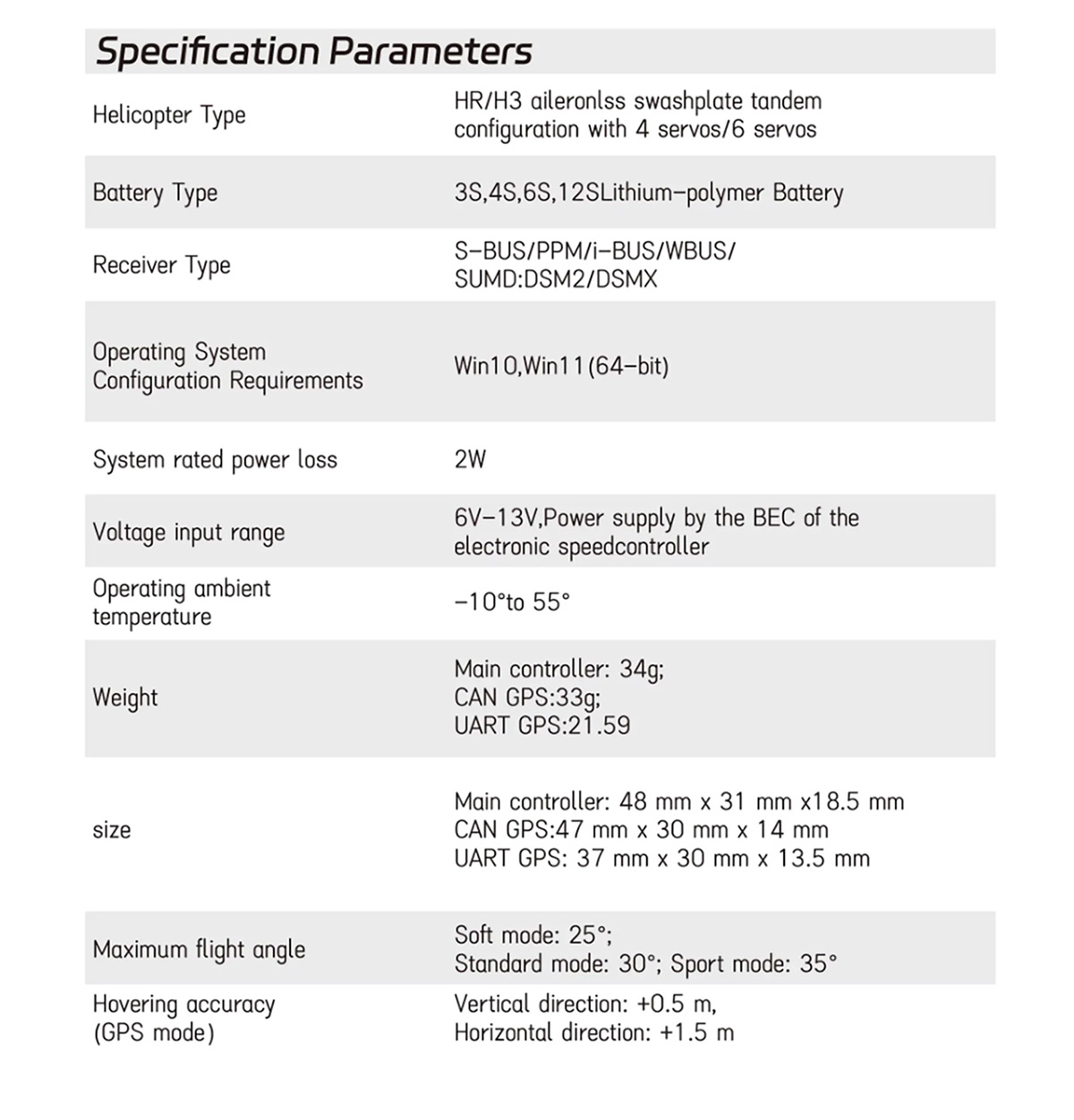

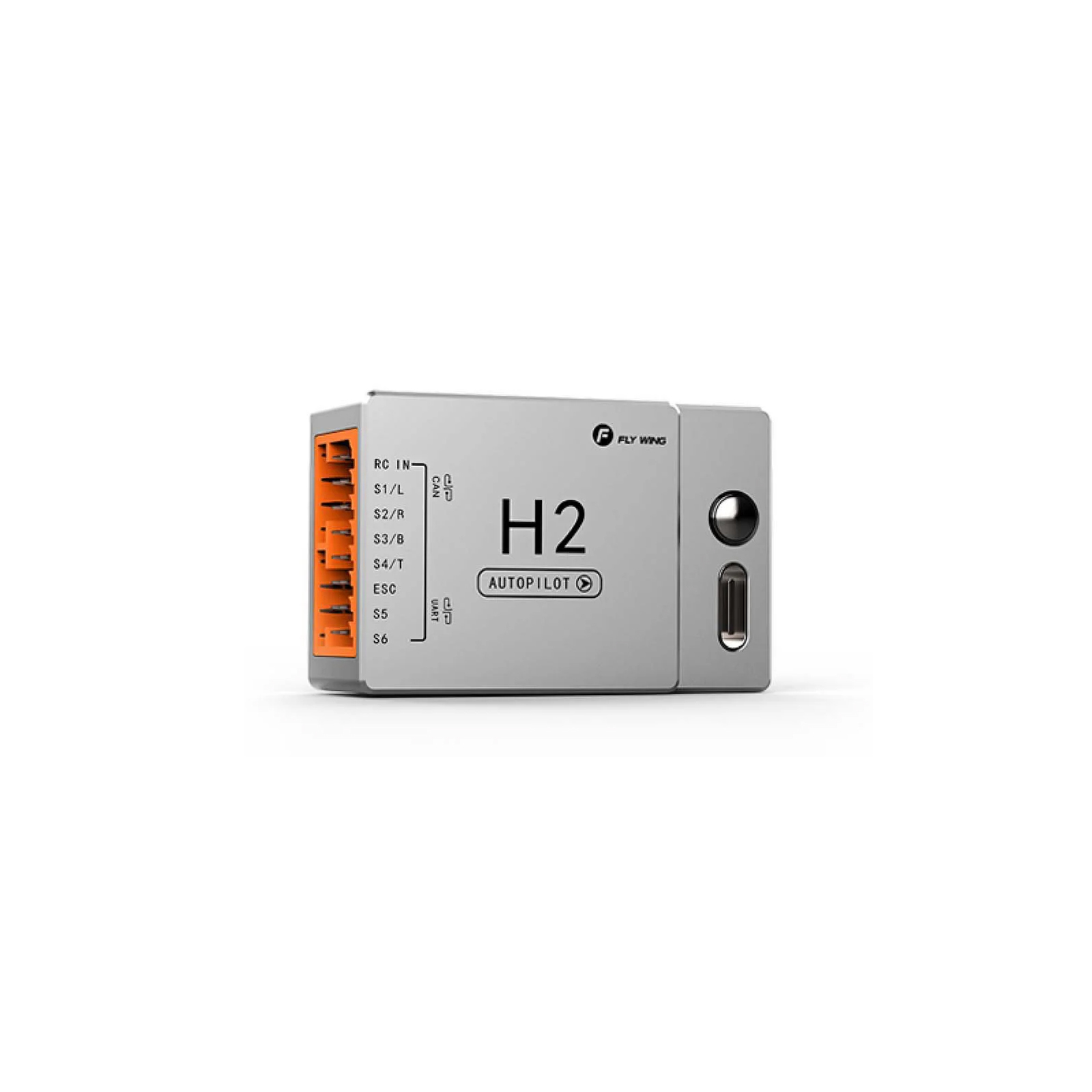

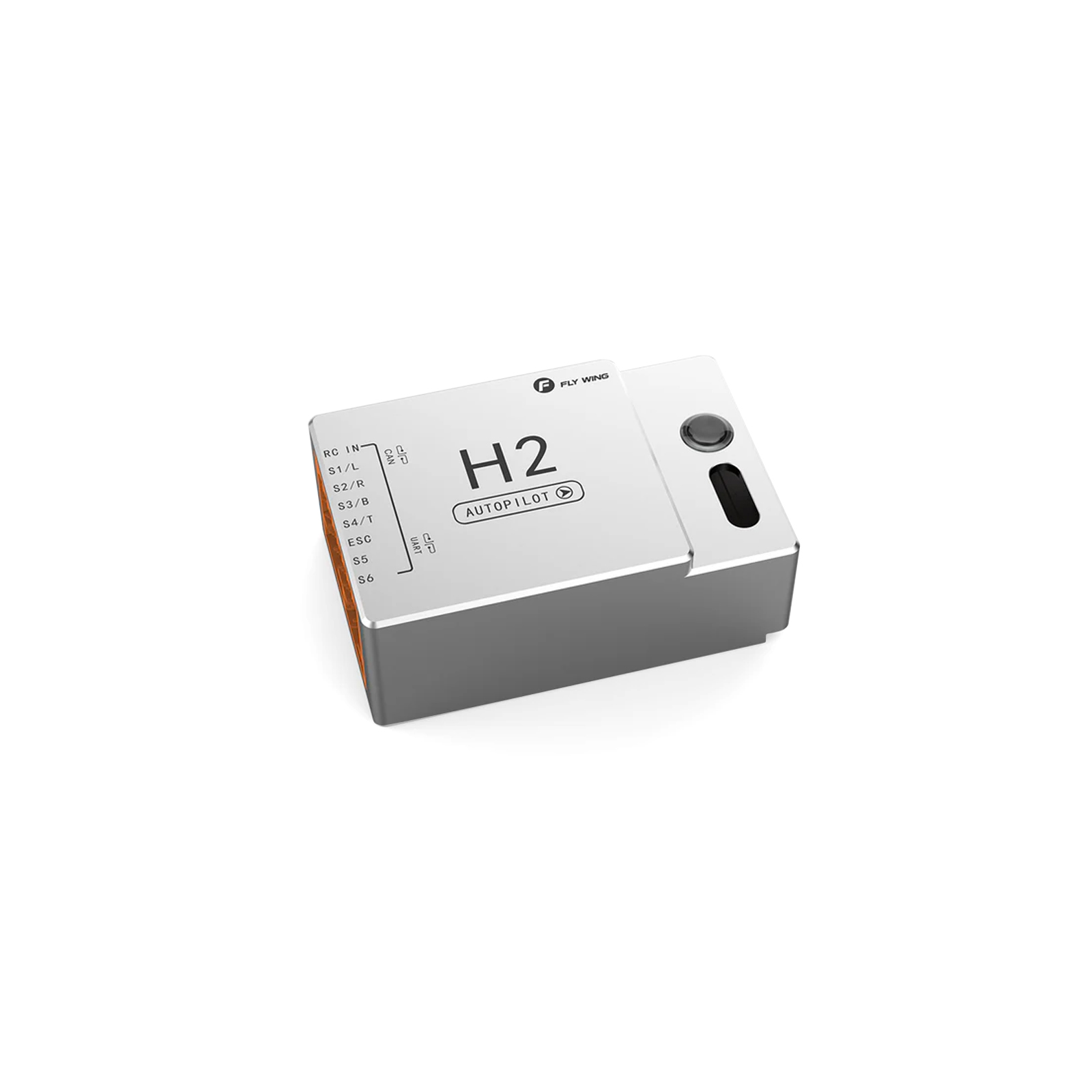

Model: H2 Flight Control
Weight: Main controller: 34g; CAN GPS: 33g; UART GPS: 21.59
size: Main controller: 48mm×31mm×8.5mm; CAN GPS: 47mm×30mm×14mm; UART GPS: 37mm×30mm×13.5mm
Maximum flight angle: Soft mode: 25°; Standard mode: 30°; Sport mode: 35°
Hovering accuracy (GPS mode): Vertical direction: +0.5 m, Horizontal direction: +1.5 m

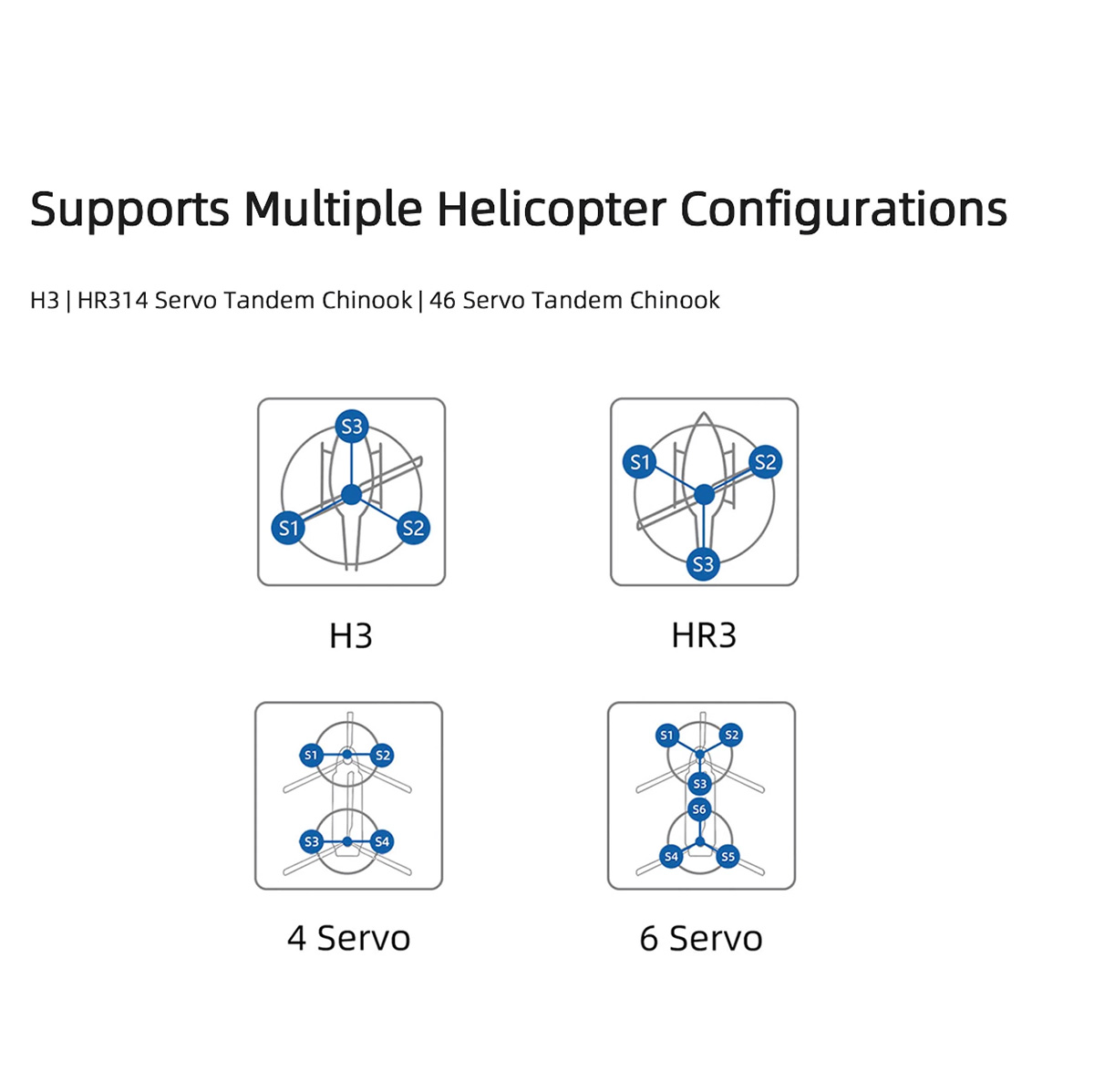

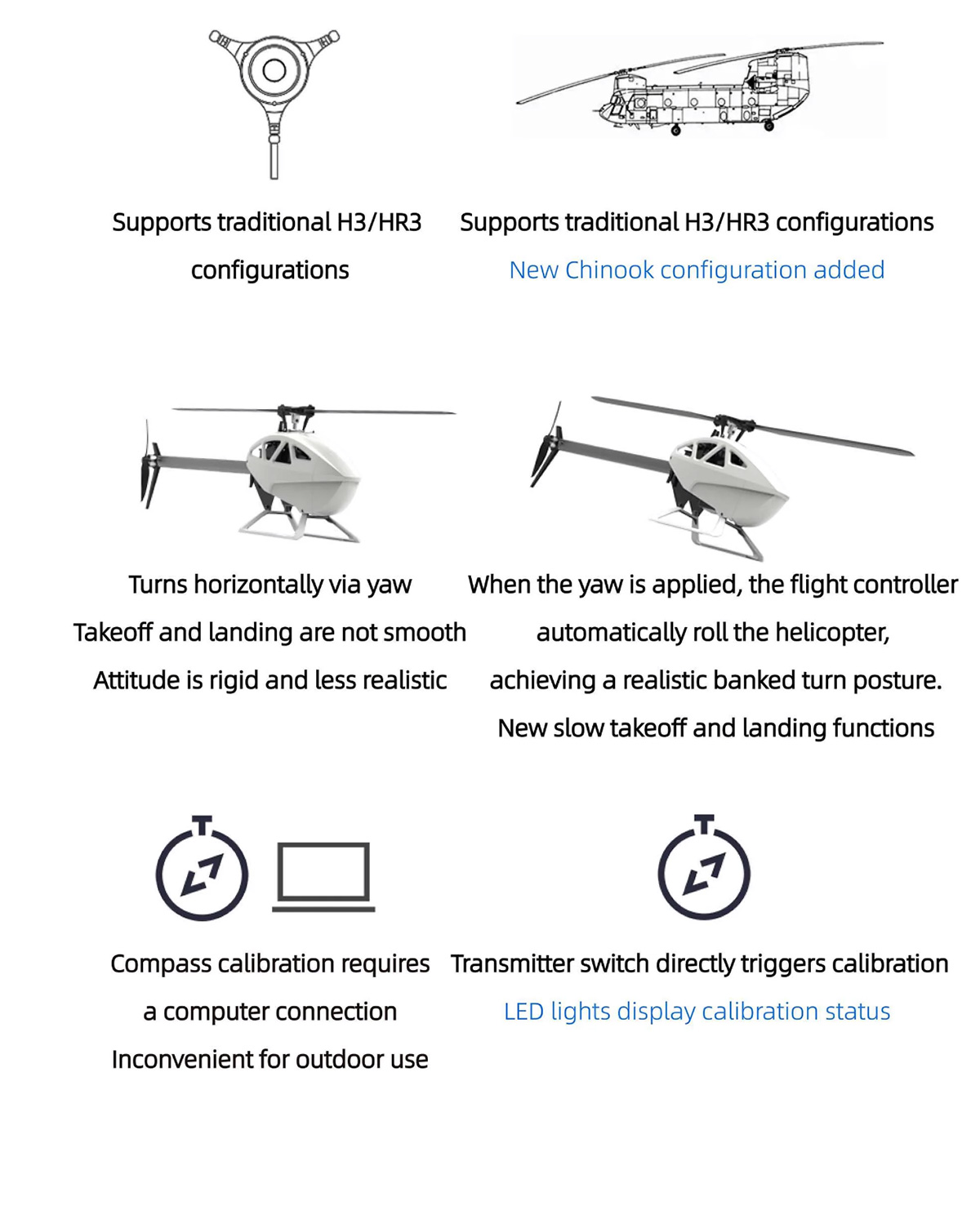

Helicopter Type: HR/H3 aileronless swashplate tandem configuration with 4 servos/6 servos

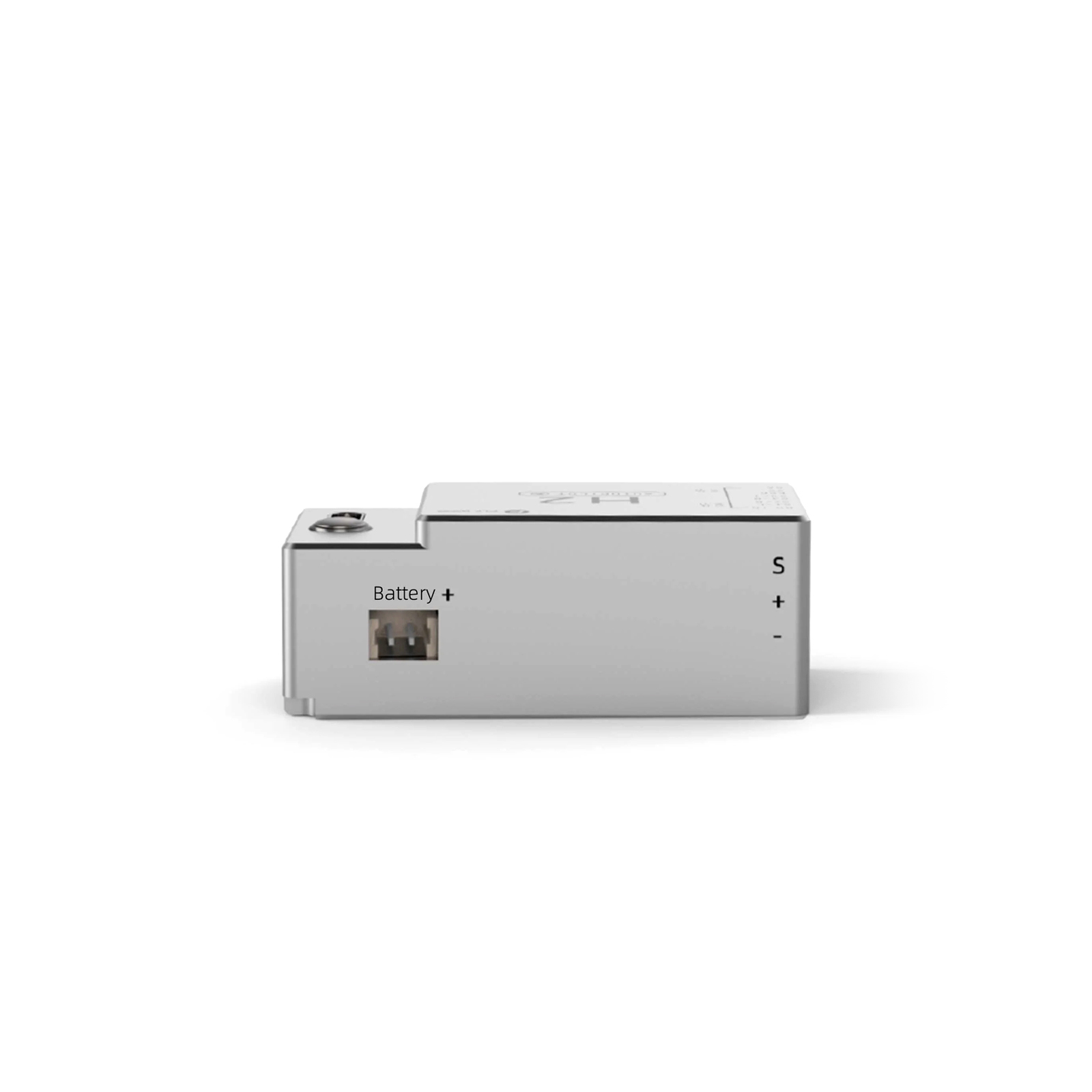

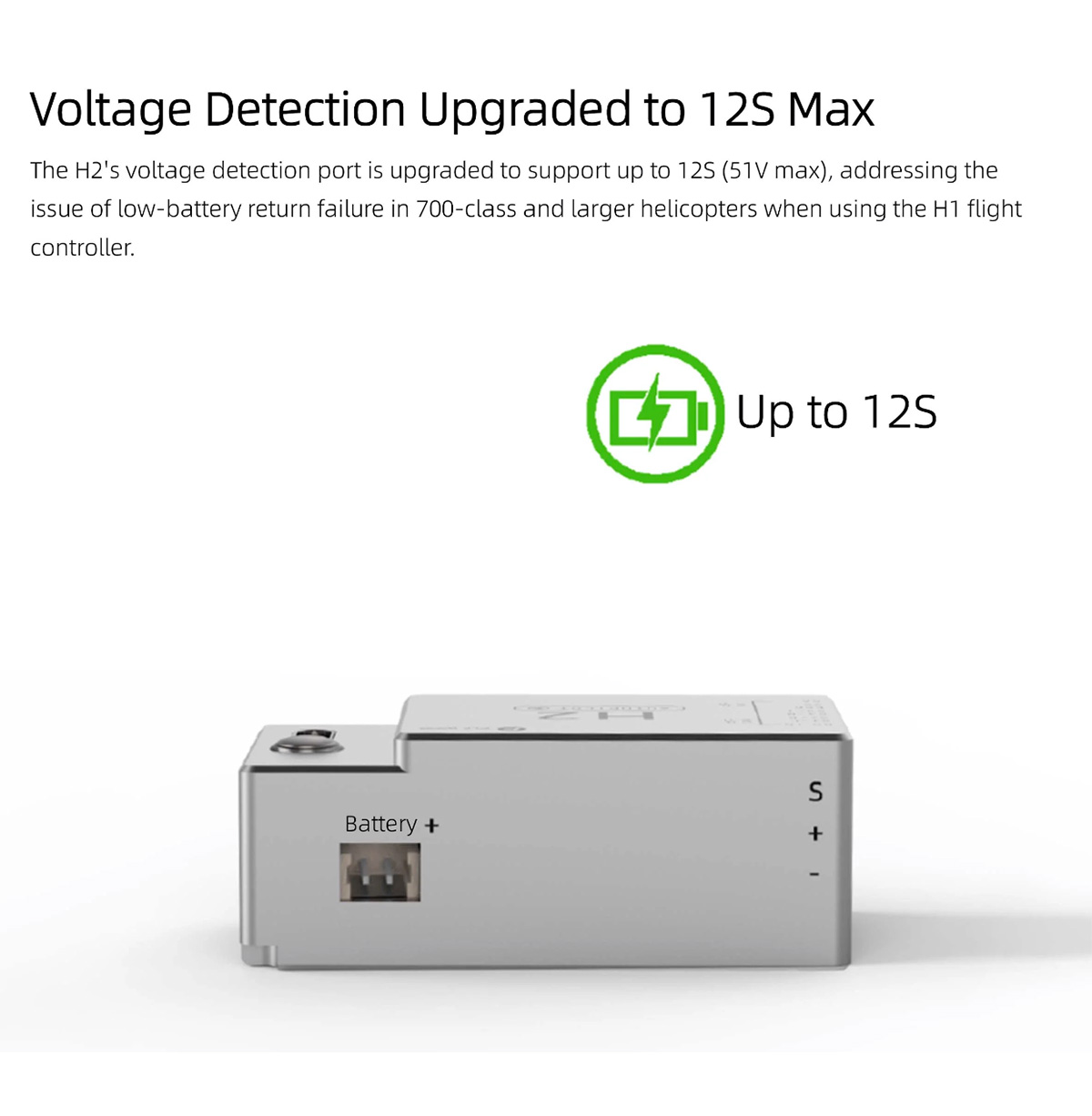

Battery Type: 3S,4S,6S,12SLithium-polymer Battery
Receiver Type: S-BUS/PPM/i-BUS/WBUS/SUMD: DSM2/DSMX
Operating System Configuration Requirements: Win10,Win11 (64-bit)
System rated power loss: 2W
Voltage input range: 6V-13V,Power supply by the BEC of the electronic speedcontroller
Operating ambient temperature: -10°to 55°

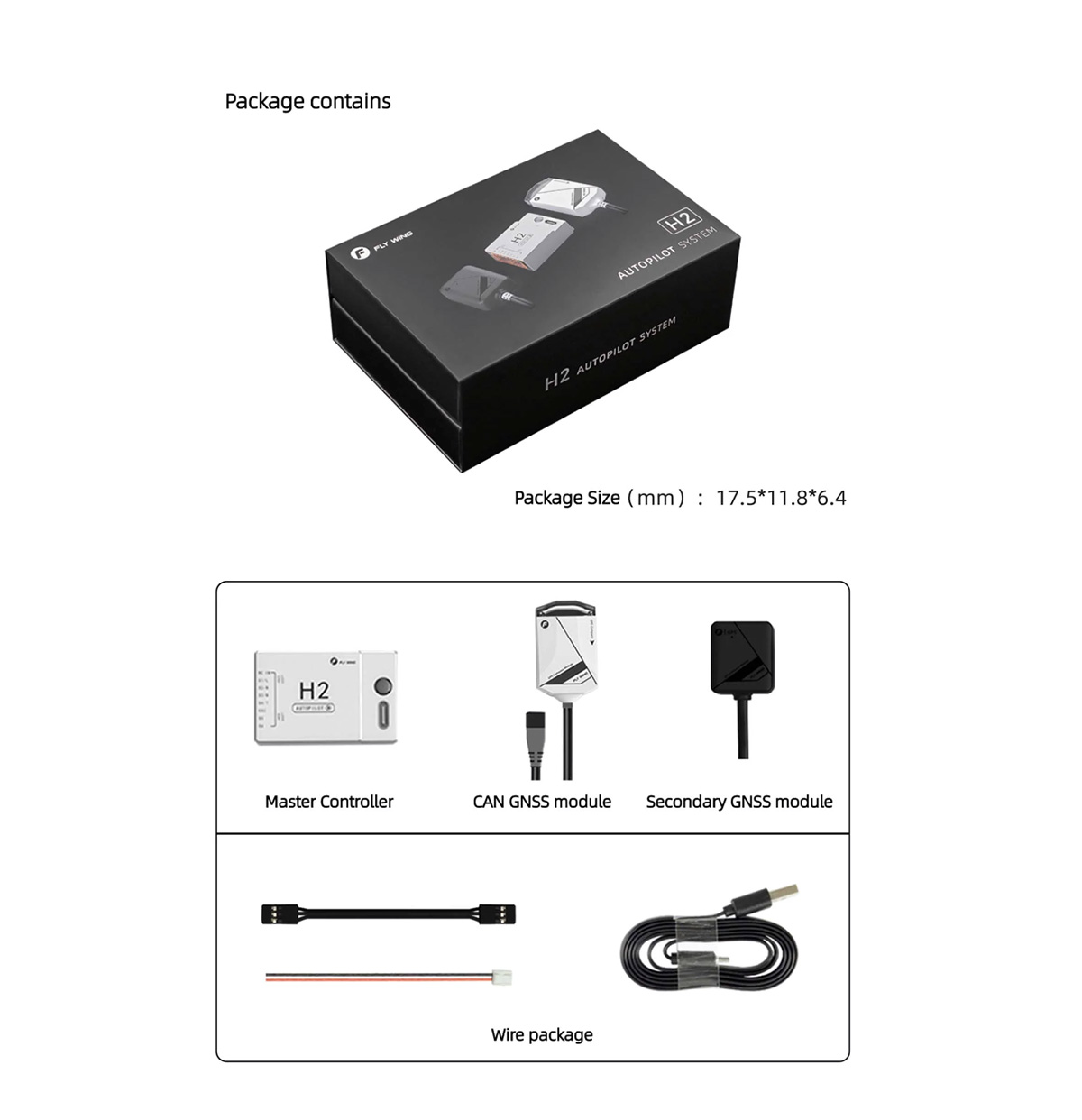

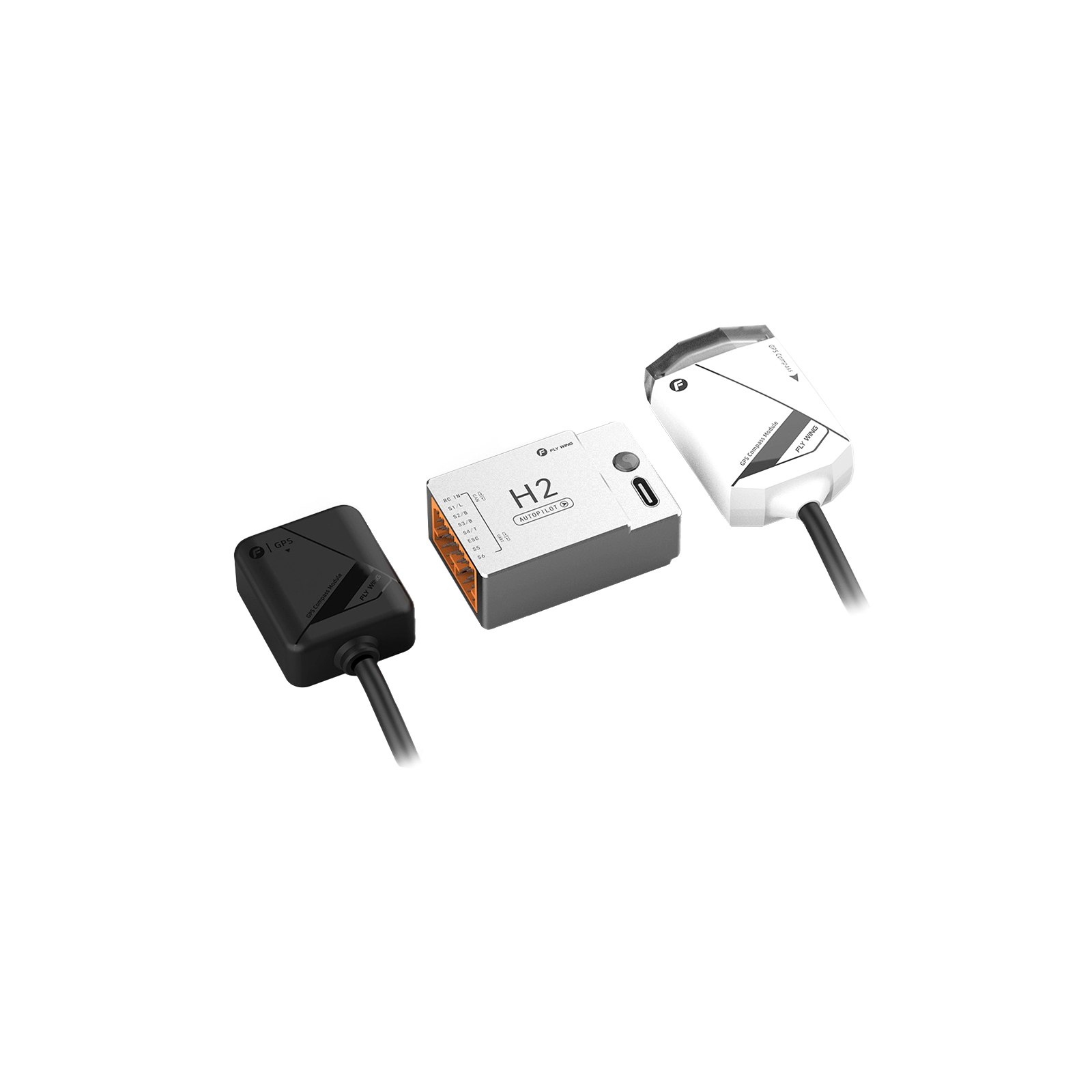

Master Controller x1

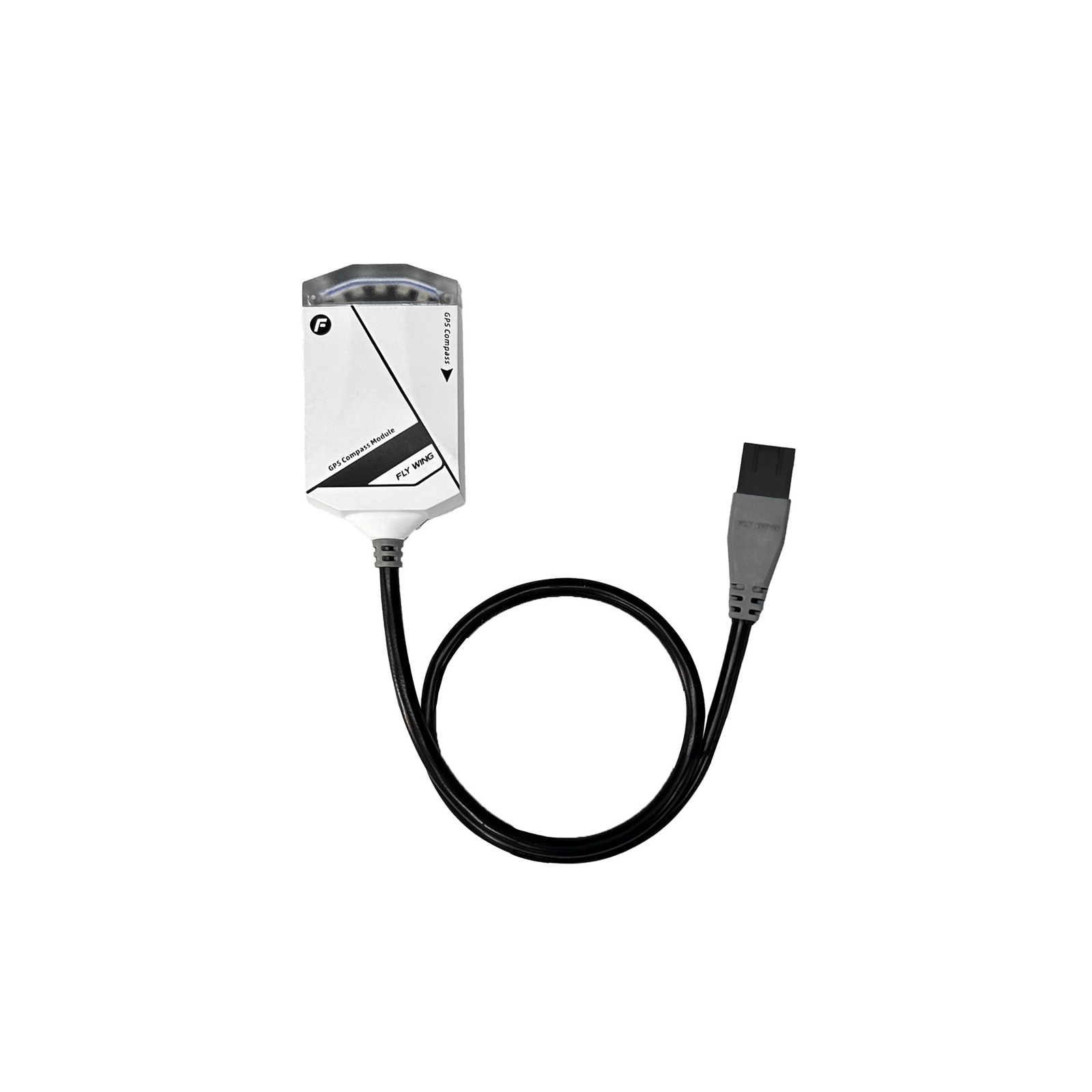

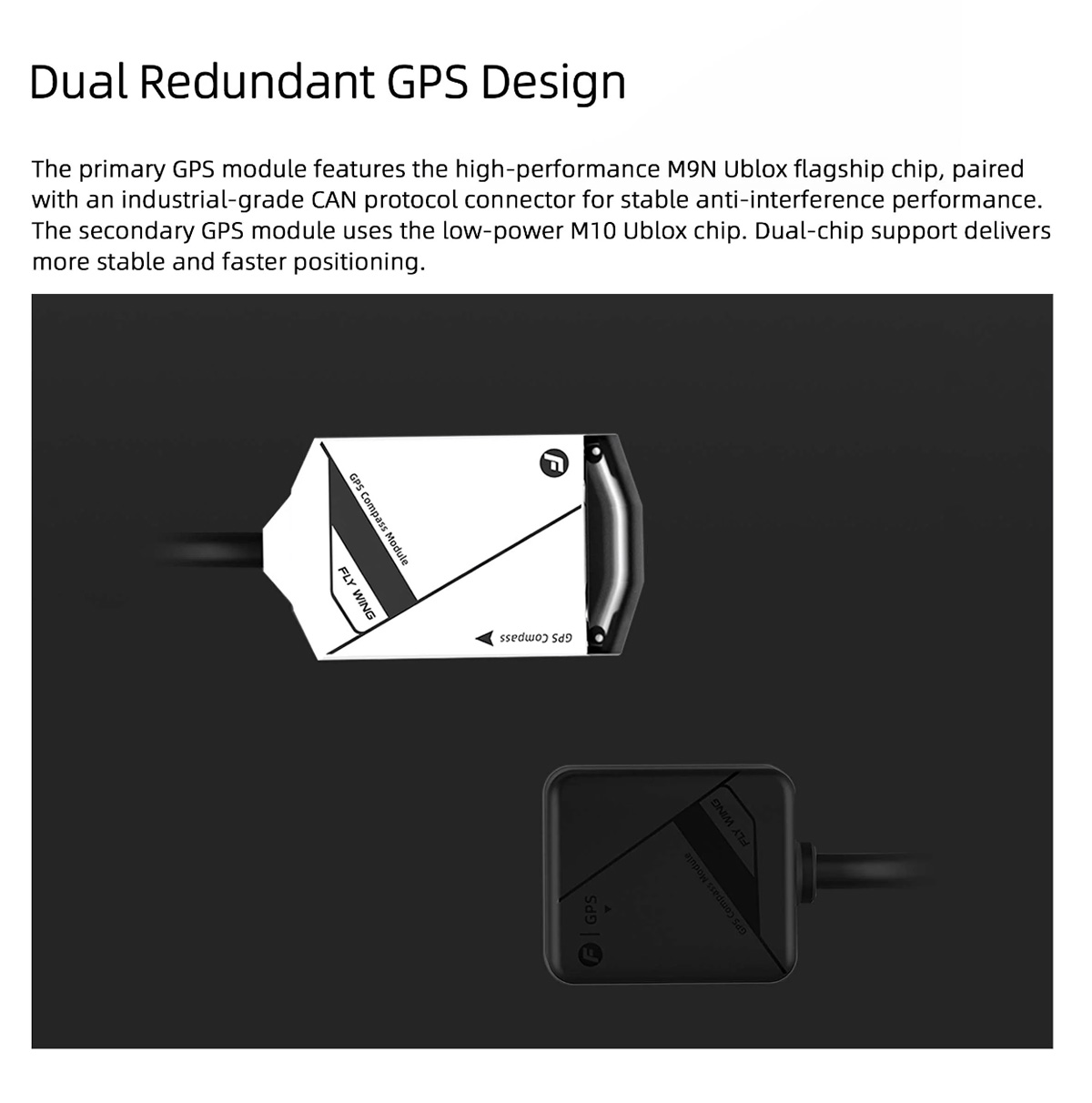

CAN GNSS module x1

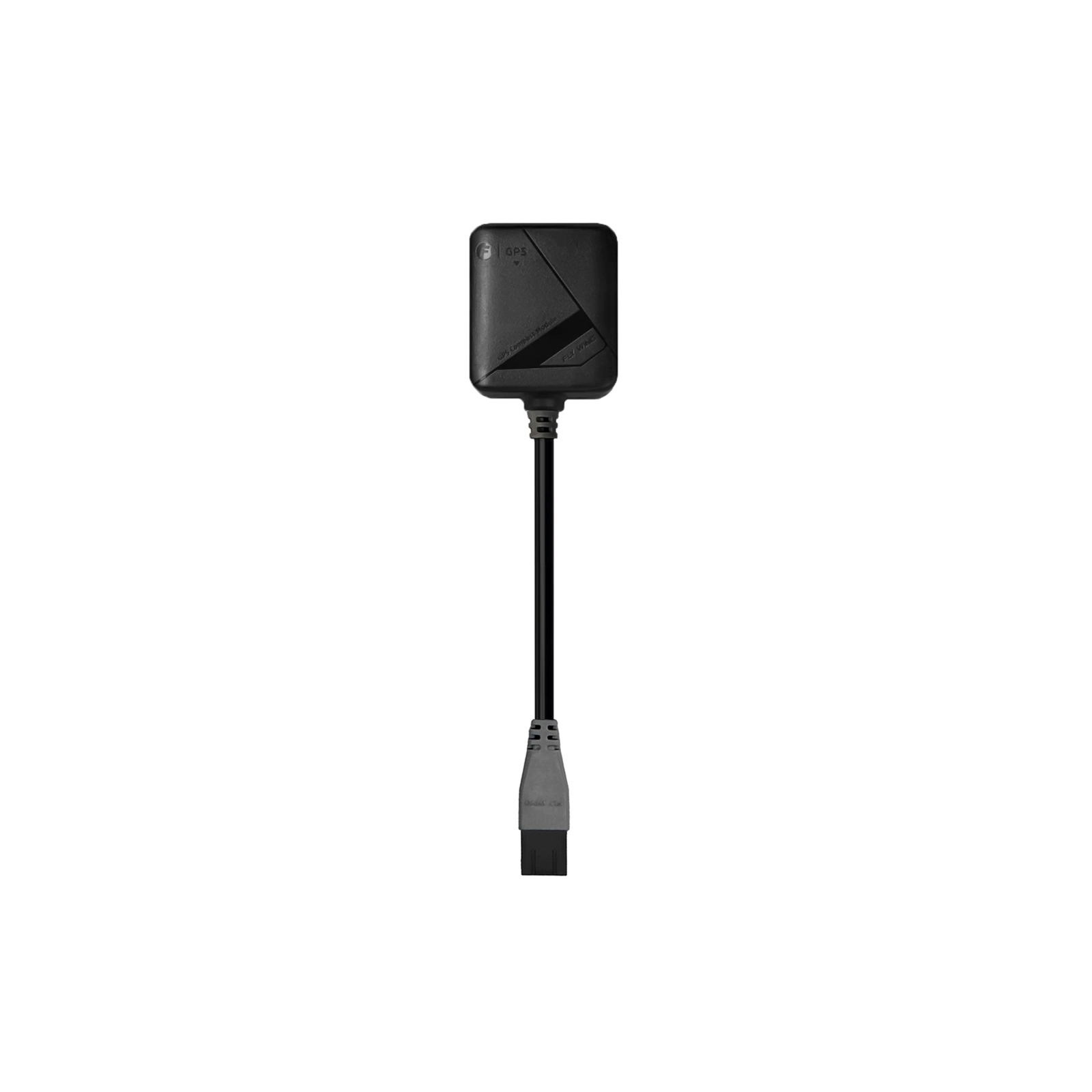

Secondary GNSS module x1
Wire package x1
