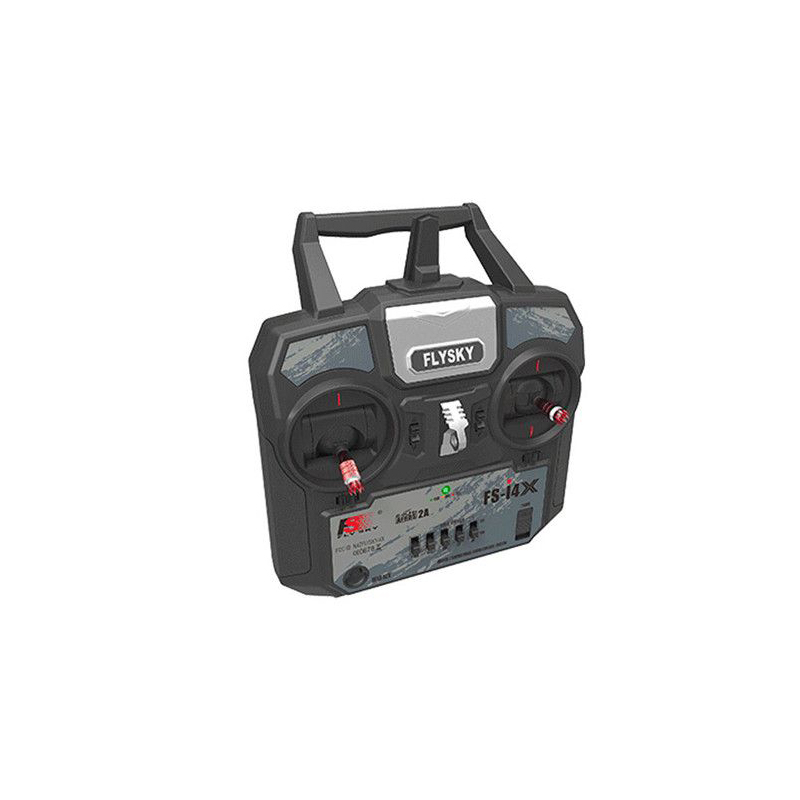

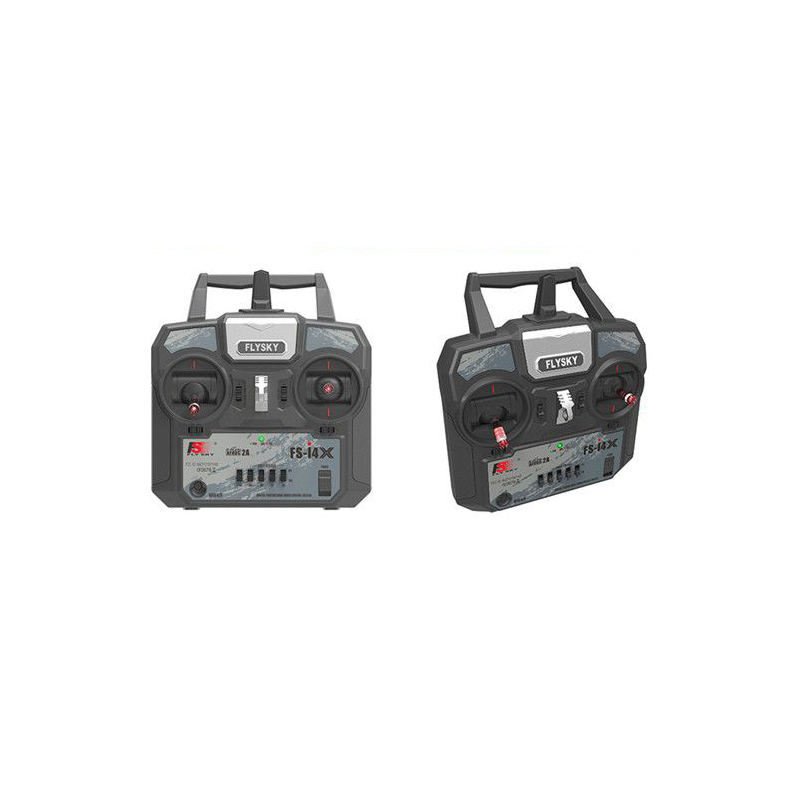

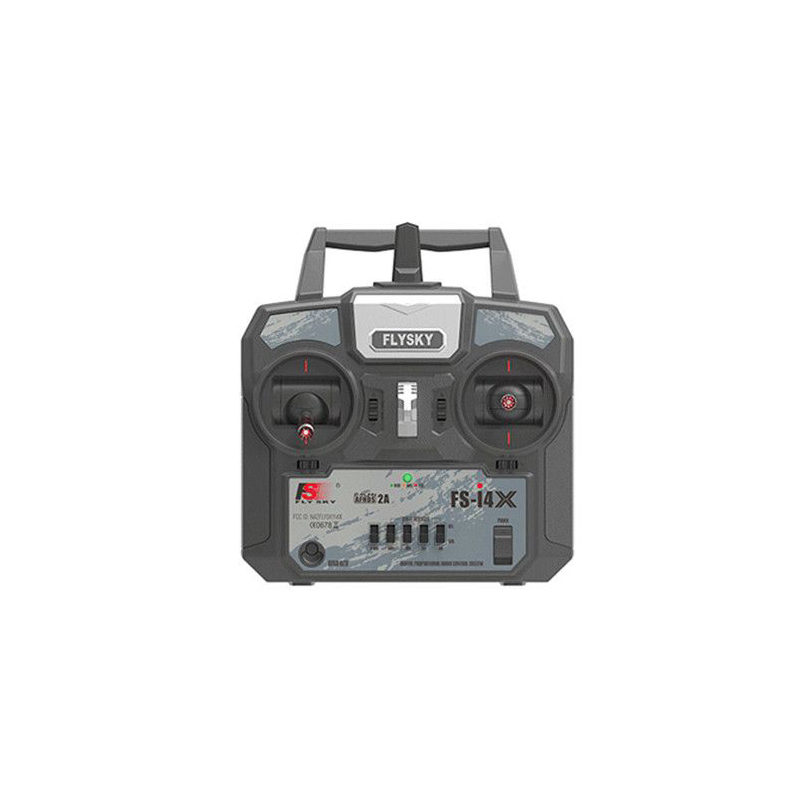

1 Transmitter Specification (FS-i4X)
Channels4 – 10 (Default 4)
Model typeFixed-Wing/Glider/Helicopter
RF range2.4055-2.475GHz
Bandwidth500 KHz
Band140
RF powerLess then 20 dBm
2.4G systemAFHDS 2A and AFHDS
Code typeGFSK
Sensitivity1024
Low voltage alarmYes (lower than 4.2V)
DSC portYes (PS/2 PPM)
Power input6V DC 1.5AA*4
Antenna length26 mm
Weight323g
Dimension (Length x Width x Height)174 x 89 x 190mm
ColorBlack
CertificateCE0678, FCC
.2 Receiver Specification (FS-A6)
Channels6
Model typeFixed-Wing/Glider/Helicopter
RF range2.4055-2.475 GHz
Band140
2.4G systemAFHDS 2A
Code typeGFSK
Power input4.0 to 6.5 V DC
Weight13 g
Antenna length26 mm
Dimension (Length x Width x Height)45 x 23 x 9 mm
ColorGrey (Transparent)
CertificateCE0678, FCC
RX sensitivity-105dBm
i-Bus port No
Data acquisition portNo
