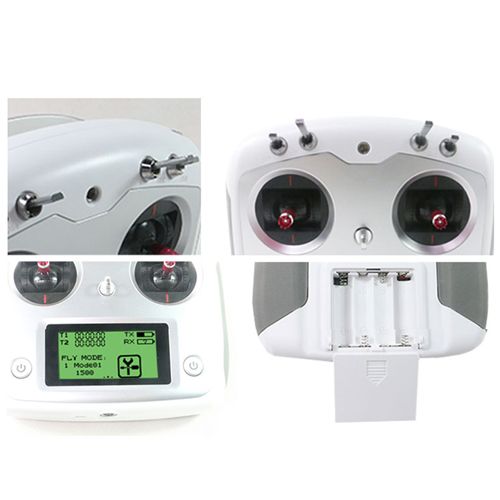

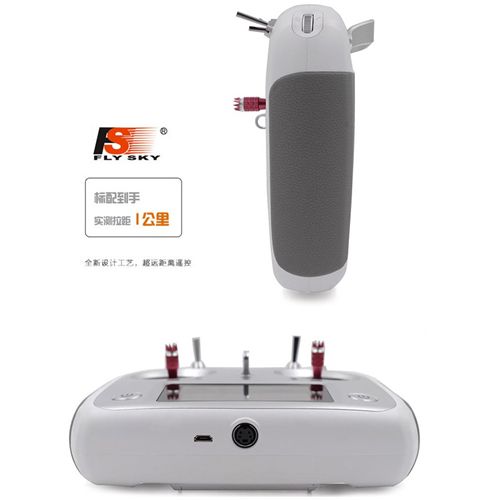

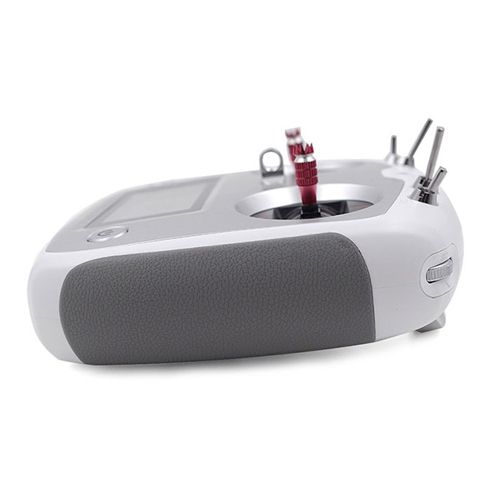

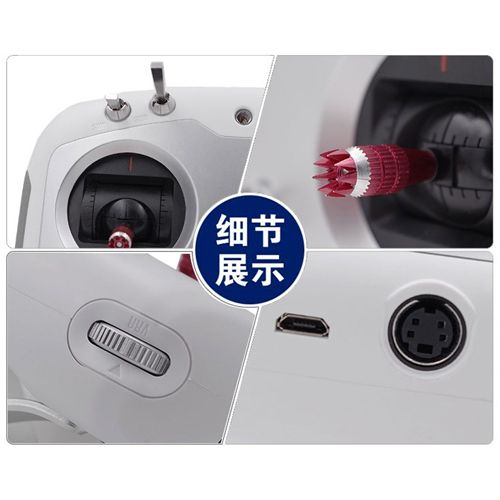

Flysky FS-i6S 2.4G 6CH AFHDS Transmitter With FS-iA6B Receiver
The FS-i6S transmitter and FS-iA6B receiver constitute a 10 channel 2.4GHz AFHDS 2A digital proportional computerized RC System. This system supports quadcopters.
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and patented by Flysky is specially developed for all radio control models.Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity,Flysky’s AFHDS technology is considered to be one of the leaders in the RC market today.
Description:
Brand Name: Flysky

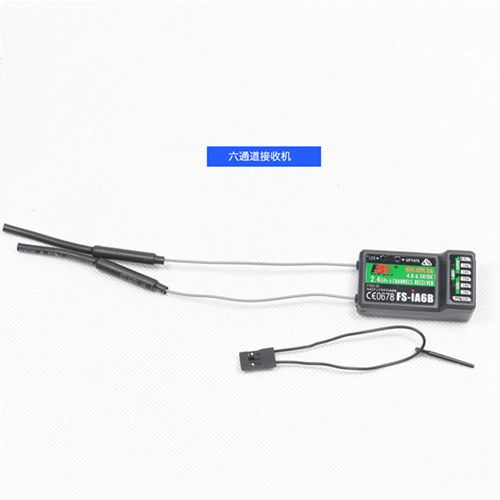

Item Name: FS-i6S with FS-iA6B receiver
Note: If this transmitter bind with the FS-iA10B receiver,it can extend to 10 channel.
| FS-i6S Transmitter | FS-iA6B Receiver | |
| Channel | 6 | 6 |
| Frequency | 2.4055 – 2.475GHz | 2.4055 – 2.475GHz |
| Band Width | 500KHz | —– |
| Band Number | 140 | 140 |
| Transmitting Power | <20dbm | —– |
| Receiver Sensitivity | —– | -105dbm |
| 2.4G Mode | AFHDS | AFHDS |
| Modulation System | GFSK | GFSK |
| Joystick Resolution | 4096 class | —– |
| Low-Voltage Alarm | <4.2V | —– |
| Charging Port | Yes (USB) | —– |
| Input Voltage | 4.2V-6.0V | 4.0V-6.5V DC |
| Antenna Length | 26mm (dual antenna) | 26mm (dual antenna) |
| Weight | 410g | 14.9g |
| Dimension | 179*81*161mm | 47*26.2*15mm |
| Color | Black,white (optional) | Black |
| Mode | Mode 1,Mode 2 (optional) | —– |
| Certification | CE0678,FCC | CE0678,FCC |
1x Flysky FS-i6S Transmitter
1x Flysky FS-iA6B Receiver
1x User Manula
