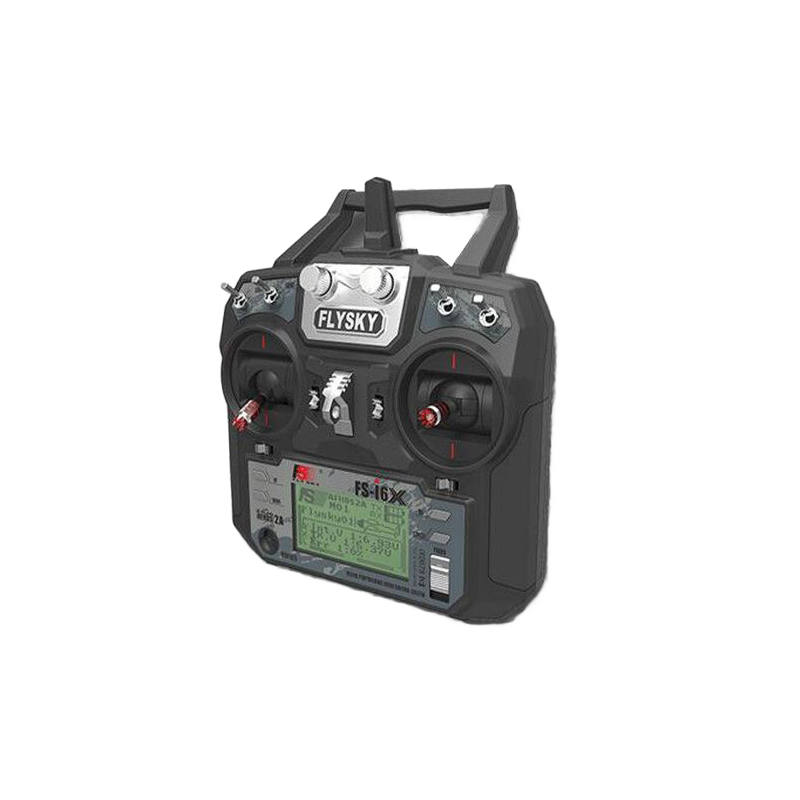

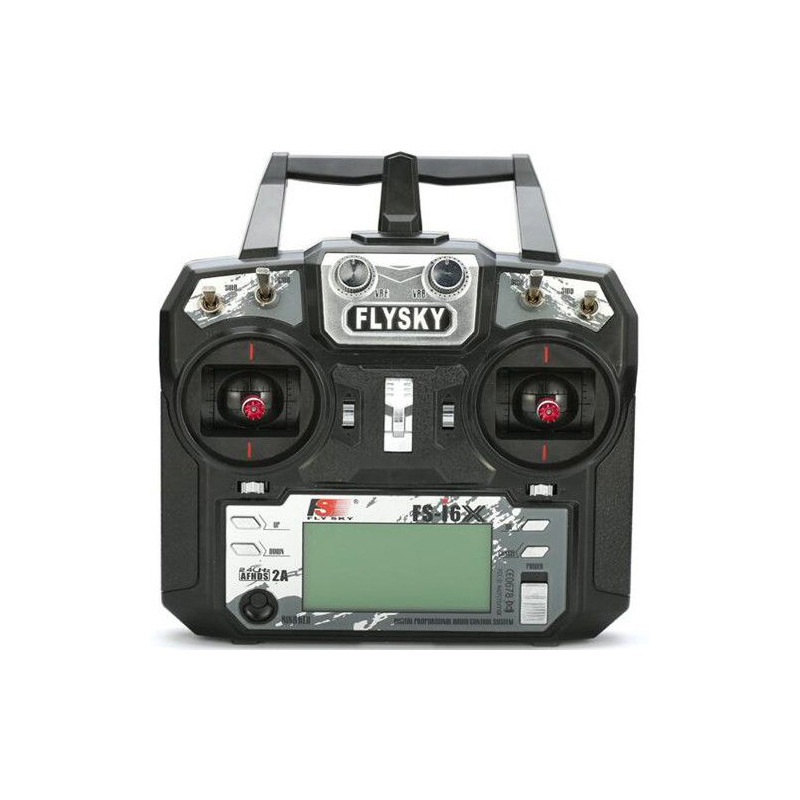

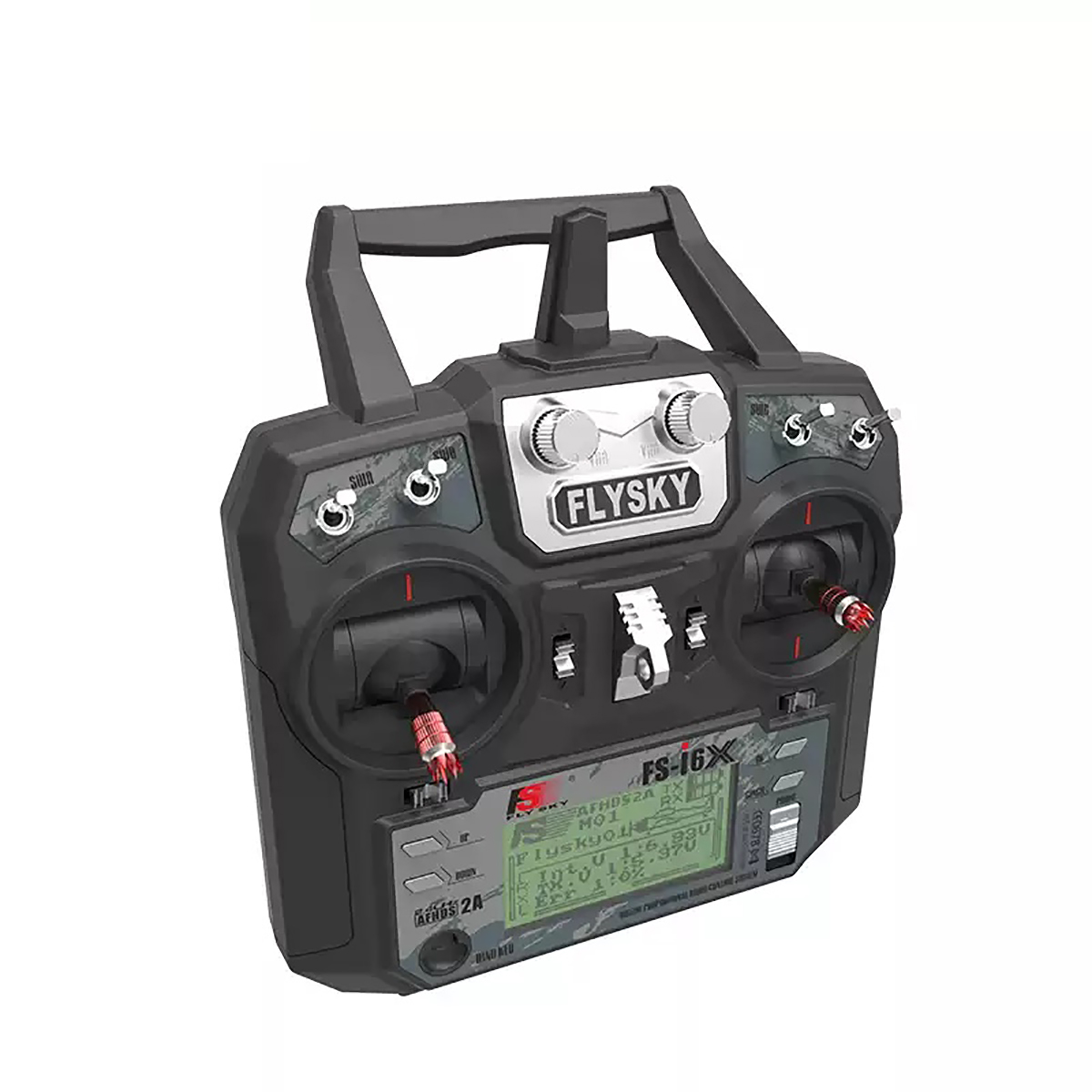

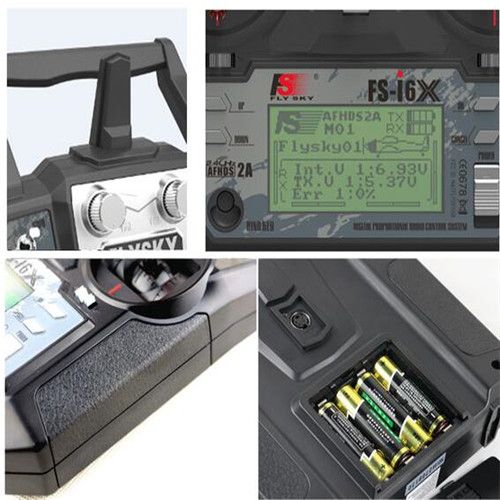

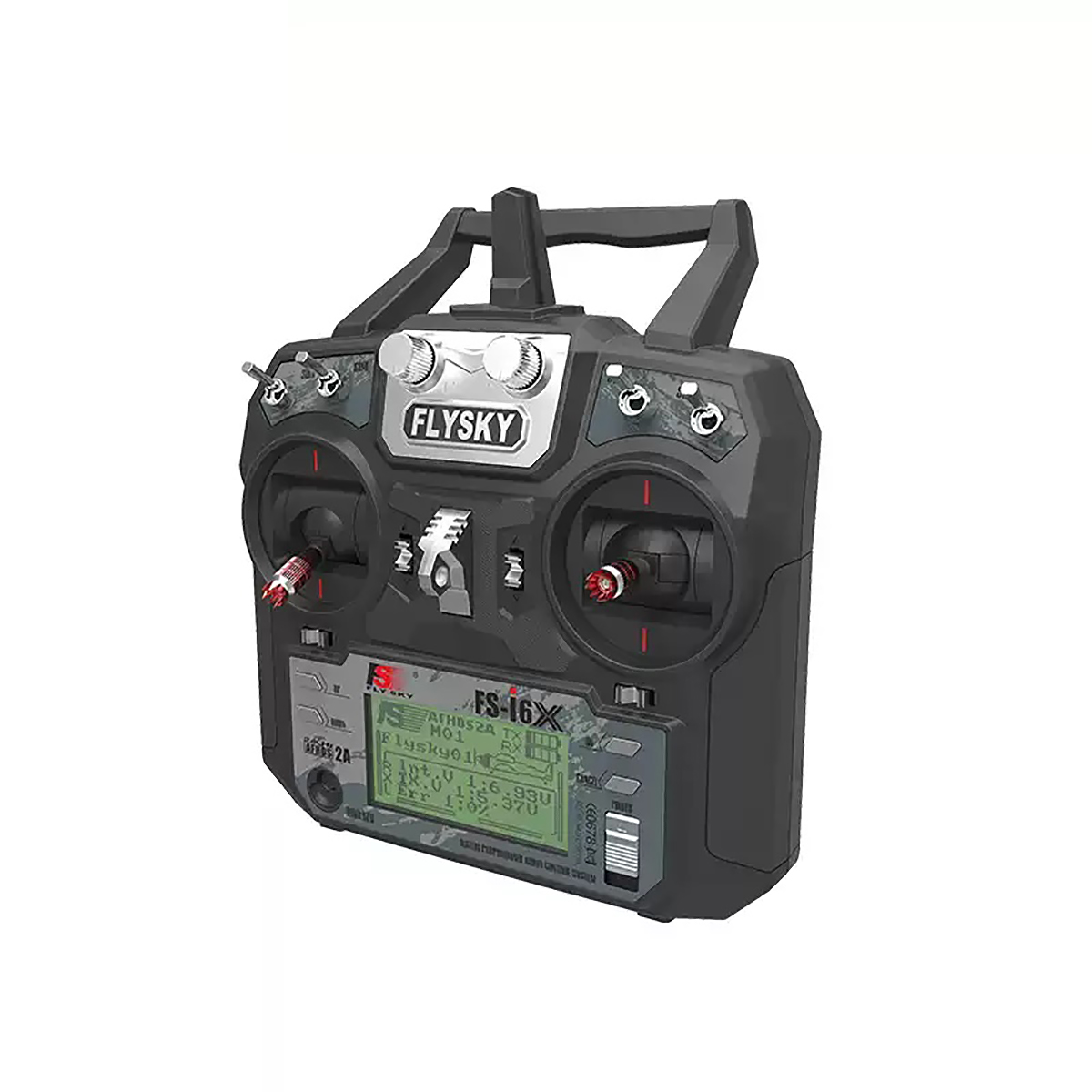

Flysky FS-i6X 2.4GHz 10CH AFHDS 2A RC Transmitter With Receiver for RC Model
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY’s AFHDS technology is considered to be one of the leaders in the RC market today.
Bidirectional Communication
Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.
Multi-channel Hopping Frequency
This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.
Omni-directional Gain Antenna
The high efficiency Omni-directional high gain antenna cuts down o interference, while using less power and maintaining a strong reliable connection.
Unique ID Recgnition System
Each transmitter and receiver has it’s own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.
Low Power Consumption
The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.
FS-i6X Specifications:
Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6)
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: < 20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: < 4.2V DSC port: PS/2 Port PPM Chargeable: No Antenna Length: 26mm (Dual Antenna) Weight: 392g Power: 6V DC 1.5AA*4 Display: STNTransflective Display, LCD 128×64 Lattice, VA 73x39mm, LCD with white backlight Size: 174x89x190mm On-line Update: Yes Color: Black Certificate: CE0678, FCC ID: N4ZFLYSKYI6X X6B i-BUS Specifications: Brand Name: Flysky Item: X6B i-BUS Receiver Channels: 6(PWM), 8(PPM), 18(i-BUS) Model Type: Multi-Totor RF Range: 2.408-2.475 GHz Brand Wigth: 500KHz Number of bands: 135 RF Power: No more than 20 dBm RX Sensitivity: -95dBm 2.4GHz protocol: AFHDS 2A Modulation Type: GFSK Stick resolution: 1024 Low voltage alarm: Yes DSC port: PPM/PWM/i-BUS Antenna Length: 93mm (Dual Antenna) Power input: 4.0-8.4V On-line Update: Yes(Wireless) Range: >300m
Weight: 4.5g
Size: 36*22*7.5mm
i-BUS Port: Yes
Certificate: CE0678, FCC ID: N4ZX6B00
Model: X6B i-BUS 2.4GHz 6CH Receiver
Channels: 6(PWM), 8(PPM), 18(i-BUS)
Model Type: Multi-Totor
RF Range: 2.408-2.475 GHz
Brand Wigth: 500KHz
Number of bands: 135
RF Power: No more than 20 dBm
RX Sensitivity: -95dBm
2.4GHz protocol: AFHDS 2A
Modulation Type: GFSK
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM/PWM/i-BUS
Antenna Length: 93mm (Dual Antenna)
Power input: 4.0-8.4V
On-line Update: Yes(Wireless)
Range: >300m
Weight: 4.5g
Size: 36*22*7.5mm
i-BUS Port: Yes
Certificate: CE0678, FCC ID: N4ZX6B00
Compitable Transmitter: All AFHDS 2A Transmitter, for example FS-i10 FS-i6,FS-i6S, FS-i6X, FS-i4, FS-i4X.
Model: FS-IA6B
Number of channels: 6
Antenna length: 26mm * 2 (dual antenna)
Suitable models: Airplane / glider / helicopter / multirotor
Weight: 14.9g
Frequency range: 2.4055-2.475GHZ
Input Power: 4.0-6.5V DC
The number of bands: 140
Dimensions: 47.4 * 26.2 * 15mm
Transmitting power: not more than 20DBM
Color: Black
Receiving sensitivity: -105DBM
Certification: CE0678, FCC
2.4G models: the second-generation Enhanced automatic frequency digital system
Modulation: GFSK
I-BUS Interface: YES
Data Acquisition Interface: YES
Model: FS-iA10B
Channel: 10
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Antenna Length: 26mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Weight: 19.3g
Size: 51mm*34mm*15mm
Color: Black
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Glider / Helicopter
Compatible Transmitter: Compatible with FS-i4, FS-i6,FS-i6S, FS-i10,FS-iT4S
FS-i6X+X6B Receiver
Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter x1
Flysky FS-X6B i-BUS Receiver x1
FS-i6X+iA6B Receiver
Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter x1
Flysky FS-iA6B Receiver x1
FS-i6X+iA10B Receiver
Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter x1
Flysky FS-iA10B Receiver x1
