Flysky Paladin PL18 Ultra Radio Transmitter 3.5 Inch 18 Channel AFHDS 3 with FTr8B Receiver for RC Drone Airplane

SKU PL18-ULTRA-FTR8B Category Transmitter ＆ Receiver Tag Remote Controller Brand: FLYSKY

Flysky Paladin PL18 Ultra Radio Transmitter 3.5 Inch 18 Channel AFHDS 3 with FTr8B Receiver for RC Drone Airplane

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

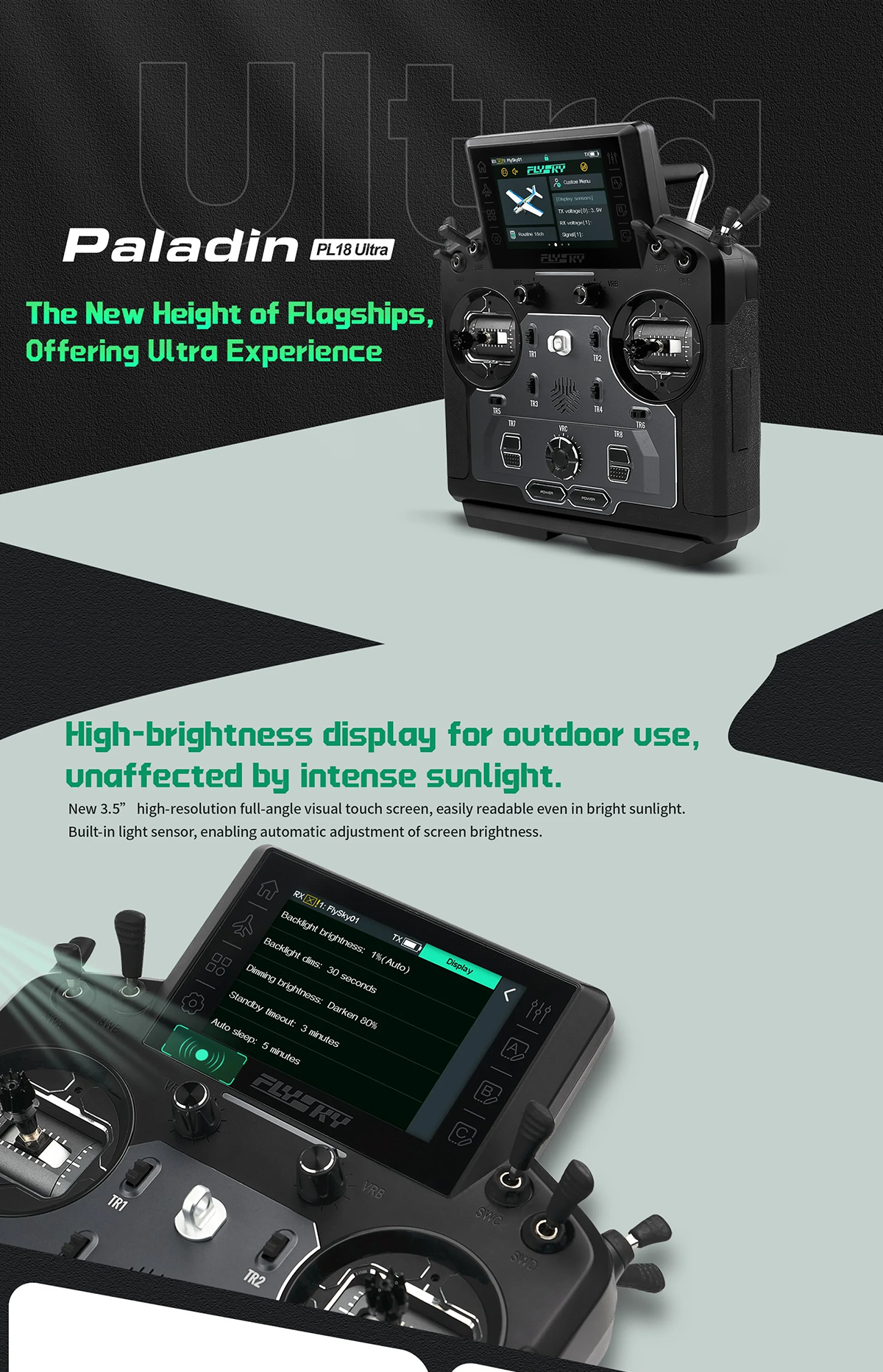

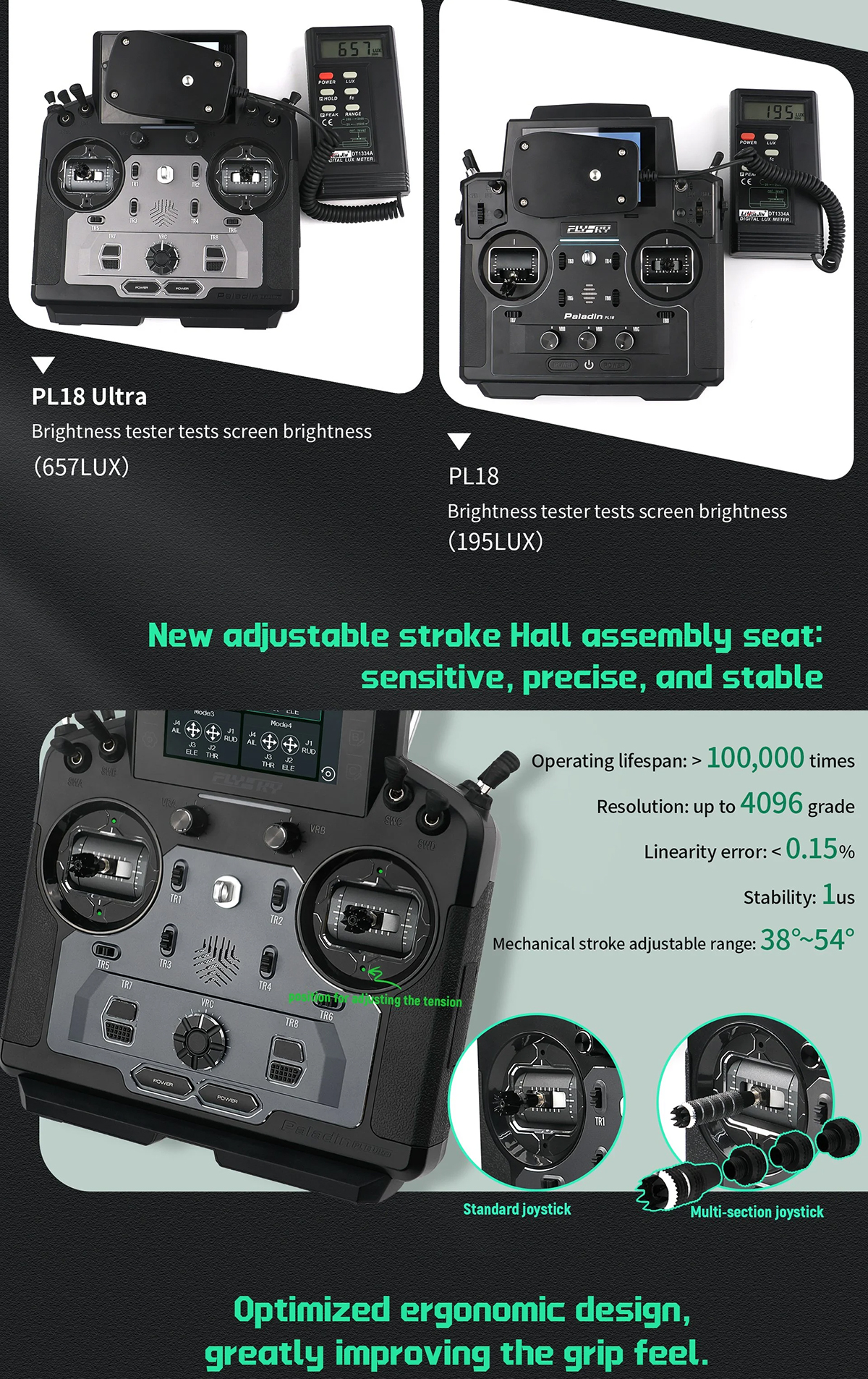

3.5-inch high-resolution full-angle touch screen with light sensor (auto-brightness adjustment), clear visibility in strong outdoor sunlight

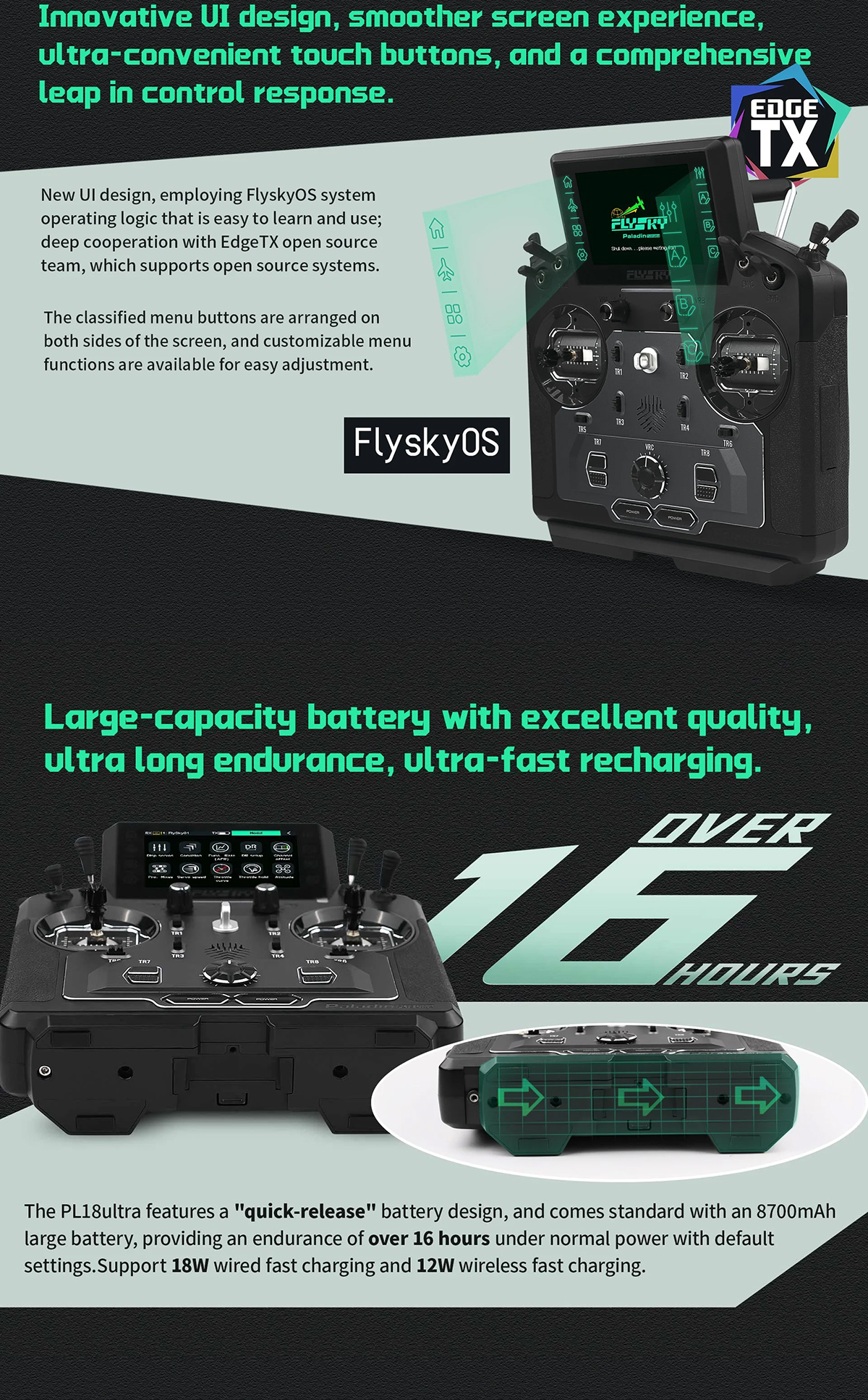

8700mAh quick-release battery, 16+ hours of battery life, supports 18W wired + 12W wireless fast charging
Dual redundancy signal protection, 50 model storage slots, supports data recording, fuel alert, and sensor monitoring

Model: PL18 Ultra

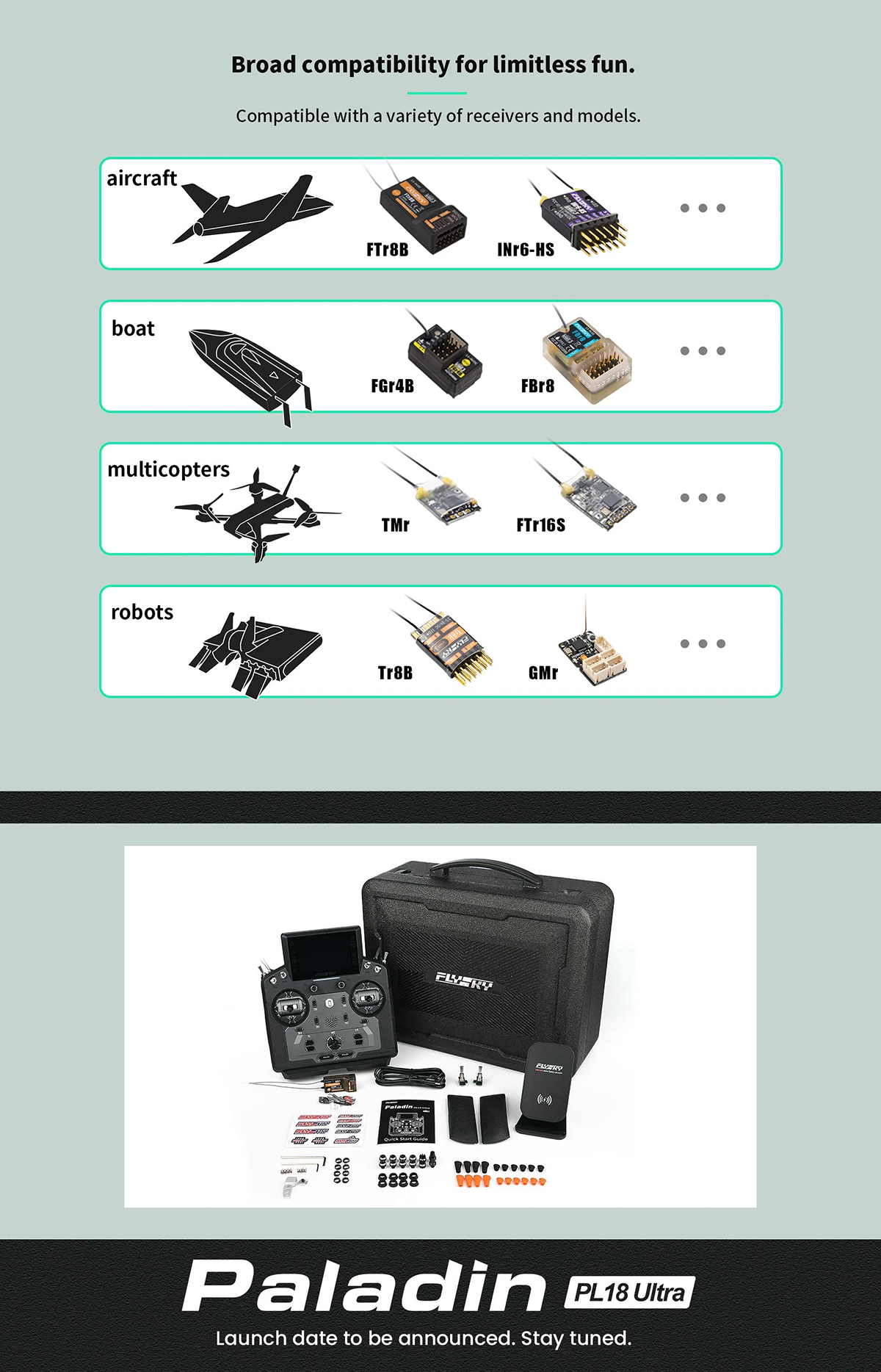

Compatible Receivers: Receiver with AFHDS 3 protocol, such as FTr12B, FTr8B, Tr8B, FTr10, FTr16S, FTr4, INr6-HS and TMr for RC air models, FGr8B, FGr4B, FGr12B, FGr4P, FGr4S, FGr4 and GMr for RC cars, FBr12 for RC boats, etc.
Number of Channels: 18
Number of Bands: 171
Model Type: Airplanes, gliders,helicopters, multicomputers, cars, boats or robots
RF: 2402.15MMHz-2479.85MMHz
Maximum Power: < 20 dBm (e.i.r.p.) （EU）
RF Protocol: AFHDS3
Channel Resolution: 4096
Input Power : 1S (3.6V)*8700mAh
Charging Jack: USB Type-C/Wireless charging
Low Voltage Alarm: Yes
Antenna: Two built-in antennas (FPC antenna)
Display: 320*480 resolution IPS touch color screen
Language : Chinese or English
Simulator: USB Simulator
Data Connector: USB Type-C, TEI expansion connector, DSC 3.5mm trainer Jack (PPM), SD card slot
Operating Temperature: -10℃~ +60℃
Charging Temperature: 0~45℃
Humidity Range: 20% ~ 95%
Firmware Update: Supported
Weight: 1005g
Color: Black
Dimensions (length x width x height): 212.5*86.7*191 mm
Certification: SRRC, CE, FCC ID: 2A2UNPL18ULTRA

Model: FTr8B Receiver
Compatible transmitters: all AFHDS 3 transmitters and RF Modules (PL18, NB4, NB4 Lite, etc.)
Model Type: fixed wing, glider, helicopter, delta wing, engineering vehicle, etc
PWM Channels: 8
RF: 2.4GHz
2.4G Protocol: AFHDS 3
Antenna: Dual Antennas
Input Power: 3.5-9V
Data Output: PWM/PPM/i.BUS out/S.BUS
Temperature Range: -10℃ to +60℃
Humidity Limit: 20%-95%
Online Update: Yes
Dimensions: 46*23.8*14.8mm
Weight: 11.3g
Certification: CE，FCC ID: N4ZFTR8B
