Sensor Type：Sony 1/3″ CMOS Sensor
Scale：4:3(default)/16:9 Switchable
Tv System：PAL(default)/NTSC Switchable
Resolution：Digital 720P/Analog 1000TVL
Shutter Speed：PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
Video Output：720P Digital HD/CVBS Analog Signal
FOV
1.Digital: FOV-H:120° FOV-D: 145°
2.Analog: FOV-H:125° FOV-D: 155°
Shutter Speed：Auto
Minimum Illumination：0.01Lux
White Balance：Auto
DNR：3DNR 2DNR
WDR：120dB
Mode：DAY/CLOUDY/Night/LED
Fast Mode Switch：Long Press Right Button to switch among DAY/CLOUDY/Night/LED
Flight OSD：Cam Title / Voltage (Only in analog) / Time
Input Power
1.Digital: 3.3V from VTx
2.Analog: 4.5~20V
Language ：ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文
Working Temperature：-10°~50°C RH90% MAX
Working Humidity：20~80%
Storage Temperature：-20°~70°C

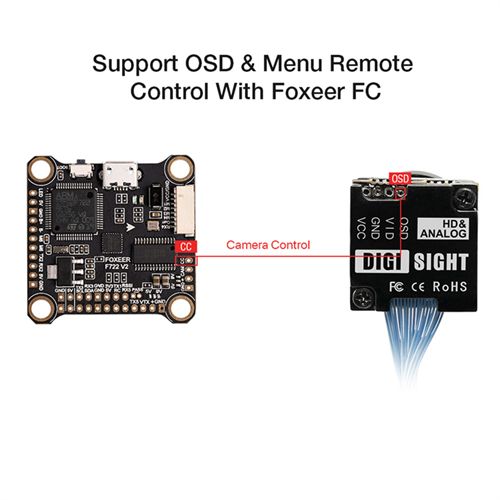

Menu：Analog via camera programming board, Digital via VTx and Cam board
Consumption
1.Analog:50mA±15% @ DC12V 115mA±15% @ DC5V
2.Digital:350mA@3.3V(Powered by VTX)
Cable Length：150mm

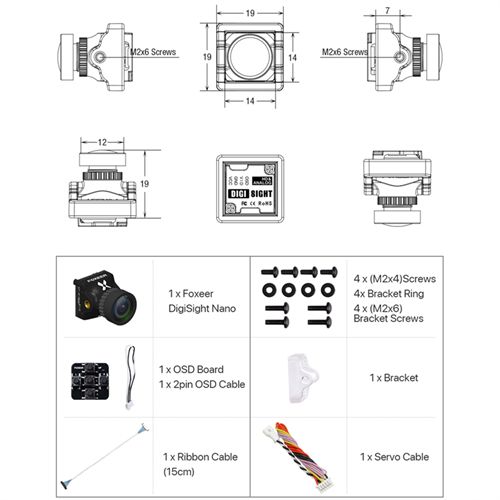

Dimension：14*14mm; 19*19mm(Add Bracket)
Weight：4.3g(Exclude cable)
