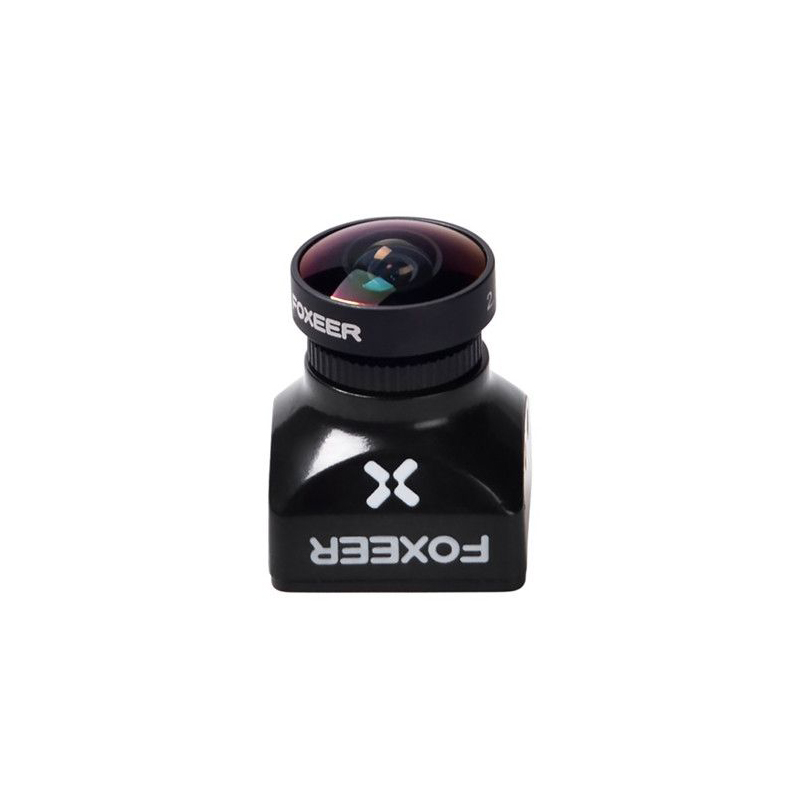

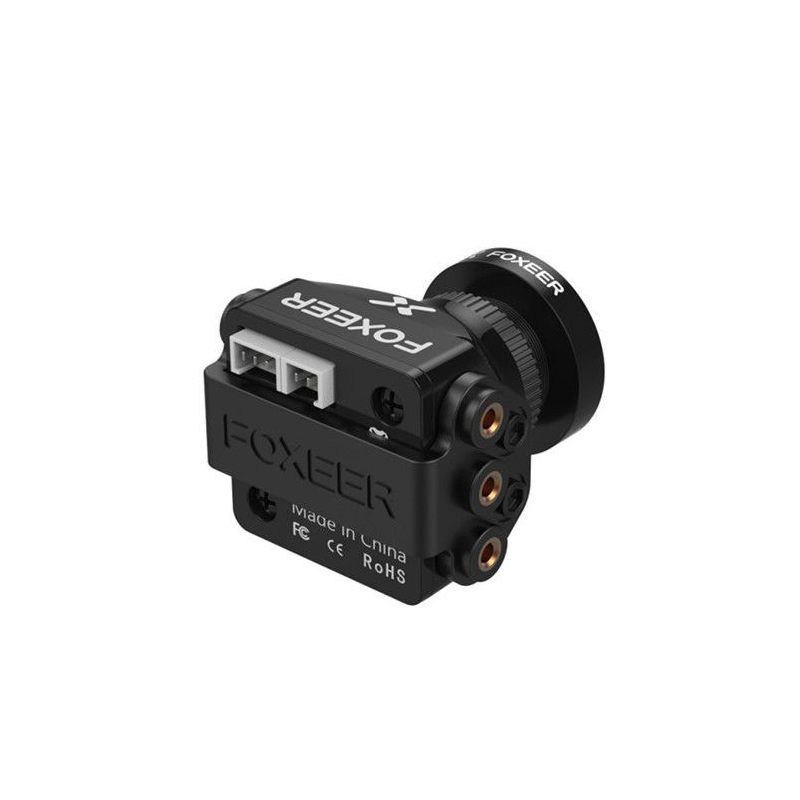

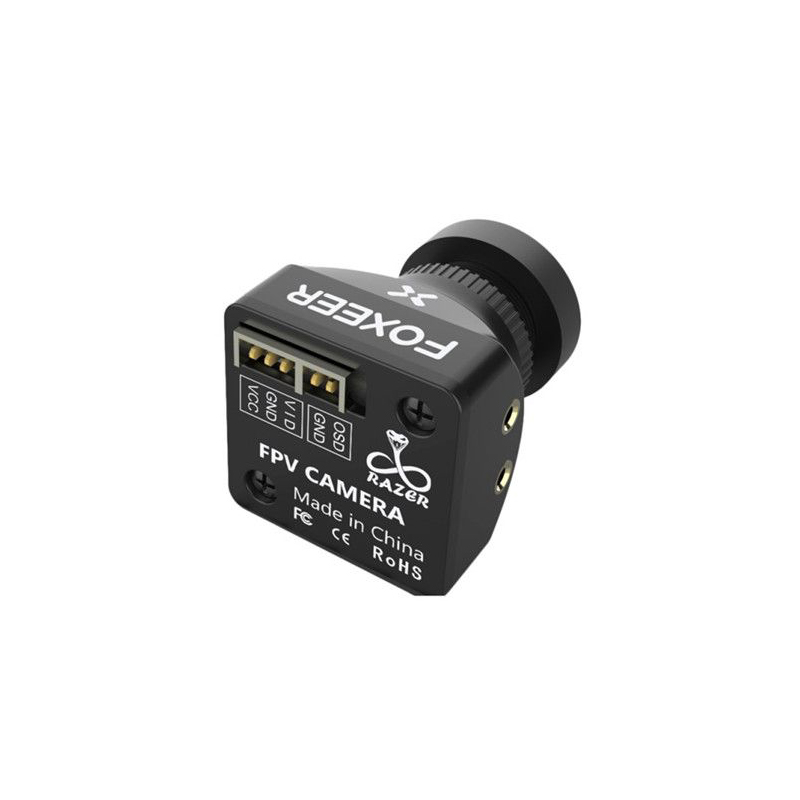

Foxeer Mini Standard Razer 1200TVL 16:9 PAL NTSC Switchable 4ms Latency FPV Camera For RC Drone
Foxeer Mini Standard Razer 1200TVL 16:9 PAL NTSC Switchable 4ms Latency FPV Camera For RC Drone
– 1200TVL definition with advanced natural image.
– HD 5MP 2.1mm M12 Lens.
– 4:3/16:9 optional, PAL/NTSC switchable.
– Supports 4.5~25V input voltage.
Sensor Type: Sony 1/3″ CMOS Sensor
Scale: 4:3/16:9 Optional
Tv System: PAL/NTSC Switchable
Resolution: 1200TVL
Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
Video Output: CVBS Analog Signal
FOV: 4:3 FOV-H:125° FOV-D: 155° / 16:9 FOV-H:125° FOV-D: 145°
Shutter Speed: Auto
Minimum Illumination: 0.01Lux
White Balance: Auto
DNR: 3DNR
WDR: 90dB
DAY/NIGHT: EXT/Auto/Color/B&W
Flight OSD: Voltage/Cam Title/Time
Input Voltage: 4.5V~25V
Working Temperature: -10°~50°C RH90% MAX
Working Humidity: 20~80%
Storage Temperature: -20°~70°C
Dimension: 22*22mm
Weight: 12g(Exclude cable)
Foxeer Razer Mini Cam x 1
Bracket (21 to 28) x 1
Servo Cable x 1
2pin OSD Cable x 1
OSD Board x 1
Manual x 1
Screws x 1
