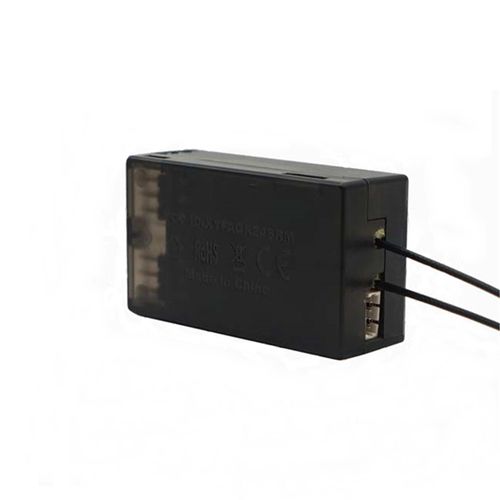

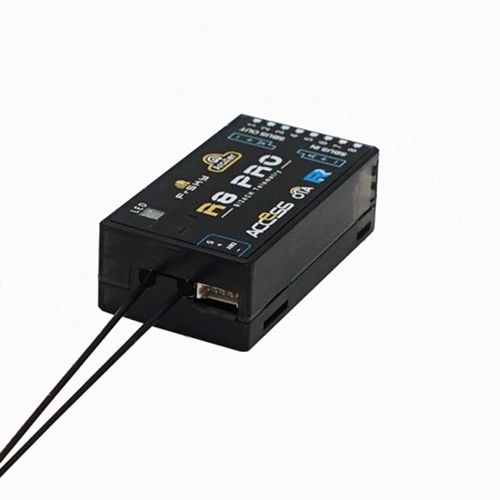

FrSky 2.4GHz ARCHER R8 Pro RECEIVER with OTA Supports Signal Redundancy For RC FPV Drones








FrSky 2.4GHz ARCHER R8 Pro RECEIVER with OTA Supports Signal Redundancy For RC FPV Drones
The Archer R8 PRO has 8 high-precision PWM channel outputs and features excellent Anti-interference performance when it comes to spark-ignition on internal combustion models. It supports full-range signal strength with dual detachable antennas that assure optimal antenna reception and maximum range. In addition to all this, the R8 Pro can also be used as a redundancy receiver along with any other FrSky ACCESS capable receiver equipped with a SBUS port.
All of the Archer receivers are hyper-matched with the ACCESS protocol. They not only feature wireless firmware upgrades, increased range, and telemetry performance, the R8 PRO now supports more functions like configurable telemetry power, S.Port/F.Port switching and FLR output. Additional valuable features are under development to unlock the true potential of the ACCESS protocol.
FEATURES
– ACCESS protocol with Over The Air (OTA)
– Anti-interference in spark-ignition
– Supports signal redundancy (SBUS In)
– Full control range with telemetry
– S.Port / F.Port
– External battery / device voltage detection
Dimension: 47*26*15mm (L*W*H)
Weight: 13g
16/24 Configurable SBUS Channels
8 High-precision PWM Channels
Operating Voltage Range: 3.5 -10V
Operating Current: 55mA@5V
Control Range: Full range* with telemetry
(*Full Range: >2km, range may vary based on local conditions.)
Voltage Measurement Range via AIN2 (External device): 0-36V
Compatibility: All FrSky ACCESS transmitters
FrSky ARCHER R8 Pro RECEIVER x 1
