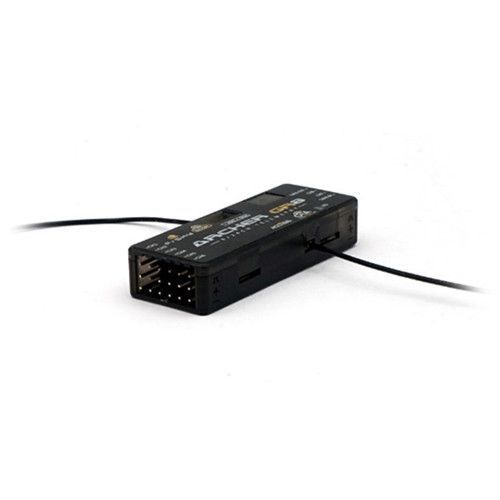

FrSky ARCHER GR8 8CH / 24CH receiver ACCESS protocol with OTA For FrSky ACCESS transmitters RC Parts
FrSky ARCHER GR8 8CH / 24CH receiver ACCESS protocol with OTA For FrSky ACCESS transmitters RC Parts
ACCESS protocol with Over The Air (OTA)
Upgraded variometer sensor
Receiver redundancy
8 high-precision PWM channels
SBUS IN & OUT (using standard servo connectors)
S.Port / F.Port and AIN2 (on 4 pin socket)
Dimension: 54*20*10mm (L*W*H)
Weight: 9.8g
Number of Channels: 8/24 channels
8 High-precision PWM & 16 SBUS channels
8 High-precision PWM & 24 configurable SBUS channels (Stay tuned)
Operating Voltage Range: 3.5 -10V
Operating Current: ＜60mA@5V
Operating Range: ＞2km (Full range)(*Range may vary based on local conditions.)
Variometer Measurement Range
Altimeter Range & Resolution: -700m to 10000m & 0.1m
Vertical Speed Range: ±100m/s
Voltage Measurement Range via AIN2 (External device): 0-3.3V
Compatibility: All FrSky ACCESS transmitters
FrSky ARCHER GR8 8CH / 24CH receiver x 1
