FrSky ARCHER PLUS R10+ 2.4GHz ACCESS & ACCST D16 Mode RC Receiver Compatible With X20 X18 XE X9DP X7 X9LITE XLITE PRO RC Model
FrSky ARCHER PLUS R10+ 2.4GHz ACCESS & ACCST D16 Mode RC Receiver Compatible With X20 X18 XE X9DP X7 X9LITE XLITE PRO RC Model
*Enhanced Anti RF-Interference capability with more solid RF performance
*Smart-matched ACCESS & ACCST D16 modes
*Supports basic Black-Box function
*10 configurable channel ports* (PWM, SBUS, FBUS, or S.Port)
(Note: In ACCST mode, SBUS Out is assigned on Pin9 & S.Port is on Pin10.)
*Supports signal redundancy (SBUS In)
*Full control range with telemetry (S.Port or FBUS)
*Anti-interference capability in the spark-ignition process
*Over-The-Air (OTA) FW update*
*External battery/device voltage detection
Brand: FrSky
Model: ARCHER PLUS R10+
Dimension: 46.5*26.3*14.7mm (L*W*H)
Weight: 13g
10 Configurable Channel Ports
CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In
CP2-10: PWM / SBUS Out / FBUS / S.Port
SBUS Out (Supports 16CH / 24CH mode)
Operating Voltage Range: 3.5 -10V
Operating Current: ＜100mA@5V
Control Range: Full range* with telemetry
(*Full Range: ＞2km, range may vary based on local conditions.)
Voltage Measurement Range via AIN2 (External device): 0-35V
(Battery Voltage Divider Ratio: 1:10)
Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters

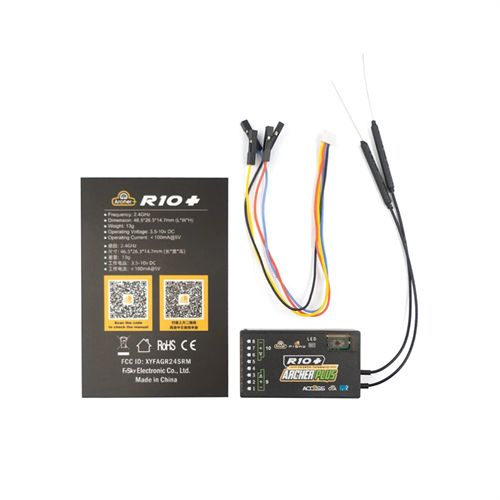

1x FrSky ARCHER PLUS R10+ Receiver
