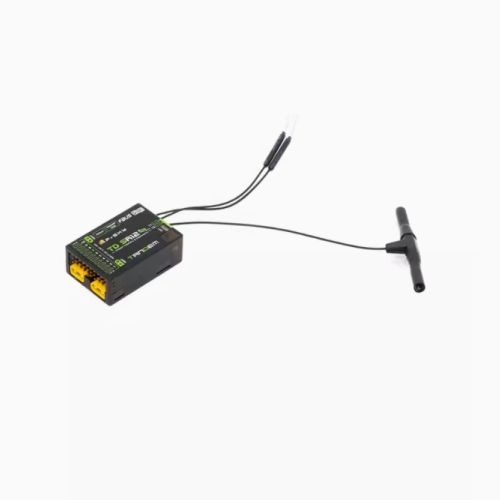

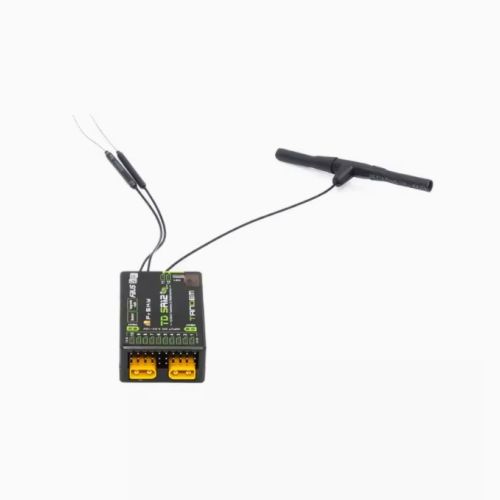

Frsky dual-band receivers TD SR12 2.4Ghz / 900Mhz Long Range Telemetry ADV Stabilizer Function For X20PRO X18 XE Transmitters
Frsky dual-band receivers TD SR12 2.4Ghz / 900Mhz Long Range Telemetry ADV Stabilizer Function For X20PRO X18 XE Transmitters
* Simultaneous Working Dual-Band (900M/2.4G) TD Mode;
* Dual Power Balancing Consumption;
* Built-in Advanced Stabilization Functions;
* Built-in High-Precision Telemetry Sensor (Altitude, Vertical Speed, etc.);
* Basic Black-Box Data Record Function;
* Built-in Power Switch Function | Match with Different External Switches (Optional);
* 4ms Race Mode with Telemetry;
* Long Control Range (Range varies based on the RF Power settings.);
* 12 Configurable Channel Ports;
– CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In (Redundancy Func.);
– CP2-12: PWM / SBUS Out / FBUS / S.Port;
* FBUS / S.Port;
* SBUS Out Port (Supports 16CH / 24CH mode);
* SBUS In Port (Supports Signal Redundancy);
* Over-The-Air (OTA) FW Update.
Brand: FrSky
Model: TD SR12
Frequency: 900MHz & 2.4GHz
Dimension: 48.5*33*17.9mm (L*W*H)
Weight: 23g
Operating Voltage: 3.5-10V (Recommend 2S Li Batteries)
Operating Current: ≤170mA
Continuous Current: ≤20A (power the device) | Instaneous Current: ≤40A (power the device)
Voltage Measurement Range via AIN (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
Compatibility: Tandem series radio & TD protocol capable RF module
Dual XT30 Power Input Connector
Triple Antenna Design (2×2.4G & 1×900M antennas)

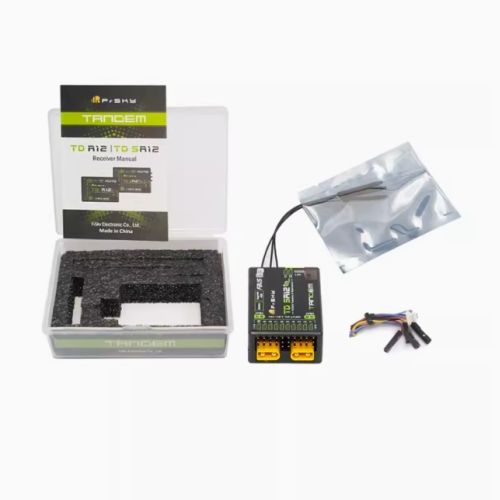

1x FrSky TD Series Tandem SR12 2.4Ghz/900Mhz Receiver
