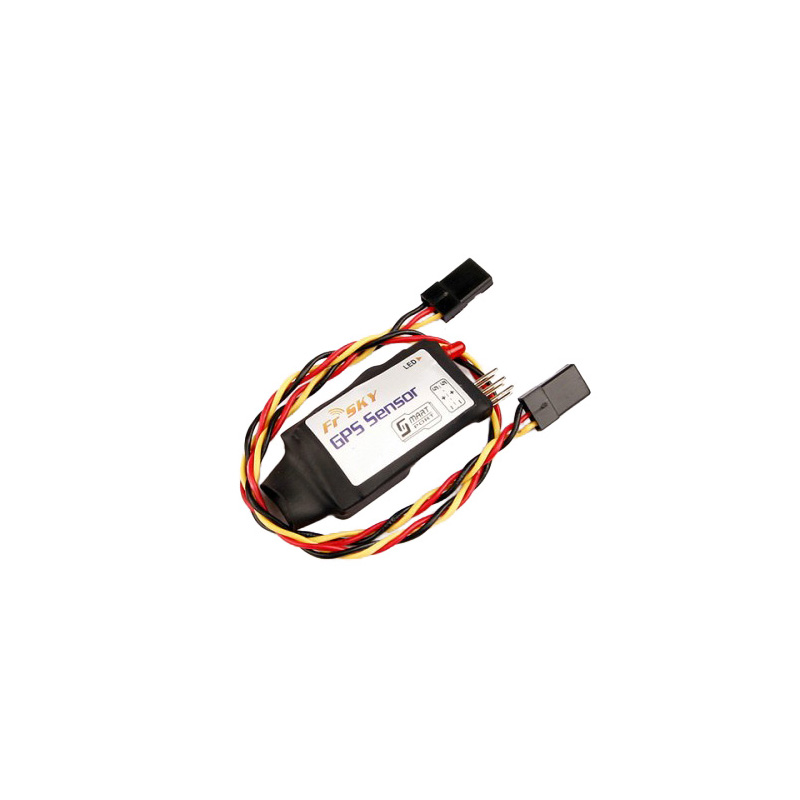

This is the FrSky Smart Port GPS Sensor used to plugs into the Smart Port on your X series receiver and reports GPS location and speed data.
This sensor is easy to use, just plug it into a Smart Port equipped receiver at one end, and position the sensor so the end marked “UP” has a clear view of the sky. This sensor does require an X series receiver with Smart Port. Taranis transmitter users may require a firmware update to take full advantage of this sensor.
Can report the following data to most devices: Altitude, position, speed, UTC time, etc. Taranis transmitter can data log this data for you.
Dimension: 40mm x 20mm x 9mm
Weight: 11g
Operational Voltage: 4 – 10 volts
Current Draw: 80mA @5V
Time to Fix: 30 seconds cold
Speed Accuracy: Aprox 0.1m/s
Position Accuracy: Approx 2.5m CEP
Limits: 4G/ 50,000 meters, 500 m/s
Smart Port ID#: 4 (can be changed with channel changer)
Compatibility: FrSky Smart Port enabled receivers such as the X8R, X6R, X4R, etc.
-FrSky Smart Port GPS sensor X 1
