* Enhanced Anti-RF-Interference Capability with More Solid RF Performance
* Small and Lightweight
* 6 High-Precision PWM Output Channel Ports
* S.Port / F.Port / FBUS (Configurable via S.Port)
* Over-The-Air (OTA) FW update
* Smart-Matched ACCESS & ACCST D16 Modes
* Support Stabilization Function
* Integrated Dual 5A Brushed ESC for Brushed Motor

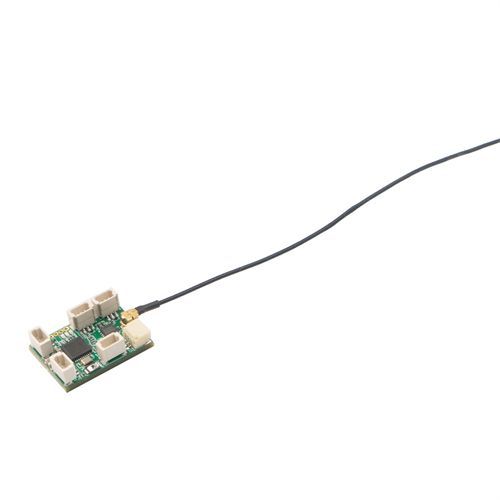

Model: SR6 Mini-E
Dimension: 22×16×7mm (L×W×H)
Weight: 2.8g
Number of Channels: 6/24 Channels (6 PWM & 24 FBUS Channel Modes)
Operating Voltage Range: 3.0-8.4V (1S-2S LiPo)
(Please ensure that the receiver works within the voltage range that the connected servo is capable of.）
Operating Current: 65mA@5V
Maximum Current: 5A (5A ESC×2)
Operating Range: ＞2km (Full range with telemetry) (*Range may vary based on local conditions.)
Antenna Connector: IPEX1
Compatibility: FrSky 2.4G ACCESS / ACCST D16 Capable Transmitters
1x Receiver
