FrSky Tandem SERIES X20Pro-AW TRANSMITTERS 900M/2.4G Dual Band TD Mode FCC/EU




FrSky Tandem SERIES X20Pro-AW TRANSMITTERS 900M/2.4G Dual Band TD Mode FCC/EU
*The bilateral independent intensity of tactile vibration feedback can be set, which can be easily enabled and disabled in the ETHOS system. Users can configure the vibration intensity according to different scenarios to determine the device’s operating status.
*Adjustable stroke, adjustable 45 to 60 degree angle limit through the front panel hole position, supporting joystick panel deflection of about 8 °.

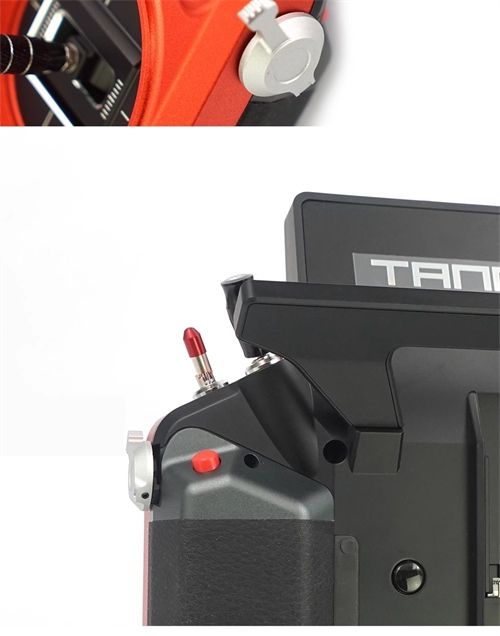

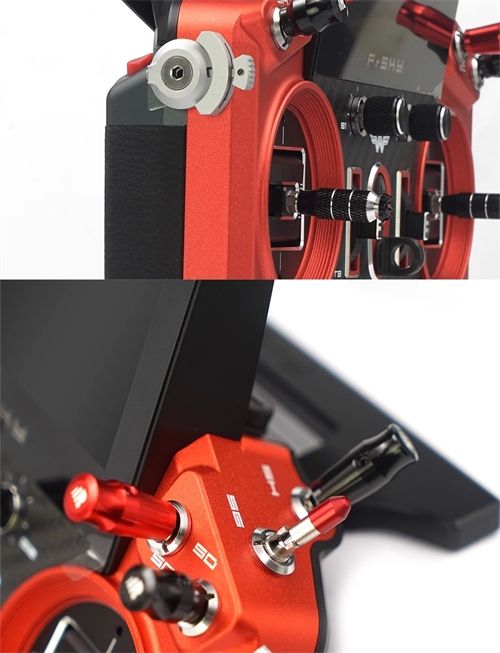

*The left and right sliding rods are CNC machined metal parts. The left multi gear flap sliding rod, combined with ETHOS settings, can accurately control the flap rudder. The right extended sliding rod is easy to touch and has an adjustable angle. Multiple accessories can be used to meet specific needs for the sliding rod position.
*The self-locking switch and metal lever cap are also suitable for controlling the left and right sliding rods.

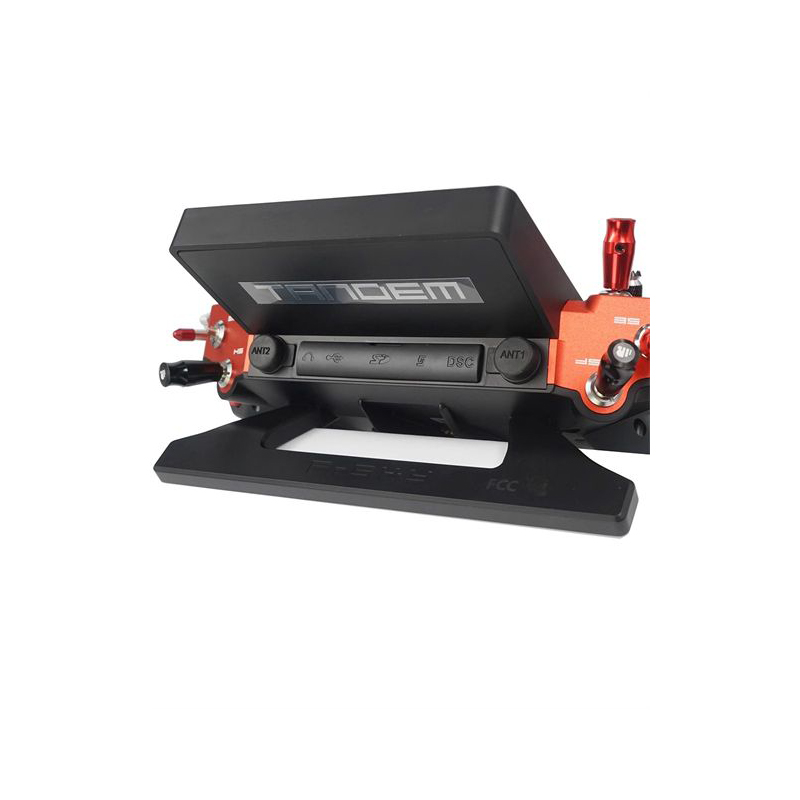

*The upgraded version enhances the antenna handle and external 900M/2.4G antenna interface for better resistance to damage in harsh outdoor environments, making it suitable for grip and maintaining optimal antenna performance. The AW version is equipped with two sets of external antenna interfaces to improve distance and control performance in specific use cases.
Brand Name: FrSky
Model Number: X20Pro-AW-Ver
Size: 200.521384mm (lengthwidthheight).
Weight: 999g (without battery).
Operating system: ETHOS.
Built-in RF module: TD-ISRM PRO.
Number of channels: 24 channels.
Built-in flash memory storage: 8GB.
Operating voltage range: 6.5 – 8.4V (2S lithium battery).
Operating temperature: -10°C – 60°C (14°F – 140°F).
Operating current: 600mA @ 7.4V (typ.).
Charging current: ≥1A±200mA.
USB adapter voltage: 5V+0.2V (supports charging through USB Type-C interface).
USB adapter current: >2.0A.
Touchable LCD screen with backlight: 800*480.
Compatibility: ACCST D16 & ACCESS & TD & TW receivers. Support for external Lite slot type modules.

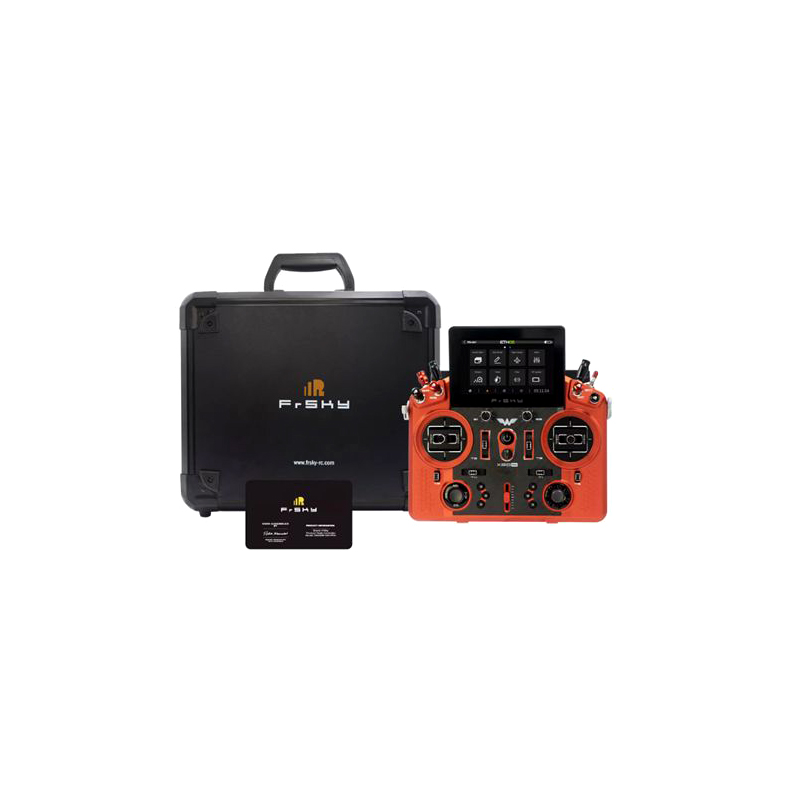

1x FrSky Tandem SERIES X20Pro-AW TRANSMITTERS
