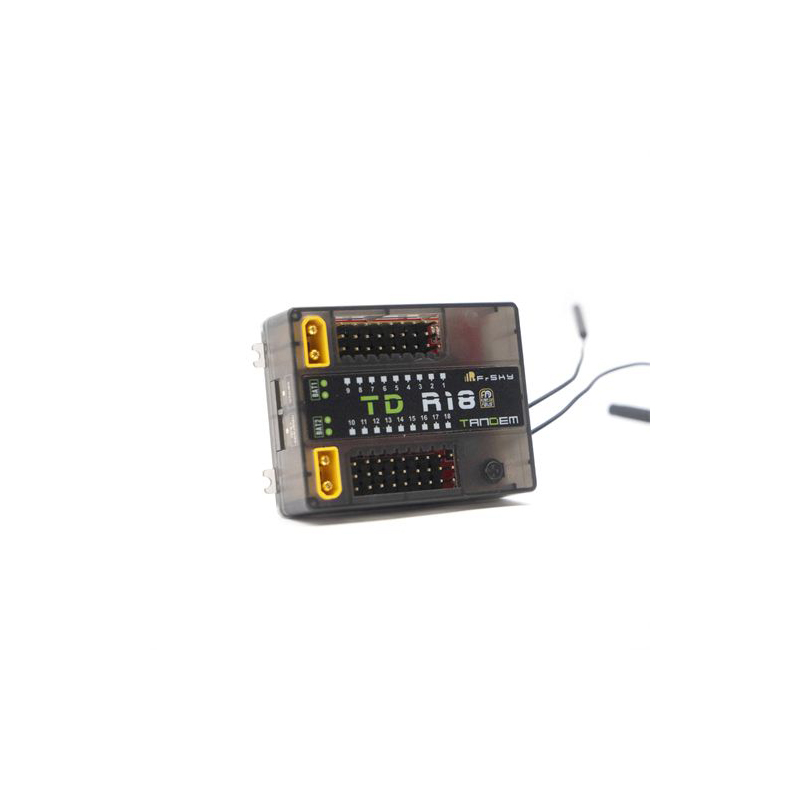

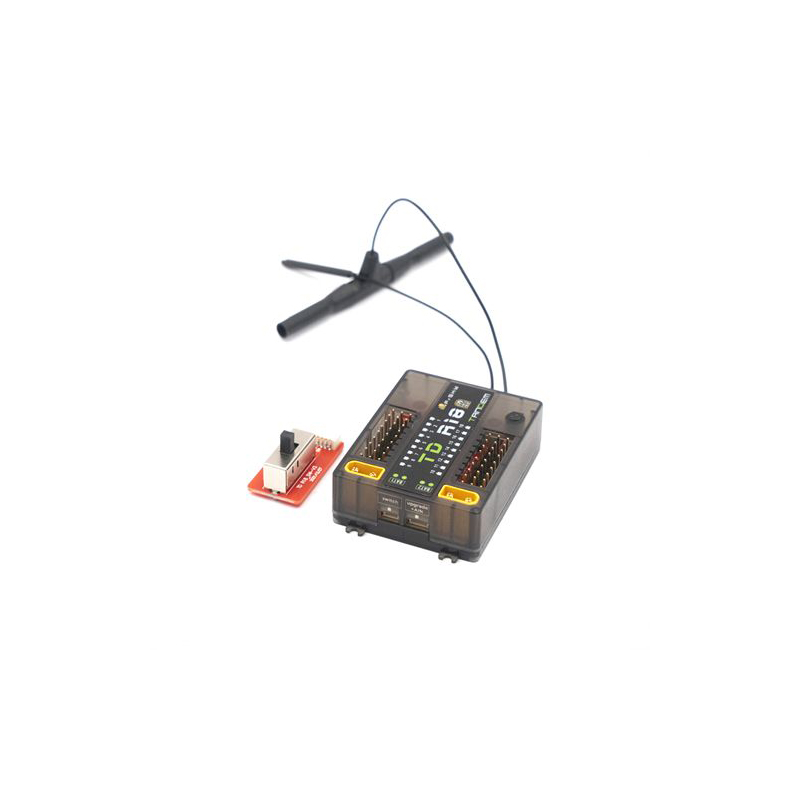

FrSky TD R18 2.4GHz/900MHz Tandem Dual-Band 18CH PWM 16CH SBUS 24CH FBUS MX Receiver for Tandem X20 X20S Radio Controller

SKU TD-R18 Category Tag Brand:

FrSky TD R18 2.4GHz/900MHz Tandem Dual-Band 18CH PWM 16CH SBUS 24CH FBUS MX Receiver for Tandem X20 X20S Radio Controller

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

– Simultaneous working dual-band TD mode
– Triple antenna design for multi-directional coverage
– Black Box function
– Built-in Power Switch
– Built-in current and voltage sensors
– 4ms Race Mode with Telemetry
– Long control range (up to 50KM – 100KM)
– Over-The-Air (OTA) FW update
– 18 Configurable Channel Ports

Frequency: 2.4GHz & 900MHz
Dimension: 53*40*16mm (L*W*H)
Weight: 28.9g
Operating Voltage: 4-10v
Operating Current: ≤185mA@5V
Continuous Current: ≤30A (power the device)
Instantaneous Current: ≤60A (power the device)
Compatibility: Tandem series radio & TD protocol capable RF module
Dual XT30 Power Input Connector
Triple 2.4G/900M Antenna
– 1* Interior 2.4G chip antenna
– 1* External 2.4G antenna (IPEX1)
– 1* Newly designed 900M antenna

FrSky TD R18 2.4GHz/900MHz Receiver x 1
