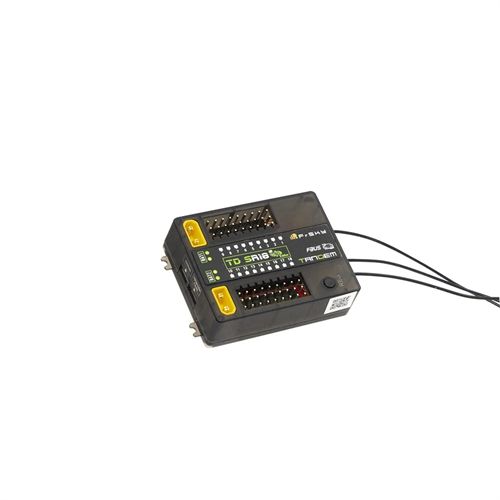

FrSky TD Series TD SR18 2.4GHz/900MHz 18CH Dual-Band Long Range RC Receiver With Triple Antenna for FPV RC Racer Drone
FrSky TD Series TD SR18 2.4GHz/900MHz 18CH Dual-Band Long Range RC Receiver With Triple Antenna for FPV RC Racer Drone
* Simultaneous Working Dual-Band (900M/2.4G) TD Mode;
* Dual Power Balancing Consumption;
* Built-in Advanced Stabilization Functions (TD SR18);
* Built-in High-Precision Telemetry Sensor (Altitude, Vertical Speed, etc.) (TD SR18);
* Basic Black-Box Data Record Function;
* Built-in Power Switch Function | Match with Different External Switches (Optional);
* 4ms Race Mode with Telemetry;
* Long Control Range (Range varies based on the RF Power settings.);
* 18 Configurable Channel Ports;
– CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In (Redundancy Func.)
– CP2-18: PWM / SBUS Out / FBUS / S.Port
* FBUS / S.Port;
* SBUS Out Port (Supports 16CH / 24CH mode);
* SBUS In Port (Supports Signal Redundancy);
* Over-The-Air (OTA) FW Update
Brand: Frsky
Frequency: 900MHz & 2.4GHz
Dimension: 53*40*16mm (L*W*H)
Weight: 29.1g
Operating Voltage: 4-10V(Recommend 2S Li Batteries)
Operating Current: ≤195mA
Continuous Current: ≤30A (power the device) | Instaneous Current: ≤60A (power the device)
Voltage Measurement Range via AIN (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
Compatibility: Tandem series radio & TD protocol capable RF module
Dual XT30 Power Input Connector

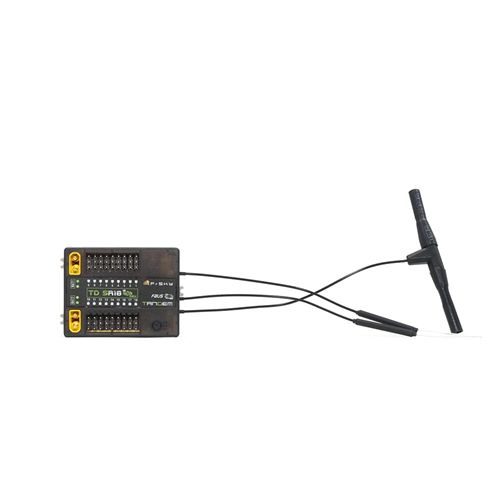

Triple Antenna Design (2×2.4G & 1×900M antennas)
1x FrSky Tandem TD SR18 Receiver
