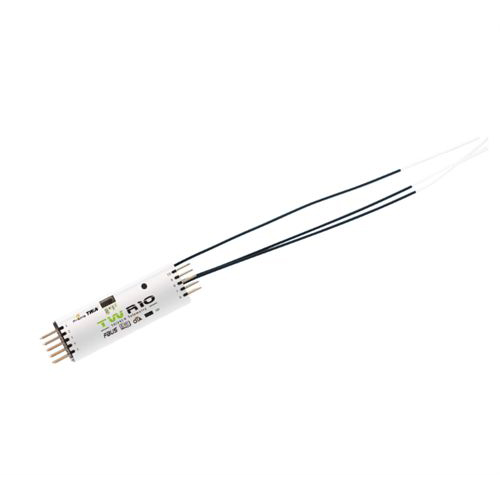

FrSky TW R10 Receiver Simultaneous Working Dual 2.4G TW Mode For RC Model/Airplane Parts
*Simultaneous Working Dual 2.4G TW Mode
*Basic Black-Box Data Record Function
*Long Control Range (Range varies based on the RF Power settings.)
*10 Configurable Channel Ports
– CP1: PWM / SBUS OUT / FBUS / S.Port / SBUS IN
– CP2-10: PWM / SBUS OUT / FBUS / S.Port
*FBUS / S.Port
*SBUS Out Port (Supports 16CH / 24CH mode)
*SBUS In Port (Supports Signal Redundancy)
*Over-The-Air (OTA) FW update
Model: FrSky TW R10
Frequency: Dual 2.4GHz

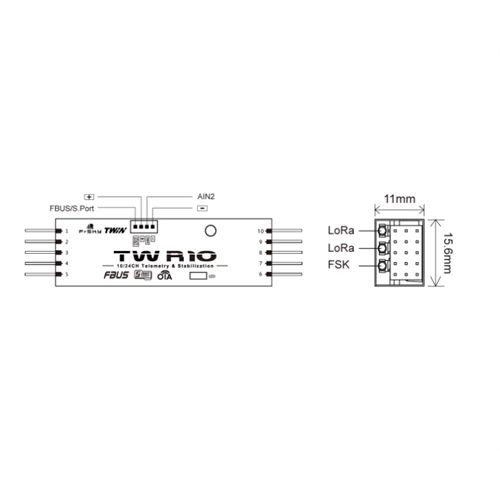

Dimension: 64.6×16.6×12.4mm (L*W*H)
Weight: 9.4g
Operating Voltage Range: 3.5 -12V (Recommend 2S Li-Batteries)
Operating Current: ≤120mA@5V
Voltage Measurement Range via AIN (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
Compatibility: TWIN series radio & TW protocol capable RF module
Triple 2.4GHz Antennas (with IPEX1 connectors)
1x FrSky TW R10 Receiver
