FrSky TW SR10 Receiver Simultaneous Working Dual 2.4G TW Mode Offers An ADV Stabilizer Function
FrSky TW SR10 Receiver Simultaneous Working Dual 2.4G TW Mode Offers An ADV Stabilizer Function
*Simultaneous Working Dual 2.4G TW Mod
*Basic Black – Box Data Record Function
*Long Control Range(Range varies based on the RF Power settings.
*Built – in Advanced Stabilization Functions
*Built – in High – Precision Telemetry Sensor(Altitude,Vertical Speed,etc.)
*10 Configurable Channel Ports
– CP1:PWM/SBUS OUT/FBUS/S.Port/SBUS IN
– CP2 – 10:PWM/SBUS OUT/FBUS/S.Port
*FBUS/S.Port
*SBUS Out Port(Supports 16CH/24CH mode)
*SBUS In Port(Supports Signal Redundancy)
*Over – The – Air(OTA)FW update
Model: FrSky TW SR10
Frequency: Dual 2.4GHz

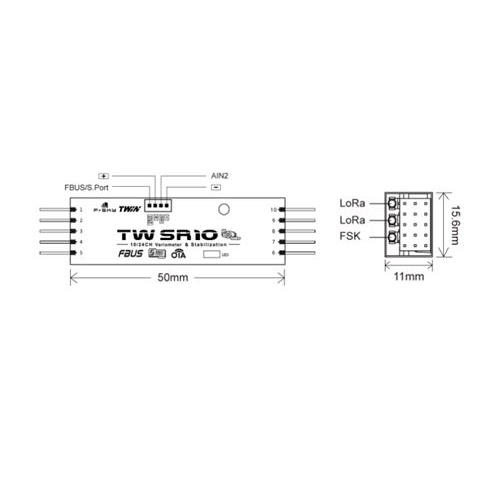

Dimension: 64.6×16.6×12.4mm (L*W*H)
Weight: 9.4g
Operating Voltage Range: 3.5 -12V (Recommend 2S Li-Batteries)
Operating Current: ≤120mA@5V
Voltage Measurement Range via AIN (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
Compatibility: TWIN series radio & TW protocol capable RF module
Triple 2.4GHz Antennas (with IPEX1 connectors)
1x FrSky TW SR10 Receiver
