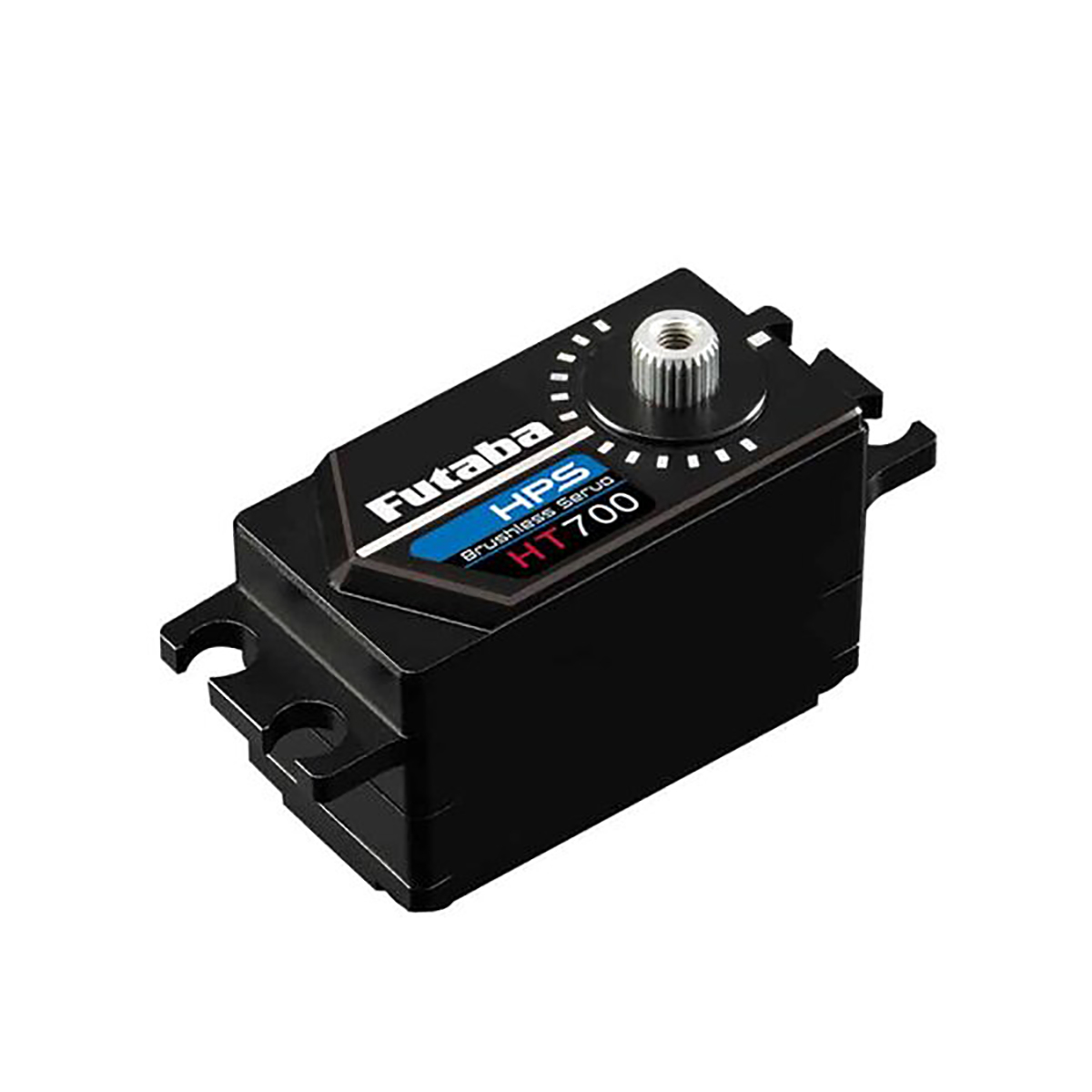

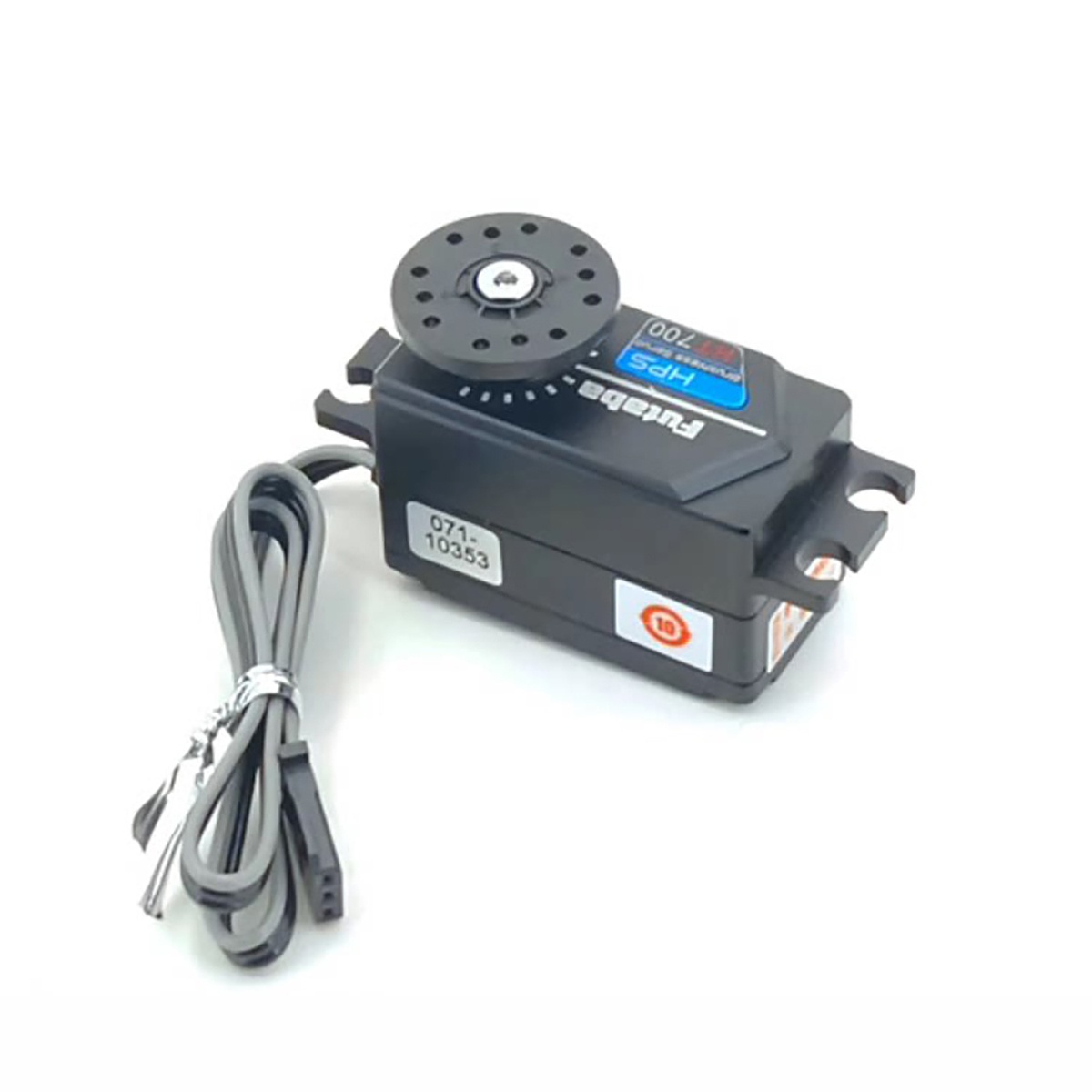

Futaba HPS-HT700 Brushless Motor High Voltage Low Profile Tail Servo for 500-800 RC Helicopter
Futaba HPS-HT700 Brushless Motor High Voltage Low Profile Tail Servo for 500-800 RC Helicopter
The HPBLS Series Servos achieve high torque and low power consumption. The HPS Servos not only ensure high centering accuracy and large torque, but also offer good balance among speed, torque, and power consumption.
Feature:
Suitable for RC helicopters 500-800 3D/F3C
Programmable/HV Brushless Servo.
Custom New high power Brushless Motor.
Supports 760uS (Factory Default, able to be set to 1520uS w/ GPB-1 v4.3 .)
Programmable and compatible with S.Bus and S.Bus2 systems.
Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
Upper/middle/bottom: Aluminum Case
Model: HPS HT700
Speed: 0.045sec/60°(7.4V) / 0.05sec/60°(6.6V)
Torque: 9.6kgf・cm(7.4V) / 8.6kgf・cm(6.6V)
Torque: 133.3ozf・in(7.4V) / 119.4ozf・in(6.6V)
Dimensions: 40.5×21.0×26.2mm / 1.59×0.83×1.03in
Weight: 54g
Rated Voltage: DC 6.0V-7.4V
Operating Voltage: DC 4.8-8.4V

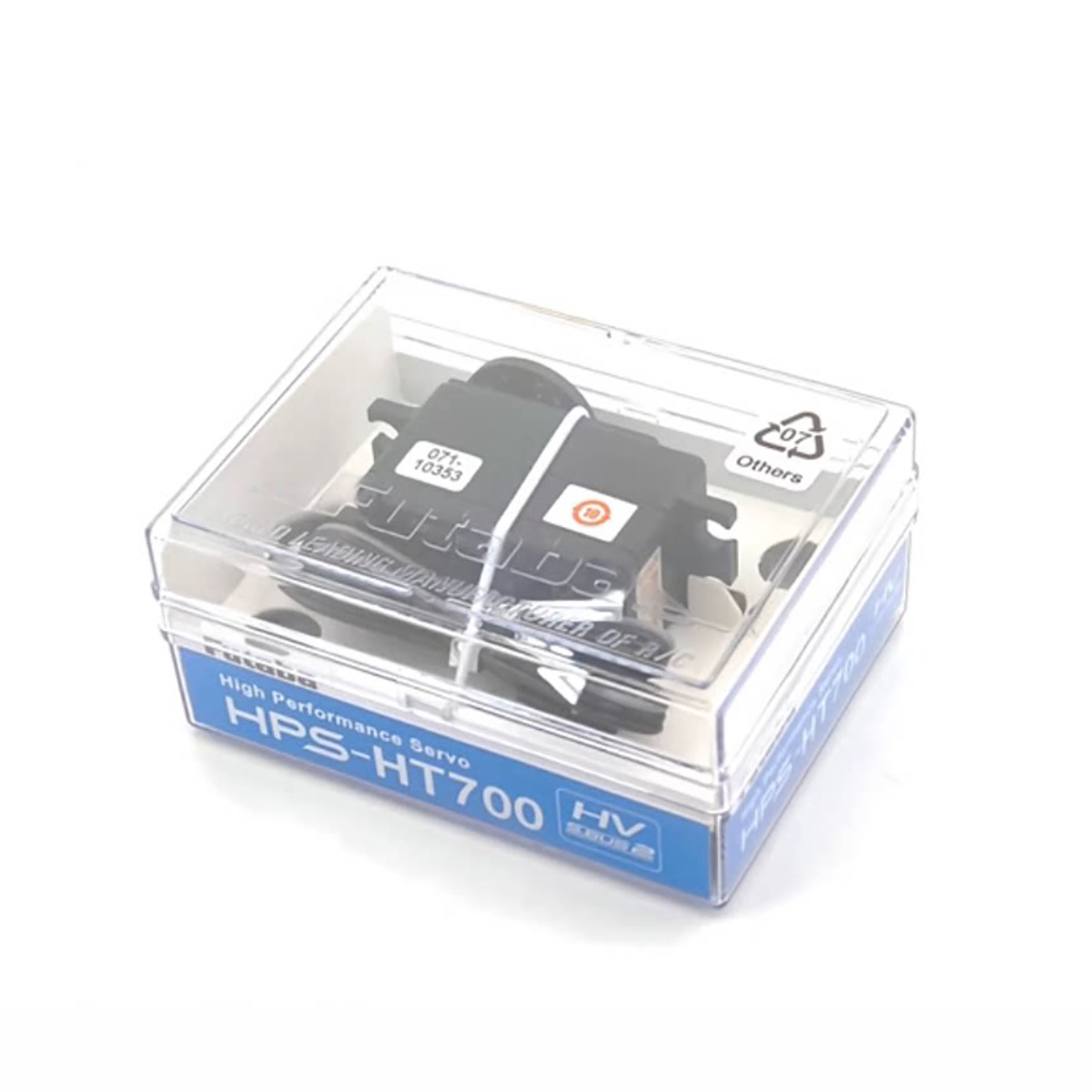

HPS HT700 Servo x1
