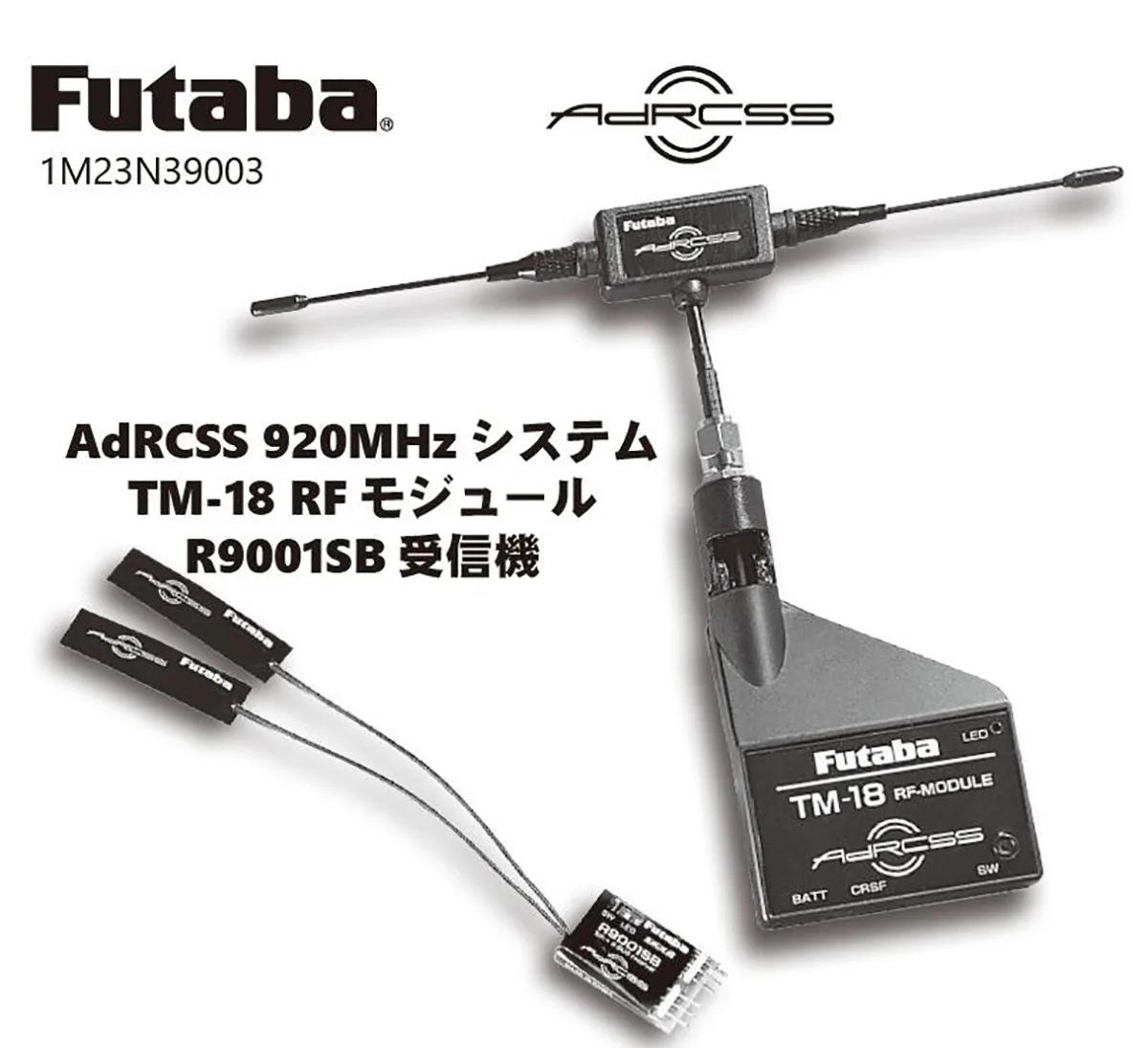

Futaba TM-18 16 Channel 900MHz Transmitter Module R9001SB Receiver for T32MZ WC T18SZ T161Z T16IZS
Futaba TM-18 16 Channel 900MHz Transmitter Module R9001SB Receiver for T32MZ WC T18SZ T161Z T16IZS
Product Features
Adopts 920MHz frequency band spread spectrum communication technology.
Prevents interference from other AdRC SS 920MHz systems through the unique ID coding of the transmitter.
Equipped with fault protection function (only for 3 channels).
Recommended Usage

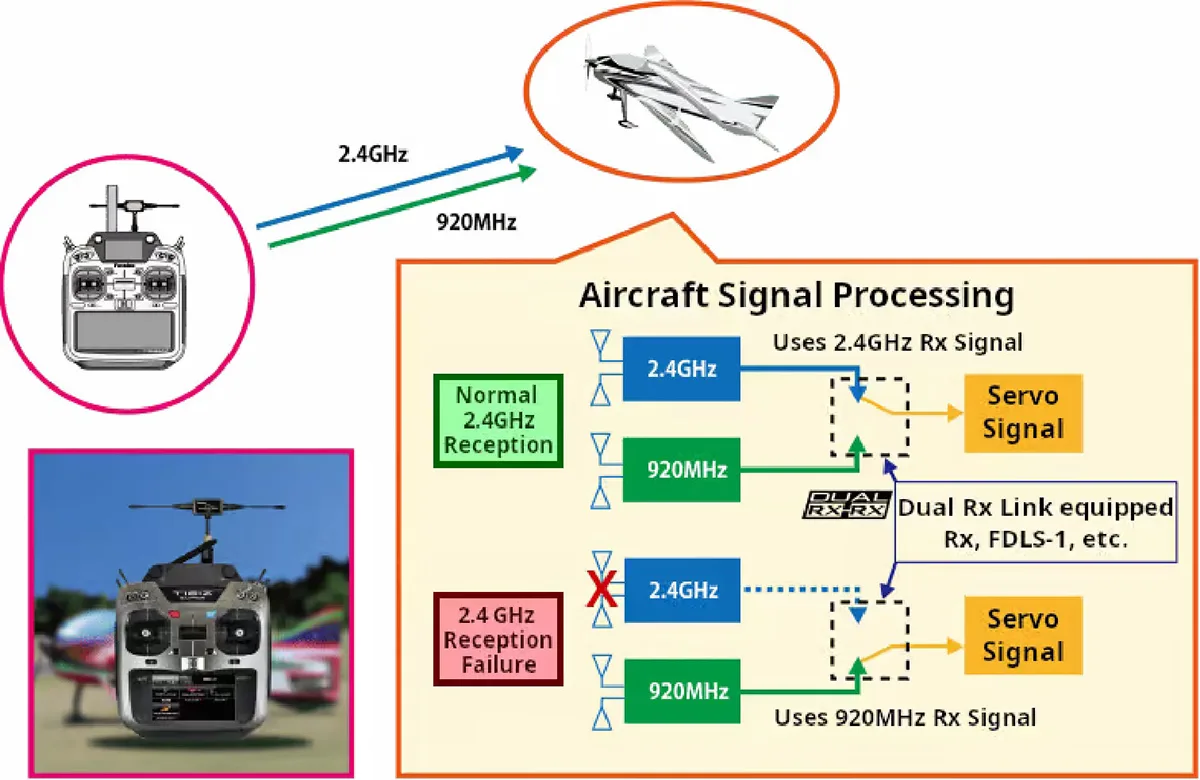

It is recommended to match with FDLS – 1, DLPH – 1, DLPH – 2 or receivers supporting dual – receiver link systems (such as R7308SB, R7208SB, etc.), and use the AdRCSS 920MHz system as a backup for the 2.4GHz system.
※Due to the different communication speeds of each system, the operation after switching may be slightly different, which is a normal phenomenon.
Compatible Transmitters
T32MZ WC, T32MZ, T18SZ, T16IZ, T16IZS
※T16SZ and T12K require additional power supply support because the CRFS interface has no power supply.

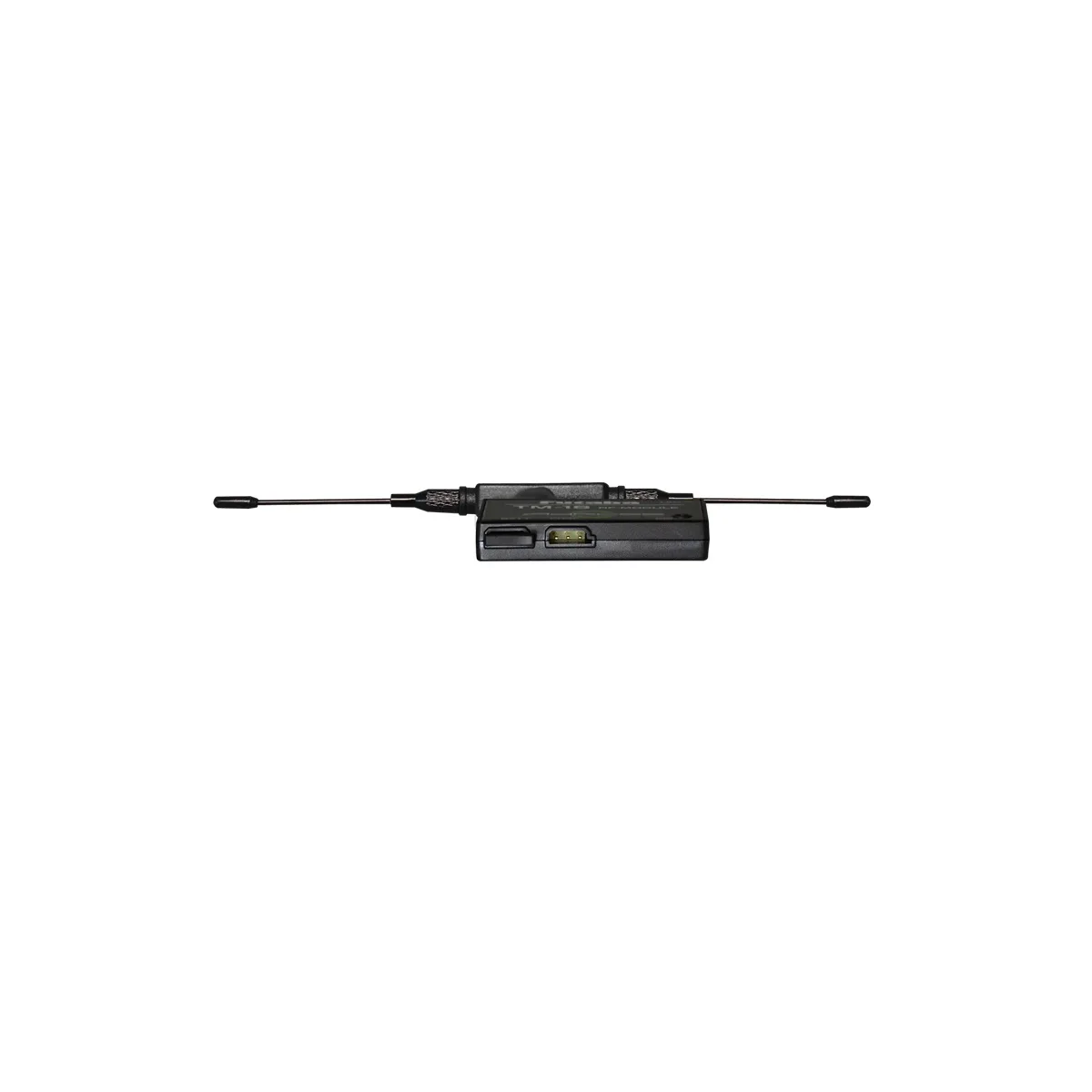

Model: TM-18 RF Module
Communication method: One way communication (telemetry function not supported)
Maximum operating current: 36mA
Supports AdRCSS 920MHz system / Maximum 16 channels (depending on transmitter settings)
Can be used simultaneously with all Futaba 2.4GHz systems (including FASSTest 18ch/12ch, FASST MULTI/7ch, S-FHSS, T-FHSS)
Supports low power mode
Transmitter Setting Method:
T32MZ WC / T32MZ: It can be used by directly connecting to the CRSF interface
T18SZ, T16IZ, T16SZ, T12K: CRSF mode needs to be enabled, and S.BUS servo setting cannot be performed at this time

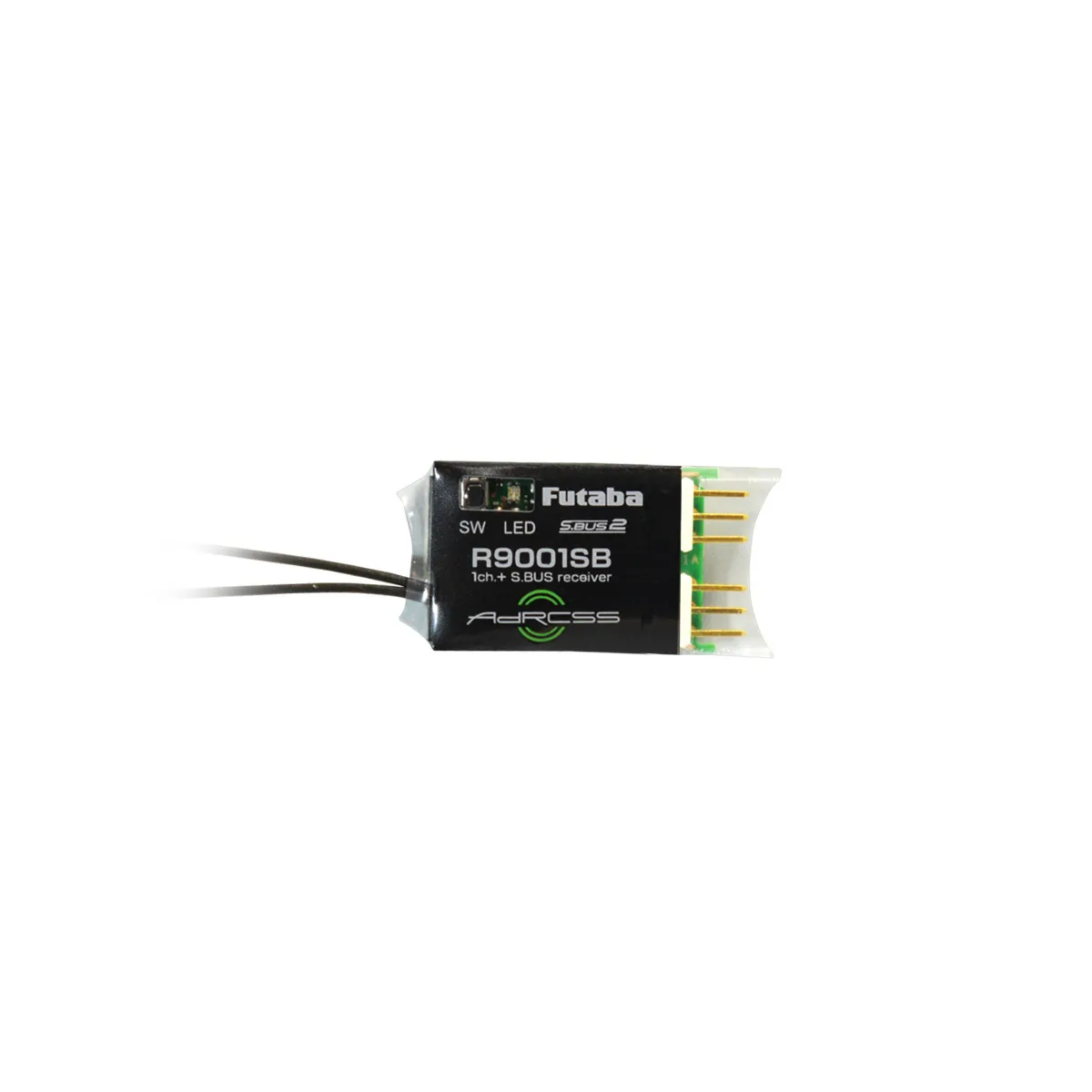

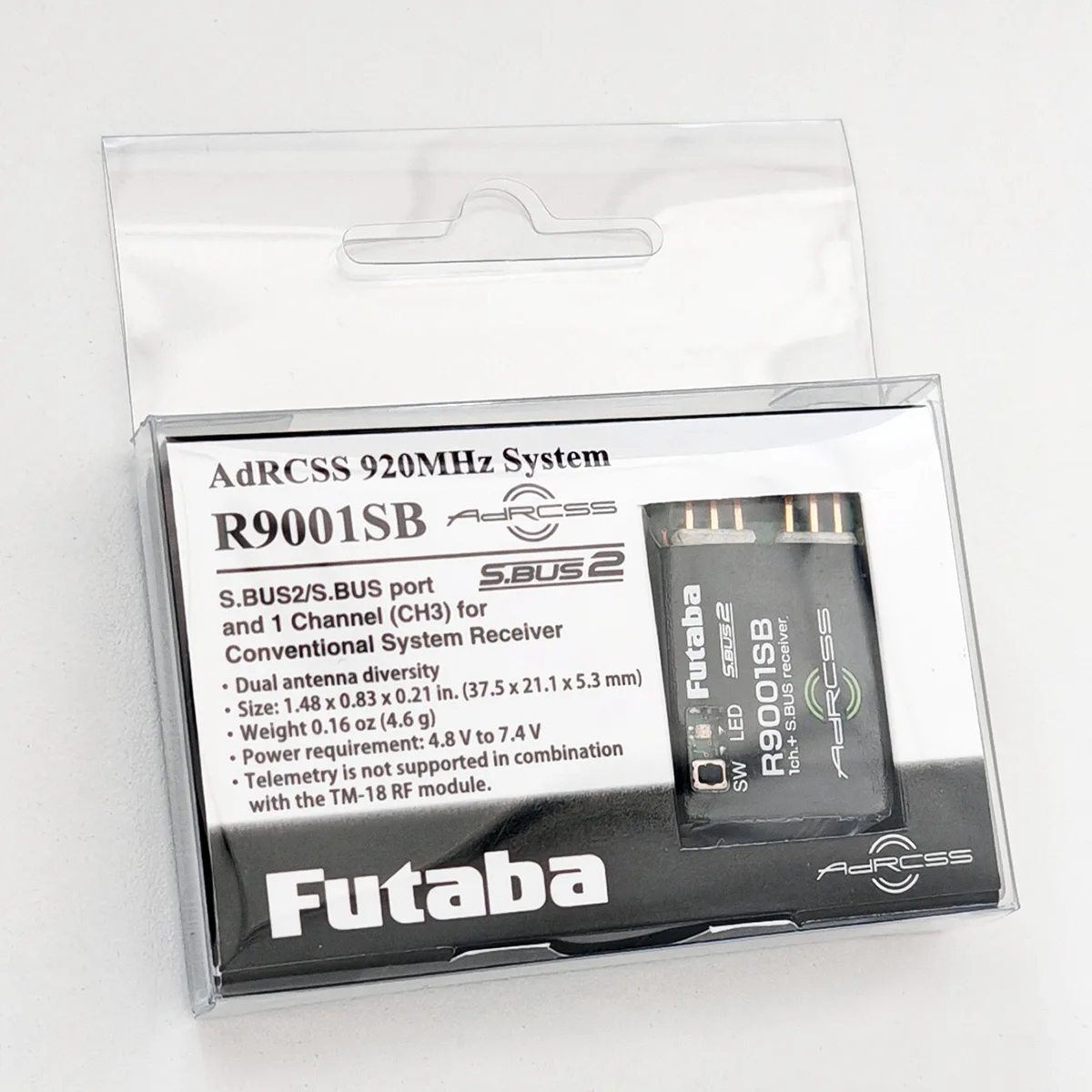

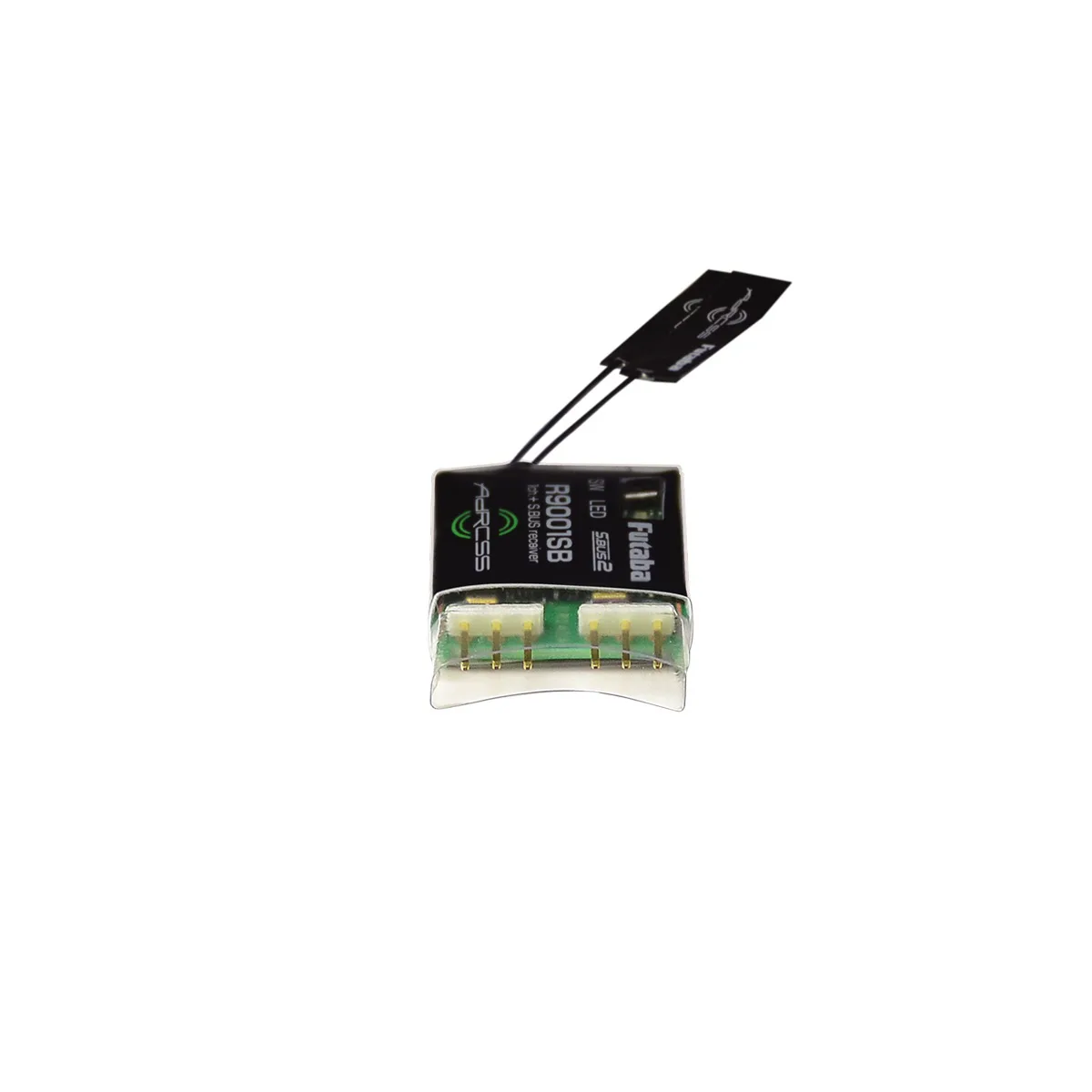

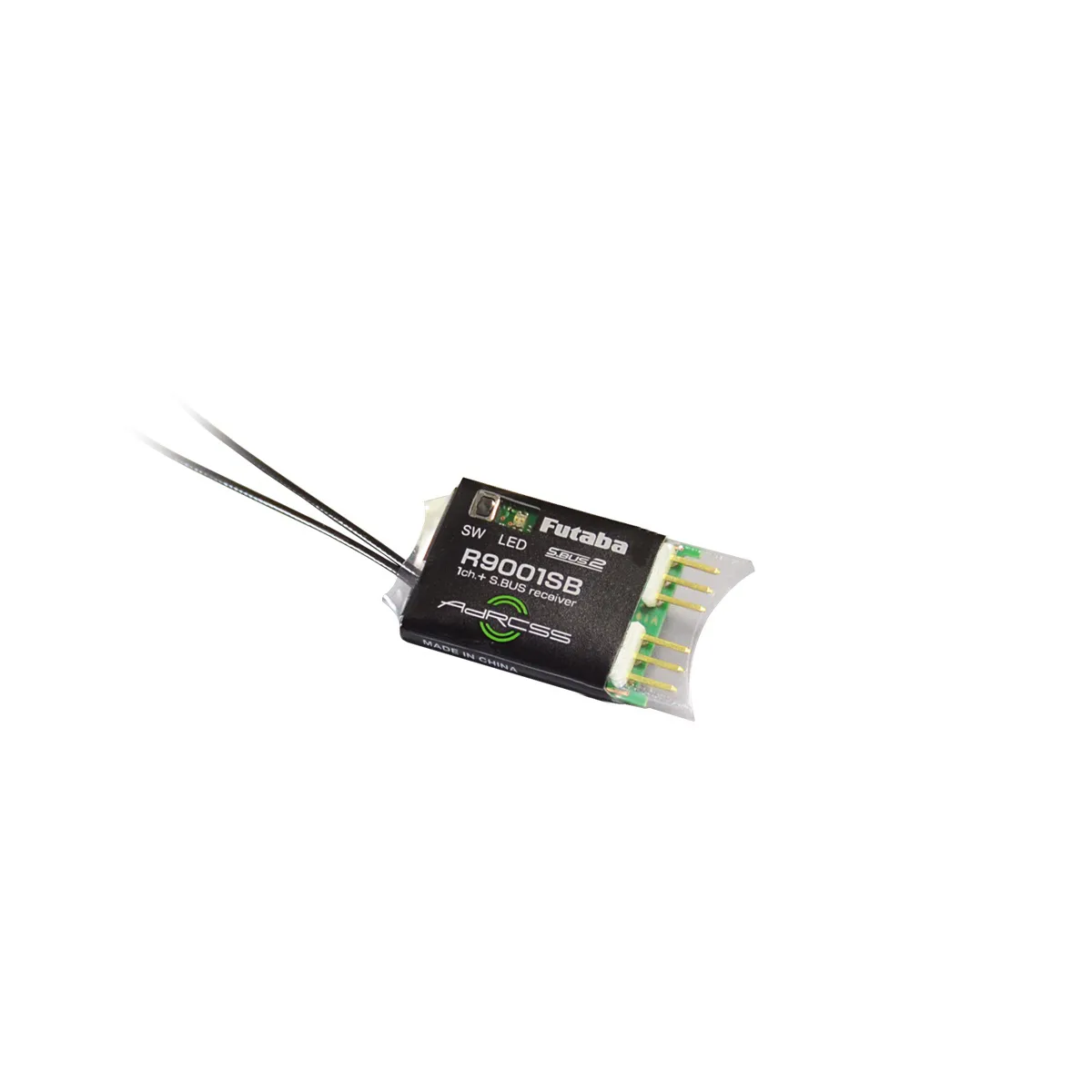

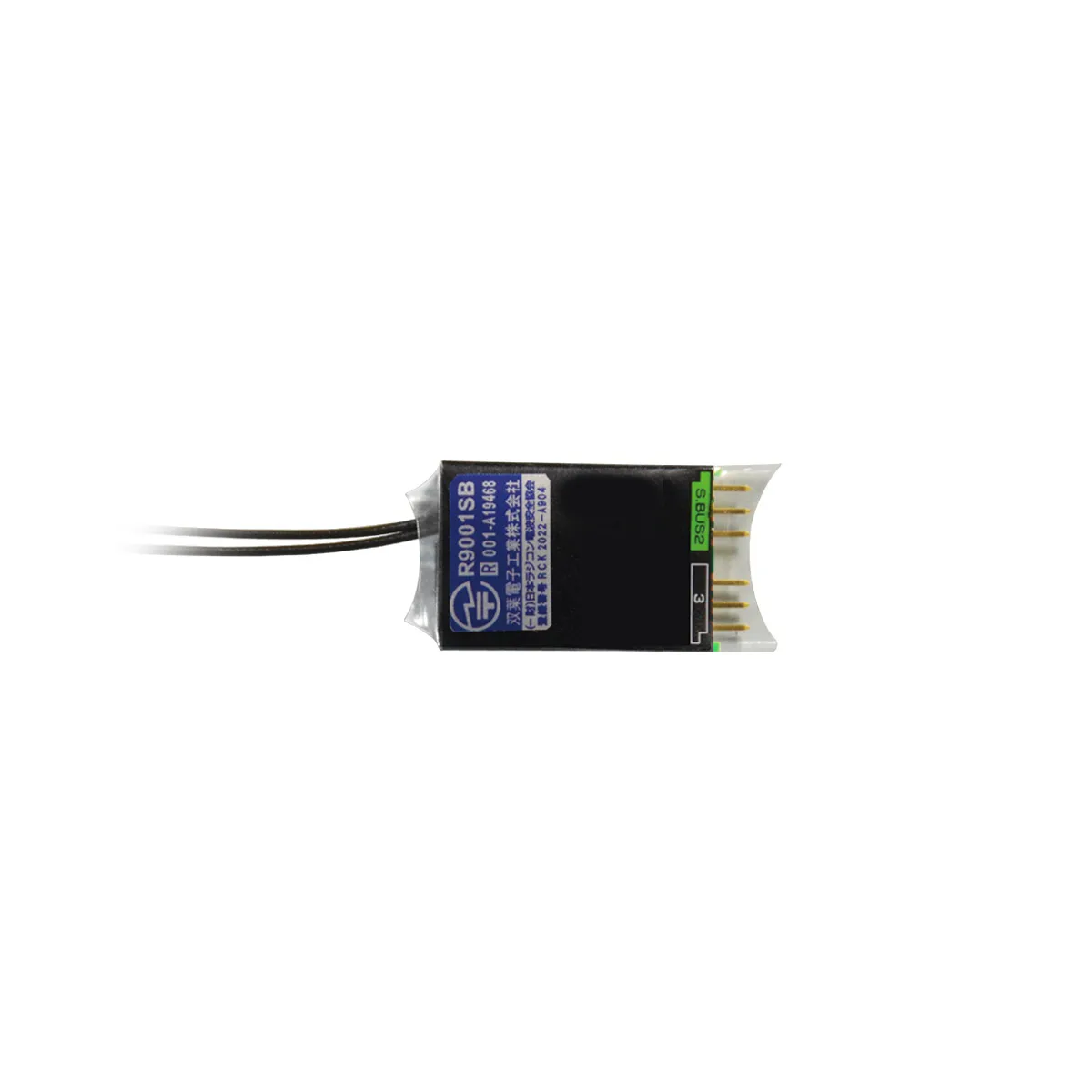

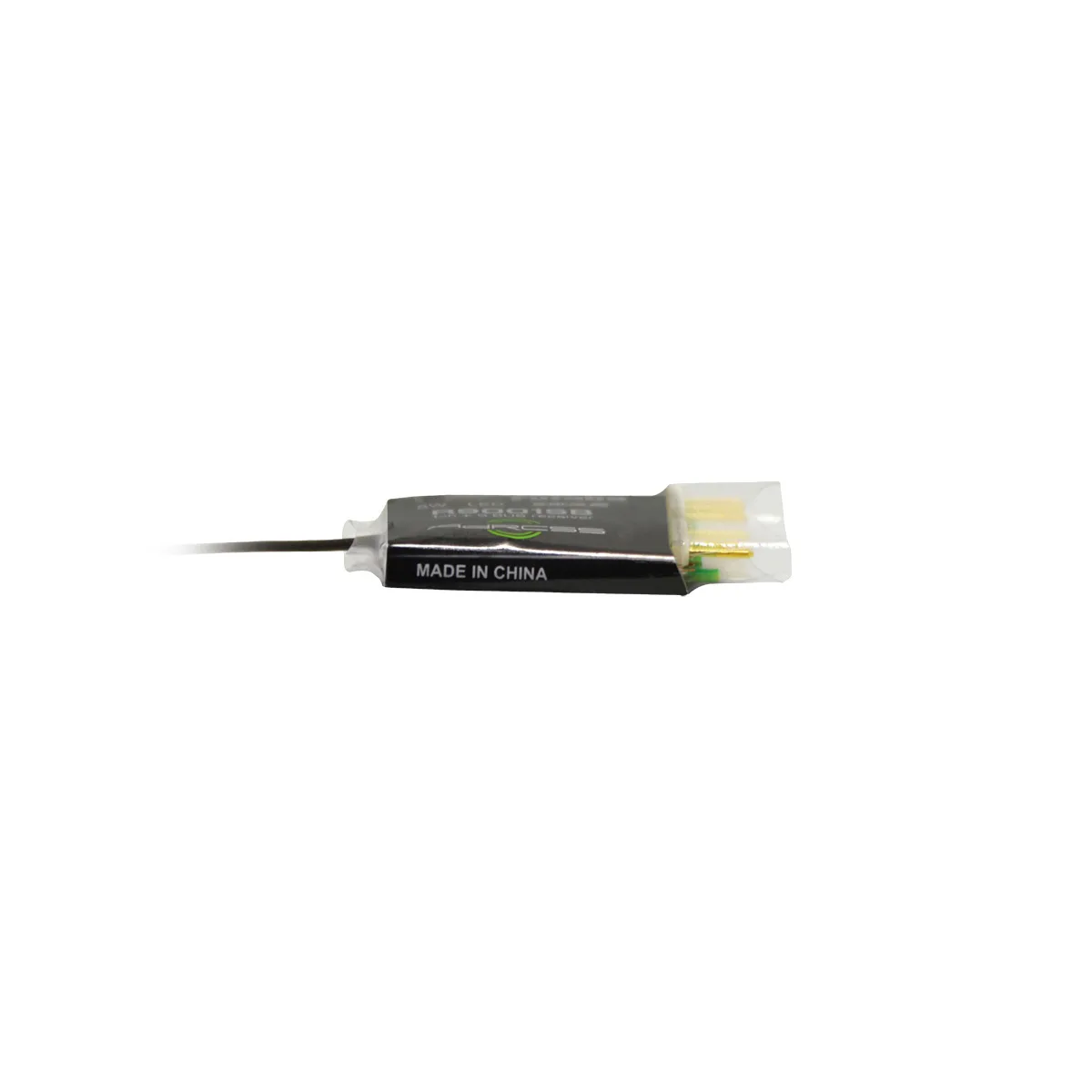

Model: R9001SB Receiver
AdRCSS 920MHz System: S.BUS2/S.BUS port and 1 Channel (CH3) for Conventional System Receiver

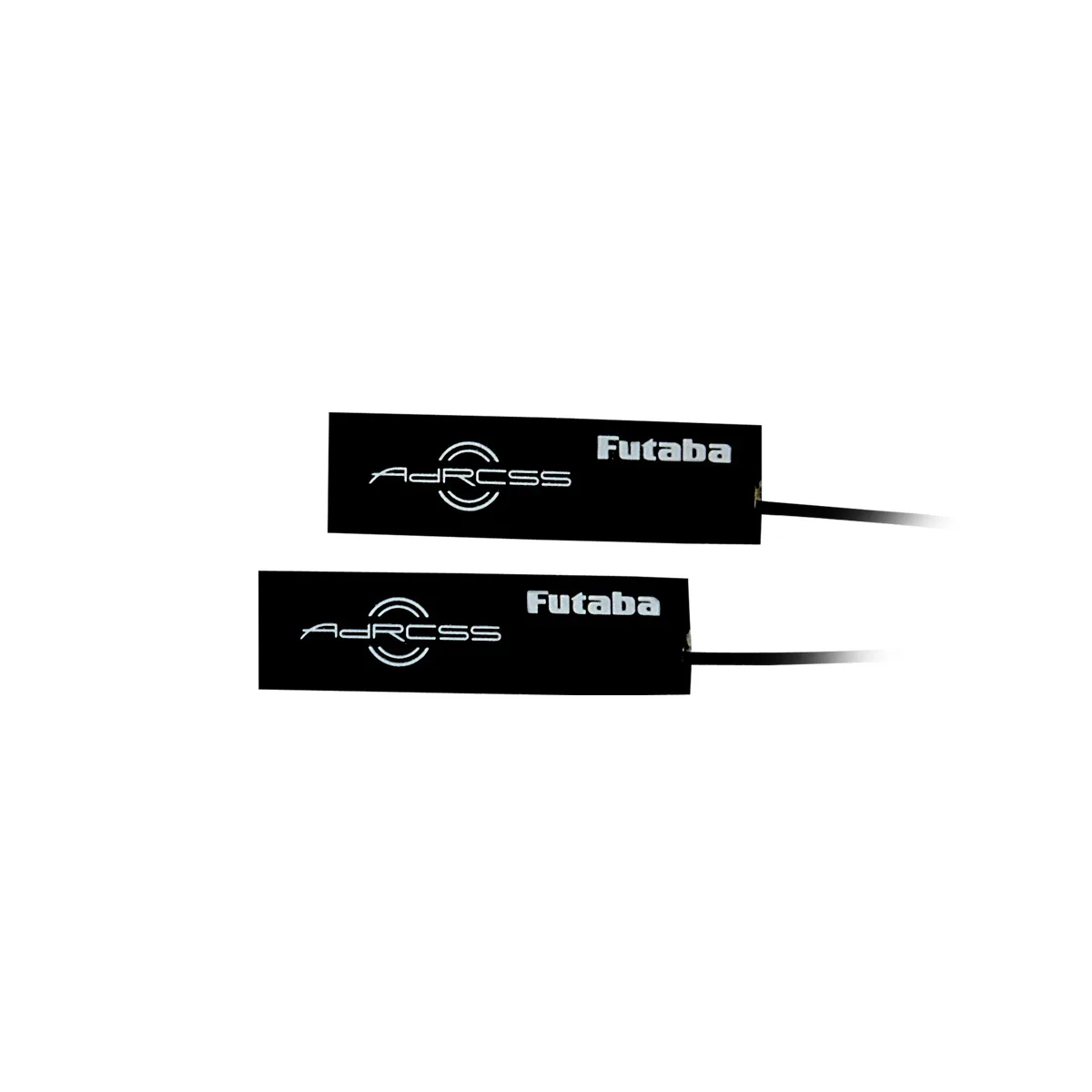

Dual antenna diversity
Size: 37.5×21.1×5.3mm
Weight: 4.6g
Power requirement: 4.8V-7.4V
Telemetry is not supported in combination with the TM-18 RF module
Precautions:
When using BEC power supply, ensure its capacity meets the power supply requirements of the servos and other equipment used. Do not use dry batteries for power supply.
The maximum number of channels for S.BUS/S.BUS2 output varies depending on the transmitter model (unused channels will maintain neutral output). When fault protection (F/S) is triggered, the preset F/S channel will switch to a safe position, and the remaining channels will enter the Hold state.
Compatibility Description:
※ This device does not support the 2.4GHz system and needs to be used with the TM – 18 RF module.

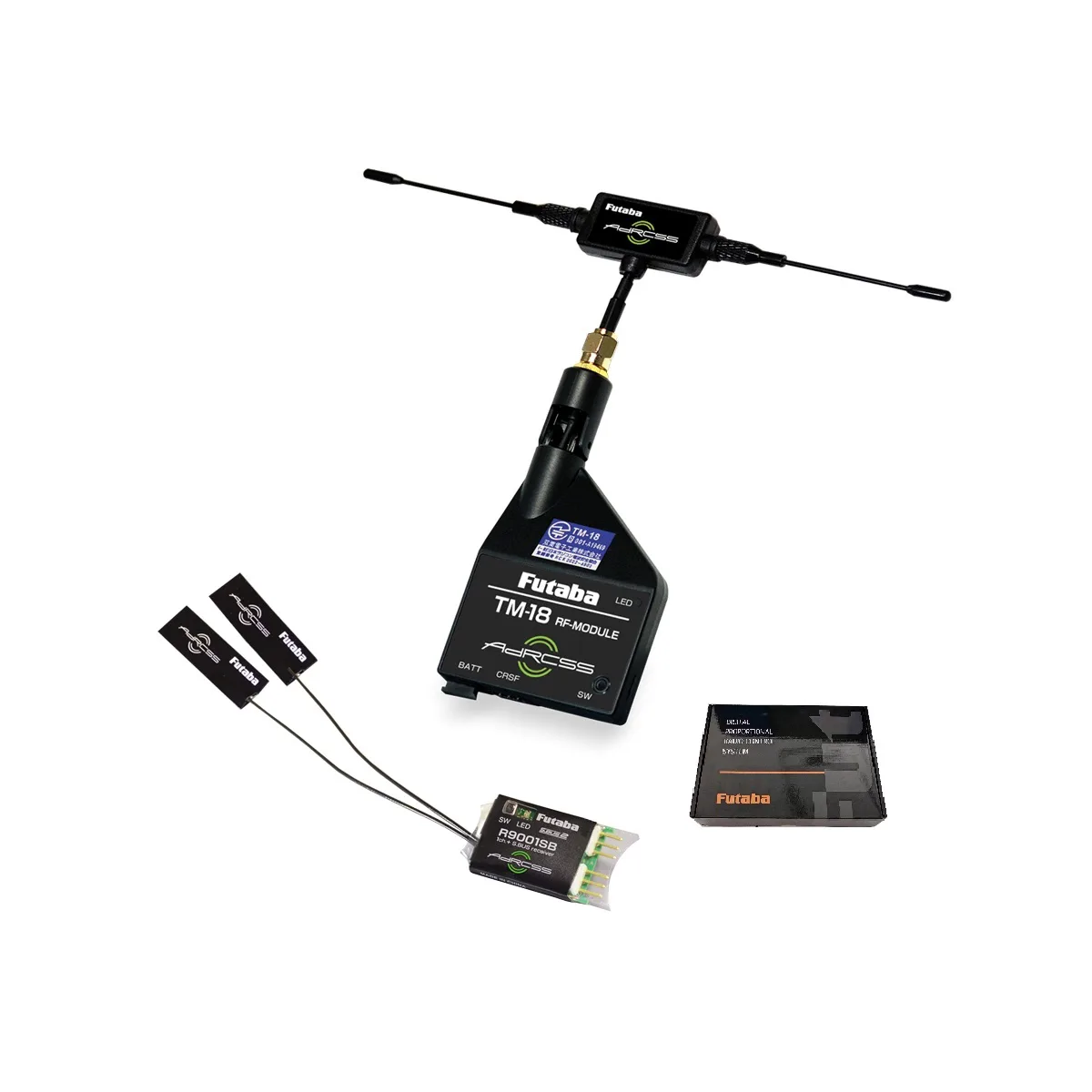

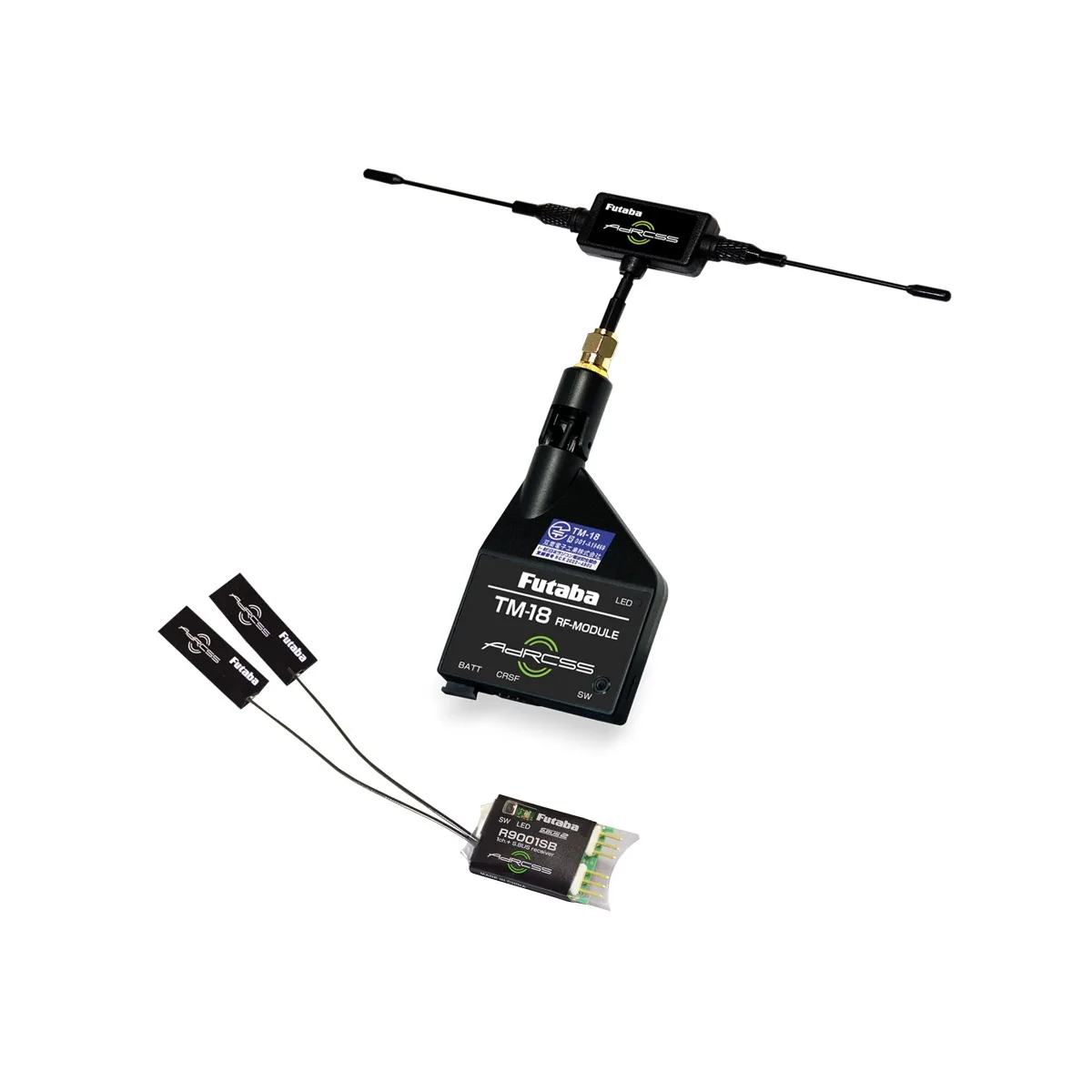

TM18+R9001SB
TM-18 RF module x1
R9001SB receiver x1

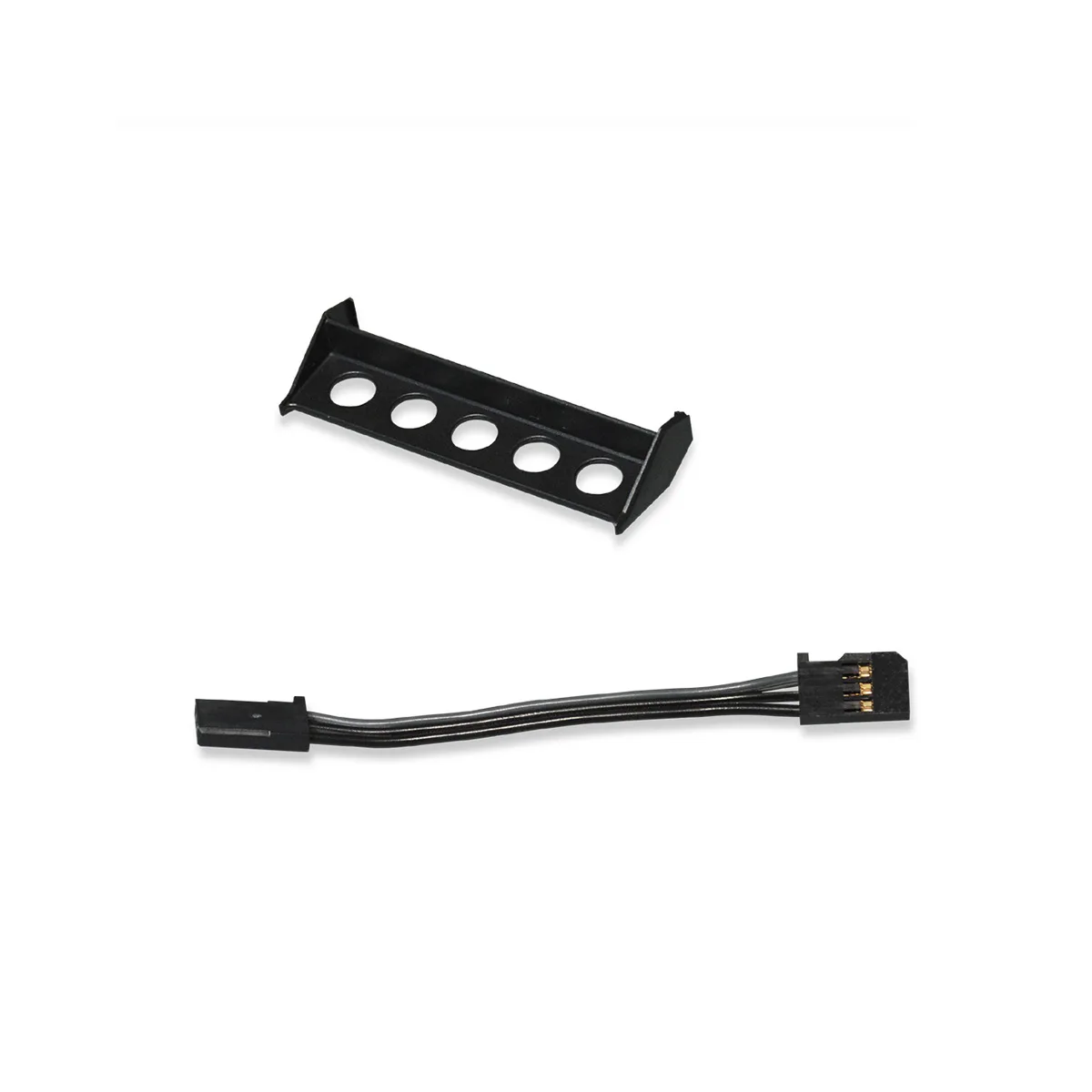

CRSF signal connection cable x1
Double sided tape x1
T32MZ mounting bracket x1
R9001SB
R9001SB Receiver x1
