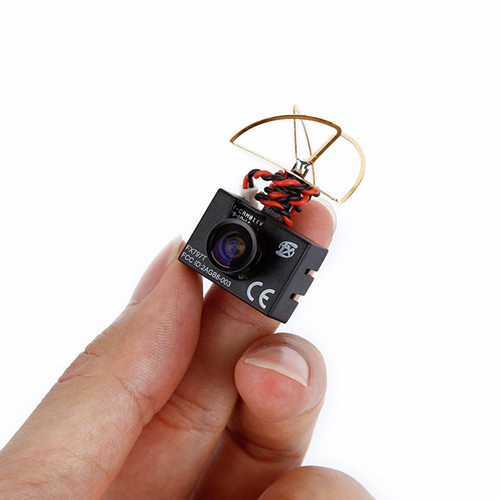

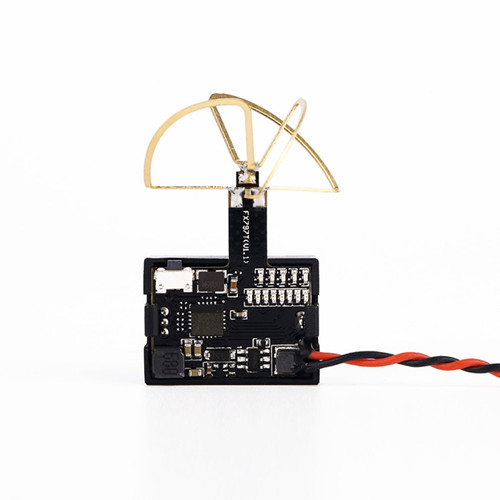

FX797T 5.8G 25mW 40CH AV Transmitter With 600TVL Camera
FX797T 5.8G 25mW 40CH AV Transmitter With 600TVL Camera
1. Micro Size and Light weight
2. Easy installation for racing drone
3. Five bands 40 channels with Raceband
4. Button Control Instead Of Switch
Brand: FX
Item Name: FX797T 5.8G 25mW Transmitter With 600TVL Camera
Output power: 25mW
Input power: 2.5–5V
Current Consumption: 230mA
Camera resolution: 600TVL
Min illumination: 1 lux
Field of view: 120° viewing angle
Antenna dimensions: 20mm X 25mm diameter
Antenna: 3 lobe right hand circular polarized
Video output: NTSC
Frequency: 5.8GHz 5 bands 40 channels, with Raceband: 5658-5917MHz

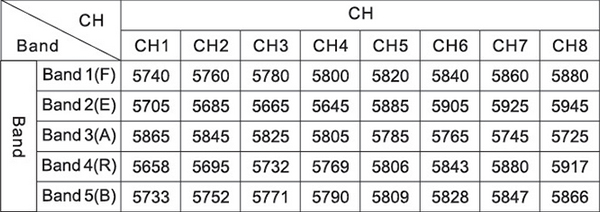

Bands: see below channel table.

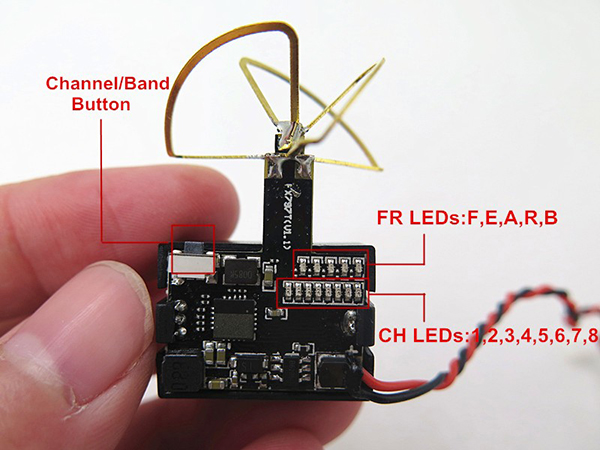

Push button operation, long press for band, short press for channel
2 row LED indicators, 5 LED for band, 8 LED for channel
Size: 17x20mm
Weight: 4.5g
1 x FX797T 5.8G 25mW Transmitter With 600TVL Camera and Antenna
1 x manual
