G.T.Power 2-3S Parallel Charging Board JST Plug Para Board for IMAX B6 ISDT Q6 D2 Battery Charger RC Models DIY Accessories
G.T.Power 2-3S Parallel Charging Board JST Plug Para Board for IMAX B6 ISDT Q6 D2 Battery Charger RC Models DIY Accessories
Reduce charging time: the parallel charging board could help to charge up to 8 batteries at the same time instead of balancing batteries one by one, significantly accelerate battery charging speed.
Support multiple Batteries: could charge 2S or 3S LiPo, LiFe and Li-ion battery.
Support JST plug battery.
Support multiple balance charge such as imax B6, B6AC and so on.
Mini Size: 93 * 53 * 28mm, easy to carry and durable use.
Item Name: Battery Parallel Charging Board
Support Battery Cell: 2S/3S
Support Battery: LiPo, LiFe, Li-ion
Support Charger: imax B6 B6AC balance charger etc.
Support Battery Connector: JST
Current Input Connector: XT60, 4mm banana plug
Total Current: <10A
Jst Output Current for one: <3A
Total Current of Balancing Port: <3A
Total Voltage: <36V
Dimension: 93 * 53 * 28mm
Weight: 76g
Note: the parallel charging board only support charging 1-8pcs batteries with the same voltage (2s or 3s) and the same type (LiPo, LiFe or Li-ion) at the same time.

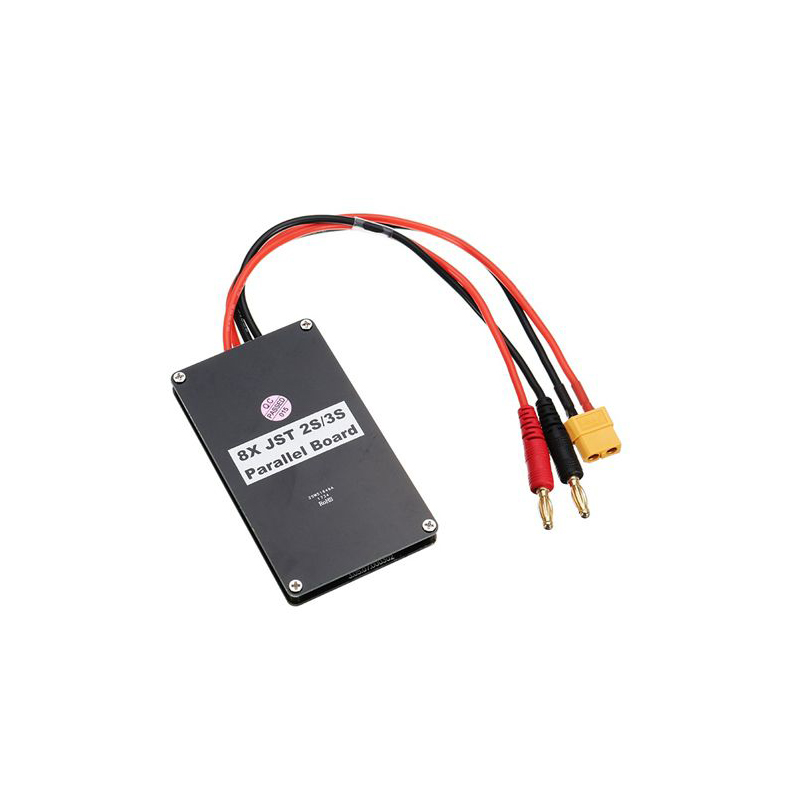

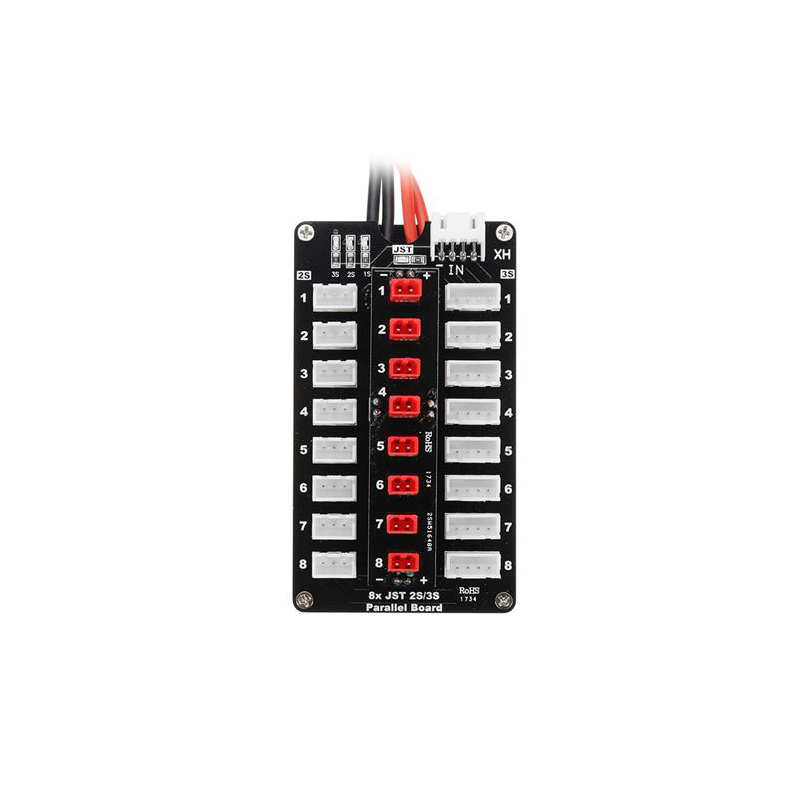

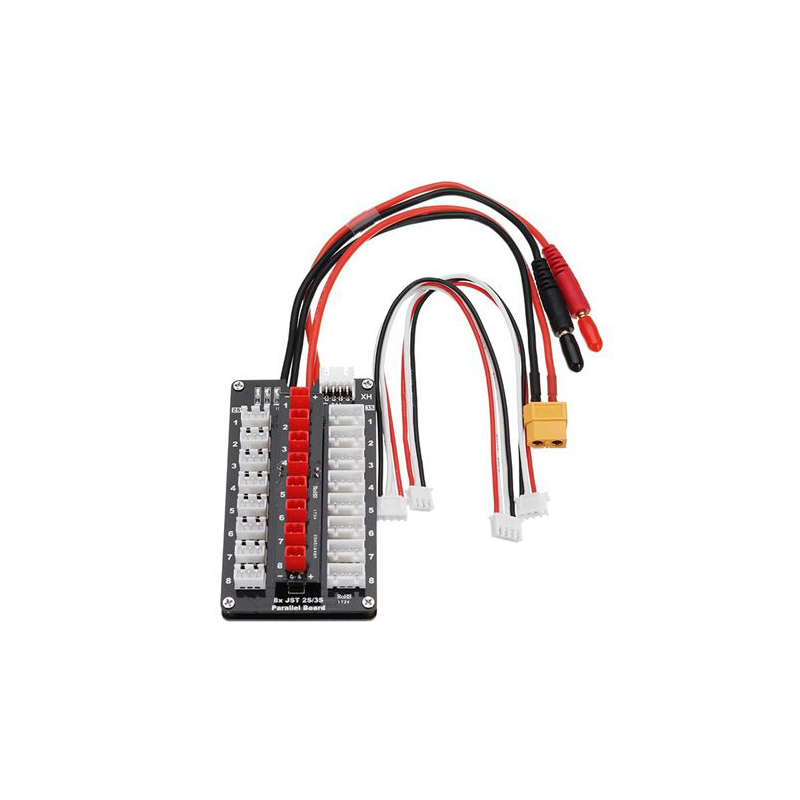

1 * 8X JST Plug 2S/3S Battery Parallel Charging Board
