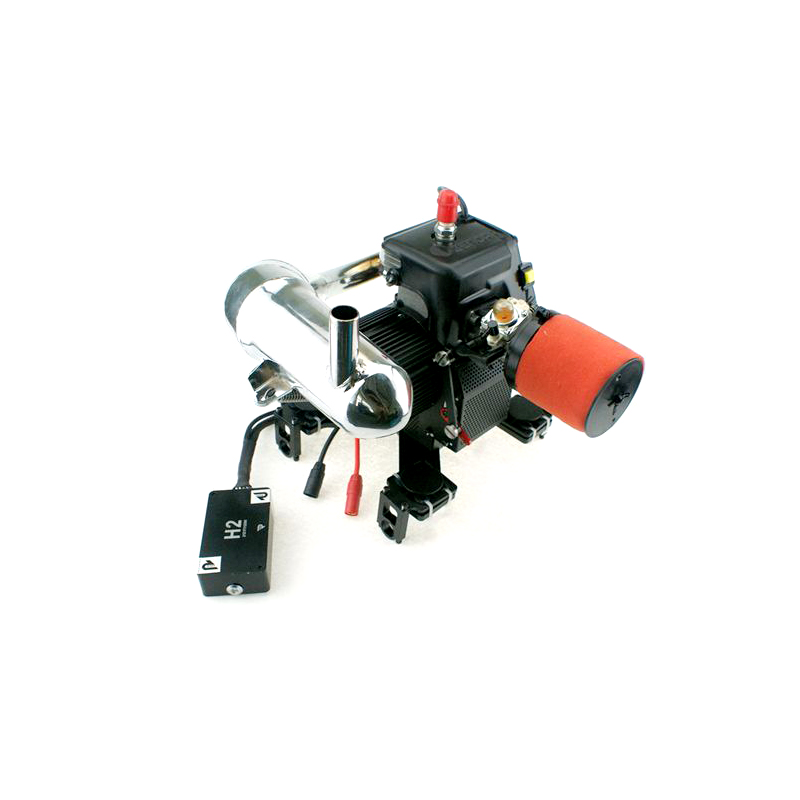

H2 Plus 2.4KW Hybrid Engine Apply to 18kg (40 lbs) Take-off Weight Quadcopters Hexacopters or VOTL
H2 Plus 2.4KW Hybrid Engine Apply to 18kg (40 lbs) Take-off Weight Quadcopters Hexacopters or VOTL
Replace heavy batteries with H2 hybrid engine. More than two hours can the drone fly. Make your drone more useful.
INDUSTRIAL standard designed and manufactured Apply to 18 kg (40 lbs) take-off weight Quadcopters, Hexacopters or VOTL.
Maximium payload is 5 kg (11lbs), Cruise time 2+ hours with 3 kg (6.6lbs) payload
Environmental temperature between -20° and 40°C (-4° and 104°F). H2 is available in extremely cold areas without preheating.
Plug & Play. Easy to mount on to your UAVs drones only by screwing
DC 48V/12S output easy as batteries
LOW Cost. Fulfill Automotive regular gasoline
Model: H2plus
Weight: 5.4kg(11.9lbs) without batteries
Power: 1.9kW(2.6hp) Continuous /2.4kW(3.2hp) Max. Power
Dimension（L x W x H): 360 x 216 x 260 mm/14 x 8.5 x 10 in
Applicable UAV Types: Multicopters & VTOL Fix-wings
Max. Take-off Weight: 20kg(44lbs) or UAV suggested
Output Voltage: 12 S (49V)
Fuel consumption: 950 g/kw·h(hovering 2.5 L/h)
Service Temperature: -20 ~ 40 °C / –4 ~ 104 °F
Ceiling (above the sea): 1000 m / 3280 ft / 1.9kW@1000m
Rotating direction: Clock wise (view from starter)
Fuel: Automotive #95 or above + 2T oil

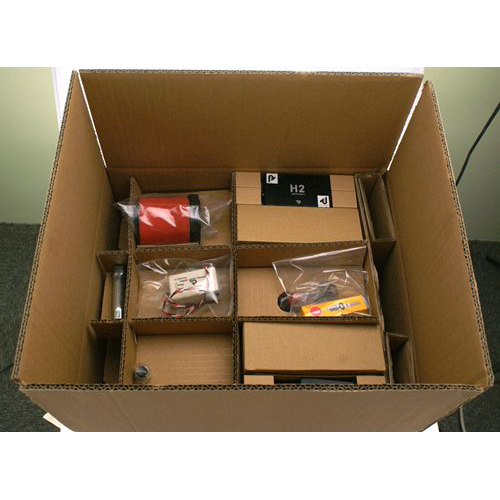

H2 Plus Hybrid Engine x 1set
